VP67 Fieldpiece Vacuum Pump 6 CFM

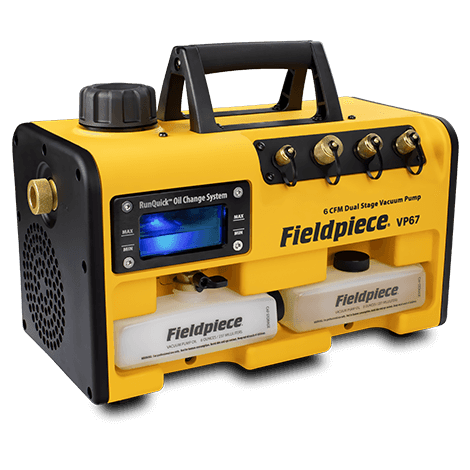

VP67 Fieldpiece Vacuum Pump-6CFM

Our Price: $464.68


Product Code: FPIVP67
Qty:

Description Prop65

Reliable, versatile and powerful.

  • 6 CFM flow rate with 15 microns ultimate vacuum
  • ½ HP AC motor
  • RunQuick™ Oil Change System offers on-the-fly oil change in seconds
  • Backlit oil reservoir – allows you to view condition of oil and system
  • Extra oil bottle storage
  • Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
  • Sturdy base stays upright
  • Small footprint – 1,346 cubic inches
  • Quarter-turn gas ballast with LED indicator
  • Convenient, removable cord storage
  • A2L certified
Shorter evacuations. More business.
Pick up a VP67 Vacuum Pump if you want to make more service calls per day. This new lightweight,
Product Features

Specifications
  • Flow Rate: 6CFM
  • Oil Capacity: 8oz (237mL)
  • Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
  • Fieldpiece part numbers: OIL8X3, OIL32, OIL128
  • Oil Backlight: Blue LED
  • Oil Drain: Ball valve
  • Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”
  • Compressor: Rotary vane, two stage
  • Motor: 1/2 HP AC
  • RPM: 3440
  • Power Source: 120 VAC @ 60 Hz 1 phase
  • Nominal Current Draw: 5.0 AAC
  • Ultimate Vacuum at Input Ports: 15 microns
  • Dimensions: 7.9 inch x 11.7 inch x 16.0 inch (201 mm x 296 mm x 406 mm)
  • Weight: 29 lb / 13.2 kg
  • Operating Environment: 30°F to 122°F (-1.1°C to 50°C)
