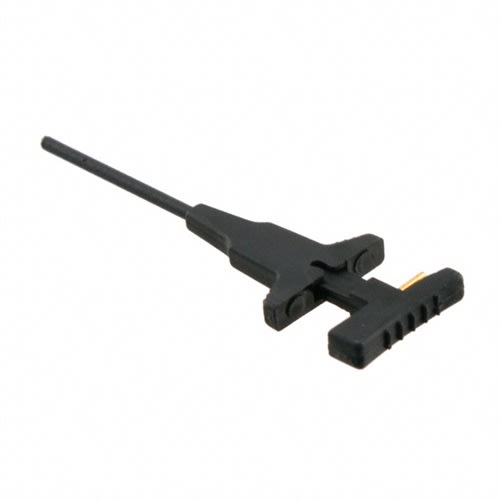

MC1B TPI Surface Mount Micro Clip Black 1 Micro Clip Only

MC1B TPI Surface Mount Micro Clip Black 1 Micro Clip Only

Price $11.50


Product Code: TPIMC1B
Qty:

Description Prop65

Access 0.3mm or 1.27mm Pitch Leads. Allows you to attached the clip to a lead on the smallest of surface mount IC’s. Normal oscilloscope lead tips are too large and the probe handle is too heavy to access these leads. Gold-Plated hood and contact Ensure minimal signal loss and constant contact with highly conductive gold plating. Fluorine Resin coated barrel extension. The barrel of the clip is fully insulated eliminating the chance of clip shorting together.
Product Features
DESCRIPTION AND COLOR CHOICE SETS
Part No. Description Package Includes
NANO CLIPS 0.3 mm
NC2BR black, red 2 clips, 2 lead sets, and ground lead
NC6BR black, red 6 clips, 3 lead sets, and ground lead
NC6R red 6 clips, 3 lead sets, and ground lead
NC6B black 6 clips, 3 lead sets, and ground lead
NC6Y yellow 6 clips, 3 lead sets, and ground lead
NC6CBIue blue 6 clips, 3 lead sets, and ground lead
NC6G green 6 clips, 3 lead sets, and ground lead
NC6GY gray 6 clips, 3 lead sets, and ground lead
NC12 assorted 12 clips, 6 lead sets, and ground lead
NC1B black 1 clip
NC1GY gray 1 clip
NC1Y yellow 1 clip
NC1G green 1 clip
NC1Blue blue 1 clip
NCGround ground 1 lead
NCHot hot 1 lead
NCDual dual lead 1 lead
LC85 lead out contact Use with 24-28 AWG wire (solder type)
LC65 lead out contact Use crimp tool for Nano clips and micro clips
MICRO CLIPS 1.27 mm
MC1B black 1 clip
MC1G gray 1 clip
MC1R red 1 clip
MC6 assorted 6 clips
MC12 assorted 6 clips, 3 lead sets, and ground lead
