10056 Master Appliance Solderseal Butt Splice Connector MiniPak 55 Pcs

10056 Master Appliance Solderseal Butt Splice Connector MiniPak 55 Pcs

Price $36.30


Product Code: MTA10056
Qty:

Description Prop65


10056 Solderseal™ Butt Splice Connector MiniPak (55 Piece) - High quality, sealed solder connection that takes the guess-work out of soldering watertight connections.

With the application of heat, Master Solder and Heat Seal connectors create high quality, heat sealed solder connections that take the guess work out of soldering and sealing water tight connections.

To install:

  1. Strip and slide the intermingled wires into the connector.
  2. Apply heat to the connector until the solder flows, the adhesive flows, and the tubing recovers.
  3. Allow the connector to cool.

They are available in standard assortment packs and minipacks. Choose Master Solder and Heat Seal connectors when you want strength and superior conductivity.

Product Features
  • High quality, sealed solder connection that takes the guess-work out of soldering watertight connections
  • Low Temperature pre-measured solder with flux for greater tensile strength and superior current flow
  • Uniform adhesive flow does not overflow onto terminal to impede contact
  • Heat shrink tubing does not reduce in length creating better insulation along with superior wire support and strain relief
  • Translucent, adhesive-lined polyolefin shrink tubing
    • Allows visual inspection, prevents wire corrosion, and provides a water and contaminant resistant seal
  • Ensures the original integrity of wire connections and wiring harnesses and conforms with OEM standards
  • 102 lbs tensile strength
  • Refills available in bags of 10 or 50

Solderseal™ Specifications:

  • Temperature Rating: -67°F to 230°F (-55°C to 110°C)
  • Longitudinal Change: +1, -10%
  • Recovery Temperature: 275°F (135°C)
  • Dialectic Strength: 900 Volts/Mil.
  • UL Voltage Rating: 600 Volts
  • Corrosion Resistance: Non-corrosive
  • Fungus Resistance: Non-nutrient
  • Water Absorption: <0.1%

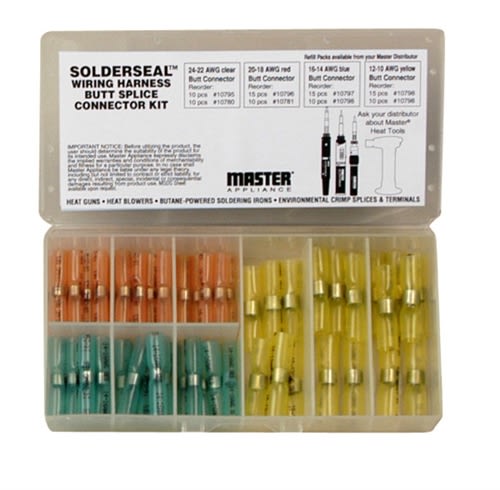

Kit Includes:

  • 10 each 22-24 AWG, Red
  • 15 each 18-20 AWG, Red
  • 15 each 14-16 AWG, Blue
  • 15 each 10-12 AWG, Yellow
