SE-3002 Schumacher Battery Charger Parts List



Schumacher SE-3002 Repair Parts
Part No.
Description
Qty
0090026058
115 Volt Power Cord
1
0499000066
3 Position Slide Switch (8 Pins)
1
2299000810
Heatsink Rectifier Assembly
1
3599000240
Battery Charger Handle
1
3899000767
Output Cables and Clamp Set (Red & Black)
1
3999000080
Circuit Breaker 12 Volt 12 Amp
1
5399100102
Ammeter Horizontal 0-8 Amp
1
RR50
Rectifier Diode Replacement Kit
1


Schumacher SE-3002 Troubleshooting Guide
PROBLEM POSSIBLE CAUSE SOLUTION
No meter reading. Charger is not plugged in / Connections are reversed. Plug in / With charger unplugged, reverse clips and reconnect (rock back and forth to bite in).
Poor electrical connection Clean clips and battery poles and reconnect (roll back and forth to bite in).
AC outlet is dead Plug in a lamp or other appliance to check for boltage.
Battery is defective (will not accept a charge). Have battery checked.
Charger will not taper down. Bahhery has problem and will not take full charge. Have battery checked.
High meter reading. Battery is defective (will not accept a charge). Have battery checked.
Charging current is less than full output rating of charger. Battery is partially charged. Continue charging.
Battery is defective (battery plates are crusted) and will not accept a full charge. Have battery checked and replace.
AC power supply is low Plug charger into another grounded AC outlet.
Ammeter needle moves to extreme right, remains a short time, then retruns to zero, accompanied by a clicking sound. Severely discharged battery (but otherwise good battery). Allow charging to continue until battery has recovered sufficiently to take a charge (Circuit breaker will continue to cycle and needle will swing side to side until battery has recovered).
Battery is defective (will not accept a charge). Have battery checked.
Charger is cycling after circuit breaker overload. Wait until charger automatically resets itself (DO NOT RETURN FOR SERVICE).
Schumacher User Manual Link


When a charging problem arises, make certain that the battery is capable of accepting a normal charge. Double check all connections, AC outlet for a full 120-volts, charger clips for correct polarity and the quality of the connections from the cables to the clips and from the clips to the battery system. The clips must be clean.

When a battery is very cold, partially charged or sulfated, it will not draw the full rated amperes from the charger. It is both dangerous and damaging to a battery to force higher amperage into it than it can effectively use in recharging.

Sort By:
Page of 1
0090026058 Schumacher Power Cord 0090026058 Schumacher 115 Volt Power Cord

115 Volt Power Cord 3 Prong. Termination Specs, 1/8" Shielded Female Quick Connect (Black), Ring Terminal (Ground), Split Terminal (Black).

Discontinued
0499000031 Schumacher 3 Position Slide Selector Switch (8 Pin) 0499000031 Schumacher 3 Position Slide Selector Switch (8 Pin)

3 Position Slide Selector Switch. 8 pins. 13 amp 125 volt rating. Has removable jumper between pins 3 and 6. 1.40" hole centers.

Discontinued
0499000066 Schumacher 3 Position Slide Switch (8 pins) 0499000066 Schumacher 3 Position Slide Switch (8 pins)

Schumacher 3 Position Slide Switch, Double row contacts (8 pins). 13 Amp 125 VAC. 6.5 Amp 250 VAC. See 0499000031 and remove jumper.

Discontinued
2299000810 Schumacher Heat Sink 2299000810 Schumacher Heatsink Rectifier Assembly

2299000810 Schumacher Heat Sink Dual Diode Assembly with male 1/4" spade terminals.

Discontinued
3599000240 Schumacher Battery Charger Handle 3599000240 Schumacher Battery Charger Handle

3599000240 Schumacher Battery Charger Handle. Works with many other brand chargers. 9.75" Total Length.

Discontinued

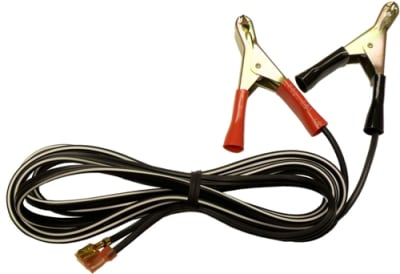

3899000767 Schumacher Clamps Cables Red & Black Set 18 Gauge 84" 3899000767 Schumacher Clamps Cables Red & Black Set 18 Gauge 84"

Battery Charger Clamps Cables Red & Black Set. 7ft Long, 18ga, 1/4" 90 Quick disconnect on negative wire, Barrel terminal post connector on positive wire. Used on chargers with 25 amp max rates. Can be used as a generic replacement for small chargers.

Discontinued
3999000080 Schumacher Circuit Breaker 12 Volt 12 Amp 3999000080 Schumacher Circuit Breaker 12 Volt 12 Amp

Single Pole Thermal Type Breaker, bracket type mounting for universal applications, 10-32 Studs for easy wire connections. 12 Volt 12 Amp each. Sold unassembled, keep your original hardware and bus bars as these are sold individually with no hardware or nuts.

Price $16.03

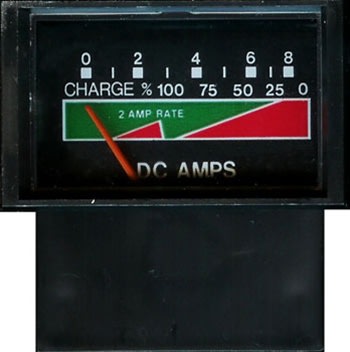

5399100102 Schumacher Ammeter Horizontal 0-8 Amp 5399100102 Schumacher Ammeter Horizontal 0-8 Amp

Ammeter Horizontal 0-8 AMP features easy snap-in installation, no tools required. Red Green Charge Rate face with 0-100% Battery charge level scale. 0-8 Amp range and 1/4" Spade Terminal Connections for ease of installation.

Price $24.65


*Variations of models due to production changes and parts availability are not our responsibility
*No refunds on electrical components
*Service should be performed only by a qualified technician
*Please read all supporting documentation and safety instructions
