SC640 Fieldpiece Swivel Meter-TRMS

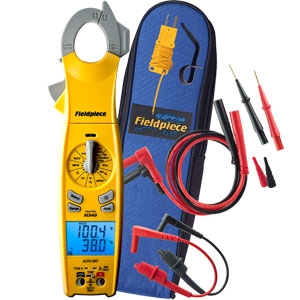

SC640 Fieldpiece Loaded Clamp Meter

Price $256.29


Product Code: FPISC640
Qty:

Description Prop65

SC640 Fieldpiece Loaded Clamp Meter - Locked and Loaded. Top-of-the-LIne Meter Has it All. The SC640 clamp meter is packed with more features and measurements than any clamp meter in the HVACR industry.  The loaded SC640 features lead storage, a swivel head, test lead holder, heavy duty magnetic strap, jaw flashlight, and a backlight on the dial so you can easily choose the right measurement in poorly lit spaces.  Plus the SC640 hosts all the electrical measurements HVACR pros use everyday, along with features like True RMS, Inrush current, capacitance, temperature, duty cycle, and microamps DC.
Product Features
  • Swivel-head with LED jaw flashlight
  • Selector dial backlight
  • Large backlit display
  • Magnetic strap
  • Lead storage
  • Volts AC/DC
  • True RMS
  • Inrush current
  • Swivel clamp
  • Magnetic strap
  • Probe storage
  • Dual display
  • Temperature F/C
  • Capacitance
  • Duty cycle %
  • 400 amps AC
  • Microamps DC
  • Frequency via leads and clamp
  • Non-contact voltage
  • 50 Mega Ohm with 0.1 resolution
  • Continuity
  • Diode test
  • Hold
  • Clamp probe holder
  • Dial backlight
  • Clamp jaw light
  • LCD backlight
  • Low battery indicator
  • Hi-voltage Warning

Included Items:

  • SC640 Meter
  • ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
  • ATB1 Wrap Tab Type K Thermocouple
  • ASA2 Short Alligator Lead Extensions
  • Velcro Strap
  • 9V Battery
  • ANC7 Padded Case
SC640 Specifications
Function
Range
Best Accuracy
Best Resolution
Volts AC
600
1.2%±8 0.0001
Amps AC
400
2.0%±10 0.01
Volts DC
600
0.5%±2 0.0001
µAmps DC
500
1.0%±2 0.1
Ohms
50M
1.0%±5 0.1
Microfarads
5000
3%±5 0.001
Hz (clamp)
10 to 400
0.1%±5 0.1
Hz (leads)
10 to 1M 0.1%±5 0.1
Duty Cycle %
5 to 95 2%±10 0.1
°F
-30°F to 932°F ±1°F* 0.1
Battery
9 Volt, 100 hrs typical battery life (Alkaline)

* System accuracy (SC640 meter + Type K thermocouple after field calibration)
