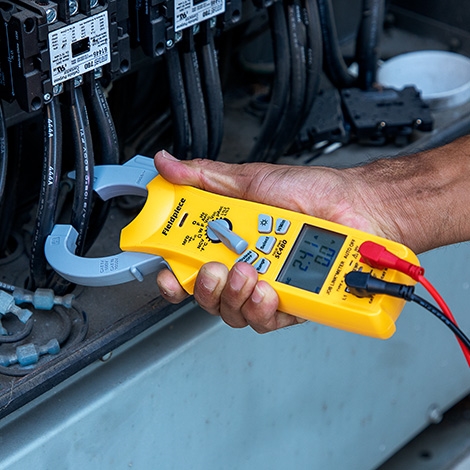

SC480 Fieldpiece Power Clamp-Job Link ®

SC480 Fieldpiece Power Clamp-Job Link ®

Alternative Views:
Our Price: $331.92


Product Code: FPISC480
Qty:

Description Prop65

One meter for every system.
  • Wireless direct to Job Link® System for electrical documentation
  • Low Pass Filter for VFD systems
  • Molex test leads for small circuitry
  • Test 3-phase with two leads
  • Safety rated CAT IV – 600V/CAT III – 1000V
Test HVACR electrical equipment using phase rotation, True RMS, and Inrush features. Plus connect directly with the Job Link® System app to document electrical measurements.
Electrical Testing for HVACR
True RMS readings through the clamp or leads. Inrush current mode to capture starting amps.
Test 3-Phase Power with Only Two Leads
With an alligator test lead (included) connected to L1, you can determine phase rotation with one hand.
Product Features

Specifications
  • Display: 10000 count dual display
  • Backlight: 5 minute duration with auto-off, blue color
  • Overrange: “OL” or “-OL” is displayed
  • Measurement rate: 3.3 times per second, nominal
  • Zero: Automatic
  • Operating environment: 32°F to 122°F (0°C to 50°C) at <70%RH
  • Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80%RH (with battery removed)
  • Accuracy: Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
  • Temperature coefficient: 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C (82°F to 122°F)]
  • APO (Auto Power Off): Approx. 30 minutes
  • Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
  • Battery life: 100 hours typical alkaline (No wireless, no backlight)
  • Low battery indication: Battery icon blinks and “batt” is displayed when the battery voltage drops below the operating level
  • Dimensions: 247mm(H) x 79mm(W) x 48mm(D)
  • Weight: Approx. 345g including battery
  • Altitude: Up to 6562 ft (2000m)
  • Overload protection: 1000VDC or 750VAC rms unless otherwise stated
  • Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIV 600V, CATIII 1000V or above
  • Included test leads are gold-plated and have removable safety caps
