SC420 Fieldpiece Essential Clamp Meter

SC420 Fieldpiece Essential Clamp Meter



Product Code: FPISC420
Discontinued - see FPISC440

Description Prop65

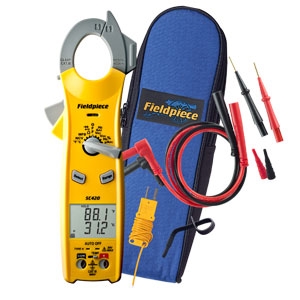

SC420 Fieldpiece Essential Clamp Meter - Full Featured for a Great Price. Dual Display. The SC420 is an essential meter for HVACR professionals.  It’s an auto or manual ranging clamp meter that includes the electrical ranges students and technicians use for most HVACR work, plus temperature, capacitance and duty cycle - all for a great price. It also has several safety features like a high-voltage LED and beeper, a continuity warning, push button non-contact voltage (NCV), a lead holder on the clamp, and MAX hold so you can concentrate on the test point, hook up, and see the results after you’ve disconnected.
Product Features
  • Voltage and amperage readings at the same time
  • Extreme temperature tolerances
  • Rugged casing
  • Test-lead holder for safer electrical testing
  • Volts AC/DC
  • Duty cycle %
  • 400 Amps AC
  • Dual display
  • Temperature F/C
  • Capacitance
  • Microamps DC
  • Frequency via leads and clamp
  • Non-contact voltage
  • 50 Mega Ohm with 0.1 resolution
  • Continuity
  • Diode Test
  • Hold
  • Test-lead holder
  • Low battery indicator
  • Ho-voltage Warning

Included Items:

  • SC420 Meter
  • ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
  • ATB1 Wrap Tab Type K Thermocouple
  • Velcro Strap
  • 9V Battery
  • ANC12 Padded Case
SC420 Specifications
Function
 		Range
 		Best Accuracy
 		Best Resolution
Volts AC
 600
 1.2%±8 0.0001
Amps AC
 400
 2.0%±10 0.01
Volts DC
 600
 0.5%±2 0.0001
µAmps DC
 500
 1.0%±2 0.1
Ohms
 50M
 1.0%±5 0.1
Microfarads
 5000
 3%±5 0.001
Hz (clamp)
 10 to 400
 0.1%±5 0.1
Hz (leads)
 10 to 1M 0.1%±5 0.1
Duty Cycle %
 5 to 95 2%±10 0.1
°F
 -30°F to 932°F ±1°F* 0.1
Battery
 9 Volt, 150 hrs typical battery life (Alkaline)

* System accuracy (SC420 meter + Type K thermocouple after field calibration)
