SC240 Fieldpiece Compact Clamp Meter

Product Code: FPISC240

Discontinued - see FPISC260

Description

Prop65

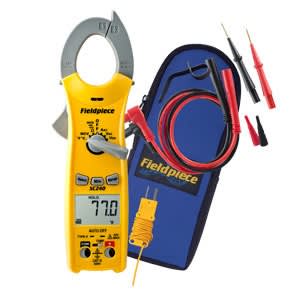

SC240 Fieldpiece Compact Clamp Meter - Packed with HVACR Features. Compact, Capable, Convenient. The SC240 Compact Clamp Meter with Temperature packs a big punch in a compact meter. With features that rival many full-sized clamp meters, this auto ranging digital multimeter packs a ton of functions into a compact, easy to handle shape. It includes temperature in both Fahrenheit and Celsius, capacitance as well as non-contact voltage indicators. It also packs in most of the other HVACR ranges you use everyday. Some technicians use the SC240 as their everyday DMM, others as a back-up or second meter to get more testing done in less time. This compact HVACR clamp meter was deigned to make your job easier, safer, and faster no matter where you choose to rank it in your bag.

Product Features

Temperature
Rugged display
Capacitance
Non-contact voltage
Volts AC/DC
400 Amps AC
Temperature F/C
Capacitance
Non-Contact Voltage
40 Mega Ohm with 0.01 Resolution
Continuity
Diode Test
Max/Min/Hold
Low Battery Indicator
Hi-voltage Warning

Included Items:

SC240 Meter
ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
ATB1 Wrap Tab Type K Thermocouple
Velcro Strap
9V Battery
ANC4 Padded Case

SC240 Specifications
Function	Range	Best Accuracy	Best Resolution
Volts AC	600	1.2%±8	0.001
Amps AC	400	2.0%±10	0.01
Volts DC	600	0.5%±2	0.001
Ohms	40M	1.0%±5	0.01
Microfarads	400	3%±5	0.001
°F		±1°F *	0.1
Battery	9 Volt, 200 hrs typical battery life (Alkaline)

*System accuracy (SC240 meter + Type K thermocouple after field calibration)
