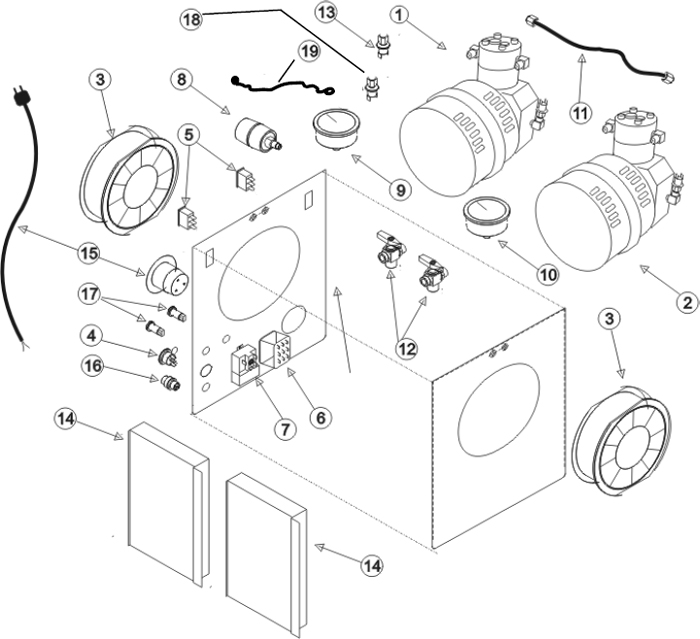

RefTec HandiVac Recovery Unit Parts SN 36046 & Later

Ref. Item Description 115V 240V
1 COMPRESSOR ASSY (NO MOTOR) CPK500 CPK500
2 COMPRESSOR MOTOR EMO750 EMO751
3 COOLING FAN EMO136 EMO035
4 FLOAT BYPASS SWITCH ESW002 ESW002
5 CIRCUIT BREAKER SWITCH EBR015 EBR015
6 3PDT RELAY ERY352 ERY351
7
7 		START CAPACITOR (Not Shown)
START RELAY 		ECP189
ERY120 		ECP189
ERY121
8 EXTERNAL FILTER DRIER RFD154 RFD154
9 LOW PRESSURE GAUGE RGA502 RGA503
10 HIGH PRESSURE GAUGE RGA802 RGA803
11 12" REFRIGERANT HOSE RHH011 RHH011
12 MANIFOLD MVH007 MVH007
13 HIGH PRESSURE CUT-OUT SWITCH XSW550 XSW550
14 CONDENSER COIL RCC019 RCC019
15 MALE INLET (115V) / POWER CORD (240v) EMI115 ECA240
16 FLOAT CONNECTOR ETC005 ETC005
17 INDICATOR LIGHT ELT002 ELT003
18 LOW PRESSURE SWITCH XSW010 XSW010
19 7" REFRIGERANT HOSE RHH009 RHH009

REFTEC Diablo Compressor Parts Detail
HANDIVAC COMPRESSOR REPLACEMENT PARTS
#
Qty
Part Number
Description
1
1
RSCP051
BLOCK
2
1
RSCP02
COMPRESSOR CYLINDER
3
1
RSCP01
COMPRESSOR HEAD
4
1
RSC019
LIP SEAL
5
1
RSC106
COVER PLATE
6
1
RSC108
COMPRESSOR COUNTER WEIGHT
7
1
CPK078
COMPRESSOR HEAD KIT
8
1
CPK077
COMPRESSOR PISTON KIT
9
2
CPK076
COMPRESSOR O-RING KIT
10
5
RSC024
SCREW SOCKET HEAD CAP ¼-20 X 1.00 LONG STEEL BLACK
11
4
RSC025
SCREW SOCKET HEAD CAP ¼-20 X 3.00 LONG STEEL BLACK
12
1
RSC250
SUCTION VALVE PLUG
13
1
RSP08
DISCHARGE PLUG / WITH O-RING

Sort By:
Page of 1
CPK076 Reftec Compressor O-Ring Kit CPK076 Reftec Compressor O-Ring Kit

CPK076 RefTec Compressor O-Ring Kit includes front plate o-ring, cylinder o-rings and head o-rings.

Price $16.00
CPK077 Reftec Compressor Piston Assy CPK077 Reftec Compressor Piston Assy

CPK077 RefTec Compressor Piston Assy

Price $205.00
CPK078 Reftec Suction/Discharge Valve Kit CPK078 Reftec Suction/Discharge Valve Kit

CPK078 RefTec Suction/Discharge Valve Kit

Price $16.00
CPK500 Reftec Compressor Assembly CPK500 Reftec Compressor Assembly

CPK500 Reftec Compressor Assembly

Price $650.00
ECP189 Reftec Start Capacitor ECP189 Reftec Start Capacitor

ECP189 RefTec Start Capacitor

Price $8.93
ELT003 Reftec Indicator Light ELT003 Reftec Indicator Light

ELT003 RefTec Indicator Light

Price $7.74
EMI115 Reftec Male Inlet EMI115 Reftec Male Inlet

EMI115 RefTec Male Inlet

Price $14.88
EMO035 Reftec Cooling Fan 240v EMO035 Reftec Cooling Fan 240v

EMO035 Reftec Cooling Fan 240v

Price $39.55
EMO136 Reftec Cooling Fan 115v EMO136 Reftec Cooling Fan 115v

EMO136 Reftec Cooling Fan 115v

Price $74.38
ERY352 Reftec TPDT Relay ERY352 Reftec TPDT Relay

ERY352 Reftec TPDT Relay

Price $7.14
ESW002 Reftec Float Bypass Switch ESW002 Reftec Float Bypass Switch

ESW002 RefTec Float Bypass Switch

Price $8.93
ETC005 Reftec Float Cable Connector ETC005 Reftec Float Cable Connector

ETC005 RefTec Float Cable Connector

Price $26.78
MVH007 Reftec Manifold Assy. MVH007 Reftec Manifold Assy.

MVH007 Reftec Manifold Assy.

Price $336.77
RCC019 Reftec Condenser Coil RCC019 Reftec Condenser Coil

RCC019 RefTec Condenser Coil

Price $71.40
RGA501 Reftec Low Pressure PSI Gauge (Back Tap) RGA501 Reftec Low Pressure PSI Gauge (Back Tap)

RGA501 RefTec LOW PRESSURE PSI GAUGE (Back Tap)

Price $41.65
RGA503 Reftec Low Pressure Mpa Gauge (Bottom Tap) RGA503 Reftec Low Pressure Mpa Gauge (Bottom Tap)

RGA503 RefTec LOW PRESSURE Mpa GAUGE (Bottom Tap)

Price $26.78
RGA801 Reftec High Pressure PSI Gauge (Back Tap) RGA801 Reftec High Pressure PSI Gauge (Back Tap)

RGA801 RefTec HIGH PRESSURE PSI GAUGE (Back Tap)

Price $41.65
RGA803 Reftec High Pressure Mpa Gauge (Bottom Tap) RGA803 Reftec High Pressure Mpa Gauge (Bottom Tap)

RGA803 RefTec HIGH PRESSURE Mpa GAUGE (Bottom Tap)

Price $26.78
RHH011 Reftec Internal Refrigerant Hose RHH011 Reftec Internal Refrigerant Hose

RHH011 RefTec Internal Refrigerant Hose

Price $47.60
RSC019 Reftec Compressor Shaft Seal RSC019 Reftec Compressor Shaft Seal

RSC019 RefTec Compressor Shaft Seal

Price $49.00
RTO-500-115-F Handivac 1.5-Hp Oil-less Commercial Refrigerant Recovery Unit RTO-500-115-F Handivac 1.5-Hp Oil-less Commercial Refrigerant Recovery Unit

Tired of Slow Recovery Rates? HandiVac Offers Twice the Recovery Capacity of Typical Oil-less Units. Dual 0.75hp GoldPlus oil-less compressors double recovery rates for servicing commercial cooling units. Built-in anti-slugging feature automatically prevents liquid from harming compressors during direct liquid transfer. Oil-free compressors eliminate maintenance hassles. Easily switch between R12, R22, R134a, R500, R502, R410a, R409, MP39 and other high pressure refrigerants & blends. Automatic low pressure shut off at 15-in. Hg. Float cable connection with bypass switch included.

Published Recovery Rates
Direct Liquid - 7.80 lb/min Direct Vapor - 0.62 lb/min Push/Pull - 25 lb/min

Price $4,095.00
RTO-500-240-F Handivac 1.5-Hp Oil-less Commercial Refrigerant Recovery Unit RTO-500-240-F Handivac 1.5-Hp Oil-less Commercial Refrigerant Recovery Unit (240v)

Tired of Slow Recovery Rates? HandiVac Offers Twice the Recovery Capacity of Typical Oil-less Units. Dual 0.75hp GoldPlus oil-less compressors double recovery rates for servicing commercial cooling units. Built-in anti-slugging feature automatically prevents liquid from harming compressors during direct liquid transfer. Oil-free compressors eliminate maintenance hassles. Easily switch between R12, R22, R134a, R500, R502, R410a, R409, MP39 and other high pressure refrigerants & blends. Automatic low pressure shut off at 15-in. Hg. Float cable connection with bypass switch included.

Published Recovery Rates
Direct Liquid - 7.80 lb/min Direct Vapor - 0.62 lb/min Push/Pull - 25 lb/min

Price $4,750.00
010 Reftec Low Pressure Cut-Out Switch XSW010 Reftec Low Pressure Cut-Out Switch

XSW010 RefTec Low Pressure Cut-Out Switch

Price $49.99
XSW550 RefTec High Pressure Cut-Out Switch XSW550 RefTec High Pressure Cut-Out Switch

XSW550 RefTec High Pressure Cut-Out Switch

Price $23.80
