You are here: Home > Recovery Recycling Equipment Parts > Promax Recovery Equipment Parts > PROMAX RG3305 Recovery Unit Parts
  • Minimum size – Maximum performance; ideal for residential and appliance service
  • Proprietary “Oil-less” compressor capable of handling both liquid and vapor
  • Ergonomic design for easier handling
  • Field serviceable semi-hermetic compressor
  • Self purge feature
  • Includes Filter-Drier
  • Power Source – 115 V 60 Hz

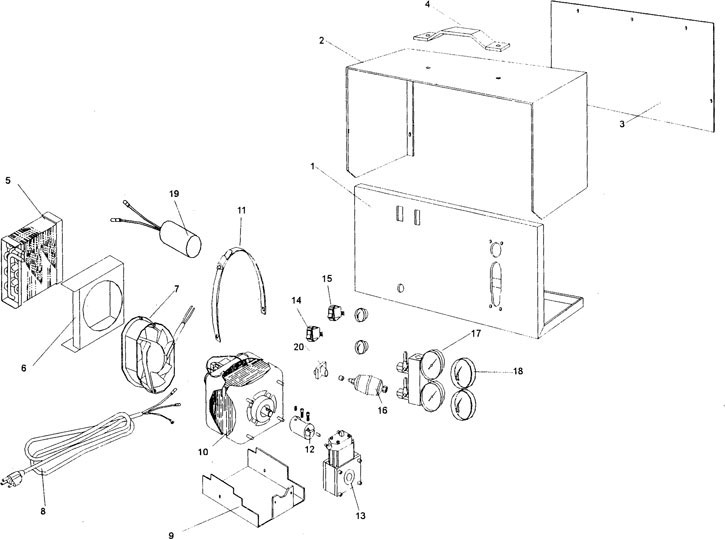

PROMAX RG3305 Parts Breakdown
Item
Description
Part No.
1
Chassis
SH1401
2
Cover
SH1402
3
Back Panel
SH1405
4
Handle
FB1301
5
Condensor (2)
CD1200
6
Fan Shroud
SH1454
7
Axial Fan (2)
EL1817
8
Cordset
WR2002
9
Motor Mount
SH2005
10
Motor
EL1821
11
Motor Clamp
NB5880
12
Coupler
CP1315
13
Compressor
CP1300
14
Power Switch
EL1310
15
Start Switch
EL1309
16
Filter
FL1201
17
Manifold
659919
18
Gauge Lens
GA1000
19
Capacitor
EL1412
20
Pressure Switch
EL2800
Replacement Kits and Accessories
Part No. Description
KT3302
Piston Seal Replacement Kit (middle section of compressor)
KT3303 Valve Replacement Kit (top section of compressor)
KT3306 Shaft Seal Replacement Kit (bottom section of compressor)
Older style seal (1/2") is no longer available
KT3305 Compressor Repair Kit (all three above kits)
Sort By:
Go
Page of 1
Quick View this Product 17506 Robinair 50lb. 1/4 Flare Refillable Refrigerant Tank
17506 Robinair 50lb. 1/4 Flare Refillable Refrigerant Tank

50lb. R-12 / Universal Gas Refillable Refrigerant Tank. Red Vapor Blue Liquid Ported Valve. 50 lb. capacity refrigerant tank for R-12, R-22, R-502 (universal) with 1/4" Flare fittings

Price $232.45
Add To Cart
Quick View this Product CP1304 PROMAX Piston
CP1304 PROMAX Piston

CP1304 PROMAX Piston

Price $45.82
Add To Cart
Quick View this Product CP1305 PROMAX Connecting Rod (CP1300)
CP1305 PROMAX Connecting Rod (CP1300) -

CP1305 PROMAX Connecting Rod (CP1300)

Discontinued
Quick View this Product CP1315-A PROMAX Offset Motor Pump Coupler
CP1315-A PROMAX Offset Motor Pump Coupler

Offset Motor Pump Coupler. Includes coupling, set screw, cap screws, dowel pin.

Price $43.99
Add To Cart
Quick View this Product CRXTOSP1 CPS 3 Pin Brad Harrison Tank Overfill Cable Shorting Plug
CRXTOSP1 CPS 3 Pin Brad Harrison Tank Overfill Cable Shorting Plug

CRXTOSP1 Tank Overfill Protection Cable Shorting Plug allows the user to override the tank float safety device on most recovery units using a 3 pin brad Harrison cable. Screws in place at the cable end allowing the unit to start. (Always use a scale for accuracy when using this device) 30 & 50 pound tanks should never be filled to a level beyond 80% of tank capacity.

Price $52.83
Add To Cart
Quick View this Product EL1309 PROMAX Momentary Switch
EL1309 PROMAX Momentary Switch

EL1309 PROMAX Momentary Switch

Discontinued
Quick View this Product EL1412 PROMAX Capacitor
EL1412 PROMAX Capacitor

EL1412 PROMAX Capacitor

Price $27.30
Add To Cart
Quick View this Product EL1420 PROMAX Sensor Cord
EL1420 PROMAX Sensor Cord

EL1420 PROMAX Sensor Cord

Price $74.48
Add To Cart
Quick View this Product EL1500 PROMAX Relay DPDT 120VAC 30A
EL1500 PROMAX Relay DPDT 120VAC 30A

EL1500 PROMAX Relay DPDT 120VAC 30A

Price $32.36
Add To Cart
Quick View this Product EL1821 PROMAX 1/2 HP AC Motor (110v)
EL1821 PROMAX 1/2 HP AC Motor (110v)

1/2 Hp Ac Motor (110v) with starting relay (not available as a seperate item)

Price $236.74
Add To Cart
Quick View this Product EL2800 PROMAX Pressure Sensor, Low (400 Psi)
EL2800 PROMAX Pressure Sensor, Low (400 Psi)

EL2800 PROMAX Pressure Sensor, Low (400 Psi)

Price $63.95
Add To Cart
Quick View this Product FLCK-1 PROMAX Filter Conversion Kit (Replaces MF1275 Swivel)
FLCK-1 PROMAX Filter Conversion Kit (Replaces MF1275 Swivel)

FLCK-1 PROMAX Filter Conversion Kit (Replaces MF1275 Swivel). Allows for use of common Filter Drier. Includes: 100343 Filter Drier, 100345 Blue 4" Hose, Flare Adapter Fitting, 1/4 seal cap with retaining strap.

Price $50.03
Add To Cart
Quick View this Product GA0350 PROMAX 350psi Gauge (Blue)
GA0350 PROMAX 350 psi Gauge (Blue)

350psi Gauge (Blue), 1/8" MPT Bottom Tap Fitting, -30"HG To 120 PSI 350 PSI Max Compound Scale, PSI/BAR pressure readings, R-12 / R-22 PT Scales

Discontinued See GA1500
Quick View this Product GA0500 PROMAX 500psi Gauge (Red)
GA0500 PROMAX 500psi Gauge (Red)

500psi Gauge (Red), 1/8" MPT Bottom Tap Fitting, 0 To 500 PSI 500 PSI Max Pressure Scale, PSI/BAR pressure readings, R-410a PT Scale

Discontinued See GA0800
Quick View this Product GA0800 PROMAX 800psi Gauge (Red)
GA0800 PROMAX 800psi Gauge (Red)

800psi Gauge (Red), 1/8" MPT Bottom Tap Fitting, 0 To 800 PSI 800 PSI Max Pressure Scale, PSI/BAR pressure readings, R-410a PT Scale

Price $31.68
Add To Cart
Quick View this Product GA1000 PROMAX Gauge Lens
GA1000 PROMAX Gauge Lens

GA1000 PROMAX Gauge Lens

Price $14.90
Add To Cart
Quick View this Product GA1500 PROMAX 500psi Gauge (Blue)
GA1500 PROMAX 500psi Gauge (Blue)

500psi Gauge (Blue), 1/8" MPT Bottom Tap Fitting, -30"HG To 250 PSI 500 PSI Max Compound Scale, PSI/BAR pressure readings, R-410a PT Scale

Price $34.50
Add To Cart
Quick View this Product KT3302 PROMAX Piston Seal Replacement Kit
KT3302 PROMAX Piston Seal Replacement Kit

This PROMAX piston seal replacement kit is to be used on the old style (round cylinder) and new style (rectangle Cylinder) compressors on RG54xx series, MiniMax Series and PROVAC Compressors.

Price $30.90
Add To Cart
Quick View this Product KT3303 PROMAX Compressor Valves And Seal Kit
KT3303 PROMAX Compressor Valves And Seal Kit

PROMAX Valve Replacement Kit is to be used on the old style (round cylinder) and new style (rectangle Cylinder) compressors on RG5410 series, MiniMax Series and PROVAC Compressors. Kit includes all necessary parts to rebuild damaged valves and seals.

Price $36.75
Add To Cart
Quick View this Product KT3306 PROMAX Bearing And Shaft Seal Replacement Kit (CP1300 Compressors)
KT3306 PROMAX Bearing And Shaft Seal Replacement Kit (CP1300 Compressors)

Shaft Seal Replacement Kit for CP1300 Compressor. Includes bearings, seals and o-rings and illustrated instructions.

Price $89.95
Add To Cart
Quick View this Product NB4205 PROMAX Connecting Rod Set Screw
NB4205 PROMAX Connecting Rod Set Screw

NB4205 PROMAX Connecting Rod Set Screw

Price $1.89
Add To Cart
Quick View this Product NB5670 PROMAX WRIST PIN 1/4" DIA X 3/4" For Connecting Rod (CP1320)
NB5670 PROMAX WRIST PIN 1/4" DIA X 3/4" For Connecting Rod (CP1320)

PROMAX WRIST PIN 1/4" DIA X 3/4" For Connecting Rod (CP1320)

Price $15.79
Add To Cart
Quick View this Product NB6501 PROMAX 1/4" Flare Cap & Strap
NB6501 PROMAX 1/4" Flare Cap & Strap

1/4 Flare Seal Cap with anchor retention strap prevents loss when not in use.

Price $12.65
Add To Cart
Quick View this Product NB9002 PROMAX E-Ring
NB9002 PROMAX E-Ring

NB9002 PROMAX E-Ring

Discontinued
Quick View this Product SB2013 PROMAX 2-013 Neoprene "O" Ring
SB2013 PROMAX 2-013 Neoprene "O" Ring

SB2013 PROMAX 2-013 Neoprene "O" Ring

Price $11.95
Add To Cart
Quick View this Product SB2026 PROMAX 2-026 Neoprene "O" Ring
SB2026 PROMAX 2-026 Neoprene "O" Ring

SB2026 PROMAX 2-026 Neoprene "O" Ring

Price $4.00
Add To Cart
Quick View this Product SB2027 PROMAX 2-027 Neoprene "O" Ring
SB2027 PROMAX 2-027 Neoprene "O" Ring

SB2027 PROMAX 2-027 Neoprene "O" Ring

Price $9.42
Add To Cart
Quick View this Product SB2038 PROMAX 2-038 Neoprene "O" Ring
SB2038 PROMAX 2-038 Neoprene "O" Ring

SB2038 PROMAX 2-038 Neoprene "O" Ring

Price $13.11
Add To Cart
Quick View this Product SB5202 PROMAX Shaft Seal (Old Compressor)
SB5202 PROMAX Shaft Seal (Old Compressor)

SB5202 PROMAX Shaft Seal (Old Compressor)

Price $24.28
Add To Cart
Quick View this Product SB5203 PROMAX Shaft Seal (New Compressor)
SB5203 PROMAX Shaft Seal (New Compressor)

Shaft Seal (New Compressor) Discontinued See KT3306 Bearing Kit Or KT3308 Seal Kit

Discontinued See KT3306 Or KT3308
Quick View this Product SB6001 PROMAX Piston Seal
SB6001 PROMAX Piston Seal

SB6001 PROMAX Piston Seal

Price $28.14
Add To Cart
Quick View this Product SH5022 PROMAX Fan Screen
SH5022 PROMAX Fan Screen

SH5022 PROMAX Fan Screen

Price $19.75
Add To Cart
Quick View this Product WR2002 PROMAX Power Cord (110v)
WR2002 PROMAX Power Cord (110v)

WR2002 PROMAX Power Cord (110v)

Price $22.72
Add To Cart
