1130 Kastar Retractable Test Leads - 30 Ft.
1130 Kastar Retractable Test Lead - 30 ft. Retractable test lead pull out and stay at desired length. Used for testing electrical circuits. Rewinds test leads into its own protective case when not in use. Has insulated alligator clip on each conductor. 18 gauge copper wire. 30 foot lead.
3902 OTC Twin 5-Foot Jumper Leads
OTC 3902 Twin 5-Foot Jumper Leads - These high visibility black and red leads stretch to over 5 ft. in length. Constructed from high quality polyurethane, these high visibility coil cord test leads have superior memory retention and resistance to grease and oil, making them a perfect compliment to any technician's arsenal of test equipment. Test leads come with a variety of interchangeable tips suited for just the right application.
3903 OTC 24-Foot Jumper Lead
OTC 3903 24-Foot Jumper Lead - Constructed from high quality polyurethane, these high visibility coil cord test leads have superior memory retention and resistance to grease and oil, making them a perfect compliment to any technician's arsenal of test equipment. Test leads come with a variety of interchangeable tips suited for just the right application. From headlight to taillight, this extra long test lead stretches to over 24 feet in length.
6405 Pomona Electronics Piercing Clips
Stainless steel probe pierces insulation on 22 to 14 AWG (0.030” through 0.180” diameter) gauge wire. You control needle depth to minimize insulation damage. Essential for use under hood or under dash. Use it on fuel injectors or sensors while providing complete insulation to grounding due to design. Banana jack accepts all DMM and banana jack leads, Non-rotating banana jack prevents leads from tangling, allowing you to tighten/loosen clamp while still connected to the test lead. For use with test leads with 4 mm banana plugs. Tested to 60 V DC.
6411 Pomona Electronics Back Probe Pin
Make connections to terminals inside connectors up to 1” (24,39mm) deep. Pin can be bent to fit into tight spaces, banana Jack fits modular test leads, such as Pomona models 5907A, 5908A and 5909A. Bright yellow color is easy to find in poor light. Not intended for hand-held use at voltages above 33Vrms / 70Vdc. Max current: 3 Amperes Max.
A054 TPI Modular Prods Test Lead Tips
TPI A054 Probe Tip Set (Sharp Steel Point With Standard Socket) (1 Black & 1 Red) - Accepts widest range of accessories, most versatile lead type.Modular Prods Test Lead Tips
A054R TPI Red Modular Prod Test Lead Tip
TPI A054R Probe Tip (Sharp Steel Point With Standard Socket) (Red) - Accepts widest range of accessories, most versatile lead type.Modular Prods Test Lead Tips
A069 TPI Plunger Clip Set
TPI A069 Plunger Clip Set (1 Black & 1 Red) - A wide range of screw-on accessories including modular adaptors.
A069R TPI Red Plunger Clip
TPI A069 Plunger Clip Set (1 Black & 1 Red) - A wide range of screw-on accessories including modular adaptors.

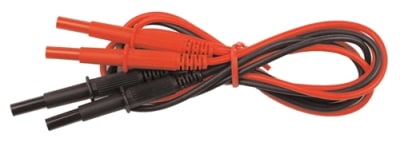

A086 TPI Shuttered Plug Test Lead Set
TPI A086 Modular Silicone Test Lead Set (Straight Shutter Plug to Straight Shutter Plug) (1 Black & 1 Red) - Accepts widest range of accessories, most versatile lead type.
AC285 Fluke Suregrip Aligator Clips
SureGrip™ accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement.
AC89 Fluke Heavy-Duty Insulation Piercing Test Clip Set
Safety-designed, clamp-type, piercing clip for use with automotive, marine, aviation or control circuits. Spring loaded stainless steel tip pierces insulated wires otherwise inaccessible test points. Extremely small piercing point to retain maximum integrity of pierced insulation High-quality insulation material resists breakage.
ADA2 Fieldpiece Leads-Shorting Alligators
ADA2 Fieldpiece Shorting Cables with Alligator Clips - The ADA2 shorting cables clip to electrical terminals for setting up temporary circuits. Each red and black cable is wrapped in vinyl insulation and reaches 3.5 feet in length. The small alligator clips are strong, yet long and thin enough to get into the tight areas commonly found in HVAC/R equipment.
ADK7 Fieldpiece Leads-Silicone Deluxe
ADK7 Fieldpiece Deluxe Silicone Test Lead Kit - The ADK7 deluxe silicone lead is the optimal way to test most electrical parameters you run into during field service. The kit includes the ADLS2 silicone leads and ASA2 alligator leads plus RCT2 probe tips. HVAC techs often remove the black probe tip (common) and insert the black alligator lead for an extended reach from ground. When used with our stick meters, the Volts (red) probe tip is inserted into the top of the meter for easy one-handed testing. Use both alligator extension to perform “no-hands” tests. Silicone test leads deliver better performance in temperature extremes than test leads insulated with vinyl.
ADLS2 Fieldpiece Leads-Silicone
ADLS2 Fieldpiece Deluxe Silicone Test Leads - The ADLS2 lead set features gold plated tips, removable tip sheaths, high copper strands and are silicone insulated. They offer basket style strain relief and fit inside the test lead holders on all of out meters that have built-in holders. They’re rugged and stand up to high and low temperatures better than traditional vinyl test leads and don’t become brittle in extreme cold.
AQK3 Fieldpiece Flame Diode Adapter Kit
AQK3 Fieldpiece Flame Diode Adapter Kit - The AQK3 Flame Diode Test Adapter Kit allows you to plug into the flame diode circuit between the controller and the flame sensing rod to check for problems. Whether you’re testing a system with a hot surface igniter or a standard burner and flame setup, the adapter kit includes both a pair of spade connector leads to enable easy connection from the AUA2 or a multimeter to quick connects, plus an adapter for controllers that require a mini-plug connection.
ASA2 Fieldpiece Leads-Alligators
ASA2 Fieldpiece Short Alligator Lead Extensions - Designed for use with our ASLS2 detachable probe tip test leads, the ASA2 Alligator Tip Lead Extensions allow you to clamp onto to test points for easy one-handed and “no-handed” testing. The small alligator clips are strong, yet long and thin enough to get into the tight areas commonly found in HVAC/R equipment.
ASLS2 Fieldpiece Leads-Silicone Fixed Tip
ASLS2 Fieldpiece Silicone Test Leads - The ASLS2 lead set features high copper strands and are silicone insulated. They offer basket style strain relief and fit inside the test lead holders on all of out meters that have built-in holders. They’re rugged and stand up to high and low temperatures better than traditional vinyl test leads and don’t become brittle in extreme cold.
TL220 Fluke Suregrip Industrial Test Lead Set
SureGrip™ accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement. Handy all-in-one kit that includes : AC220 SureGrip™ Alligator Clip Set, TP220 SureGrip™ Test Probe Set, TL222 SureGrip™ Silicone Test Lead Set (right to right), One year warranty.
TL221 Fluke SureGrip™ Test Lead Extension Set
SureGrip™ accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement. One pair (red, black) of silicone insulated leads with straight connectors on both ends. Reinforced strain relief construction. Includes one pair (red, black) of female couplers. Extends test leads by 1.5 m. 600 V CAT IV, 1000 V CAT III, 10 A rating. UL listed. One year warranty
TL222 Fluke SureGrip™ Silicone Insulated Test Leads
SureGrip™ accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement. DMM test leads (red, black) with safety shrouded, standard diameter banana plugs. Right angle connector on both ends. Reinforced strain relief construction. 1.5 meter silicone-insulated wire resists heat & cold. CAT IV 600 V, CAT III 1000 V, 10 A rating. UL listed. One year warranty.
TL224 Fluke SureGrip™ Silicone Insulated Test Leads
SureGrip™ accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement. DMM test leads (red, black) with safety shrouded, standard diameter banana plugs. Right angle connector on both ends. Reinforced strain relief construction. 1.5 meter silicone-insulated wire resists heat & cold. CAT IV 600 V, CAT III 1000 V, 10 A rating. UL listed. One year warranty.
TL75 Fluke Hard-Point Comfort grip Test Lead Set
One pair (red, black) of comfort grip probes. 48 inches (1.22 meter) PVC insulated test leads with right-angle shrouded banana plugs. Recommended for general purpose measurements. CAT IV 600 V, CAT III 1000 V, 10 A rating. UL listed. One year warranty.
TLK282 Fluke SureGrip™ Deluxe Automotive Test Lead Kit
Complete set of test and measurement accessories designed especially for automotive specialists. Use the sharp stainless steel probes to contact the wire conductor or pinpoint tests on a circuit or relay, and the large jaw alligator clips to get a good ground on the engine or to connect to the battery terminals. An extra long set of alligator clips easily grip to the alternator BAT terminal or the S terminals. The set comes with silicone test leads and a case to keep it organized.
Tested to 60 V DC
TP220 Fluke SureGrip™ Industrial Test Probes
SureGrip™ accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement. One pair (red, black) of Industrial test probes. Sharp, 12 mm stainless steel tip provides reliable contact. Flexible finger barrier improves grip. Recommended for use with TL222 and TL224 test leads. CAT IV 600 V; CAT III 1000 V, 10 A rating. UL listed. One year warranty.
