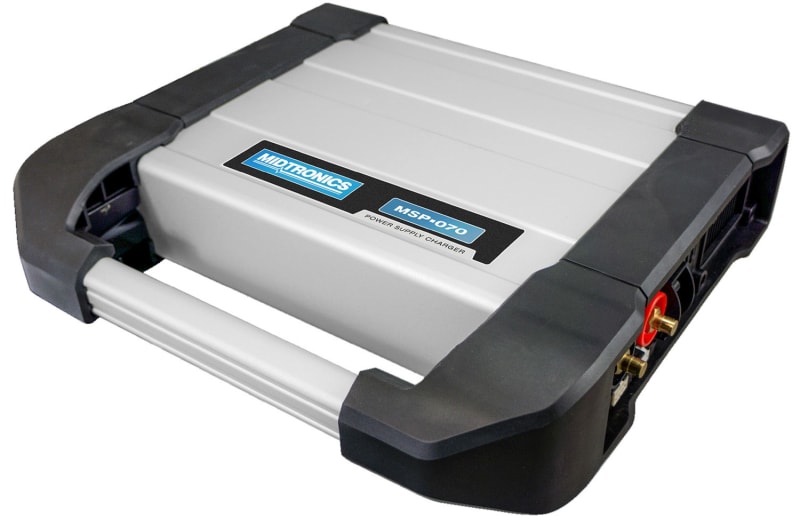

Effective, easy-to-use charging solution designed for showroom & re-flash applications. The Midtronics MSP-070 Power Supply Charger provides clean, reliable power for charging and maintaining battery state-of-charge during service re-flash, complex maintenance, and in the showroom. Features selectable voltages of 13.2, 13.6, and 14.4 VDC via 3-position switch for standard lead-acid, AGM, and EFB battery types. Avoid potential battery damage from drain during demos, display, or extended vehicle service. Maintain vehicle electronic and accessory settings. Return battery in optimum condition to prevent potential no-starts and ensure customer satisfaction. Certifications: UL, FCC, CEC (California), CUL, CE, RoHS.
Clean and Stable DC Power Supply
Selectable voltages of 13.2, 13.6, and 14.4 VDC via 3-position switch for showroom battery maintenance, reflash, and extended maintenance events. Low profile to fit under vehicles. Dynamic internal fan control offers quiet operation. CAN interface. 2m, 3m, and 5m cable length options; field-replaceable/ Integrated carry handle
Warning: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Features
- Features selectable voltages of 13.2, 13.6, and 14.4 VDC via 3-position switch for standard lead-acid, AGM, and EFB battery types
- Avoid potential battery damage from drain during demos, display, or extended vehicle service
- Maintain vehicle electronic and accessory settings
- Return battery in optimum condition to prevent potential no-starts and ensure customer satisfaction
- Certifications: UL, FCC, CEC (California), CUL, CE, RoHS
Extensive Safety & Protection Features:
- Selectable constant voltage
- Reverse polarity protection
- Clamp disconnect detection
- Circuit breaker for DC output protection
- Clamp high temperature detection
- Input surge protection
- Power factor correction
Quickly Charges Batteries
- Standard lead-acid
- AGM
- EFB
Operating Parameters Input Voltage: 110 - 240 VAC; 50 - 60 Hz; 12A max Output: 14.4 VDC; 70A maximum Temperature Operating temperature range: 0°C to +60°C (32°F to +140°F) Storage temperature range: -10°C to + 85°C (14°F to 185°F) Humidity 15% - 18% RH, non-condensing Power Cord Accepts locking C13 connector for region-specific power cables: United States: EMA 5-15 termination, rated at15A/125V UL CSA EU & Latin America: 10A/250V IEC60320 / VDE Japan: PSE 15A/125V Dimensions Height: 3.40 in (86.36 mm) Width: 10.24 in (260.00 mm) Length: 15.35 in (390.00 mm) Weight: 15.55 lbs (7.05 kg) w/o cables Weight: 19.43 lbs (8.78 kg) with cables
|
|
|
|
|
|
|
