You are here: Home > Battery Charger Parts > Matco Battery Charger Repair Parts > MC425 Matco Battery Charger Parts List

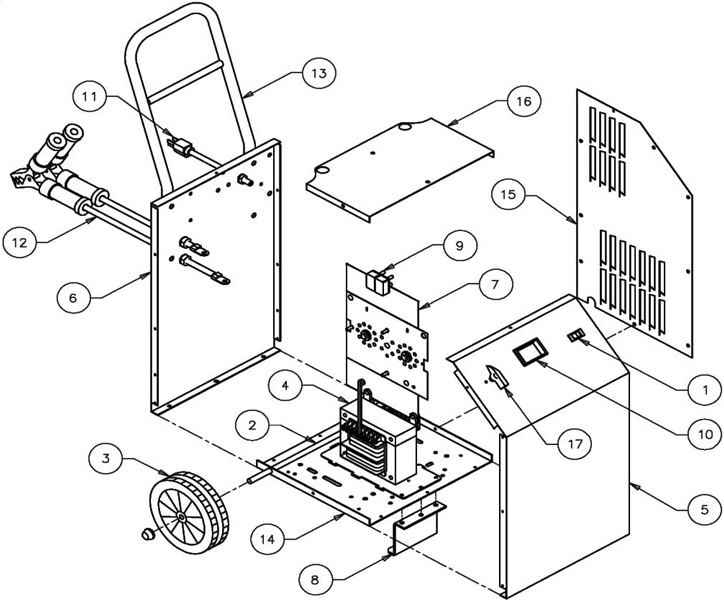

Item Description Part no.
1 Switch..........................................................................611000
2 Axle w/nuts..................................................................610052
3 Wheels w/nuts.............................................................605672
4 Transformer.................................................................611096
5 Panel, Front.................................................................611109
6 Panel, Back .................................................................610977
7 Rectifier .......................................................................611097
8 Leg ..............................................................................610825
9 DC Circuit Breaker (1) .................................................611028
10 Ammeter......................................................................610695
11 AC Cord ......................................................................610696
12 DC Cable Set ..............................................................610824
13 Handle.........................................................................605213
14 Base............................................................................610054
15 Panel, Right Side.........................................................611104
16 Panel, Top...................................................................611105
17 Timer, w/knob..............................................................610895
Sort By:
Go
Page of 1
Quick View this Product 020-0076 Associated Chrome Handle Screws (Each)
020-0076 Associated Chrome Handle Screws (Each)

020-0076 Associated Chrome Handle Screws (Each)

Price $1.54
Add To Cart
Quick View this Product 603147 Associated Pointer Knob (Press-On)
603147 Associated Pointer Knob (Press-On)

Associated Pointer Knob with spring clip (Press-On). Fits 1/2 round shaft switches and timers only. For 3/4 round shaft applications see 610930.

Price $15.10
Add To Cart
Quick View this Product 605213 Associated Chrome Handle
605213 Associated Chrome Handle

Chrome Handle with screws and insulated clamp bar.

Price $61.70
Add To Cart
Quick View this Product 605672 Associated Wheel Kit With Nuts (Set Of Two Plastic)
605672 Associated Wheel Kit With Nuts 6" Plastic

605672 Associated Wheel Kit With Nuts 6" Plastic 3/8" hub diameter

Price $42.80
Add To Cart
Quick View this Product 610180 Associated Knob
610180 Associated Knob

Associated 610180 KNOB

Price $26.00
Add To Cart
Quick View this Product 610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit
610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit

This kit provides everything needed to replace older obsolete electrical driven timers with a new spring wound mechanical timer. The kit includes Knob, wiring and electrical connections, wire ties, spade terminals for universal applications and instructions.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Discontinued
Quick View this Product 610517 Associated Clamp Bar 7"
610517 Associated Clamp Bar 7"

610517 Associated Clamp Bar 7"

Price $9.00
Add To Cart
Quick View this Product 610695 Associated Ammeter Horizontal 0-40 Amp Range W/ Start
610695 Associated Ammeter Horizontal 0-40 Amp Range W/ Start

Horizontal Snap In Mount, no tools needed to install. "Wire Through" Induction pick-up

Price $33.10
Add To Cart
Quick View this Product 610753 Associated Chrome Handle
610753 Associated Chrome Handle

610753 Associated Chrome Handle

Discontinued See 605213
Quick View this Product 610824 Associated 40 Amp DC Cable Assembly
610824 Associated 40 Amp DC Cable Assembly

40 Amp DC Cable Assembly

Price $143.80
Add To Cart
Quick View this Product 610825 Associated Leg
610825 Associated Leg

Associated 610825 LEG

Price $41.30
Add To Cart
Quick View this Product 610895 Associated Timer W/Knob
610895 Associated 90 Minute Mechanical Timer With Knob

Mechanically controls charging in timed Mode with manual hold mode. Two Independent Single Pole Single Throw (SPST) Switches rated 15 amperes. 1/4" spade terminals. Timer has Hold Position.
*See 611254 retrofit Timer kit.

Discontinued See 611254
Quick View this Product 611097 Associated Rectifier Installation Kit
611097 Associated Rectifier Installation Kit

Rectifier Installation Kit. The Highest rated 20 Diode Rectifier in the market.

Price $67.40
Add To Cart
Quick View this Product 611245 Associated 120 Minute Electronic Timer with Knob
611245 Associated 120 Minute Electronic Timer with Knob

611245 Associated 120 Minute Electronic Timer with Knob, for use in units with a 120 minute timer already installed. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Price $81.80
Add To Cart
Quick View this Product 611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit
611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit

611254 Associated 120 Minute Electronic Timer with Knob, retrofit for units with a mechanical timer. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Price $92.60
Add To Cart
