Shorter hoses. Fewer tangles. You’re free to work the way you want.
- 1,000’ Wireless range
- Precise placement with more convenient, shorter hoses
- All-in-one static, gas and draft pressure
- Record up to eight readings at once in Job Link App
Totally untethered.

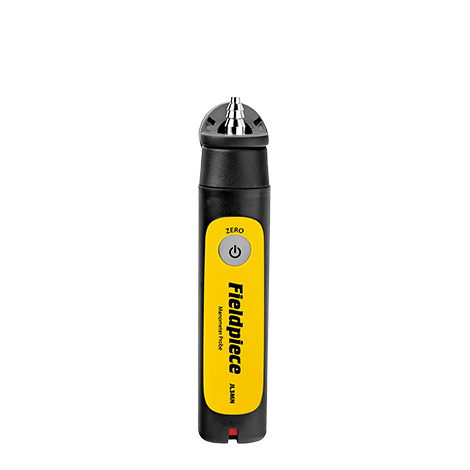

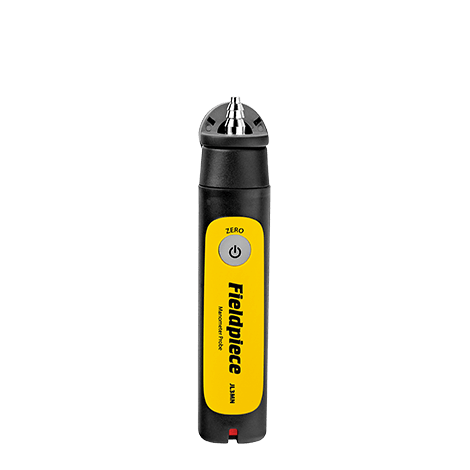

Part of the Job Link® System, the JL3MN Manometer lets you work the way you want to. Its strong magnet allows you to place your probe directly on a test port and its short tubes offer tangle-free work. Versatile and durable. With a strong metal tip that‘s used with different sizes of tubing, the JL3MN is a reliable, accurate
Warning: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Product Features
Specifications
- Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 (Latest compatibility at www.fieldpiece.com)
- Compatible Media: Dry, non-corrosive gas
- Pressure Port: Tube connector for flexible tubing (4.5 to 8mm ID)
- Units of Measure: inWC, mmWC, mbar, psi, Pa
- Accuracy and Ranges:
- inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00);
- mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0);
- mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00);
- psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165);
- Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930)
- Maximum Overload Pressure: 321.08 inWC (11.6 psi; 80.0 kPa)
- Battery Type: 2 x AAA, NEDA 24A, IEC LR03
- Battery Life: 150 hours typical alkaline. LED slow-blinks red when battery replacement is needed
- Auto Power Off: 2 hours (APO can be disabled)
- Wireless Range: 1000 feet (305 meters) line of sight – obstructions affect distance
- Radio Frequency: 2.4 GHz
- Operating Environment: -10°F to 122°F (-23°C to 50°C) at <75% RH
- Storage Temperature: -10°F to 140°F (-23°C to 60°C) at <80% RH (with batteries removed)
- Temperature Coefficient: 0.1 x (specified accuracy) per 1.8°F (-10°F to 64°F, 82°F to 122°F), per 1°C (-23°C to 18°C, 28°C to 50°C)
- Weight: 0.30 lbs (137 g)
|
|
|
|
|
|
|
