Ingersoll-Rand Air Tool Repair Parts

Ingersoll-Rand 104B 1/4" Air Ratchet Repair Parts

-

More Info ›
Ingersoll-Rand 107 3/8" Air Ratchet Repair Parts

-

More Info ›

Ingersoll-Rand 121 Air Hammer Repair Parts

All parts have been discontinued and are no longer available.

IR 121 Air Hammer Parts List
Item	Part Number	Part Description	IR Equivalent
1		Offset Handle Assembly for 121	NMC10B-A59
1		Offset Handle Assembly for 121-EU	NMC10B-EU-A59
1A		Warning Label for 121	WARNING-6-99
1A		Warning Label for 121-EU	708-EU-99
		Throttle Valve Assembly	MC10B-A302
2		Throttle Valve	MC121-302
3		Throttle Valve Face	R00B1-159
4		Throttle Valve Button	R00AR2C-305A
5		Throttle Valve Bushing Assembly	MC10B-A503
6		Throttle Valve Bushing Seal	R000BR-210
8		Throttle Valve Spring	508-51
9		Valve Seat	MC121-3
10		Valve Spacer	MC121-8
11		Valve Cap	MC121-4
12		Valve	MC121-2
13		Dowel Pin (2)	MC121-32
14		Exhaust Deflector	AV11-85
15		Piston	MC121-5
16		Barrel	NMC121-6
17		Quick Change Tool Retainer	AVC10-183A

All parts have been discontinued and are no longer available.

Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.

More Info ›

Ingersoll-Rand 170G 3/8" Air Ratchet Repair Parts

-

More Info ›

Ingersoll-Rand 212 3/8" Drive Air Impact Wrench Repair Parts

IR 212 Impact Wrench Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing Assembly	212-A40
2	8089	Inlet Bushing	402-565
3		Exhaust Deflector	1702P-123
4		Exhaust Deflector Retaining Ring (2)	2908-304
5	8219	Reverse Valve	1702P-329
6	8172	Reverse Valve O-Ring (2)	CE110-210
7	8272	Detent Ball	R000B-263
8	8273	Detent Ball Spring	202--664
9	8230	Reverse Valve Knob	1702P-666
10	8318	Knob Screw	WWA100-77
11		Grease Fitting	130SR-188
		Throttle Valve Assembly	202-A302
12		Throttle Valve	202-302
13	8048	Throttle Valve Face	R000BRIC-283
14		Trigger	5RA-93
15	9417	Throttle Valve Retaining Pin	AF120-322
16		Throttle Valve Bushing	202-503
17	8056	Bushing O-Ring, Large	410-283
18	8173	Bushing O-Ring, Small (2)	202-290
19		Bushing Retaining Pin	R100B-120
20		Nameplate for Model 212	212-301
21	8286	End Plate Gasket	202-739
22		Exhaust Silencer	728-310
23	8274	Bearing Retainer	MF-18
24	8295	Bearing	401-22
25	8217	Rear Plate	201-12
26	8218	Rotor	401-53
27	2146	Rotor Vane	401-42A
28	8226	Cylinder	401-3
29	8216	Front Plate	201-11
30	8262	Cylinder Dowel	HH92-74
31	8294	Bearing	R00H-97
32	8427	Washer	1702-706
33	8212	Hammer Frame	1702-A703A
34	8213	Hammer	1702-724A
35	8211	Hammer Pin	1702-704
36	8070	3/8" Anvil (Pin-Type)	1702-P726
37	8210	3/8" Anvil (Ring-Type)	1702-A626
38	8261	O-Ring 3/8"	1702-426
39	8296	Socket Retainer 3/8"	1702-425
40	8287	Hammer Case Gasket	401-36 or 2902-36
41	8214	Hammer Case	1702-A727

More Info ›

Ingersoll-Rand 231C 1/2" Drive Air Impact Wrench Repair Parts

IR 231C and 231C-2 Impact Wrench Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing	231C-A40
2		Warning Label	WARNING-2-99
3		Grease Fitting	130SR-188
4	9616	Reverse Valve Bushing	231-A330
5	8400	Reverse Valve Bushing Seal (2)	PS3-67
6	8313	Throttle Valve Assembly	404-50A
7	8339	Throttle Valve Face	405-159
8	8006B	Throttle Valve Spring	R1A-51
9	8314	Throttle Valve Stem	402-302
10	8089	Air Strainer Assembly	402-565
11	8086	Trigger	705-93
11a		Plug	502-95
12	8305	Trigger Pin	533-656
13	8306	Reverse Valve	231-329A
14	8282	Reverse Valve Detent Ball	AV1-255
15	8308	Reverse Valve Detent Spring	231-664
16	8309	Reverse Valve Knob	231-666
17	8310	Reverse Valve Knob Screw	231-665
18		Nameplate	231-301
22	8263	Rotor	231-53
23	8027	Rear Rotor Bearing	402-22
24	8028	Front Rotor Bearing	4U-97
25	8004	Rear Rotor Bearing Retainer	402-118
26		Cylinder	231XP-3
27	8340	Cylinder Dowel	230-98
29	2189	Vane Packet (Set of 6 Vanes)	2131-42-6
30	8084	Front End Plate	231-11
31	8085	Rear End Plate	231-12
32	8032B	End Plate Gasket	231-283
33	8311	Motor Clamp Washer (2)	227-207
34	8081	Hammer Frame Assembly	231XP-A703
35	8079	Hammer Pin (2)	231-704
36	8087	Hammer Frame Rear Washer	231-706
37	8080	Hammer (2)	231XP-724
38		Hammer Case Assembly	131-A727-70
38A	8312	Hammer Case Pilot	405-800
39	8032A	Hammer Case Gasket	230-36
40	8320	Hammer Case Bushing	705-941
41	9282	Hammer Case Cap Screw (3)	131-638
42	9281	Hammer Case Lock Washer (3)	131-637
43	8021	Anvil Assembly
		Length	231-A626A
		For 231-2 (2” Extended Length)	231-A414A
V44	8088	Socket Retainer	231-425A
45	8270	Retainer O-Ring	R1A-159
		Tube of Grease	405-MG1
		Lube Injector	230-228
		Bottle of Oil	405-M01
		Plastic Boot	231-P32

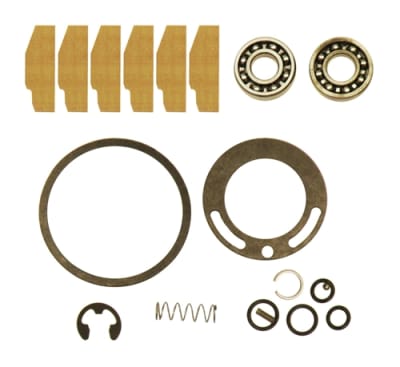

	9942 9942P	Tune-Up Kit (includes: 5 (2), 7, 8, 14, 15, 23, 24, 25, 29, 32, 44, 45) (9942P has plastic rotor vanes)	231-TK3
	9907	Tune-Up Kit Less Bearings (includes: 5 (2), 7, 8, 14, 15, 25, 29, 32, 44, 45)
		Hammer Kit (includes: 37 (2), 39, 41 (3), 42 (3) and 43)
	9943 9944	Hammer Kit (Old Style Std Anvil) Hammer Kit (Old Style Ext Anvil)	231-THK1 231-THK2
	9981	For 231 (Standard Length)	231B-THK2
	9987	For 231-2 (2” Extended Length)	231B-THK1

More Info ›

Ingersoll-Rand 231G 1/2" Drive Air Impact Wrench Repair Parts

-

More Info ›

Ingersoll-Rand 231H 1/2" Drive Air Impact Wrench Repair Parts

IR 231H Model A and 231H-2 Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing	231HP-B40
2	9599	Throttle Valve Seat	131-303
3		Warning Label	WARNING-2-99
4		Grease Fitting	130SR-188
5		Reverse Valve Bushing	231-A330
		Bushing	---
6	8400	Seal	PS3-67
7		Reverse Valve	231-329A
8	8282	Reverse Valve Detent Ball	AV1-255
9	9597	Reverse Valve Detent Spring	131-664
10	9441	Reverse Valve Knob	131-666
11	9440	Reverse Valve Screw	231-665
12	9621	Inlet Bushing	131-565
13		Exhaust Deflector	131-23
14	8665	Throttle Valve Spring	231G-51
15	8666	Throttle Valve	235-50
16		Nameplate	231HA-301
17	9248	Trigger	231H-A93
18		Trigger Retainer	231HP-656
19	8032B	End Plate Gasket	231-283
20	8004	Rear Rotor Bearing Retainer	402-118
21	8027	Rear Rotor Bearing	402-22
22	8085	Rear End Plate	231-12
23	8263	Rotor	231-53
24	2189	Vane (Set of 6 Vanes)	2131-42-6
25		Cylinder	231XP-3
26	8084	Front End Plate	231-11
27	8340	Cylinder Dowel	230-98
28	8028	Front Rotor Bearing	4U-97
29	8311	Motor Clamp Washer (2)	227-207
30	8087	Hammer Frame Washer	231-706
31		Hammer Frame Kit	231XP-A703
32	8079	Hammer Pin (2)	231-704
33		Hammer (2)	231XP-724
34		Anvil Assembly
	8021	231H Model A	231B-A626
	8022	231H-2 Model A (2” Extended Anvil)	231B-A414
35	8270	Retainer O-Ring	R1A-159
36	8088	Socket Retainer	231-425A
37		Hammer Case Assembly	131-A727-70
38	8032A	Hammer Case Gasket	230-36
39	8312	Hammer Case Pilot	405-800
40	8320	Hammer Case Bushing	705-941
41	9282	Hammer Case Cap Screw (3)	131-638
42	9281	Hammer Case Lock Washer (3)	131-637
43		Grease Gun	230-228
44		Oil	405-M01
45		Grease	105-4T
	9985	Tune Up Kit (Includes: 2, 6[2], 8, 9, 14, 15, 19, 20, 21, 24, 28, 35, 36, and 38)	231HP-TK1
	9987	Hammer Kit (for 231H Model A Standard Length) (includes: 33[2], 34, 38, 41[3], and 42[3])	231B-THK1
	9981	Hammer Kit (for 231H Model A Extended Length) (includes items 33[2], 34, 38, 41[3], and 42[3])	231B-THK2
		Reverse Valve Kit (includes: 7, 8, 9, 10, and 11)	231-329A-TK

More Info ›

Ingersoll-Rand 231XP, 231XP-2 1/2" Drive Air Impact Wrench Repair Parts

IR 231XP, 231XP-2 Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing	231XP-B40
2	9599	Throttle Valve Seat	235-303
3		Warning Label	WARNING-2-99
4		Grease Fitting	130SR-188
5		Reverse Valve Bushing	231-A330
		Bushing
6	8400	Reverse Valve Bushing Seal	PS3-67
7	8306	Reverse Valve	231-329A
8	8282	Reverse Valve Detent Ball	AV1-255
9	8308	Reverse Valve Detent Spring	231-664
10	8309	Reverse Valve Knob	231-666
11	8310	Reverse Valve Screw	231-665
12		Inlet Bushing	235-565
13		Exhaust Deflector	235-EU-23
14	9598	Throttle Valve Spring	235-51
15	8666	Throttle Valve	235-50
15A		Exhaust Silencer for 231XPS & 231XPS-2 ONLY	235-311
16		Trigger	231H-93
17		Throttle Rod	235-302
18		Nameplate	231XP-301
19		Trigger Retainer	231H-656
21	8032B	End Plate Gasket	231-283
22	8004	Rear Rotor Bearing Retainer	402-118
23	8027	Rear Rotor Bearing	402-22
24	8085	Rear End Plate	231-12
25	8263	Rotor	231-53
26	2189	Vane, Yellow (set of 6)	2131-42-6
27		Cylinder	231XP-3
28	8084	Front End Plate	231-11
29	8340	Cylinder Dowel	230-98
30	8028	Front Rotor Bearing	4U-97
31	8311	Motor Clamp Washer (2)	227-207
32	8087	Hammer Frame Rear Washer	231-706
33	9243	Hammer Frame	2131-703
34	8079	Hammer Pin (2)	231-704
35	8132	Hammer (2)	231XP-724
36		Anvil Assembly (231XP and 231XPS ONLY)	231B-A626
36	8022	Anvil Assembly (231XP-2 and 231XPS-2 ONLY) (2" Extended)	231B-A414
37	8270	Retainer O-Ring	R1A-159
38	8088	Socket Retainer	231-425A
39	8082	Hammer Case Assembly	705-A927
40	8032A	Hammer Case Gasket	230-36
41	8312	Hammer Case Pilot	405-800
42	8320	Hammer Case Bushing	705-941
43	8151	Hammer Case Cap Screw (3)	231-638
		Grease Applicator	230-228
		Oil	405-MO1
		Grease	405-MG1
	9972	Tune Up Kit (Includes: 2, 6[2], 8, 9, 14, 15, 15A, 21, 22, 23, 26, 30, 37, 38, and 40)	231XP-TK1

More Info ›

Ingersoll-Rand 231XPS, 231XPS-2 1/2" Drive Air Impact Wrench Repair Parts

IR 231XPS and 231XPS-2 Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing	231XP-B40
2	9599	Throttle Valve Seat	235-303
3		Warning Label	WARNING-2-99
4		Grease Fitting	130SR-188
5		Reverse Valve Bushing	231-A330
		Bushing
6	8400	Reverse Valve Bushing Seal	PS3-67
7	8306	Reverse Valve	231-329A
8	8282	Reverse Valve Detent Ball	AV1-255
9	8308	Reverse Valve Detent Spring	231-664
10	8309	Reverse Valve Knob	231-666
11	8310	Reverse Valve Screw	231-665
12		Inlet Bushing	235-565
13		Exhaust Deflector	235-EU-23
14	9598	Throttle Valve Spring	235-51
15	8666	Throttle Valve	235-50
15A		Exhaust Silencer for 231XPS & 231XPS-2 ONLY	235-311
16		Trigger	231H-93
17		Throttle Rod	235-302
18		Nameplate	231XP-301
19		Trigger Retainer	231H-656
21	8032B	End Plate Gasket	231-283
22	8004	Rear Rotor Bearing Retainer	402-118
23	8027	Rear Rotor Bearing	402-22
24	8085	Rear End Plate	231-12
25	8263	Rotor	231-53
26	2189	Vane, Yellow (set of 6)	2131-42-6
27		Cylinder	231XP-3
28	8084	Front End Plate	231-11
29	8340	Cylinder Dowel	230-98
30	8028	Front Rotor Bearing	4U-97
31	8311	Motor Clamp Washer (2)	227-207
32	8087	Hammer Frame Rear Washer	231-706
33	9243	Hammer Frame	2131-703
34	8079	Hammer Pin (2)	231-704
35	8132	Hammer (2)	231XP-724
36		Anvil Assembly (231XP and 231XPS ONLY)	231B-A626
36	8022	Anvil Assembly (231XP-2 and 231XPS-2 ONLY) (2" Extended)	231B-A414
37	8270	Retainer O-Ring	R1A-159
38	8088	Socket Retainer	231-425A
39	8082	Hammer Case Assembly	705-A927
40	8032A	Hammer Case Gasket	230-36
41	8312	Hammer Case Pilot	405-800
42	8320	Hammer Case Bushing	705-941
43	8151	Hammer Case Cap Screw (3)	231-638
		Grease Applicator	230-228
		Oil	405-MO1
		Grease	405-MG1
	9972	Tune Up Kit (Includes: 2, 6[2], 8, 9, 14, 15, 15A, 21, 22, 23, 26, 30, 37, 38, and 40)	231XP-TK1

More Info ›

Ingersoll-Rand 232TGSL 1/2" Drive Air Impact Wrench Repair Parts

-

More Info ›

Ingersoll-Rand 235HD 1/2" Drive Air Impact Wrench Repair Parts

IR 235HD 1/2" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Housing	235-40
2		Warning Label	WARINING-27-99
4*	9599	Valve Seat	235-303
5*		Housing Cover	235-739
6		Motor Housing Cover	235-202
7*		Reverse Valve Stop Pin	235-421
8*		Reverse Valve Stop Spring	207-334
9		Power Regulator	235-329
10*		Retaining Ring	235-168
11*		O-Ring	235-338
12*	9598	Throttle Valve Spring	235-51
13*	8666	Throttle Valve	235-50
14		Inlet Bushing	235-565
16		Exhaust Deflector	235-EU-23
17		Trigger Retainer	235-94
18		Trigger	235-93
19		Throttle Push Rod	235-302
20		Rear End Plate	235-12
21*		Rear Rotor Bearing	235-24
22		Rotor	235-53
23*		Rotor Vane (6 required)	235-42-6
24		Cylinder Assembly	235-A3
25		Cylinder Dowel (short)	235-97
26		Cylinder Dowel (long)	235-96
27		Front End Plate Assembly	235-A11
28*		Oil Seal	235-708
29*		O-Ring	235-213
30*		Front Rotor Bearing	107-110
31		Spindle Guide	223-630
32		Bail	223-722
33		Hammer Cage	235-724
31		Hammer Cam	235-721
35		Spindle Guide Pin (2)	235-704
36		Hammer Spring	223-728
37*		Hammer Case Seal	235-36
38		Hammer Case Assembly	235-A727
39		Hammer Case Bushing	235-641
40		Hammer Case Oil Seal	223-271
41		Anvil Spacer	235-706
42		Anvil Assembly	235-A626
43*		Socket Retaining O-Ring	223-426
44*		Socket Retaining Ring	223-425
45		Hammer Case Cap Screw (4)	235-638
46		Hammer Case Cap Screw Washer (8)	223-58
47		Housing Cover Cap Screw (4)	207-359
48		Oil Plug Assembly	255-A377
49*		Oil Plug O-Ring	255-378
50		Nameplate	235-301
51*		Exhaust Silencer	235-311
*		Hammer Kit (includes 31, 32, 34, 35 (2), 36, 37, 40, 42, 43 & 44)	235-THK1
*		Tune-up Kit (includes 4, 5, 7, 8, 10, 11, 12, 13, 21, 23, 28, 29, 30, 37, 43, 44, 49 & 51)	235-TK2

More Info ›

Ingersoll-Rand 236G 1/2" Drive Air Impact Wrench Repair Parts

IR 236G 1/2" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
*		Housing Assembly	236G-A40
1		Housing	-
2		Nameplate / Warning Label	236G-301A
3		Grease Fitting	131-188
4		Reverse Bushing Seal	-
5		Reverse Valve Bushing	-
6		Valve Seat	-
7	8666	Throttle Valve	131-50
8	9598	Valve Spring	131-51
9		Exhaust Deflector	236-23
10	9621	Inlet Bushing Assembly	131-565
11		Inlet Screen	-
12		Exhaust Silencer	235-311
13		Grip	236-747
*		Reverse Valve Retainer Kit	236-A119
14		Reverse Valve Retainer	-
15		Reverse Valve Screw (2)	-
*		Trigger Assembly	236-A93
16		Trigger Shaft	-
17		Trigger	-
18	9236	Bearing Retainer	131-118
19	8027	Rear Rotor Bearing	402-22
20	8094	End Plate Gasket	PF800-283
21	8085	Rear End Plate	231-12
22	8263	Rotor	231-53
23	2189	Rotor Vane (6 required)	2131-42A-6
24	8083	Cylinder	407-3
25	8084	Front End Plate	231-11
26	8340	Cylinder Dowel	230-98
27	8028	Front Rotor Bearing	4U-97
28	8311	Motor Clamp Washer (2)	227-207
29		Hammer Case Pilot	236-800
30	8087	Rear Frame Washer	231-706
*		Reverse Valve Kit	236-A329
31		Reverse Valve	-
32		Spring	-
33		Detent Retainer	-
34		Reverse Valve Seal (2)	-
35		Hammer Frame	236-703
36	8132	Hammer	231XP-724
37		Hammer Pin (2)	2903P-704
*		Hammer Case Kit	236-K727
38		Hammer Case Bushing	-
39		Hammer Case Gasket	-
40		Hammer Case	-
41		Lock Washer (4)	-
42		Hammer Case Screw (4)	-
*		Anvil Assembly	236-A626
43		Anvil	-
*		Socket Retainer Kit	2125QTi-K425
44		O-Ring	-
45		Socket Retainer Spring	-
*		Tune-up Kit (includes 7, 12, 17, 18, 19, 22, 26 & 38)	236-TK1

More Info ›

Ingersoll-Rand 244 244-2 1/2" Drive Air Impact Wrench Repair Parts

Ingersoll-Rand 244, 244-2 1/2" Drive Air Impact Wrench Repair Parts

IR 244 Parts List
Item	Part Number	Part Description	IR Equivalent
1	9249	Motor Housing Assembly	244-A40
2	8313	Throttle Valve Assembly	404-50A
3	8339	Throttle Valve Face	405-159
4	8006B	Throttle Valve Spring	R1A-51
5	8679	Throttle Valve Stem	244-302
6	8089	Air Strainer Assembly	402-565
7	8086	Trigger	244-93
8	8305	Trigger Pin	533-656
9	9616	Reverse Valve Bushing	231-A330
10	8400	Reverse Valve Bushing Seal (2)	PS3-67
11	8306	Reverse Valve	231-329A
12	8282	Reverse Valve Detent Ball	AV1-255
13	8308	Reverse Valve Detent Spring	231-664
14	8309	Reverse Valve Knob	231-666
15	8310	Reverse Valve Knob Screw	231-665
16		Grease Fitting	130SR-188
NS		Housing Label	WARNING-2-99
NS		Nameplate	244-301
18	8167	Rotor	244-53
19	8027	Rear Rotor Bearing	402-22
20	8028	Front Rotor Bearing	4U-97
21	8004	Rear Rotor Bearing Retainer	402-118
22	8426	Cylinder	904-3
23	8340	Cylinder Dowel	230-98
25	2172	Vane Packet (Set of 6 Vanes)	2906P-42-6
26	8084	Front End Plate	231-11
27	8085	Rear End Plate	231-12
28	8032B	End Plate Gasket	231-283
29	8311	Motor Clamp Washer (2)	227-207
30	8081	Hammer Frame Assembly	231-A703
31	8079	Hammer Pin (2)	231-704
32	8087	Hammer Frame Rear Washer	231-706
33	8080	Hammer (2)	231-724
34	8082	Hammer Case Assembly	705-A927
35	8032A	Hammer Case Gasket	230-36
36	8312	Hammer Case Pilot	405-800
37	8320	Hammer Case Bushing	705-941
38		Exhaust Deflector	244-23
39	8151, 9281, 9282	Hammer Case Cap Screw (3)	231-638
41	8021	Anvil Assembly (1/2” Square Drive) Standard Length	231-A626A
41	8022	Anvil Assembly (1/2” Square Drive) 2” Extended Length	231-A414A-2
42	8088	Socket Retainer	231-425A
43	8270	Retainer O-Ring	R1A-159
		Grease Gun	R000A2-228
	9946	Tune-Up Kit (includes items 3, 4, 10, 12, 13, 19, 20, 21, 25, 28, 35, 42, and 43)	244-TK2

More Info ›

Ingersoll-Rand 244A 244A-2 1/2" Drive Air Impact Wrench Repair Parts

Ingersoll-Rand 244A, 244A-2 1/2" Drive Air Impact Wrench Repair Parts

IR 244A Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing Assembly	244A-A40
2	8313	Throttle Valve Assembly	404-50A
3	8339	Throttle Valve Face	405-159
4	8006B	Throttle Valve Spring	R1A-51
5	8679	Throttle Valve Stem	402-302
6	8089	Air Strainer Assembly	402-565
7		Trigger	705-93
8	8305	Trigger Pin	533-656
9		Reverse Valve Bushing	231-A330
10	8400	Reverse Valve Bushing Seal (2)	PS3-67
11	8306	Reverse Valve	231-329A
12	8282	Reverse Valve Detent Ball	AV1-255
13	8308	Reverse Valve Detent Spring	231-664
14	8309	Reverse Valve Knob	231-666
15	8310	Reverse Valve Knob Screw	231-665
16		Grease Fitting	130SR-188
NS		Housing Label	WARNING-2-99
NS		Nameplate	244A-301
18	8167	Rotor	244-53
19	8027	Rear Rotor Bearing	402-22
20	8028	Front Rotor Bearing	4U-97
21	8004	Rear Rotor Bearing Retainer	402-118
22	8426	Cylinder	904-3
23	8340	Cylinder Dowel	230-98
25	2172	Vane Packet (Set of 6 Vanes)	2906P-42-6
26	8084	Front End Plate	231-11
27	8085	Rear End Plate	231-12
28	8032B	End Plate Gasket	231-283
29	8311	Motor Clamp Washer (2)	227-207
30	8133	Hammer Frame Assembly	231XP-A703
31	8079	Hammer Pin (2)	231-704
32	8087	Hammer Frame Rear Washer	231-706
33	8132	Hammer (2)	231XP-724
34		Hammer Case Assembly	131-A727-70
35	8032A	Hammer Case Gasket	230-36
36	8312	Hammer Case Pilot	405-800
37	8320	Hammer Case Bushing	705-941
38		Exhaust Deflector	244LG-23
39	9282	Hammer Case Cap Screw (3)	131-638
40	9281	Hammer Case Lock Washer (3)	131-637
41	8630	Anvil Assembly (1/2” Square Drive) Standard Length	231B-A626
41	8596	Anvil Assembly (1/2” Square Drive) 2” Extended Length	231B-A414
42	8088	Socket Retainer	231-425A
43	8270	Retainer O-Ring	R1A-159
		Grease Gun	R000A2-228
	9946	Tune-Up Kit (includes items 3, 4, 10, 12, 13, 19, 20, 21, 25, 28, 35, 42, and 43)	244-TK2

	9987	Hammer Kit (for 244A Standard Length)(includes items 20, 33(2), 35, 39(3), 40(3), and 41)	231B-THK1
	9981	Hammer Kit (for 244A-2 Extended Length) (includes items 20, 33(2), 35, 39(3), 40(3), and 41)	231B-THK2

More Info ›

Ingersoll-Rand 252 3/4" Drive Air Impact Wrench Repair Parts

IR 252 3/4" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Housing	252-40
2		Warning Label (for 252)	222-99
3		Warning Label (for 252-EU & 252-3-EU)	EU-99
4		Valve Seat	255-118A
5		Housing Cover Gasket	252-739
6		Motor Housing Cover	252-202
7		Reverse Valve Stop Pin	235-421
8		Reverse Valve Stop Spring	270-334
9		Reverse Valve	255A-329
10		Retainer	255A-218
11		O-Ring	255A-338
12		Throttle Valve Spring	252-51
13		Throttle Valve	255-302
14		Spring Pin	255-39
15		Screw (2)	255-69
16		Exhaust Deflector	255-23
17		Trigger Retainer	235-94
18		Trigger	235-93
19		Throttle Push Rod	252-32
20		Rear End Plate	252-12
21		Rear Rotor Bearing	251-24
22		Rotor	252-53
23		Rotor Vane (requires 6)	252-42-6
24		Cylinder	251-3
25		Cylinder Dowel (short)	251-98
26		Cylinder Dowel (long)	252-524
27		Front End Plate Assembly	252-A11
28		Oil Seal	251-708
29		O-Ring	255-167
30		Front Rotor Bearing	251-24
31		Spindel Guide	252-630
32		Ball	251-722
33		Hammer Cage	252-712
34		Hammer Cam	252-724
35		Spindle Guide Pin	252-704
36		Hammer Spring	252-707
37		Hammer Case O-Ring	252-168
38		Hammer Case Assembly	252-A727
39		Hammer Case Bushing	252-641
40		Hammer Case Oil Seal	252-271
41		Pin	251-524
42		Anvil Assembly (for 252 & 252-EU)	252-A626
42		Anvil Assembly (for 252-3-EU)	252-A626-3
43		Socket Retaining O-Ring	251-426
44		Socket Retaining Ring	251-425
45		Hammer Case Cap Screw (4)	251-640
46		Hammer Case Cap Screw Washers (8)	251-57
47		Housing Cover Cap Screw (4)	255-640
48		Oil Plug Assembly	255-A377
49		Oil Plug O-Ring	255-378
50		Nameplate (for 252)	252-301
50		Nameplate (for 252-EU)	252-EU-301
50		Nameplate (for 252-3-EU)	252-3-EU-301
51		Retainer	252-606
52		Inlet Bushing Assembly	252-A465
53		Bushing Assembly	252-A781
54		O-Ring	255-166
55		Bushing O-Ring	252-166
56		Bushing	252-30
57		Spring Pin	255-39
*		Tune-up Kit (includes 4, 5, 7, 8, 10, 11, 12, 13, 21, 23, 28, 29, 37, 40, 43, 44, 49, 51, 54 & 55)	252-TK2

More Info ›

Ingersoll-Rand 259G 3/4" Impact Wrench Repair Parts

-

More Info ›

Ingersoll-Rand 261 3/4" Drive Air Impact Wrench Repair Parts

IR 261 Parts List
Item	Part Number	Part Description	IR Equivalent
1	8170	Motor Housing Assembly	261-A40
2	8327	Trigger Assembly	2920P-A93
3	8104	Throttle Valve	2921-302
5	8208	Throttle Valve Seat	DG230-303
6	8036	Throttle Valve Spring	1720P-51
7	8428	Exhaust Deflector	1720P-23
8	8324	Inlet Bushing	2920P-465
9		Housing Plate	1720P-230
10	8034C	Housing Plate Gasket	1720P-231
11		Housing Plate Screw (2)	FEA100-112
12	8182	Grease Fitting	130SR-188
13	8419	Reverse Valve	1710B-329
14	8207	Reverse Valve Seal (2)	261-283
15	8309	Reverse Valve Knob	231-666
16	8310	Reverse Valve Knob Screw	231-665
16A		Warning Label	WARNING-2-99
17	8039	Rear Rotor Bearing Retainer	MVA008-218
18	8038	Rear Rotor Bearing	4E-510
19	8092	Rear End Plate	2921HP-12
20	8034B	Rear End Plate Gasket	2920B-283
21	8429	Rotor	2910B-53
22	2157	Vane Packet (set of 6 Vanes)	2910-42-6
23	8096	Cylinder	2920-3
24	8326	Cylinder Dowel	910-98
25	8091	Front End Plate	2921HP-11
26	8171	End Plate Dowel	2920-74
27	8037	Front Rotor Bearing	834-24
28	8325	Motor Clamp Washer (2)	2920-207
29	8410	Motor Retainer	2920B-800
30	8034A	Hammer Case Gasket	910-36
31	8411	Hammer Case Assembly	261B-A727
32	8119	Hammer Case Bushing	2920-641
33	8412	Hammer Case Cap Screw (4)	34U-103
34	8413	Cap Screw Lock Washer (4)	T11-58
35	8414	Rear Hammer Frame Washer	910-706
36	8415	Hammer Frame Assembly	2910-A703
37	8416	Hammer Pin (2)	2910-704
38	8417	Hammer	260-724
39		Anvil Assembly 3/4” Square Drive
		for 261-3 and 261-3-EU	261-A626-3
	8223	for 261 and 261-EU	1710-A626A
		3/4” Square Drive with extended anvil
		for 261-6 and 261-6-EU	265-A626-6
		1” Square Drive
		for 271 and 271-EU	275-A626
40		Socket Retainer
		3/4” for 261, 261-3, 261-6,
	8093	261-EU, 261-3-EU and 261-6-EU	908B5-918
		1” for 271 and 271-EU	910E5-918
41		Socket Retainer O-Ring
		for 261, 261-3, 261-6,
	8284	261-EU, 261-3-EU and 261-6-EU	AF120-289
		for 271 and 271-EU	R4-210
42		Handle (for 271 and 271-EU)	834-48
43		Bracket (for 271 and 271-EU)	2910B-364
44		Horizontal Hanger	910-366
45		Nameplate
		for 261, 261-3, 261-6 261-EU, 261-3-EU
		and 261-6-EU	261-301
		for 271 and 271-EU	271-301
46		Housing Boot	261-P32
	9945	Tune-up Kit (Includes: 3, 5, 6, 10, 14[2], 17, 18, 20, 22, 27, 30, 40 and 41)	261-TK2
	9910	Tune-up Kit without Bearings (Includes: 3, 5, 6, 10, 14[2], 17, 20, 22, 30, 40 and 41)	261-TK2 (w/o Bearings)

More Info ›

Ingersoll-Rand 271 3/4" Drive Air Impact Wrench Repair Parts

IR 271 Parts List
Item	Part Number	Part Description	IR Equivalent
1	8170	Motor Housing Assembly	261-A40
2	8327	Trigger Assembly	2920P-A93
3	8104	Throttle Valve	2921-302
5	8208	Throttle Valve Seat	DG230-303
6	8036	Throttle Valve Spring	1720P-51
7	8428	Exhaust Deflector	1720P-23
8	8324	Inlet Bushing	2920P-465
9		Housing Plate	1720P-230
10	8034C	Housing Plate Gasket	1720P-231
11		Housing Plate Screw (2)	FEA100-112
12		Grease Fitting	130SR-188
13	8419	Reverse Valve	1710B-329
14	8207	Reverse Valve Seal (2)	261-283
15	8309	Reverse Valve Knob	231-666
16	8310	Reverse Valve Knob Screw	231-665
16A		Warning Label	WARNING-2-99
17	8039	Rear Rotor Bearing Retainer	MVA008-218
18	8038	Rear Rotor Bearing	4E-510
19	8092	Rear End Plate	2921HP-12
20	8034B	Rear End Plate Gasket	2920B-283
21	8429	Rotor	2910B-53
22	2157	Vane Packet (set of 6 Vanes)	2910-42-6
23	8096	Cylinder	2920-3
24	8326	Cylinder Dowel	910-98
25	8091	Front End Plate	2921HP-11
26	8171	End Plate Dowel	2920-74
27	8037	Front Rotor Bearing	834-24
28	8325	Motor Clamp Washer (2)	2920-207
29	8410	Motor Retainer	2920B-800
30	8034A	Hammer Case Gasket	910-36
31	8411	Hammer Case Assembly	261B-A727
32	8119	Hammer Case Bushing	2920-641
33	8412	Hammer Case Cap Screw (4)	34U-103
34	8413	Cap Screw Lock Washer (4)	T11-58
35	8414	Rear Hammer Frame Washer	910-706
36	8415	Hammer Frame Assembly	2910-A703
37	8416	Hammer Pin (2)	2910-704
38	8417	Hammer	260-724
39		Anvil Assembly 3/4” Square Drive
		for 261-3 and 261-3-EU	261-A626-3
	8223	for 261 and 261-EU	1710-A626A
		3/4” Square Drive with extended anvil
		for 261-6 and 261-6-EU	265-A626-6
		1” Square Drive
		for 271 and 271-EU	275-A626
40		Socket Retainer
		3/4” for 261, 261-3, 261-6,
	8093	261-EU, 261-3-EU and 261-6-EU	908B5-918
		1” for 271 and 271-EU	910E5-918
41		Socket Retainer O-Ring
		for 261, 261-3, 261-6,
	8284	261-EU, 261-3-EU and 261-6-EU	AF120-289
		for 271 and 271-EU	R4-210
42		Handle (for 271 and 271-EU)	834-48
43		Bracket (for 271 and 271-EU)	2910B-364
44		Horizontal Hanger	910-366
45		Nameplate
		for 261, 261-3, 261-6 261-EU, 261-3-EU
		and 261-6-EU	261-301
		for 271 and 271-EU	271-301
46		Housing Boot	261-P32
	9945	Tune-up Kit (Includes: 3, 5, 6, 10, 14[2], 17, 18, 20, 22, 27, 30, 40 and 41)	261-TK2
	9910	Tune-up Kit without Bearings (Includes: 3, 5, 6, 10, 14[2], 17, 20, 22, 30, 40 and 41)	261-TK2 (w/o Bearings)

More Info ›

Ingersoll-Rand 280 1" Drive Air Impact Wrench Repair Parts

IR 280 Parts List
Item	Part Number	Part Description	IR Equivalent
1		Trigger Handle Assembly
		Inside (for 280 and 280-S6)	1712-A92
		Outside (for 280-6)	280-A1
2		Grease Fitting	130SR-188
5		Trigger
	8752	for 1712-A92 (280 and 280-S6)	834-93A
		for 280-A1 (280-6)	844-78
6		Trigger Pin
		for 1712-A92 (280 and 280-S6)	534-265
		for 280-A1 (280-6)	F02-15
7	8599	Throttle Valve Plunger	2934-302
8	8598	Throttle Valve Assembly	2934-A50
9	8554	Throttle Valve Face	2934-159
10	8555	Throttle Valve Spring	834-51
11	8650	Straight Inlet	845-565
12	8556	Air Strainer Screen	434-61
13	8557	Reverse Valve Seal	R00BR-210
15	8558	Handle Gasket	2934-283
16		Motor Clamp Washer	2934-207
17	8175	Rear End Plate	2934-12
18	8559	Rear Rotor Bearing	508-97
19	9790	Rotor	2934-53
20	2158	Vane Packet (set of 6 Vanes)	2934-42-6
21	9707	Cylinder	2934-3
22	8730	Front End Plate	2934-11
23	8560	Front Rotor Bearing	810-97
24		Cylinder Dowel	2934-98
25		Motor Housing Asssembly	1712-A40
26		Reverse Valve Bushing	2934-330S
27	8579	Air Port Gasket (2)	R44H-210A
28	8350	Air Port Gasket Retainer (2)	2940-200
29	8850	Reverse Lever	2934-658A
30	8561	Reverse Lock Plunger	4U-663B
31	8562	Reverse Lock Plunger Spring	4U-664
32	9048	Reverse Valve Assembly	2934-A329
33	8283	Valve Seal	85H-167
34		Hammer Case Assembly	1712B-A727
35	9338	Hammer Case Bushing	2934-641
35A		Hammer Case Label	WARNING-2-99
36	8563	Hammer Case Gasket	2934-36
37		Hammer Case Cap Screw (4)	834-638
38		Hammer Case LockWasher (4)	34U-58
39		Handle Cap Screw (4)	510-638
40		Cap Screw Lock Washer (4)	8U-58
41	8851	Hammer Frame Assembly	2934-A703
42		Hammer Pin (2)
	8852A	Hammer Pin (2) with Heads	2934-704
	8852B	Hammer Pin (2) without Heads	2934-704
43		Hammer	1712-724
44		Side Spade Handle	T15-41
45		Side Spade Handle Stud	534-448
46		Side Spade Handle Stud Nut	107-73A
47	8885	Side Spade Handle Bracket	2934-364
47A		Side Spade Handle Bracket Spacer (2)	2934-140
48		1" Square Drive Anvil
		Standard Length	1712-726
		6" Extended Length	280-726-6
49		Retainer Ring (for 1" Square Drive Anvil)	RR10015S
50		Spline Drive Anvil
		Standard Length	1712-A526
		6" Extended Length	280-A514-6
51	8141	Retaining Plunger Spring	2940-231
52	8143	Socket Retaining Ball	D04-280
53		Retaining Ball Plunger	845-230
54	8142	Plunger Retaining Pin	845-128
55		Exhaust Deflector	280-167
56		Exhaust Deflector Screw (2)	W54-376
57		Dead Handle	834-48
58		Horizontal Hanger	2934-366
59		Nameplate	280-301
60		Nameplate Screw (4)	C32-302
61		Piped-Away Exhaust Kit
		with Muffler	2940-KM184
		without Muffler	2940-K184
62		Exhaust Deflector Kit	2934-K23
63	8652	Exhaust Deflector Assembly	2934-23A
64		Exhaust Baffle	2934-124
65	8656	Gasket	2934-223
66	8567	Silencer	2940P-311
67		Exhaust Deflector Screw (2)	R43F-104
*		Bottle of Oil	405-M01
*		Grease	405-MG1
*		Lube Injector	230-228
*	9939	Tune-up Kit (includes illustrated parts 3, 9, 10,12, 13, 15, 18, 20, 23, 27 (2), 28 (2), 31, 33 and 36)	280-TK2

More Info ›

Ingersoll-Rand 280-6 1" Drive Air Impact Wrench Repair Parts

IR 280-6 Parts List
Item	Part Number	Part Description	IR Equivalent
1		Trigger Handle Assembly
		Inside (for 280 and 280-S6)	1712-A92
		Outside (for 280-6)	280-A1
2		Grease Fitting	130SR-188
5		Trigger
	8752	for 1712-A92 (280 and 280-S6)	834-93A
		for 280-A1 (280-6)	844-78
6		Trigger Pin
		for 1712-A92 (280 and 280-S6)	534-265
		for 280-A1 (280-6)	F02-15
7	8599	Throttle Valve Plunger	2934-302
8	8598	Throttle Valve Assembly	2934-A50
9	8554	Throttle Valve Face	2934-159
10	8555	Throttle Valve Spring	834-51
11	8650	Straight Inlet	845-565
12	8556	Air Strainer Screen	434-61
13	8557	Reverse Valve Seal	R00BR-210
15	8558	Handle Gasket	2934-283
16		Motor Clamp Washer	2934-207
17	8175	Rear End Plate	2934-12
18	8559	Rear Rotor Bearing	508-97
19	9790	Rotor	2934-53
20	2158	Vane Packet (set of 6 Vanes)	2934-42-6
21	9707	Cylinder	2934-3
22	8730	Front End Plate	2934-11
23	8560	Front Rotor Bearing	810-97
24		Cylinder Dowel	2934-98
25		Motor Housing Asssembly	1712-A40
26		Reverse Valve Bushing	2934-330S
27	8579	Air Port Gasket (2)	R44H-210A
28	8350	Air Port Gasket Retainer (2)	2940-200
29	8850	Reverse Lever	2934-658A
30	8561	Reverse Lock Plunger	4U-663B
31	8562	Reverse Lock Plunger Spring	4U-664
32	9048	Reverse Valve Assembly	2934-A329
33	8283	Valve Seal	85H-167
34		Hammer Case Assembly	1712B-A727
35	9338	Hammer Case Bushing	2934-641
35A		Hammer Case Label	WARNING-2-99
36	8563	Hammer Case Gasket	2934-36
37		Hammer Case Cap Screw (4)	834-638
38		Hammer Case LockWasher (4)	34U-58
39		Handle Cap Screw (4)	510-638
40		Cap Screw Lock Washer (4)	8U-58
41	8851	Hammer Frame Assembly	2934-A703
42		Hammer Pin (2)
	8852A	Hammer Pin (2) with Heads	2934-704
	8852B	Hammer Pin (2) without Heads	2934-704
43		Hammer	1712-724
44		Side Spade Handle	T15-41
45		Side Spade Handle Stud	534-448
46		Side Spade Handle Stud Nut	107-73A
47	8885	Side Spade Handle Bracket	2934-364
47A		Side Spade Handle Bracket Spacer (2)	2934-140
48		1" Square Drive Anvil
		Standard Length	1712-726
		6" Extended Length	280-726-6
49		Retainer Ring (for 1" Square Drive Anvil)	RR10015S
50		Spline Drive Anvil
		Standard Length	1712-A526
		6" Extended Length	280-A514-6
51	8141	Retaining Plunger Spring	2940-231
52	8143	Socket Retaining Ball	D04-280
53		Retaining Ball Plunger	845-230
54	8142	Plunger Retaining Pin	845-128
55		Exhaust Deflector	280-167
56		Exhaust Deflector Screw (2)	W54-376
57		Dead Handle	834-48
58		Horizontal Hanger	2934-366
59		Nameplate	280-301
60		Nameplate Screw (4)	C32-302
61		Piped-Away Exhaust Kit
		with Muffler	2940-KM184
		without Muffler	2940-K184
62		Exhaust Deflector Kit	2934-K23
63	8652	Exhaust Deflector Assembly	2934-23A
64		Exhaust Baffle	2934-124
65	8656	Gasket	2934-223
66	8567	Silencer	2940P-311
67		Exhaust Deflector Screw (2)	R43F-104
*		Bottle of Oil	405-M01
*		Grease	405-MG1
*		Lube Injector	230-228
*	9939	Tune-up Kit (includes illustrated parts 3, 9, 10,12, 13, 15, 18, 20, 23, 27 (2), 28 (2), 31, 33 and 36)	280-TK2

More Info ›

Ingersoll-Rand 281 1" Drive Air Impact Wrench Repair Parts

IR 281 Parts List
Item	Part Number	Part Description	IR Equivalent
1		Handle Assembly	281-A92
1A		Handle Assembly	291-303
1B		Handle Assembly	291-330
2		Trigger	281-93
3	8475	Trigger Pin	281-437
4	8476	Trigger Stop Pin	281-439
5	8477	Trigger Slot Cover	281-438
6	8040	Throttle Valve	291-50
7			281-302
9	8041	Throttle Valve Spring	291-51
10	8645	Bushing Assembly	291-A565
11	8401	O-Ring	291-566
12			291-A329
13	8402	O-Ring	291-338
14	8480	Reverse Valve Stop Pin	291-332
15	8042	Steel Ball	291-333
16	8043	Reverse Valve Spring	291-334
17	8481	Reverse Valve Retaining Pin	281-120
20	8035C	Handle Gasket	281-283
21	8461	Back Handle Cap Screw	281-638 (4)
22	8483	Lock Washer	291-104 (4)
23			281-40
24	8044	Bearing	291-24
25	8373	Rear End Plate	291-A12
26	8484	End Plate Alignment Pin	291-10
27			291-53
28	2144	Rotor Vane (5 required)	291-42-5 (set / 5)
29	8430	Cylinder	291-A3
30	8485	Cylinder Dowel Pins	291-98 (2)
31	8372	Front End Plate	291-11
32	8045	Bearing	291-25
33			291-703
34			291-721
35			291-724
36			291-704
37			291-706
38			291-A726
38			281-A526
38			281-A726-6
38			281-A514-6
39			291-425
39			281S-425
40			291-426
40			281S-426
41			291-A727
41			291-EU-A727
42	8452	Hammer Case Bushing	291-641
43	8046	Hammer Case Seal	291-642
44		Warning Label	222-99
44		Warning Label	EU-99
45	8035B	Hammer Case Gasket	291-36
46	8488	Hammer Case Screw	291-105 (4)
47	8483	Lock Washer	291-104 (4)
48		Dead Handle	291-48
48	8441	Dead Handle (Black)	281-48-6
49	8489	Dead Handle Screw	291-49
50	8490	Lock Washer	291-504
51			285-P32
52		Label	281-301
52		Label	281-EU-301
52		Label	281S-301
52		Label	281-301-6
52		Label	281-6-EU-301
52		Label	281S-301-6
53		Screw	222-302
*	9955A	Tune-up Kit (includes illistrated parts 6, 9, 11, 13, 15, 16, 20, 24, 28, 32, 39, 40, 43 and 45)	281-TK1

More Info ›

Ingersoll-Rand 285 1" Drive Air Impact Wrench Repair Parts

IR 285 Parts List
Item	Part Number	Part Description	IR Equivelant
1	8447	Trigger Handle Assembly	285-A92A
2	8472	Plunger Bushing	291-303
3	8473	Reverse Valve Bushing	285-330A
4	8474	Trigger	285-93A
5	8475	Spring Pin	281-437
6	8476	Stop Pin	281-439
7	8477	Slot Cover	281-438
8	8378	Throttle Valve	285-50
9	8460	Throttle Valve Plunger	285-302
10	8377	Throttle Valve Spring	285-51
11	8645	Inlet Bushing	291-A565
14	8402	Reverse Valve Seal	291-338
15	8401	O-Ring	291-566
16	8042	Ball	291-333
17	8458	Reverse Valve Assembly	285-A329
18	8402	Reverse Valve Seal	291-338
19	8480	Stop Pin	291-332
19A	8042	Ball	291-333
20	8043	Spring	291-334
21	8481	Spring Pin	281-120
22	8482	Handle Gasket	285-283
23	8461	Handle Cap Screw (4)	281-638
		Handle Cap Screw
24	8483	Lockwasher (4)	291-104
25	8449	Motor Housing	285-40
26	8044	Rear Rotor Bearing	291-24
27	8373	Rear End Plate Assembly	291-A12
28	8484	Pin	291-10
29	8448	Rotor	285-53
30	2144	Vane Packet (set of 6 vanes)	291-42-6
31	8374	Cylinder Assembly	285-A3
32	8485	Cylinder Dowel (2)	291-98
33	8372	Front End Plate	291-11
34	8486	Front Rotor Bearing	58-96
35	8450	Hammer Frame	285-703
36	8228	Hammer Cam	285-721
37	8375	Hammer	285-724
38	8451	Side Plate	285-706
39		Standard Length 1” Square Drive Anvil Assembly	285-A726
39	8376	6” Extended Length 1” Square Drive Anvil Assembly	285-A726-6
39		Standard Length Spline Drive Anvil Assembly	285-A526
39		Spline Drive Anvil Assembly (6” Extended length)	285-A514-6
40	8047	Retainer Ring	291-425
41	8403	Retainer O-Ring	291-426
42	8169	Hammer Case Assembly	285-A727
43	8452	Hammer Case Bushing	291-641
44	8046	Oil Seal	291-642
45		Warning Label	WARNING-27-99
46	8381	Hammer Case Gasket	285-36
47	8488	Hammer Case Cap Screw (4)	291-105
		Hammer Case Cap Screw
48	8483	Lockwasher (4)	291-104
49		Dead Handle (for 285A)	291-48
49A		Dead Handle (for 285A-6 and 285A-S-6)	281-48-6
50	8489	Dead Handle Cap Screw (4)	291-49
51	8490	Dead Handle Cap Screw Lockwasher (4)	291-504
52		Name Plate	285-6
53		Nameplate Screw (2)	222-302
54	9941	Tune Up Kit (Includes: 8, 10, 14 [2], 15, 16 [16], 20, 22, 26, 30, 34, 40 [291-425], 41 [291-426], 44, 46)	285-TK1

More Info ›

Ingersoll-Rand 285A 1" Drive Air Impact Wrench Repair Parts

IR 285A Parts List
Item	Part Number	Part Description	IR Equivelant
1	8447	Trigger Handle Assembly	285-A92A
2	8472	Plunger Bushing	291-303
3	8473	Reverse Valve Bushing	285-330A
4	8474	Trigger	285-93A
5	8475	Spring Pin	281-437
6	8476	Stop Pin	281-439
7	8477	Slot Cover	281-438
8	8378	Throttle Valve	285-50
9	8460	Throttle Valve Plunger	285-302
10	8377	Throttle Valve Spring	291-51
11	8645	Inlet Bushing	291-A565
15	8401	O-Ring	291-566
17	8458	Reverse Valve Assembly	285-A329
18	8402	Reverse Valve Seal	291-338
19	8480	Stop Pin	291-332
19A	8042	Ball	291-333
20	8043	Spring	291-334
21	8481	Spring Pin	281-120
22	8482	Handle Gasket	285-283
23	8461	Handle Cap Screw (4)	281-638
		Handle Cap Screw
24	8483	Lockwasher (4)	291-104
25	8449	Motor Housing	285-40
26	8044	Rear Rotor Bearing	291-24
27	8373	Rear End Plate Assembly	291-A12
28	8484	Pin	291-10
29	8448	Rotor	285-53
30	2144	Vane Packet (set of 6 vanes)	291-42-6
31	8374	Cylinder Assembly	285-A3
32	8485	Cylinder Dowel (2)	291-98
33	8372	Front End Plate	291-11
34	8486	Front Rotor Bearing	58-96
35	8450	Hammer Frame	285-703
36	8228	Hammer Cam	285-721
37	8375	Hammer	285-724
38	8451	Side Plate	285-706
		1” Square Drive Anvil Assembly
39		Standard Length	285-A726
39A	8376	6” Extended Length	285-A726-6
40		Spline Drive Anvil Assembly (6” Extended length)	285-A514-6
41	8047	Retainer Ring	291-425
42	8403	Retainer O-Ring	291-426
43	8169	Hammer Case Assembly	285-A727
44	8452	Hammer Case Bushing	291-641
45	8046	Oil Seal	291-642
46		Warning Label	WARNING-27-99
47	8381	Hammer Case Gasket	285-36
48	8488	Hammer Case Cap Screw (4)	291-105
		Hammer Case Cap Screw
49	8483	Lockwasher (4)	291-104
50		Dead Handle (for 285A)	291-48
51	8441	Dead Handle (for 285A-6 and 285A-S-6)	281-48-6
52	8489	Dead Handle Cap Screw (4)	291-49
53	8490	Dead Handle Cap Screw Lockwasher (4)	291-504
54		Nameplate Screw (2)	222-302
55		Nameplate
		for 285A	285A-301
		for 285A-S-6	285A-S-6-301
		for 285A-6	285A-6-301

More Info ›

Ingersoll-Rand 285B 1" Drive Air Impact Wrench Repair Parts

285B Series Parts List
Item	Part Number	Part Description	IR Equivalent
1	9595	Trigger Handle Assembly (2, 3, 5, 6)	285B-A92A
2	9663	Trigger	285B-93A
3	9584	Slot Cover	285B-438
4		Nameplate and 4 rivets	285B-A301
5	9591	Stop Pin	285B-439
6		Pin, Spring	285B-437
7	9588	Plunger, Throttle Valve	285B-302
8	9587	Throttle Valve	285B-50
9	9577	Spring, Throttle Valve	285B-51
10	8147	Inlet Bushing Assembly	285B-A565
11	9580	O-Ring	285B-566
12	9667	Reverse Valve Assembly Includes 12,13,14,15,16,17	285B-A329
13	9589	Stop Pin	285B-332
14	9586	Spring	285B-334
15	9590	Ball	285B-333
16	9579	Reverse Valve Seal	285B-338
17	9591	Pin, Spring	285B-120
18	9568	Gasket, Handle	285B-283
19	9668A/9668B	Handle Cap Screw and washer
	9668	(Set of 8)	285B-A638
20	9582	Rear Rotor Bearing	285B-24
21	9620	End Plate with alignment pin	285B-A12
22		Pin, Spring
23	9669	Rotor	285B-53
24	2467	Vane Pack (Set of 6)	285B-42-6
25	9670	Cylinder and alignment pins	285B-A3
26	8478	Pin, Spring	(2)
27	9619	Front End Plate	285B-11
28	9583	Front Rotor Bearing	285B-96
29	-	Tool Gaurd	431L-32
30	9594	Motor Housing	285B-40
31	8614	Hammer Frame	285B-703
32	9672	Hammer	285B-724
33	9673	Hammer Cam	285B-721
34	9593	Anvil Assembly, Std. Length	285B-A726
35	9674	Anvil Assembly, 6" extended Length	285B-A726-6
36	9578	O-Ring	BBFM-557
37	8661	Retainer Ring	910E5-918
38	-	6" Extended #5 Spline Anvil	285B-A514-6
39	-	O-Ring	285B-S-557
40	-	Retaining Ring	285B-S-918
41	8613	Side Plate	285B-706
42	9585	Hammer Case Gasket	285B-36
43	9613	Hammer Case Assembly	285B-A727
44	9679	Hammer Case Bushing	285B-641
45	9581	Oil Seal	285B-642
46	-	Warning Label	Warning-2-99
47	9596	Dead Handle (Angled)	285B-A48-6
48	9680	Dead Handle (Straight)	285B-A48
49	8489	Screw
49	8490	Washer (3)
50	8727	Hammer Case Guard	431L-62
-	9984	Tune up kit (includes items 3,7,8, 9,11,13,14,15,16,17,18,20,24,28,35, 36)	285B-TK1

More Info ›

Ingersoll-Rand 290 1" Drive Air Impact Wrench Repair Parts

IR 290 Series Parts List
Item	Part Number	Part Description	IR Part Number
1		Motor Housing Assembly	1712P-A40
2		Trigger	2934P-93
3	8564	Trigger Spring	2934P-51
4	8565	Trigger Pin	R1AF-524
5		Trigger Bushing	2905-91S
6	8579	Air Port Gasket (2)	R44H-210A
7	8350	Gasket Retainer (2)	2940-200
8	8598	Throttle Valve Assembly	2934P-A50
9	8554	Throttle Valve Face	2934-159
10	-	Throttle Valve Plunger	2934P-302
11	8555	Throttle Valve Spring	834-51
12	8556	Air Strainer Screen	434-61
13	8650	Straight Inlet	845-565
14		Reverse Valve Bushing	2934P-330S
15		Reverse Valve Assembly	2934P-A329
16	8283	Reverse Valve Seal	85H-167
17	8850	Reverse Lever	2934-658A
18	8561	Reverse Lock Plunger	4U-663B
19	8562	Reverse Lock Spring	4U-664
		Power Regulator Assembly	2934P-A249
20		Power Regulator	2934P-249
21	8270	Power Regulator Seal	R1A-159
22	8282	Power Regulator Retaining Ball	AV1-255
23		Housing Cover Lock Washer (4)	8U-58
24		Housing Cover Cap Screw (4)	510-638
25		Housing Cover Assembly	1712P-A102
28		Grease Fitting	130SR-188
31	8558	Housing Cover Gasket	2934-283
32		Motor ClampWasher	2934-207
33	9707	Cylinder	2934-3
34		Cylinder Dowel	2934-98
35	8559	Rear Rotor Bearing	508-97
36	8175	Rear End Plate	2934-12
37	9709	Rotor	2934-53
38	2158	Vane Packet (set of 6 Vanes)	2934-42-6
39	8730	Front End Plate	2934-11
40	8560	Front Rotor Bearing	810-97
41	8563	Hammer Case Gasket	2934-36
41A		Dead Handle	834-48
42		Side Spade Handle	T15-41
43		Side Spade Handle Stud	534-448
44		Side Spade Handle Nut	107-73A
44A	8885	Side Spade Handle Bracket	2934-364
44B		Hanger Spacer (2)	2934-140
45	8851	Hammer Frame Assembly	2934-A703
46	8852A/8852B	Hammer Pin (2)	2934-704
47		Hammer	1712-724
48		1” Square Drive Anvil
		standard length	1712-726
		6” extended length	280-726-6
49		Hammer Case Assembly
		for 290, 290--6 and 290--S	1712B-A727
		for 290--EU and 290--6--EU	1712B-EU-A727
50	9338	Hammer Case Bushing	2934-641
50A		Hammer Case Label
		for 290, 290--6 and 290--S	WARNING-2-99
		for 290--EU and 290--6--EU	EU-99
51		Hammer Case Cap Screw Lock
		Washer (4)	34U-58
52		Hammer Case Cap Screw (4)	834-638
53		Socket Retainer	RR10015S
53A		Muffler	2910-674
54		Spline Drive Anvil
		standard length	1712-726
		6” extended length	280-726-6
55	8143	Socket Retaining Ball	D04-280
56		Retaining Ball Plunger	845-230
57	8141	Retaining Plunger Spring	2940-231
58	8142	Plunger Retaining Pin	845-128
59		Horizontal Hanger	2934-366
60		Nameplate
		for 290--6	290-301-6
		for 290--6--EU	290-6-EU-301
		for 290 and 290--S	290-301
		for 290--EU	290-EU-301
61		Nameplate Screw (3)	C32-302
62		Bottle of Oil	405-M01
63		Grease	405-MG1
64		Lube Injector	230-228
	9958	Tune-up Kit (includes illustrated parts (3, 4,6 [2], 7 [2], 9, 11, 12, 27,16, 21, 22,18, 19, 30, 31, 35, 38, 40 and 41)	2940-TK3

More Info ›

Ingersoll-Rand 291 1" Drive Air Impact Wrench Repair Parts

IR 291 Series Parts List
Item	Part Number	Part Description	IR Part Number
1		Motor Housing Assembly	291-A40
1A	8472	Plunger Bushing	291-303
1B		Reverse Valve Bushing	291-330
2		Trigger	291-93
3		Trigger Pin	291-94
4		Trigger Stop Pin	291-95
5	9587	Throttle Valve (use 8040 with tapered springs)	291-50
6		Throttle Valve Plunger	291-302
8	8041	Throttle Valve Spring (replacements are not tapered)	291-51
9	8645	Inlet Bushing Assembly	291-A565
10	8401	Inlet Bushing O-Ring	291-566
11		Oil Chamber Plug Assembly	291-A427
12		Chamber Plug Seal	291-428
13		Reverse Valve Assembly	291-A329
14	8402	Reverse Valve O-Ring	291-338
15		Reverse Valve Stop Pin	291-332
16		Reverse Valve Detent Spring	291-334
17	8042	Reverse Valve Detent Ball	291-333
19		Reverse Valve Retaining Pin	291-336
20		Backhead	291-102
21	8035D	Backhead Gasket	291-793
22		Backhead Cap Screws (4)	291-103
23	8483	Lock Washer (4)	291-104
24	8044	Rear Rotor Bearing	291-24
25	8373	Rear End Plate Assembly	291-A12
26		End Plate Alignment Pin	291-10
27	8430	Cylinder Assembly	291-A3
28	8485	Cylinder Dowel (2)	291-98
29		Rotor	291-53
30	2144	Rotor Vane (5 required)	291-42-5
31	8372	Front End Plate	291-11
32	8045	Front Rotor Bearing	291-25
33		Hammer Frame	291-703
34		Hammer Cam	291-721
35		Hammer	291-724
36		Hammer Pin	291-704
37		Hammer Frame Washer	291-706
38		Anvil Assembly	291-A726
38		Anvil Assembly	291-A726-6
38		Anvil Assembly	281-A526
39	8047	Socket Retaining Ring (for 1" square drive)	291-425
39		Socket Retaining Ring (for spline drive)	281S-425
40	8403	Socket Retaining Ring (for 1" square drive)	291-426
40		Socket Retaining Ring (for spline drive)	281S-426
41		Hammer Case Assembly	291-A727
41		Hammer Case Assembly	291-EU-A727
42	8452	Hammer Case Bushing	291-641
43	8046	Hammer Case Seal	291-642
43A		Warning Label for (291, 291-6 & 291-S)	222-99
43A		Warning Label for (291-EU & 291-6-EU)	EU-99
44	8488	Hammer Case Cap Screw (4)	291-105
45	8483	Lock Washer (4)	291-104
47	8035B	Hammer Case Gasket	291-36
48		Dead Handle	291-48
49	8489	Dead Handle Cap Screws (4)	291-49
50	8490	Lock Washer (4)	291-504
51		Nameplate (for 291)	291-304
51		Nameplate (for 291-EU)	291-EU-301
51		Nameplate (for 291-6)	291-301-6
51		Nameplate (for 291-6-EU)	291-6-EU-301
51		Nameplate (for 291-S)	291-S-301
52		Nameplate Drive Screw (2)	222-302
*	9955B	Tune-up Kit (includes illistrated items 5, 8, 10, 12, 14, 16, 17, 21, 24, 30, 32, 39, 40, 43 & 47)	291-TK1

More Info ›

Ingersoll-Rand 295 1" Drive Air Impact Wrench Repair Parts

IR 295A Series Parts List
Item	Part Number	Part Description	IR Part Number
1		Handle Assembly	295A-A40
2		Trigger	295A-A93
3		Pin, Spring	295A-439
4	8673	Valve Seat	295A-303
5	8674	Throttle Valve	295A-50
6	8675	Throttle Valve Spring	295A-51
7		Inlet Bushing Assembly	295A-A565
8	9126	O-Ring	295A-566
9		Deflector Kit	295A-A23
10		Screw and Washer (3 sets)	295A-A262
11		Backhead Assembly	295A-A102
12		Nameplate and 4 Rivets	295A-A301
13		Reverse Lever	295A-A658
14	9586	Spring	285B-334
15	9590	Ball	285B-333
16	9668	Handle Cap Screw and Washers (set of 8)	295B-A638
17		Reverse Valve Assembly	295A-A329
18		Stop Pin	295A-120
19		O-Ring	285B-338
20	9114	Handle Gasket	295A-283
21	9582	Rear Rotor Bearing	285B-24
22		Endplate with Alignment Pin	285B-A12
23		Pin, Spring	-
24	9670	Cylinder and Alignment Pins	285B-A3
25		Pin, Spring (2)	-
26	9669	Rotor	285B-53
27	2467	Rotor Vanes (requires 6)	285B-42-6
28	9619	Front End Plate	285B-11
29	9583	Front Rotor Bearing	285B-96
30	9585	Hammer Case Gasket	285B-36
31		Hammer Frame	285B-703
32	9673	Hammer Cam	285B-721
33	9672	Hammer	285B-724
34		Side Plate	285B-706
35	9593	Anvil Assembly (standard)	285B-A726
36	9674	Anvil Assembly (6" extended)	285B-A726-6
37	9578	O-Ring	BBFM-557
38	8661	Retainer Ring	910ES-918
39	9613	Hammer Case Assembly	285B-A727
40	9679	Hammer Case Bushing	285B-641
41	9581	Oil Seal	285B-642
42		Warning Label	WARNING-2-99
43	9680	Dead Handle (Straight) with Screws	285B-A48
44		Screw and Washer (3)	-
45		Hammer Case Guard	431L-62
*	9997	Tune-up Kit (includes illistrated items 5, 6, 8, 14, 15, 18, 19, 20, 21, 27, 29, 30, 37, 38 & 41)	295A-TK1

More Info ›

Ingersoll-Rand 295A 1" Impact Wrench Repair Parts

-

More Info ›

Ingersoll-Rand 722 Air Hammer Repair Parts

IR 722 Air Hammer Parts List
Item	Part Number	Part Description	IR Equivalent
1		Offset Handle Assembly	772-A59
		Throttle Valve and Bushing Assembly	MC10B-A302
2		Throttle Valve Assembly	MV121-302
3		Throttle Valve Face	R00B1-159
4		Throttle Valve Button	R00AR2C-305A
5		Throttle Valve Bushing Assembly	MC10B-A503
6		Throttle Valve Bushing Seal	R000BR-210
7		Throttle Valve Spring	508-51
8		Valve Seat	MC121-3
9		Valve Spacer	MC121-8
10		Valve Cap	MC121-4
11		Valve	MC121-2
12		Dowel Pin (2)	MC121-32
13		Exhaust Deflector	AV11-85
14		Piston	MC121-5
15		Barrel	772-6
15A		Warning Label	WARNING-6-99
16		Tool Retainer Quick-Change Type	AVC10-183A
16A		Tool Retainer Safety Type	AVC1-83
*		Carrying Case	MC121-A96
*		Tune-up Kit (Includes 6, 7, 11, 12 [2], 16 & bottle of oil)	772-TK1

More Info ›

Ingersoll-Rand 1712 1" Drive Air Impact Wrench Repair Parts

IR 1712 Series Parts List
Item	Part Number	Part Description	IR Part Number
1		Inside Trigger Handle Assembly	1712-A92
2		Grease Fitting	130SR-188
5		Inside Trigger	834-93A
6		Inside Trigger Pin	534-265
7	8599	Throttle Valve Plunger	2934-302
8	8598	Throttle Valve Assembly	2934-A50
9	8554	Throttle Valve Face	2934-159
10	8555	Throttle Valve Spring	834-51
11	8650	Straight Inlet	845-565
12	8556	Air Strainer Screen	434-61
13		Reverse Valve Seal	R00BR-210
15	8558	Handle Gasket	2934-283
16		Motor Clamp Washer	2934-207
17	8175	Rear End Plate	2934-12
18	8559	Rear Rotor Bearing	508-97
19	9709	Rotor	2934-53
20	2158	Rotor Vanes (requires 6)	2934-42-6
21	9707	Cylinder	2934-3
22	8730	Front End Plate	2934-11
23	8560	Front Rotor Bearing	810-97
24		Cylinder Dowel	2934-98
25		Motor Housing Assembly	1712-A40
26		Reverse Valve Bushing	2934-330S
27	8579	Air Port Gasket (2)	R44H-210A
27A		Air Port Gasket Retainer (2)	2940-200
28	8850	Reverse Lever	2934-658A
29	8561	Reverse Lock Plunger	4U-663B
30	8562	Reverse Lock Plunger Spring	4U-664
31		Reverse Valve Assembly	2934-A329
32	8283	Valve Seal	85H-167
33		Hammer Case Assembly	1712B-A727
34		Hammer Case Bushing	2934-641
34A		Warning Label	WARNING-2-99
35	8563	Hammer Case Gasket	2934-36
36		Hammer Case Cap Screw (4)	834-638
37	8413	Hammer Case Cap Screw Lockwasher (4)	34U-58
38		Handle Cap Screw (4)	510-638
39		Handle Cap Lockwasher (4)	8U-S8
40	8851	Hammer Frame Assembly	2934-A703
41	8852A	Hammer Pin (2)	2934-704
42		Hammer	1712-724
*	8751	Dead Handle	834-48
43		Side Spade Handle	T15-41
44		Side Spade Handle Stud	534-148
45		Side Spade Handle Stud Nut	107-73A
45A	8885	Side Spade Handle Bracket	2934-364
45B		Side Spade Handle Bracket Spacer (2)	2934-140
46		1" Square Drive Anvil (standard)	1712-726
46		1" Square Drive Anvil (6" extended)	280-726-6
47		Retainer Ring (for 1" square drive)	RR100155
49		Spline Drive Anvil (standard)	1712-A526
49		Spline Drive Anvil (6" extended)	280-A514-6
50	8141	Retaining Plunger Spring	2940-231
51	8143	Socket Retaining Ball	D04-280
52		Retining Ball Plunger	845-230
53	8142	Plunger Retaining Pin	845-128
54		Exhaust Deflector	280-167
55		Exhaust Deflector Screw (2)	W54-376
56		Nameplate	1712-301
57		Nameplate Screw (4)	C32-302
*		Exhaust Deflector Kit	2934-K23
*		Exhaust Baffle	2934-124
*		Gasket	2934-223
*		Silencer	2940P-311
*		Screw (2)	R43F-104
*		Piped-Away Exhaust Kit without Muffler	2940-K184
*		Exhaust Adapter	294-167
*		Exhaust Adapter Gasket	2940-30
*		Adapter Cap Screw	AL-638
*		Exhaust Hose	R21-230
*		Hose Clamp	R21-31
*		Horizontal Hanger	2934-366
*	9994	Tune-up Kit (includes illistrated parts 3, 9, 10, 12, 13, 15, 18, 20, 23, 27 (2), 27A (2), 29, 30, 32 & 35)	1712B/1712P-TK3

More Info ›

Ingersoll-Rand 1720B 3/4" Drive Air Impact Wrench Repair Parts

IR 1720B 3/4" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing Assembly	1720B-A40
2	8752	Trigger	834-93A
3		Trigger Pin	534-265
4	8410	Throttle Valve Plunger	2920B-302
5		Throttle Valve Assembly	834-50
6		Throttle Valve Face	435-159
7	8555	Throttle Valve Spring	834-51
8	8556	Air Strainer Screen	434-61
9		Air Inlet Bushing	834-565
10		Grease Fitting	130SR-188
11		Exhaust Silencer	1720B-311
12		Exhaust Deflector	2910B-23
13		Exhaust Deflector Gasket	2910B-223
14		Exhaust Deflector Screw (4)	H54U-667
15	8419	Reverse Valve	1710B-329
16	8207	Reverse Valve Seal (2)	261-283
17	8309	Reverse Valve Knob	231-666
18	8310	Reverse Valve Knob Screw	231-665
19	8039	Rear Rotor Bearing Retainer	MVA008-218
20	8038	Rear Rotor Bearing	4E-510
21		Rear End Plate	2921HP-12
22	8034B	Rear End Plate Gasket	2920B-283
23	8096	Cylinder	2920-3
24	2157P (ea)	Rotor Vane (6 required)	2910-42-6
25	8091	Front End Plate	2921HP-11
26	8171	End Plate Dowel	2920-74
27	8429	Rotor	2910B-53
28	8037	Front Rotor Bearing	834-24
29	8326	Cylinder Dowel	910-98
30	8325 (ea)	Motor Clamp Washer (2)	2920-207
31	8410	Motor Retainer	2920B-800
32	8034A	Hammer Case Gasket	910-36
33		Hammer Case Assembly	1720B-A727
34	8119	Hammer Case Bushing	2920-641
34A		Warning Label	WARINING-2-99
35	8412 (ea)	Hammer Case Cap Screw (4)	34U-103
36	8413 (ea)	Cap Screw Lock Washer (4)	34U-58
37	8414	Rear Hammer Frame Washer	910-706
38	8415	Hammer Frame Assembly	2910-A703
39	8416	Hammer Pin (2)	2910-704
40	8417	Hammer	260-724
41		Anvil	260-762
42		Socket Retainer	RR10034S
43		Nameplate	1720B-301
44		Nameplate Screw (4)	C32-302
*		Dead Handle Bracket	2910B-364
*	8751	Dead Handle	834-48
*		Horizontal Hanger	910-366
*		Tune-up Kit (Includes 6, 7, 8, 11, 13, 16 [2], 19, 20, 22, 24, 28 & 32)	1720B-TK2

More Info ›

Ingersoll-Rand 1720B 1" Drive Air Impact Wrench Repair Parts

IR 1720B 1" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing Assembly	1720B-A40
2	8752	Trigger	834-93A
3		Trigger Pin	534-265
4	8410	Throttle Valve Plunger	2920B-302
5		Throttle Valve Assembly	834-50
6		Throttle Valve Face	435-159
7	8555	Throttle Valve Spring	834-51
8	8556	Air Strainer Screen	434-61
9		Air Inlet Bushing	834-565
10		Grease Fitting	130SR-188
11		Exhaust Silencer	1720B-311
12		Exhaust Deflector	2910B-23
13		Exhaust Deflector Gasket	2910B-223
14		Exhaust Deflector Screw (4)	H54U-667
15	8419	Reverse Valve	1710B-329
16	8207	Reverse Valve Seal (2)	261-283
17	8309	Reverse Valve Knob	231-666
18	8310	Reverse Valve Knob Screw	231-665
19	8039	Rear Rotor Bearing Retainer	MVA008-218
20	8038	Rear Rotor Bearing	4E-510
21		Rear End Plate	2921HP-12
22	8034B	Rear End Plate Gasket	2920B-283
23	8096	Cylinder	2920-3
24	2157P (ea)	Rotor Vane (6 required)	2910-42-6
25	8091	Front End Plate	2921HP-11
26	8171	End Plate Dowel	2920-74
27	8429	Rotor	2910B-53
28	8037	Front Rotor Bearing	834-24
29	8326	Cylinder Dowel	910-98
30	8325 (ea)	Motor Clamp Washer (2)	2920-207
31	8410	Motor Retainer	2920B-800
32	8034A	Hammer Case Gasket	910-36
33		Hammer Case Assembly	1720B-A727
34	8119	Hammer Case Bushing	2920-641
34A		Warning Label	WARINING-2-99
35	8412 (ea)	Hammer Case Cap Screw (4)	34U-103
36	8413 (ea)	Cap Screw Lock Washer (4)	34U-58
37	8414	Rear Hammer Frame Washer	910-706
38	8415	Hammer Frame Assembly	2910-A703
39	8416	Hammer Pin (2)	2910-704
40	8417	Hammer	260-724
41		Anvil	260-762
42		Socket Retainer	RR10034S
43		Nameplate	1720B-301
44		Nameplate Screw (4)	C32-302
*		Dead Handle Bracket	2910B-364
*	8751	Dead Handle	834-48
*		Horizontal Hanger	910-366
*		Tune-up Kit (Includes 6, 7, 8, 11, 13, 16 [2], 19, 20, 22, 24, 28 & 32)	1720B-TK2

More Info ›

Ingersoll-Rand 1720P 3/4" Drive Air Impact Wrench Repair Parts

IR 1720P 3/4" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Housing	1720P-A40
2	8327	Trigger	2920-A93
3		Throttle Valve (DG230-302)	2921-302
5	8208	Valve Seat (DG230P-303)	DG230-303
6	8036	Throttle Valve Spring	1720P-51
7	8428	Exhaust Deflector	1720P-23
8	8324	Air Inlet Bushing	2920P-465
9		Housing Plate	1720P-230
10	8034C	Gasket	1720P-231
11		Screw	FEA100-112
12		Grease Fitting	130SR-188
13	8419	Reverse Valve	1710B-329
13	8471	Reverse Valve (NON REGULATED)
14	8207	Reverse Valve Seal	261-283
15	8309	Reverse Valve Knob	231-666
16	8310	Reverse Valve Knob Screw	231-665
17	8039	Retainer	MVA008-218
18	8038	Bearing	4E-510
19		Rear Endplate (2920-12)	2921HP-12
20	8034B	Rear Endplate Gasket	2920B-283
21	8429	Rotor	2910B-53
22	2157	Rotor Vane (requires 6)	2910-42-6
22	2157P	Rotor Vane Plastic (requires 6)
23	8096	Cylinder	2920-3
24	8326	Cylinder Dowel	910-98
25		Front Endplate (2920-11)	2921HP-11
26	8171	Plate Dowel	2920-74
27	8037	Bearing	834-24
28	8325	Clamp Washer	2920-207
29	8410	Motor Retainer	2920B-800
30	8034A	Hammer Case Gasket	910-36
31		Replaced by 261-A727	1720B-A727
32A		Warning Label	WARNING-2-99
32	8119	Bushing	2920-641
33	8412 (ea)	Bolt Pack (requires 4)	34U-103-4
34	8413 (ea)	Lockwasher (requires 4)	34U-58
35	8414	Frame Washer	910-706
36	8415	Hammer Frame	2910-A703
37	8416	Hammer Pin	2910-704
38	8417	Hammer	260-724
39A	8815	Anvil (3/4" square drive w/ pin hole retainer)	260-726
39B		Anvil (1")	1711B-826
40A		Retainer (3/4" drive)	RR10034S
40B		Socket Retaining Ring	RR10015S
75	9933	Tune-up Kit (TK1)	1720P-TK2

More Info ›

Ingersoll-Rand 1720P 1" Drive Air Impact Wrench Repair Parts

IR 1720P 3/4" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Housing	1720P-A40
2	8327	Trigger	2920-A93
3		Throttle Valve (DG230-302)	2921-302
5	8208	Valve Seat (DG230P-303)	DG230-303
6	8036	Throttle Valve Spring	1720P-51
7	8428	Exhaust Deflector	1720P-23
8	8324	Air Inlet Bushing	2920P-465
9		Housing Plate	1720P-230
10	8034C	Gasket	1720P-231
11		Screw	FEA100-112
12		Grease Fitting	130SR-188
13	8419	Reverse Valve	1710B-329
13	8471	Reverse Valve (NON REGULATED)
14	8207	Reverse Valve Seal	261-283
15	8309	Reverse Valve Knob	231-666
16	8310	Reverse Valve Knob Screw	231-665
17	8039	Retainer	MVA008-218
18	8038	Bearing	4E-510
19		Rear Endplate (2920-12)	2921HP-12
20	8034B	Rear Endplate Gasket	2920B-283
21	8429	Rotor	2910B-53
22	2157 (ea)	Rotor Vane (requires 6)	2910-42-6
22	2157P (ea)	Rotor Vane Plastic (requires 6)
23	8096	Cylinder	2920-3
24	8326	Cylinder Dowel	910-98
25		Front Endplate (2920-11)	2921HP-11
26	8171	Plate Dowel	2920-74
27	8037	Bearing	834-24
28	8325	Clamp Washer	2920-207
29	8410	Motor Retainer	2920B-800
30	8034A	Hammer Case Gasket	910-36
31		Replaced by 261-A727	1720B-A727
32A		Warning Label	WARNING-2-99
32	8119	Bushing	2920-641
33	8412 (ea)	Bolt Pack (requires 4)	34U-103-4
34	8413 (ea)	Lockwasher (requires 4)	34U-58
35	8414	Frame Washer	910-706
36	8415	Hammer Frame	2910-A703
37	8416	Hammer Pin	2910-704
38	8417	Hammer	260-724
39		Anvil (1")	1711B-826
40		Socket Retainer (1")	RR10015S
*	9933	Tune-up Kit (Includes 3, 5, 6, 10, 14 [2], 17, 18, 20, 22, 27 & 30	1720P-TK2

More Info ›

Ingersoll-Rand 1770G 3/8" Air Ratchet Repair Parts

-

More Info ›

Ingersoll-Rand 2080 1" Drive Air Impact Wrench Repair Parts

IR 2080 1" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Handle	2080-92
2	9224	Handle Bolt (4)	2080-638
3		Trigger	2080-93
4		Trigger Pin	534-265
5		Plug	2080-34
6		Plunger Pin	2080-120
7		Cap	2080-95
8		Trigger Plunger	2080-94
9		Inlet	2080-465
10	8627	O-Ring	R4-210
11	8628	Screen	834-61
12	8629	Spring	2080-51
13	8104	Throttle Valve	2921-302
14	8208	Throttle Valve Seat	DG230-303
15		Reverse Lever	2080-658
16	9720	Reverse Lever Spring	2080-278
17	8184	Snap Ring	2161-28
18	8182	Grease Fitting	R1-188
19	8588	Handle Gasket	2161-739
20	8186	Motor Clamp Washer	2161-207
21	8038	Rear Rotor Bearing	4E-510
22	8825	Rear End Plate	2161-12
23	8171	End Plate Dowel	2920-74
24	9109	Rotor	2080-53
25	2199	Rotor Vane (requires 7)	2925-42-7
26		Cylinder	2925-3
27	9469	Cylinder Dowel (2)	JC3350-538
28	8824	Front End Plate	2161-11
29	8037	Front End Bearing	834-24
30	8868	Motor Housing	2925B-A40
31		Warning Label	WARNING-2-99
32	8188	Reverse Valve	2161-329
33	8860	O-Ring	023446
34	9329	Housing O-Ring	C321-606
35	8658	Exhaust Cover	2080-123
36	8659	Exhaust Cover Snap Ring	3CS5492-28
37	8660	Muffler	2080-310
38	9357	Hammer Frame Washer	2161-706
39	8260	Hammer Frame	2925-703
40	8416	Hammer Pin (2)	2910-704
41	8694	Hammer (2)	2925-724
42	9692	Anvil for 2080 (standard length)	2080-A726
	8791	Anvil for 2080-6 (6" extended length)	2080-A826-6
43	9578	Socket Retainer O-Ring	BBFM-557
44	8661	Socket Retainer	910E5-918
45	8589	Hammer Case Gasket	2161-36
46	8190	Hammer Case Assembly for 2080	2161-A727
		Hammer Case Assembly for 2080-6	2080-A727
47	9433	Hammer Case Bushing for 2080	2161-641
		Hammer Case Bushing for 2080-6	2080-641A
		Auxiliary Handle Assembly	2080-A48
48		Auxiliary Handle	2080-48
49		Bolt (2)	2080-49
50		Strap	2080-364
*	9995	Tune-up Kit (includes parts 10, 11, 12, 13, 14, 19, 21, 25, 29, 33, 34, 37, 43, 44 & 45)	2080-TK1

More Info ›

Ingersoll-Rand 2100G 1/2" Impact Wrench Repair Parts

-

More Info ›

Ingersoll-Rand 2112 3/8" Drive Air Impact Wrench Repair Parts

IR 2112 3/8" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1	9228	Cylinder	2112-3
2	8706	Front End Plate	2112-11
3	8101	Front Rotor Bearing	2131-97
3A	8294	Rear Rotor Bearing	R00H-97
4	2454	Vane Packet (set of 6 Vanes)	2112-42-6
5	8130	Rotor	2112-53
6	8750	Rear Rotor Bearing Retainer	4E-6
7	8590	Motor Gasket	2112-283
8		Anvil Assembly
	8125	for 2112 and 2112S	2112-A626
	8131	for 2121	2112-A726
		for 2121-2	2125-A414-2
9		Socket Retainer
	8296	for 2112 and 2112S	1702-425
	8088	for 2121 and 2121-2	231-425A
10		Socket Retainer O-ring
	8261	for 2112 and 2112S	1702-426
	8270	for 2121 and 2121-2	R1A-159
11	8832	Hammer Case Screw (4)	2112-638
		Hammer Frame Assembly	2112-A703
12	8129	Hammer Frame	2112-703
13	8514	Hammer Pin (2)	2112-704
14	9204	Hammer (2)	2112-724
15	8136	Hammer Case Assembly	2112-727
16	8831	Hammer Case Bushing	2112-641
17		Grease Fitting	D0F9-879
18	8764	Hammer Case Gasket	2112-36
19	8584	Housing Assembly	2112-A40
20		Housing Label	2112-99
20A		Warning Label	WARNING-2-99
21		Nameplate
		for 2112	2112-301
		for 2112S	2112S--301
		for 2121 and 2121-2	2121-301
22	8128	Inlet Bushing Assembly	2131-A565
23	8740	Inlet Bushing Screen	5RA-61
24	9144	Inlet Retainer Clip	2131-57
25	8592	Inlet Parts Kit	2131-K303
25A	8747	Washer	---
25B	8745	Inlet Bushing Seal	---
25C	8739	Tilt Valve Spring	---
25D	8725	Tilt Valve	---
25E	8734	Tilt Valve Seat	---
25F	8744	Tilt Valve Seat Support	---
25G	8746	Tilt Valve Seat Retainter	---
26	8122	Trigger Assembly	2131-A93
27	8770	Trigger O-ring	---
28	8771	Reverse Valve Assembly	2131-A329
29	8771T	Reverse Valve O-ring (top)	---
30	8771B	Reverse Valve O-ring
		(bottom) (blue)	---
31	8787	Button Kit	2112-K75
32		Forward Button	---
33		Reverse Button	---
34	8784	Power Management Dial	2112-A249
35	9571	Power Management Dial Seal	2112-248
36	8594	Inlet Clip Removal Tool	2131-322
37		Silencer (4) (2112S only)	2131S-310
		Grease (1 lb) (for external lubrication of the impact mechanism)	115-1LB
		Grease 1 lb (for lubrication when disassembling and assembling the impact mechanism)	105-1LB
		Grease 8 lb (for lubrication when disassembling and assembling the impact mechanism)	105-8LB
		Protective Cover	2112-P32
		Grease Gun	R000A2-228
		Seal Kit (includes: 7, 18, 25B, 27, 29, 30 and 35)	2112-K36
		Tune-up Kit (includes: 3, 3A, 4, 6, 7, 9, 10, 18, 23, 25, 27, 29, 30 and 35)	2112-TK2
		Hammer Kit (for 2112 and 2112S) (includes: 11 [4], 14 [2], 18, and Anvil Assembly part number 2112-A626)	2112-THK1
		Hammer Kit (for 2121) (includes: 11 [4], 14 [2], 18 and Anvil Assembly part number 2112-A726)	2121-THK1
		Hammer Kit (for 2121-2) (includes: 11 [4], 14 [2], 18 and Anvil Assembly part number 2125-A414-2)	2121-THK1-2

More Info ›

Ingersoll-Rand 2112 1/2" Drive Air Impact Wrench Repair Parts

IR 2112 1/2" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1	9228	Cylinder	2112-3
2	8706	Front End Plate	2112-11
3	8101	Front Rotor Bearing	2131-97
3A	8294	Rear Rotor Bearing	R00H-97
4	2454	Vane Packet (set of 6 Vanes)	2112-42-6
5	8130	Rotor	2112-53
6	8750	Rear Rotor Bearing Retainer	4E-6
7	8590	Motor Gasket	2112-283
8		Anvil Assembly
	8125	for 2112 and 2112S	2112-A626
	8131	for 2121	2112-A726
		for 2121-2	2125-A414-2
9		Socket Retainer
	8296	for 2112 and 2112S	1702-425
	8088	for 2121 and 2121-2	231-425A
10		Socket Retainer O-ring
	8261	for 2112 and 2112S	1702-426
	8270	for 2121 and 2121-2	R1A-159
11	8832	Hammer Case Screw (4)	2112-638
		Hammer Frame Assembly	2112-A703
12	8129	Hammer Frame	2112-703
13	8514	Hammer Pin (2)	2112-704
14	9204	Hammer (2)	2112-724
15	8136	Hammer Case Assembly	2112-727
16	8831	Hammer Case Bushing	2112-641
17		Grease Fitting	D0F9-879
18	8764	Hammer Case Gasket	2112-36
19	8584	Housing Assembly	2112-A40
20		Housing Label	2112-99
20A		Warning Label	WARNING-2-99
21		Nameplate
		for 2112	2112-301
		for 2112S	2112S--301
		for 2121 and 2121-2	2121-301
22	8128	Inlet Bushing Assembly	2131-A565
23	8740	Inlet Bushing Screen	5RA-61
24	9144	Inlet Retainer Clip	2131-57
25	8592	Inlet Parts Kit	2131-K303
25A	8747	Washer	---
25B	8745	Inlet Bushing Seal	---
25C	8739	Tilt Valve Spring	---
25D	8725	Tilt Valve	---
25E	8734	Tilt Valve Seat	---
25F	8744	Tilt Valve Seat Support	---
25G	8746	Tilt Valve Seat Retainter	---
26	8122	Trigger Assembly	2131-A93
27	8770	Trigger O-ring	---
28	8771	Reverse Valve Assembly	2131-A329
29	8771T	Reverse Valve O-ring (top)	---
30	8771B	Reverse Valve O-ring
		(bottom) (blue)	---
31	8787	Button Kit	2112-K75
32		Forward Button	---
33		Reverse Button	---
34	8784	Power Management Dial	2112-A249
35	9571	Power Management Dial Seal	2112-248
36	8594	Inlet Clip Removal Tool	2131-322
37		Silencer (4) (2112S only)	2131S-310
		Grease (1 lb) (for external lubrication of the impact mechanism)	115-1LB
		Grease 1 lb (for lubrication when disassembling and assembling the impact mechanism)	105-1LB
		Grease 8 lb (for lubrication when disassembling and assembling the impact mechanism)	105-8LB
		Protective Cover	2112-P32
		Grease Gun	R000A2-228
		Seal Kit (includes: 7, 18, 25B, 27, 29, 30 and 35)	2112-K36
		Tune-up Kit (includes: 3, 3A, 4, 6, 7, 9, 10, 18, 23, 25, 27, 29, 30 and 35)	2112-TK2
		Hammer Kit (for 2112 and 2112S) (includes: 11 [4], 14 [2], 18, and Anvil Assembly part number 2112-A626)	2112-THK1
		Hammer Kit (for 2121) (includes: 11 [4], 14 [2], 18 and Anvil Assembly part number 2112-A726)	2121-THK1
		Hammer Kit (for 2121-2) (includes: 11 [4], 14 [2], 18 and Anvil Assembly part number 2125-A414-2)	2121-THK1-2

More Info ›

Ingersoll-Rand 2115Ti 3/8" Drive Air Impact Wrench Repair Parts

IR 2115Ti (Old Style) Parts List
Item	Part Number	Part Description	IR Equivalent
HA		Housing Assembly (2115Ti) (Includes: 1, 3, 4, 5, 23, 24, 24A, 24B, 29)	2115Ti-A40
HA		Housing Assembly (2115QTi) (Includes: 1, 3, 4, 5, 23, 24, 24A, 24B, 29)	2115QTi-A40
HA		Housing Assembly (2125QTi) (Includes: 1, 3, 4, 5, 23, 24, 24A, 24B, 29)	2125QTi-A40
HA		Housing Assembly (2115PTi) (Includes: 1, 3, 4, 5, 23, 24, 24A, 24B, 29)	2115PTi-A40
HA		Housing Assembly (2125PTi) (Includes: 1, 3, 4, 5, 23, 24, 24A, 24B, 29)	2125PTi-A40
1	8993	Housing (2115Ti)
2	9572	Screw, Hammer Case (4 required)	2115-638
3		Nameplate (2115Ti)	2115Ti-301
3		Nameplate (2115QTi)	2115QTi-301
3		Nameplate (2115PTi)	2115-Pti-301
3		Nameplate (2125PTi)	2125PTi-301
3		Nameplate (2125QTi)	2125QTi-301
4		Information Label	2115Ti-300
5		Warning Label	WARNING-2-99
PRA		Power Regulator Assembly (6 & 6A)	2115-D249
6	9573	Power Regulator
6A	9571	O-Ring, Power Regulator	2112-248
7	8750	Retaining Ring	4E-6
8	8101	Front Rotor Bearing	2131-97
9	9228	Rear Rotor Bearing	R00H-97
10	9228	Cylinder	2112-3
11	8130	Rotor	2112-53
12	2454	Vane Pack (set of 6)	2112-42-6
13	8706	End Plate	2112-11
14	8764	Hammer Case Gasket	2112-36
HK		Hammer Kit (2115Ti and 2115 QTi)	2115-THK1
HK		Hammer Kit (2115PTi)	2115PTi-THK1
HK		Hammer Kit (2125PTi)	2125PTi-THK1
HK		Hammer Kit (2125(Qti)	2125QTi-THK1
15	9204	Hammer (2)	2112-724
15a	8514	Hammer Pin (2)	2112-704
16		Anvil
AA	8125	Anvil Assembly (2115Ti, 2115QTi) 3/8"	2112-A626
AA	8131	Anvil Assembly (2125QTi) 1/2"	2112-A726
16	9291	Anvil (2115PTi) Pin Type	2112P-A626
AA		Anvil Assembly (2125PTiMAX)	2112P-A726
17		Socket Retainer (Ring-type)
SRK	9277	Socket Retainer Kit (3/8" Ring-type) (2115TiMAX, 2115QTiMAX)	2115-K425
17	8296	Socket Retainer Ring (3/8" Ring-type) (2115TiMAX, 2115QTiMAX)	1702-425
17	8261	Socket Retainer O-Ring (3/8" Ring-type) (2115TiMAX, 2115QTiMAX)	1702-426
		Socket Retainer Kit (1/2" Ring-type) (2125QTiMAX)	2125QTi-K425
18		Socket Retainer (Pin-type)
		Socket Retainer Kit (3/8" Pin-type) (2115PTiMAX)	2115PTi-K425
		Socket Retainer Kit (1/2" Pin-type) (2125PTiMAX)	2125PTi-K425
		Retainer Spring
		Socket Retainer Pin
19	8831	Bushing, Hammer Case	2112-641
		Hammer Case Assembly (Includes 20 & 21)	2115TiMAX-D727
20		Hammer Case
21		Grease Fitting	D0F9-879
TA		Trigger Assembly (Includes 22 & 22A)	2135-D93B
22	8979	Trigger	2115-D93
22A	8770	O-Ring, Trigger	2131-158
23	8590	Gasket, Motor	2112-283
		Reverse Valve Assembly (24, 24A, 24B)	2131-A329
24	8771	Reverse Valve
24A	9504	O-Ring, Reverse Valve (Top) (Thin)	R18LF-21
24A	8771T	O-Ring, Reverse Valve (Top)	2131-168
24B	8771B	O-Ring, Reverse Valve (Bottom)	2131-167
25	8129	Hammer Frame	2112-703
26	9143	Inlet Bushing Assembly (incl. 27, 28)	2135-D565A
27	9144	Inlet Clip	2131-57
28	8592	Inlet Parts Kit (Includes 28A thru 28G)	2131-K303
28A	8747	Washer	2131-286
28B	8745	O-Ring, Seal	2131-566
28C	8739	Throttle Spring	2131-51
28D	8725	Throttle Valve	2131-302
28E	8734	Throttle Valve Seat	2131-303
28F	8744	Throttle Valve Seat Support	2131
28G	8746	Retainer	2131-340
29	8787	Button Kit	2112-K75
29A		Forward Button
29B		Reverse Button
30	8594	Inlet Clip Removal Tool	2131-322
		"Pump-n-Grease" (Grease & Gun Kit)	500C
		Air Care Kit (Grease Gun, Grease, Oil)	115-LBK1
		Grease (replacement tube for -LBK1)	115-4T
		Air Tool Oil (4 oz. Bottle)	10Z4
		Grease (1 lb Can)	105-1LB
		Grease (8 lb Can)	105-8LB
		Kit Grease	105-6GR
	9982	Tune-Up Kit (Includes: 6A, 7, 8, 9, 12, 14, 22A, 23, 24A, 24B, 28	2115-TK1

More Info ›

Ingersoll-Rand 2115TiMAX 3/8" Drive Air Impact Wrench Repair Parts

IR 2115TiMAX (New Style) Parts List
Item	Part Number	Part Description	IR Equivalent
		Housing Assembly (2115TiMAX) (Includes: 1, 3, 4, 23, 24, 29)	2115TiMAX-A-40
		Housing Assembly (2115QTiMAX) (Includes: 1, 3, 4, 23, 24, 29)	2115QTiMAX-A-40
		Housing Assembly (2125QTiMAX) (Includes: 1, 3, 4, 23, 24, 29)	2125QTiMAX-A-40
		Housing Assembly (2115PTiMAX) (Includes: 1, 3, 4, 23, 24, 29)	2115PTiMAX-A-40
		Housing Assembly (2125PTiMAX) (Includes: 1, 3, 4, 23, 24, 29)	2125PTiMAX-A-40
1	8806	Housing
2	9572	Screw, Hammer Case (4 required)	2115-638
3		Warning Label	WARNING-2-99
4		Information Label (2115TiMAX)	2115TiMAX-300
4		Information Label (2115QTiMAX)	2115QTiMAX-300
4		Information Label (2125TiMAX)	2125QTiMAX-300
4		Information Label (2115PTiMAX)	2115PTiMAX-300
4		Information Label (2125PTiMAX)	2125PTiMAX-300
		Power Regulator Assembly (5 & 5A)	2115-D249A
5	9795	Power Regulator
5A	8189	O-Ring, Power Regulator	2115-248
6	8750	Retaining Ring	4E-6
7	8294	Ball Bearing (Cylinder)	R00H-97
8	9228	Cylinder	2112-3
9	8367	Rotor	2115-53
10	2493	Vane Pack (set of 7)	2115-42A-7
11	8706	End Plate	2112-11
12	8101	Ball Bearing (End Plate)	2131-97
13	8291	Hammer Case Gasket	2115-36
14	9204	Hammer (2)	2112-724
15	8129	Hammer Frame	2112-703
15A	8514	Hammer Pin (2)	2112-704
		Hammer Mechanism Kit (14, 15 & 15A)	2115-THK2
16		Anvil
16	8125	Anvil (2115TiMAX, 2115QTiMAX)	2112-A626
AA		Anvil Assembly (2125QTiMAX)	2112-A726
16	9291	Anvil (2115PTiMAX)	2112P-A626
AA		Anvil Assembly (2125PTiMAX)	2112P-A726
17		Socket Retainer Kit (Ring-type)
	9277	Socket Retainer Kit (3/8" Ring-type) (2115TiMAX, 2115QTiMAX)	2115-K425
17	8296	Socket Retainer Ring (3/8" Ring-type) (2115TiMAX, 2115QTiMAX)	1702-425
17	8261	Socket Retainer O-Ring (3/8" Ring-type) (2115TiMAX, 2115QTiMAX)	1702-426
		Socket Retainer Kit (1/2" Ring-type) (2125QTiMAX)	2125QTi-K425
18		Socket Retainer Kit (Pin-type)
		Socket Retainer Kit (3/8" Pin-type) (2115PTiMAX)	2115PTi-K425
		Socket Retainer Kit (1/2" Pin-type) (2125PTiMAX)	2125PTi-K425
18		Retainer Spring
18		Socket Retainer Pin
19	8831	Bushing, Hammer Case	2112-641
		Hammer Case Assembly (Includes 20 & 21)	2115TiMAX-D727
20		Hammer Case
21		Grease Fitting	130SR-188
TA		Trigger Assembly (Includes 22 & 22A)	2135-D93B
22	8979	Trigger	2115-D93
22A	8770	O-Ring, Trigger	2131-158
22A	9503	O-Ring, Trigger	2135-158
23	8590	Gasket, Motor	2112-283
		Reverse Valve Assembly (24, 24A & 24B)	2131-A329
24	8771	Reverse Valve
24A	9504	O-Ring, Reverse Valve (Top-Black) (Thin)	R18LF-21
24A	8771T	O-Ring, Reverse Valve (Top-Black)	2131-168
24B	8771B	O-Ring, Reverse Valve (Bottom-Blue)	2131-167
26	9143	Inlet Bushing Assembly (incl. 27, 28)	2135-D565A
27	9144	Inlet Clip	2131-57
28		Inlet Parts Kit (Includes 28A thru 28G)	2135-K303
28A		Washer
28B		O-Ring, Seal
28C		Throttle Spring
28D		Throttle Valve
28E		Valve Seat
28F		Seat Support
28G		Retainer
29	8707	Button Kit	2115-K75RD
29A		Forward Button
29B		Reverse Button
30		Exhaust Silencer (Quiet Technology Equipped Models Only)	2115Q-311
		Kit, Piped-Away Exhaust	2115-K284
	8594	Inlet Clip Removal Tool	2131-322
		Air Care Kit (Grease Gun, Grease, Oil)	115-LBK1
		Grease (replacement tube for -LBK1)	115-4T
		Air Tool Oil (4 oz. Bottle)	10Z4
		Grease (1 lb Can)	105-1LB
		Grease (8 lb Can)	105-8LB
		Grease Gun	R000A2-228
	9967	Tune-Up Kit (Includes: 5A, 6, 7, 10, 12, 13, 22A, 23, 24A, 24B, 28)	2115-TK2

More Info ›

Ingersoll-Rand 2121 3/8" Drive Air Impact Wrench Repair Parts

IR 2121 3/8" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1	9228	Cylinder	2112-3
2	8706	Front End Plate	2112-11
3	8101	Front Rotor Bearing	2131-97
3A	8294	Rear Rotor Bearing	R00H-97
4	2454	Vane Packet (set of 6 Vanes)	2112-42-6
5	8130	Rotor	2112-53
6	8750	Rear Rotor Bearing Retainer	4E-6
7	8590	Motor Gasket	2112-283
8		Anvil Assembly
	8125	for 2112 and 2112S	2112-A626
	8131	for 2121	2112-A726
		for 2121-2	2125-A414-2
9		Socket Retainer
	8296	for 2112 and 2112S	1702-425
	8088	for 2121 and 2121-2	231-425A
10		Socket Retainer O-ring
	8261	for 2112 and 2112S	1702-426
	8270	for 2121 and 2121-2	R1A-159
11	8832	Hammer Case Screw (4)	2112-638
		Hammer Frame Assembly	2112-A703
12	8129	Hammer Frame	2112-703
13	8514	Hammer Pin (2)	2112-704
14	9204	Hammer (2)	2112-724
15	8136	Hammer Case Assembly	2112-727
16	8831	Hammer Case Bushing	2112-641
17		Grease Fitting	D0F9-879
18	8764	Hammer Case Gasket	2112-36
19	8584	Housing Assembly	2112-A40
20		Housing Label	2112-99
20A		Warning Label	WARNING-2-99
21		Nameplate
		for 2112	2112-301
		for 2112S	2112S--301
		for 2121 and 2121-2	2121-301
22	8128	Inlet Bushing Assembly	2131-A565
23	8740	Inlet Bushing Screen	5RA-61
24	9144	Inlet Retainer Clip	2131-57
25	8592	Inlet Parts Kit	2131-K303
25A	8747	Washer	---
25B	8745	Inlet Bushing Seal	---
25C	8739	Tilt Valve Spring	---
25D	8725	Tilt Valve	---
25E	8734	Tilt Valve Seat	---
25F	8744	Tilt Valve Seat Support	---
25G	8746	Tilt Valve Seat Retainter	---
26	8122	Trigger Assembly	2131-A93
27	8770	Trigger O-ring	---
28	8771	Reverse Valve Assembly	2131-A329
29	8771T	Reverse Valve O-ring (top)	---
30	8771B	Reverse Valve O-ring
		(bottom) (blue)	---
31	8787	Button Kit	2112-K75
32		Forward Button	---
33		Reverse Button	---
34	8784	Power Management Dial	2112-A249
35	9571	Power Management Dial Seal	2112-248
36	8594	Inlet Clip Removal Tool	2131-322
37		Silencer (4) (2112S only)	2131S-310
		Grease (1 lb) (for external lubrication of the impact mechanism)	115-1LB
		Grease 1 lb (for lubrication when disassembling and assembling the impact mechanism)	105-1LB
		Grease 8 lb (for lubrication when disassembling and assembling the impact mechanism)	105-8LB
		Protective Cover	2112-P32
		Grease Gun	R000A2-228
		Seal Kit (includes: 7, 18, 25B, 27, 29, 30 and 35)	2112-K36
	9964	Tune-up Kit (includes: 3, 3A, 4, 6, 7, 9, 10, 18, 23, 25, 27, 29, 30 and 35)	2112-TK2
		Hammer Kit (for 2112 and 2112S) (includes: 11 [4], 14 [2], 18, and Anvil Assembly part number 2112-A626)	2112-THK1
		Hammer Kit (for 2121) (includes: 11 [4], 14 [2], 18 and Anvil Assembly part number 2112-A726)	2121-THK1
		Hammer Kit (for 2121-2) (includes: 11 [4], 14 [2], 18 and Anvil Assembly part number 2125-A414-2)	2121-THK1-2

More Info ›

Ingersoll-Rand 2121 1/2" Drive Air Impact Wrench Repair Parts

IR 2121 1/2" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1	9228	Cylinder	2112-3
2	8706	Front End Plate	2112-11
3	8101	Front Rotor Bearing	2131-97
3A	8294	Rear Rotor Bearing	R00H-97
4	2454	Vane Packet (set of 6 Vanes)	2112-42-6
5	8130	Rotor	2112-53
6	8750	Rear Rotor Bearing Retainer	4E-6
7	8590	Motor Gasket	2112-283
8		Anvil Assembly
	8125	for 2112 and 2112S	2112-A626
	8131	for 2121	2112-A726
		for 2121-2	2125-A414-2
9		Socket Retainer
	8296	Socket Retainer 3/8" for 2112 and 2112S	1702-425
	8088	Socket Retainer 1/2" for 2121 and 2121-2	231-425A
10		Socket Retainer O-ring
	8261	Socket Retainer O-ring 3/8" for 2112 and 2112S	1702-426
	8270	Socket Retainer O-ring 1/2" for 2121 and 2121-2	R1A-159
11	8832	Hammer Case Screw (4)	2112-638
		Hammer Frame Assembly	2112-A703
12	8129	Hammer Frame	2112-703
13	8514	Hammer Pin (2)	2112-704
14	9204	Hammer (2)	2112-724
15	8136	Hammer Case Assembly	2112-727
16	8831	Hammer Case Bushing	2112-641
17		Grease Fitting	D0F9-879
18	8764	Hammer Case Gasket	2112-36
19	8584	Housing Assembly	2112-A40
20		Housing Label	2112-99
20A		Warning Label	WARNING-2-99
21		Nameplate
		for 2112	2112-301
		for 2112S	2112S--301
		for 2121 and 2121-2	2121-301
22	8128	Inlet Bushing Assembly	2131-A565
23	8740	Inlet Bushing Screen	5RA-61
24	9144	Inlet Retainer Clip	2131-57
25	8592	Inlet Parts Kit	2131-K303
25A	8747	Washer	---
25B	8745	Inlet Bushing Seal	---
25C	8739	Tilt Valve Spring	---
25D	8725	Tilt Valve	---
25E	8734	Tilt Valve Seat	---
25F	8744	Tilt Valve Seat Support	---
25G	8746	Tilt Valve Seat Retainter	---
26	8122	Trigger Assembly	2131-A93
27	8770	Trigger O-ring	---
28	8771	Reverse Valve Assembly	2131-A329
29	8771T	Reverse Valve O-ring (top)	---
30	8771B	Reverse Valve O-ring
		(bottom) (blue)	---
31	8787	Button Kit	2112-K75
32		Forward Button	---
33		Reverse Button	---
34	8784	Power Management Dial	2112-A249
35	9571	Power Management Dial Seal	2112-248
36	8594	Inlet Clip Removal Tool	2131-322
37		Silencer (4) (2112S only)	2131S-310
		Grease (1 lb) (for external lubrication of the impact mechanism)	115-1LB
		Grease 1 lb (for lubrication when disassembling and assembling the impact mechanism)	105-1LB
		Grease 8 lb (for lubrication when disassembling and assembling the impact mechanism)	105-8LB
		Protective Cover	2112-P32
		Grease Gun	R000A2-228
		Seal Kit (includes: 7, 18, 25B, 27, 29, 30 and 35)	2112-K36
	9964	Tune-up Kit (includes: 3, 3A, 4, 6, 7, 9, 10, 18, 23, 25, 27, 29, 30 and 35)	2112-TK2
		Hammer Kit (for 2112 and 2112S) (includes: 11 [4], 14 [2], 18, and Anvil Assembly part number 2112-A626)	2112-THK1
		Hammer Kit (for 2121) (includes: 11 [4], 14 [2], 18 and Anvil Assembly part number 2112-A726)	2121-THK1
		Hammer Kit (for 2121-2) (includes: 11 [4], 14 [2], 18 and Anvil Assembly part number 2125-A414-2)	2121-THK1-2

More Info ›

Ingersoll-Rand 2131 1/2" Drive Air Impact Wrench Repair Parts

IR 2131 Parts List
Item	Part Number	Part Description	IR Equivalent
1		Cylinder
	8838	Cylinder	2131-3A
	9601	Cylinder	2135-3
2	8683	Front End Plate	2131-11
2A	8770	Trigger O-ring	---
3	8101	Rotor Bearing (2)	2131-97
3A	8771T	Reverse Valve O-ring (top)	2131-168
3B	8771B	Reverse Valve O-ring (bottom) (blue)	2131-167
4		Vane
	2196 (Each)	Vane	2131-42A-6 (set of 6 Yellow Vanes)
	2189 (Each)	Vane	2131-42-6 (set of 6 Brown Vanes)
5	8513	Rotor	2131-53
6	8689	Rear Rotor Bearing Retainer	2131-6
6A		Silencer
		for 2131QT	2131QT-311
		for 2131PSP and 2131C	2131S-311
7	8591	Motor Gasket	2131-283
8	N/A	Anvil Assembly (2131 Only)	2131-A626
	8630	Anvil Assembly with Ring-Type Retainer for 2131QT and 2131C (will not fit older 2131 Only unit unless replacing 8977 bushing)	231B-A626
	8596	Anvil Assembly (Extended 2") (with Ring-Type Retainer)	231B-A414
	9217	Anvil Assembly (with Pin-Type Retainer for 2131PSP)	231B-A726
9	8155	Socket Retainer Ring	2135-425
	8088	Socket Retainer Ring	231-425A
10	8270	Socket Retainer O-ring	R1A-159
		Socket Retainer Plunger	804-716
		Socket Retainer Spring	5UHD-718
11	8595	Hammer Case Screw (4)	2131-638
		Hammer Frame Assembly	2131-A703
12		Hammer Frame
	9243	Hammer Frame	2131-703
	9358	Hammer Frame	2131-A703
13	8779	Hammer Pin (2)	2131-704
14	8132	Hammer (2)	231XP-724
15		Hammer Case Assembly
	9244	Hammer Case Assembly for 2131QT and 2131C	2131A-A727
		Hammer Case Assembly for 2131PSP	2131PSP-D727
16		Hammer Case Bushing
		For 2131	-
	8977	for 2131QT and 2131C	2131A-941
		for 2131PSP	2131SP-941
17		Hammer Case Grease Fitting	D0F9-879
18	8593	Hammer Case Gasket	2131-36
19		Housing Assembly
		for 2131C	2131C-A40
		for 2131QT	2131QT-D40
		for 2131PSP	2131PSP-A40
19A		Nameplate
		for 2131QT	2131QT-301
		for 2131PSP and 2131C	2131PSP-301
19B		Housing Label
		for 2131C	2131C-300
		for 2131QT	2131-300
		for 2131PSP	2131PSP-300
19C		Warning Label	WARNING-2-99
20	8128	Inlet Bushing Assembly	2131-D565
20A	8740	Inlet Bushing Screen	5RA-61
20B	8624	Inlet Parts Kit	2135-K303
	8592	Inlet Parts Kit	2131-K303
1A	8747	Washer	2131-286
1B	8745	Inlet Bushing Seal	2131-566
1C	8739	Tilt Valve Spring	2131-51
1D	8725	Tilt Valve	2131-302
1E	8734	Tilt Valve Seat	2131-303
1F	8744	Tilt Valve Seat Support	2131-
1G	8746	Tilt Valve Seat Retainer	2131-340
27	9144	Inlet Retainer Clip	2131-57
28	8122	Trigger Assembly	2131-A93
30	8771	Reverse Valve Assembly	2131-A329
33	8536	Button Kit	2131K75
		for 2131QT	SN2131-K75
		for 2131PSP and 2131C	2131-K75
4A		Forward Button	---
4B		Reverse Button	---
35	9125	Power Management Assembly	2131-A249
5A	8741	Power Management Dial Seal	PS3-42
	8594	Inlet Clip Removal Tool	2131-322
37		Silencer (2) (for 2131PSP and 2131C)	2131S-310
		ATEX Label (for 2131PSP)	ATEX-IMPACTOOL-99
		Grease (1 lb) (for external lubrication of the impact mechanism)	115-1LB
		Grease 1 lb (for lubrication when disassembling and assembling the impact mechanism)	105-1LB
		Grease 8 lb (for lubrication when disassembling and assembling the impact mechanism)	105-8LB
		Protective Cover	2131-P32
		Grease Gun	R000A2-228
		Grip (for 2131QT)	2132G-747

More Info ›

Ingersoll-Rand 2132G 1/2" Impact Wrench Repair Parts

-

More Info ›

Ingersoll-Rand 2135PTi 1/2" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IR Equivalent
		Housing Assembly
		for model 2135PTiMAX	2135PTiMAX-A40
1	9208/9301	Housing	---
2		Exhaust Deflector	---
4		Information Label	---
5		Warning Label	---
23		Gasket, Motor	---
		Reverse Valve Assembly	---
29		Button Kit	---
3	9384	Screw, Hammer Case (4 required)	2135-638
4		Information Label
		for model 2135PTiMAX	2135PTiMAX-300
5		Warning Label	WARNING-2-99
	9328	Power Regulator Assembly	2135-D249A
6		Power Regulator	---
6A	8741	O-Ring, Power Regulator	---
7	8689	Retaining Ring	2131-6
8	8101	Ball Bearing (2 required)	2131-97
9	9601/8838	Cylinder	2135-3
10	9106	Rotor	2135-53
11	2456	Vane Pack (set of 7)	2135-42A-7
12	8683	End Plate	2131-11
13	9505	Hammer Case Gasket	2135-36
		Hammer Kit
		for models 2135PTiMAX and 2135QPTiMAX	2135PTi-THK1
13		Hammer Case Gasket	---
14	8132	Hammer (2)	---
15A	8779	Hammer Pin (2)	2131-704
		Anvil Assembly	---
		Kit Grease	---
	9532	Hammer Frame Kit	2135-K703
15		Hammer Frame	---
15A		Hammer Pin (2)	---
		Kit Grease	---
16		Anvil Assembly
	9217	for models 2135PTiMAX and 2135QPTiMAX	231B-A726
16		Anvil	---
		Socket Retainer Kit (1/2” Ring-type)
		for models 2135TiMAX, 2135QTiMAX,2135Ti-2MAX, and 2135QTi-2MAX (1/2” Ring-type)	2125QTi-K425
		for models 2135PTiMAX and2135QPTiMAX (1/2” Pin-type)	2125PTi-K425
17	8270	O-Ring or Socket Retainer Spring	---
18	8088/8155	Socket Retainer	---
19	9569	Bushing, Hammer Case	2135-941
	9574	Hammer Case Assembly	2135-D727A
19		Bushing, Hammer Case	---
20		Hammer Case	---
21		Grease Fitting	---
21		Grease Fitting	130SR-188
		Trigger Assembly	2135-D93B
22	8972/8978	Trigger	---
22A	9503	O-Ring, Trigger	---
23	8591	Gasket, Motor	2131-283
		Reverse Valve Assembly	2131-A329
24	8771	Reverse Valve	---
24A	9504/8771T	O-Ring, Reverse Valve (Top-Black)	---
24B	8771B	O-Ring, Reverse Valve (Bottom-Blue)	---
26	9143	Inlet Bushing Assembly	2135-D565A
27	9144	Inlet Clip	2131-57
28	8624	Inlet Parts Kit	2135-K303
28A	8747	Washer	---
28B	8745	O-Ring, Seal	---
28C	8739	Throttle Spring	---
28D	8725	Throttle Valve	---
28E	8734	Valve Seat	---
28F	8744	Seat Support	---
28G	8746	Retainer	---
29	9331	Button Kit	2135-K75
29A		Forward Button	---
29B		Reverse Button	---
30		Silencer (for models 2135QTiMAX, 2135QTi-2MAX,and 2135QPTiMAX)	2131QT-311
	9978 9978P	Tune-Up Kit (9978P has plastic rotor vanes)	2135-TK2
6A	8741	O-Ring, Power Regulator	---
7	8689	Retaining Ring	---
8	8101	Ball Bearing (2)	---
11	2456	Vane Pack (set of 7)	---
13	9505	Hammer Case Gasket	---
17	8270	O-Ring	---
18	8088/8155	Socket Retainer	---
22A	9503	O-Ring, Trigger	---
23	8591	Gasket, Motor	---
24A	9504/8771T	O-Ring, Reverse Valve (Top-Black)	---
24B	8771B	O-Ring, Reverse Valve (Bottom-Blue)	---
28	8624 / 8592	Inlet Parts Kit	---
		Inlet Clip Removal Tool	2131-322
		Air Care Kit (grease gun, grease, oil)	115-LBK1
		Grease (replacement tube for -LBK1)	115-4T
		Air Tool Oil (4 oz. bottle)	10Z4
		Grease (1 lb can)	105-1LB
		Grease (8 lb can)	105-8LB
		Grease Gun	R000A2-228

More Info ›

Ingersoll-Rand 2135Ti 1/2" Drive Air Impact Wrench Repair Parts

Ingersoll-Rand 2135Ti 1/2" Drive Air Impact Wrench Repair Parts

More Info ›

Ingersoll-Rand 2135TiMAX 1/2" Drive Air Impact Wrench Repair Parts

2135TiMAX Series Parts List
Item	Part Number	Part Description	IR Equivalent
		Housing Assembly
		for model 2135TiMAX	2135TiMAX-A40
		for model 2135Ti-2MAX	2135Ti-2MAX-A40
		for model 2135QTiMAX	2135QTiMAX-A40
		for model 2135QTi-2MAX	2135QTi-2MAX-A40
		for model 2135PTiMAX	2135PTiMAX-A40
		for model 2135QPTiMAX	2135QPTiMAX-A40
1	9208	Housing Older 2135 Only (Plain Handle)	---
1	9301	Housing New Handle (Stamped "Max")	---
2		Exhaust Deflector	---
4		Information Label	---
5		Warning Label	---
23		Gasket, Motor	---
		Reverse Valve Assembly	---
29		Button Kit	---
3	9384	Screw, Hammer Case (4 required)	2135-638
4		Information Label
		for model 2135TiMAX	2135TiMAX-300
		for model 2135Ti-2MAX	2135Ti-2MAX-300
		for model 2135QTiMAX	2135QTiMAX-300
		for model 2135QTi-2MAX	2135QTi-2MAX-300
		for model 2135PTiMAX	2135PTiMAX-300
		for model 2135QPTiMAX	2135QPTiMAX-300
5		Warning Label	WARNING-2-99
	9328	Power Regulator Assembly	2135-D249A
6		Power Regulator	---
6A	8741	O-Ring, Power Regulator	---
7	8689	Retaining Ring	2131-6
8	8101	Ball Bearing (2 required)	2131-97
9	9601/8838	Cylinder	2135-3
10	9106	Rotor	2135-53
11	2456	Vane Pack (set of 7)	2135-42A-7
12	8683	End Plate	2131-11
13	9505	Hammer Case Gasket	2135-36
		Hammer Kit
		for models 2135TiMAX and 2135QTiMAX	2135-THK1
		for models 2135Ti-2MAX and 2135QTi-2MAX	2135-2-THK1
		for models 2135PTiMAX and 2135QPTiMAX	2135PTi-THK1
13		Hammer Case Gasket	---
14	8132	Hammer (2)	---
15A	8779	Hammer Pin (2)	2131-704
		Anvil Assembly	---
		Kit Grease	---
	9532	Hammer Frame Kit	2135-K703
15		Hammer Frame	---
15A		Hammer Pin (2)	---
		Kit Grease	---
16		Anvil Assembly
	8630	for models 2135TiMAX and 2135QTiMAX	231B-A626
	8596	for models 2135Ti-2MAX and 2135QTi-2MAX	231B-A414
	9217	for models 2135PTiMAX and 2135QPTiMAX	231B-A726
16		Anvil	---
		Socket Retainer Kit	---
		Socket Retainer Kit
		for models 2135TiMAX, 2135QTiMAX,2135Ti-2MAX, and 2135QTi-2MAX(1/2” Ring-type)	2125QTi-K425
		for models 2135PTiMAX and2135QPTiMAX (1/2” Pin-type)	2125PTi-K425
17	8270	O-Ring or Socket Retainer Spring	---
18	8088/8155	Socket Retainer	---
19	9569	Bushing, Hammer Case	2135-941
	9574	Hammer Case Assembly	2135-D727A
19		Bushing, Hammer Case	---
20		Hammer Case	---
21		Grease Fitting	---
21		Grease Fitting	130SR-188
		Trigger Assembly	2135-D93B
22	8972/8978	Trigger	---
22A	9503	O-Ring, Trigger	---
23	8591	Gasket, Motor	2131-283
		Reverse Valve Assembly	2131-A329
24	8771	Reverse Valve	---
24A	9504/8771T	O-Ring, Reverse Valve (Top-Black)	---
24B	8771B	O-Ring, Reverse Valve (Bottom-Blue)	---
		Inlet Bushing Assembly	2135-D565A
26	9143	Inlet Bushing	---
27	9144	Inlet Clip	2131-57
28	8624	Inlet Parts Kit	2135-K303
28A	8747	Washer	---
28B	8745	O-Ring, Seal	---
28C	8739	Throttle Spring	---
28D	8725	Throttle Valve	---
28E	8734	Valve Seat	---
28F	8744	Seat Support	---
28G	8746	Retainer	---
29	9331	Button Kit	2135-K75
29A		Forward Button	---
29B		Reverse Button	---
30		Silencer (for models 2135QTiMAX, 2135QTi-2MAX,and 2135QPTiMAX)	2131QT-311
	9978 9978P	Tune-Up Kit (9978P has plastic rotor vanes)	2135-TK2
6A	8741	O-Ring, Power Regulator	---
7	8689	Retaining Ring	---
8	8101	Ball Bearing (2)	---
11	2456	Vane Pack (set of 7)	---
13	9505	Hammer Case Gasket	---
17	8270	O-Ring	---
18	8088/8155	Socket Retainer	---
22A	9503	O-Ring, Trigger	---
23	8591	Gasket, Motor	---
24A	9504/8771T	O-Ring, Reverse Valve (Top-Black)	---
24B	8771B	O-Ring, Reverse Valve (Bottom-Blue)	---
28	8624 / 8592	Inlet Parts Kit	---
		Inlet Clip Removal Tool	2131-322
		Air Care Kit (grease gun, grease, oil)	115-LBK1
		Grease (replacement tube for -LBK1)	115-4T
		Air Tool Oil (4 oz. bottle)	10Z4
		Grease (1 lb can)	105-1LB
		Grease (8 lb can)	105-8LB
		Grease Gun	R000A2-228

More Info ›

Ingersoll-Rand 2135Qi 1/2" Drive Air Impact Wrench Repair Parts

IR 2707A1 & 2707P1 1/2" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
*		Housing Assembly	2135Qi-A40
1		Housing	-
2		Exhaust Deflector	-
4		Information Label	-
5		Warning Label	-
23		Gasket	-
24		Reverse Valve Assembly	-
29		Button Kit	-
3	9384	Screw, Hammer Case (requires 4)	2135-638
4		Information Label	2135Qi-300
5		Warning Label	WARNING-2-99
*		Power Regulator Assembly	2135-D249A
6	9328	Power Regulator	-
6A	8741	O-Ring, Power Regulator	-
7	8689	Retaining Ring	2131-6
8	8101	Ball Bearing (2 required)	2131-97
9	9601	Cylinder	2135-3
10	9106	Rotor	2135-53
11	2456	Rotor Vane (7 required)	2135-42A-7
12	8683	End Plate	2131-11
13	9505	Hammer Case Gasket	2135-36
*	9979	Hammer Kit	2135-THK1
13		Hammer Case Gasket	-
14	8132	Hammer (2)	-
15A	8779	Hammer Pin (2)	-
16		Anvil Assembly	-
*		Kit Grease	-
*	9532	Hammer Frame Assembly Kit	2135-K703
15		Hammer Frame	-
15A		Hammer Pin (2)	-
*		Kit Grease	-
*	8630	Anvil Assembly	231B-A626
16		Anvil	-
17		O-Ring or Socket Retainer Spring	-
18		Socket Retainer	-
17	8270	O-Ring, Anvil	R1A-159
18	8155	Socket Retainer	2135-425
19	9569	Bushing, Hammer Case	2135-941
*	9574	Hammer Case Assembly	2135Qi-D727A
19		Bushing, Hammer Case	-
20		Hammer Case	-
21		Grease Fitting	-
21		Grease Fitting	130SR-188
*	8972	Trigger Assembly	2135-D93B
22		Trigger	-
22A		O-Ring, Trigger	-
23	8591	Gasket	2131-283
*	8771	Reverse Valve Assembly	2131-A329
24		Reverse Valve Assembly	-
24A	8771T	O-Ring, Reverse Valve (top)	-
24B	8771B	O-Ring, Reverse Valve (bottom)	-
26	9143	Inlet Bushing Assembly	2135-D565A
27	9144	Inlet Clip	2131-57
28	8624	Inlet Parts Kit	2135-K303
28A		Washer	-
28B		O-Ring, Seal	-
28C		Throttle Spring	-
28D		Throttle Valve	-
28E		Valve Seat	-
28F		Seat Support	-
28G		Retainer	-
29	9331	Button Kit	2135-K75
29A		Forward Button	-
29B		Reverse Button	-
30		Exhaust Silencer	2131QT-311
*	9978 9978P	Tune-up Kit (includes 6A, 7, 8, 11, 13, 17, 18, 22A, 23, 24A, 24B) (9978P has plastic rotor vanes)	2135-TK2
*	8594	Inlet Clip Removal Tool	2131-322
*		Air Care Kit (grease gun, grease, oil)	115-LBK1
*		Grease (replacement tube for LBK1)	115-4T
*		Air Tool Oil (4 oz bottle)	10Z4
*		Grease (1 lb can)	105-1LB
*		Grease (8 lb can)	105-8LB
*		Grease Gun	R000A2-228

More Info ›

Ingersoll-Rand 2141, 2141S 3/4" Drive Air Impact Wrench Repair Parts

IR 2141 / 2141S Parts List
Item	Part Number	Part Description	IR Part Number
1	8836	Cylinder	2141-3
2	8149/8127	Front End Plate	2141-11
3	8742	Front Rotor Bearing	R38P-606
4	8101	Rear Rotor Bearing	2131-97
5	2453	Vane Packet (set of 6 Vanes)	2141-42-6
6	8611	Rotor	2141-53
7	8689	Rear Rotor Bearing Retainer	2131-6
8	8695	Motor Gasket	2141-283
9	8126/9789	Anvil Assembly	2141-A626
10	8093	Socket Retainer	908B5-918
11	8284	Socket Retainer O-ring	AF120-289
12	8690	Hammer Case Screw (4)	2141-638
		Hammer Frame Assembly	2141-A703
13	8135	Hammer Frame	2141-703
14	8134	Hammer Pin (2)	2141-704
15	8840	Hammer (2)	2141-724
16	9229	Hammer Case Assembly	2141-727
17	9516	Hammer Case Bushing	2141-641
18		Grease Fitting	D0F9-879
19	8743	Hammer Case Gasket	2141-36
20	9233	Housing Assembly	2141-A40
21		Housing Label	2141-99
22		Warning Label	WARNING-2-99
23		Nameplate
		for 2141	2141-301
		for 2141S	2141S-301
24	9234	Inlet Bushing Assembly	2141-D565
		Inlet Bushing	2141-565
25	8740	Inlet Bushing Screen	5RA-61
26	9235	Inlet Retainer Clip	2141-57
27	8765	Inlet Parts Kit	2141-K303
28	8627	Inlet Bushing Seal	R4-210
29	8739	Tilt Valve Spring	2131-51
30	8726	Tilt Valve	2141-302
31	8735	Tilt Valve Seat	2141-303
32	8738	Tilt Valve Seat Support	2141-306
33	8737	Tilt Valve Seat Retainer	SML8-24
34	9221	Trigger Assembly	2141-A93
35	8770	Trigger O-ring	---
36	8692	Reverse Valve Assembly	2141-A329
37	8768	Reverse Valve O-ring (top)	---
38	8769	Reverse Valve O-ring (bottom) (blue)	---
39	8693	Button Kit	2141-K75
40		Forward Button	---
41		Reverse Button	---
42	9125	Power Management Dial	2131-A249
43	8741	Power Management Dial Seal	---
44	8594	Inlet Clip Removal Tool	2131-322
45		Silencer (4) (2141S only)	2131S-310
		Grease (1 lb) (for external lubrication
		of the impact mechanism)	115-1LB
		Grease (for lubrication when disassembling
		and assembling the impact mechanism)
		1 lb	105-1LB
		8 lb	105-8LB
		Protective Cover	2141-P32
		Grease Gun	R000A2-228

More Info ›

Ingersoll-Rand 2145QiMAX 3/4" Drive Air Impact Wrench Repair Parts

IR 2145QiMAX Parts List
Item	Part Number	Part Description	IR Equivalent
*	9250	Housing Assembly for 2145QiMAX	2145QiMAX-A40
*		Housing Assembly for 2145QiMAX-3	2145QiMAX-3-A40
*		Housing Assembly for 2145QiMAX-6	2145QiMAX-6-A40
1		Housing	-
2		Warning Label	-
3		Information Label	-
25		Gasket	-
*		Reverse Valve Assembly	-
*		Button Kit	-
2		Warning Label	WARINING-2-99
3		Information Label for 2145QiMAX	2145QiMAX-300
3		Information Label for 2145QiMAX-3	2145QiMAX-3-300
3		Information Label for 2145QiMAX-6	2145QiMAX-6-300
4	8690	Screw, Hammer Case (4 required)	2141-638
*	9328	Power Regulator Assembly	2135-D249A
5		Power Regulator	-
5A	8741	O-Ring, Power Regulator	PS3-42
6	8689	Retaining Ring	2131-6
7	8101	Ball Bearing (Cylinder)	2131-97
8	8836	Cylinder	2141-3
9	9251	Silencer	2145Q-311
10	9252	Rotor	2145-53
11	2498	Rotor Vane (7 required)	2145-42-7
12	9253	Wear Plate	2145-11X
13	9254	End Plate	2145-11
14	8742	Ball Bearing (End Plate)	R38P-606
15	9827	Hammer Case Gasket	2145-36RD
*	9956	Hammer Mechanism Kit	2145-THK2
16	9260	Hammer (2)	-
17	8135	Hammer Frame	-
18		Hammer Pin (2)	-
*	9255	Anvil Assembly for 2145QiMAX	2145-A626
*	9570	Anvil Assembly for 2145QiMAX-3	2145-A626-3
*		Anvil Assembly for 2145QiMAX-6	2145-A626-6
19		Anvil	-
20	8284	O-Ring Socket Retainer (3/4" ring type)	AF120-289
21	8093	Socket Retainer (3/4" ring type)	908B5-918
20/21	9261	Socket Retainer Kit (3/4" ring type)	2145-K425
22	8856	Bushing, Hammer Case for 2145QiMAX, 2145QiMAX-3, 2155QiMAX	2145-641
22		Bushing, Hammer Case for 2145QiMAX-6	2145-641-6
*	9256	Hammer Case Assembly 2145QiMAX, 2145QiMAX-3, 2155QiMAX	2145-D727
*		Hammer Case Assembly for 2145QiMAX-6	2145-6-D727
22		Bushing, Hammer Case	-
23		Hammer Case	-
24		Grease Fitting	-
24		Grease Fitting	130SR-188
25	8695	Gasket, Motor	2141-283
*	9257	Trigger Assembly	2145-D93BK
26		Trigger	-
26A		O-Ring, Trigger	-
*	8692	Reverse Valve Assembly	2141-A329
27		Reverse Valve	-
27A		Reverse Valve O-Ring (Top-Black)	-
27B		Reverse Valve O-Ring (Bottom-Blue)	-
28	9258	Inlet Bushing Assembly (includes 28, 29, 30, 31)	2145-D565
29	9259	Inlet Pre-Screen	2145-61A
30	9235	Inlet Clip	2141-57
31	8765	Inlet Parts Kit	2141-K303
31A	8627	O-Ring, Seal	R4-210
31B	8739	Throttle Spring	2131-51
31C	8726	Throttle Valve	2141-302
31D	8735	Valve Seat	2141-303
31E	8738	Seat Support	2141-306
31F	8737	Retainer	SML8-24
*	9333	Button Kit	2145-K75RD
32		Forward Button	-
33		Reverse Button	-
*	9998	Tune-up Kit	2145-TK2
5A		O-Ring, Power Regulator	-
6		Retaining Ring	-
7		Ball Bearing (Cylinder)	-
14		Ball Bearing (End Plate)	-
11		Vane Pack (7 required)	-
15		Hammer Case Gasket	-
26A		O-Ring, Trigger	-
25		Gasket, Motor	-
27A		O-Ring, Reverse Valve (Top-Black)	-
27B		O-Ring, Reverse Valve (Bottom-Blue)	-
31		Inlet Parts Kit	-
*		Inlet Clip Removal Tool	-
*		Socket Retention Ring (3/4" Anvil)	2131-322
*		Socket Retention Ring (1" Anvil)	RR100345
*		Air Care Kit (grease gun, grease & oil)	RR100155
*		Grease (replacement tube for -LBK1)	115-LBK1
*		Air Tool Oil (4 oz Bottle)	115-4T
*		Grease (1 lb Can)	105-1LB
*		Grease (8 lb Can)	105-8LB
*		Grease Gun	R000A2-228

More Info ›

Ingersoll-Rand 2155QiMAX 3/4" Drive Air Impact Wrench Repair Parts

IR 2155QiMAX Parts List
Item	Part Number	Part Description	IR Equivalent
*		Housing Assembly for 2155QiMAX	2155QiMAX-A40
1		Housing	-
2		Warning Label	-
3		Information Label	-
25		Gasket	-
*		Reverse Valve Assembly	-
*		Button Kit	-
2		Warning Label	WARINING-2-99
3		Information Label for 2155QiMAX	2155QiMAX-300
4	8690	Screw, Hammer Case (4 required)	2141-638
*	9328	Power Regulator Assembly	2135-D249A
5		Power Regulator	-
5A		O-Ring, Power Regulator	-
6	8689	Retaining Ring	2131-6
7	8101	Ball Bearing (Cylinder)	2131-97
8	8836	Cylinder	2141-3
9	9251	Silencer	2145Q-311
10	9252	Rotor	2145-53
11	2498	Rotor Vane (7 required)	2145-42-7
12	9253	Wear Plate	2145-11X
13	9254	End Plate	2145-11
14	8742	Ball Bearing (End Plate)	R38P-606
15	9827	Hammer Case Gasket	2145-36RD
*	9956	Hammer Mechanism Kit	2145-THK2
16	9260	Hammer (2)	-
17	8135	Hammer Frame	-
18		Hammer Pin (2)	-
*		Anvil Assembly for 2155QiMAX	2155-A626
19		Anvil	-
20/21	9261	Socket Retainer Kit (3/4" ring type)	2145-K425
20/21	9277	Socket Retainer Kit (1" ring type)	2155-K425
20	8284	O-Ring (3/4" ring type)	AF120-289
21	8093	Socket Retainer (3/4" ring type)	908B5-918
22	8856	Bushing, Hammer Case for 2145QiMAX, 2145QiMAX-3, 2155QiMAX	2145-641
*	9256	Hammer Case Assembly 2145QiMAX, 2145QiMAX-3, 2155QiMAX	2145-D727
22		Bushing, Hammer Case	-
23		Hammer Case	-
24		Grease Fitting	-
24		Grease Fitting	130SR-188
25	8695	Gasket, Motor	2141-283
*	9257	Trigger Assembly	2145-D93BK
26		Trigger	-
26A		O-Ring, Trigger	-
*	8692	Reverse Valve Assembly	2141-A329
27		Reverse Valve	-
27A		Reverse Valve O-Ring (Top-Black)	-
27B		Reverse Valve O-Ring (Bottom-Blue)	-
28	9258	Inlet Bushing Assembly (includes 28, 29, 30, 31)	2145-D565
29	9259	Inlet Pre-Screen	2145-61A
30	9235	Inlet Clip	2141-57
31	8765	Inlet Parts Kit	2141-K303
31A		O-Ring, Seal	-
31B		Throttle Spring	-
31C		Throttle Valve	-
31D		Valve Seat	-
31E		Seat Support	-
31F		Retainer	-
*	9333	Button Kit	2145-K75RD
32		Forward Button	-
33		Reverse Button	-
*	9998	Tune-up Kit	2145-TK2
5A		O-Ring, Power Regulator	-
6		Retaining Ring	-
7		Ball Bearing (Cylinder)	-
14		Ball Bearing (End Plate)	-
11		Vane Pack (7 required)	-
15		Hammer Case Gasket	-
26A		O-Ring, Trigger	-
25		Gasket, Motor	-
27A		O-Ring, Reverse Valve (Top-Black)	-
27B		O-Ring, Reverse Valve (Bottom-Blue)	-
31		Inlet Parts Kit	-
*		Inlet Clip Removal Tool	-
*		Socket Retention Ring (3/4" Anvil)	2131-322
*		Socket Retention Ring (1" Anvil)	RR100345
*		Air Care Kit (grease gun, grease & oil)	RR100155
*		Grease (replacement tube for -LBK1)	115-LBK1
*		Air Tool Oil (4 oz Bottle)	115-4T
*		Grease (1 lb Can)	105-1LB
*		Grease (8 lb Can)	105-8LB
*		Grease Gun	R000A2-228

More Info ›

Ingersoll-Rand 2161 3/4" Drive Air Impact Wrench Repair Parts

IR 2161 Parts List
Item	Part Number	Part Description	IR Equivalent
		Motor Housing Assembly	2161-A40
1		Motor Housing	2161-B40
2	8208	Throttle Valve Seat	DG230-303
3	8585	Trigger Assembly	2161-A93
4	8104	Throttle Valve	2921-302
5	8803	Throttle Valve Spring	2161-51
6	8628	Air Strainer Screen	834-61
7	8179	Inlet Bushing Assembly	2161-A465A
8	8801	Inlet Bushing O-Ring	AF120-290
9	8804	Muffler Element	202-311
10	8802	Retaining Ring	2161-118
11	8805	Exhaust Deflector	2161-23
12	8586	Backcap Bolt (4)	2161-638
13	8588	Backcap Gasket	2161-739
		Backcap Assembly	2161-A102
14	8181	Backcap	2161-102
15	8182	Grease Fitting	R1-188
16	8183	Reverse Lever	2161-658
17	8184	Reverse Lever Snap Ring	2161-28
18	8185	Reverse Lever Spring	2161-278
19	8186	Motor Clamp Washer	2161-207
20	8038	Rear Rotor Bearing	4E-510
21	8825	Rear End Plate	2161-12
21A	8171	Locating Pin	2920-74
22	8429	Rotor	2910B-53
23	2157	Vane Packet (set of 6 Vanes)	2910-42-6
24	9469	Cylinder Dowel (2)	JC3350-538

25	9468	Cylinder	2161-3
26	8824	Front End Plate	2161-11
27	8037	Front Rotor Bearing	834-24
28		Reverse Valve O-Ring	023446
29		Reverse Valve	2161-329
30	9357	Hammer Frame Washer	2161-706
31	8415	Hammer Frame	2910-703A
32	9661/8694	Hammer	2161-724
33	8416	Hammer Pin (2)	2910-704
34	8589	Hammer Case Gasket	2161-36
35		Hammer Case Assembly
	8190	for 2161P and 2171P	2161-A727
		for 2161P-EU and 2171P-EU	2161-EU-A727
36	9433	Hammer Case Bushing	2161-641
37		Warning Label
		for 2161P and 2171P	WARNING-2-99
		for 2161P-EU and 2171P-EU	EU-99
38		Anvil
	8177/8192/8223	3/4” square drive	260-726
	8193	1” square drive	1711B-826
39		Socket Retainer
	8093/8284	for 3/4” square drive (2161P)	RR10034S
	8661/8627	for 1” square drive (2171P)	RR10015S
40		Hanger Kit	2161-366
41		Piped-Away Exhaust	2161-123

More Info ›

Ingersoll-Rand 2161XP 3/4" Drive Air Impact Wrench Repair Parts

IR 2161XP Parts List
Item	Part Number	Part Description	IR Equivalent
		Motor Housing Assembly	2161-A40
1		Motor Housing	2161-B40
2	8208	Throttle Valve Seat	DG230-303
3	8585	Trigger Assembly	2161-A93
4	8104	Throttle Valve	2921-302
5	8803	Throttle Valve Spring	2161-51
6	8628	Air Strainer Screen	834-61
7	8179	Inlet Bushing Assembly	2161-A465A
8	8801	Inlet Bushing O-Ring	AF120-290
9	8804	Muffler Element	202-311
10	8802	Retaining Ring	2161-118
11	8805	Exhaust Deflector	2161-23
12	8586	Backcap Bolt (4)	2161-638
13	8588	Backcap Gasket	2161-739
		Backcap Assembly	2161-A102
14	8181	Backcap	2161-102
15	8182	Grease Fitting	R1-188
16	8183	Reverse Lever	2161-658
17	8184	Reverse Lever Snap Ring	2161-28
18	8185	Reverse Lever Spring	2161-278
19	8186	Motor Clamp Washer	2161-207
20	8038	Rear Rotor Bearing	4E-510
21	8825	Rear End Plate	2161-12
21A	8171	Locating Pin	2920-74
22	8429	Rotor	2910B-53
23	2157	Vane Packet (set of 6 Vanes)	2910-42-6
24	9469	Cylinder Dowel (2)	JC3350-538

25	9468	Cylinder	2161-3
26	8824	Front End Plate	2161-11
27	8037	Front Rotor Bearing	834-24
28		Reverse Valve O-Ring	023446
29		Reverse Valve	2161-329
30	9357	Hammer Frame Washer	2161-706
31	8415	Hammer Frame	2910-703A
32	9661/8694	Hammer	2161-724
33	8416	Hammer Pin (2)	2910-704
34	8589	Hammer Case Gasket	2161-36
35		Hammer Case Assembly
	8190	for 2161P and 2171P	2161-A727
		for 2161P-EU and 2171P-EU	2161-EU-A727
36	9433	Hammer Case Bushing	2161-641
37		Warning Label
		for 2161P and 2171P	WARNING-2-99
		for 2161P-EU and 2171P-EU	EU-99
38		Anvil
	8177/8192/8223	3/4” square drive	260-726
	8193	1” square drive	1711B-826
39		Socket Retainer
	8093/8284	for 3/4” square drive (2161P)	RR10034S
	8661/8627	for 1” square drive (2171P)	RR10015S
40		Hanger Kit	2161-366
41		Piped-Away Exhaust	2161-123

More Info ›

Ingersoll-Rand 2171 3/4" Drive Air Impact Wrench Repair Parts

IR 2171 Parts List
Item	Part Number	Part Description	IR Equivalent
		Motor Housing Assembly	2161-A40
1		Motor Housing	2161-B40
2	8208	Throttle Valve Seat	DG230-303
3	8585	Trigger Assembly	2161-A93
4	8104	Throttle Valve	2921-302
5	8803	Throttle Valve Spring	2161-51
6	8628	Air Strainer Screen	834-61
7	8179	Inlet Bushing Assembly	2161-A465A
8	8801	Inlet Bushing O-Ring	AF120-290
9	8804	Muffler Element	202-311
10	8802	Retaining Ring	2161-118
11	8805	Exhaust Deflector	2161-23
12	8586	Backcap Bolt (4)	2161-638
13	8588	Backcap Gasket	2161-739
		Backcap Assembly	2161-A102
14	8181	Backcap	2161-102
15	8182	Grease Fitting	R1-188
16	8183	Reverse Lever	2161-658
17	8184	Reverse Lever Snap Ring	2161-28
18	8185	Reverse Lever Spring	2161-278
19	8186	Motor Clamp Washer	2161-207
20	8038	Rear Rotor Bearing	4E-510
21	8825	Rear End Plate	2161-12
21A	8171	Locating Pin	2920-74
22	8429	Rotor	2910B-53
23	2157	Vane Packet (set of 6 Vanes)	2910-42-6
24	9469	Cylinder Dowel (2)	JC3350-538

25	9468	Cylinder	2161-3
26	8824	Front End Plate	2161-11
27	8037	Front Rotor Bearing	834-24
28		Reverse Valve O-Ring	023446
29		Reverse Valve	2161-329
30	9357	Hammer Frame Washer	2161-706
31	8415	Hammer Frame	2910-703A
32	9661/8694	Hammer	2161-724
33	8416	Hammer Pin (2)	2910-704
34	8589	Hammer Case Gasket	2161-36
35		Hammer Case Assembly
	8190	for 2161P and 2171P	2161-A727
		for 2161P-EU and 2171P-EU	2161-EU-A727
36	9433	Hammer Case Bushing	2161-641
37		Warning Label
		for 2161P and 2171P	WARNING-2-99
		for 2161P-EU and 2171P-EU	EU-99
38		Anvil
	8177/8192/8223	3/4” square drive	260-726
	8193	1” square drive	1711B-826
39		Socket Retainer
	8093/8284	for 3/4” square drive (2161P)	RR10034S
	8661/8627	for 1” square drive (2171P)	RR10015S
40		Hanger Kit	2161-366
41		Piped-Away Exhaust	2161-123

More Info ›

Ingersoll-Rand 2190Ti 1" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IR Equivalent
1	8570	Housing Assembly	2925B-A40
2	-	Information Label	1-800-LABEL
3	-	Warning Label	WARNING-2-99
4	9357	Washer, Hammer Frame	2161-706
5	8589	Gasket, Hammer Case	2161-36
6	8660	Silencer, Exhaust	2080-310
7	8658	Exhaust Deflector	2080-123
8	8659	Snap Ring, Exhaust	3CS5492-28
9	9329	O-Ring, Housing	C321-606
10	-	Bushing, Reverse Valve	—
11	8188	Reverse Valve	2161-329
12	8860	O-Ring, Reverse Valve	23446
13	8037	Bearing, Front End Plate	834-24
14	8824	End Plate, Front	2161-11
15	9146	Cylinder Assembly	2925-A3
16	9469	Dowel Pin, Cylinder (2 Required)	JC3350-538
17	9109	Rotor	2080-53
18	2199	Vane (Sold Each -7 req)	2925-42-7
18	2199P	Vane Plastic (Sold Each -7 req)	2925-42-7
19	8825	End Plate, Rear	2161-12
20	8171	Dowel Pin, Rear End Plate	2920-74
21	8038	Bearing, Rear End Plate	4E-510
22	8588	Gasket, Handle	2161-739
23	8186	Washer, Motor	2161-207
24	9683	Handle Assembly (2190Ti, 2190Ti-6)	2190-A92
24	-	Handle Assembly (2190DTi-6)	2925B-A92
25	8182	Grease Fitting	R1-188
26	8184	Snap Ring, Reverse Lever	2161-28
27	9720	Spring, Reverse Lever	2080-278
28	9716	Pipe Plug (219071, 2190Ti-6)	2080-34
29	9717	Plunger Pin	2080-120
30	8208	Valve Seat DG230-303	295-303
31	8104	Throttle Valve DG230-302	2921-302
32	8629	Spring, Inlet	2080-51
33	8628	Air Strainer	834-61
34	8626	Inlet Bushing Assembly	2080-A465A
35	-	Trigger Assembly (2190Ti, 2190Ti-6)	2080-A93
35	9687	Trigger Assembly (2190DTi-6)	2925B-93
36	-	Trigger Pin	—
37	-	Dowel Pin, Trigger (2190DTi-6)	—
38	-	Throttle Actuator (2190Ti, 2190Ti-6)	2080-94A
39	-	Plug (2190T1, 2190Ti-6)	2080-95
40	9719	Reverse Lever	2080-658
41	9224	Socket Head Capscrew (4)	2080-638
42	9690	Hammer Frame Kit	2190-K703
42	8260	Hammer Frame	2925-703
42	9993	Hammer Kit (2190Ti)	2190-THK1
42	9623	Hammer Kit (2190Ti-6, 2190DTi-6)	2190-6-THK1
43	8416	Hammer Pin (2 req)	2910-704
44	8694	Hammer (2 req)	2925-724
45	8661	Socket Retainer	910E5-918
46	9578	O-Ring, Socket Retainer	BBFM-557
47	8791	Anvil Assembly 6"	2080-A826-6
47	8292	Anvil Assembly Dual Retainer style 3/4"	2910-726-DR
47	9692	Anvil Assembly Dual Retainer style 1"	2080-A726
48A	9433	Bushing, Hammer Case (2190Ti)	2161-641
48B	9432	Bushing, Hammer Case (2190Ti-6, 2190DTi-6)	2080-641-6
49	9693	Hammer Case Assembly (2190Ti)	2190Ti-D727
49	9694	Hammer Case Assembly (2190Ti-6,2190DTi-6)	2190Ti-6-D727
50	9695	Dead Handle Assembly	2080-A48
51	-	Strap	—
52	-	Cap Screw (2)	—
*	9691	Socket Retainer Kit	2190-SRK1
*	9990P	Tune-Up Kit	2190-TK1
*	9990	Tune-Up Kit	2190-TK1
*	105-LBK1	Air Tool Oil (4oz. bottle)	10Z4
*	105-1 LB	Grease (1-lb can)	105-1 LB
*	105-8LB	Grease (8-lb can)	105-8LB
*	9685	Inlet Parts Kit (2190Ti, 2190Ti-6) Parts 28-34	2190-K303

More Info ›

Ingersoll-Rand 2235MAX 1/2" Drive Air Impact Wrench Repair Parts

Item	Part No.	Part Description	IR Equivalent
1		Housing Assembly
1	8174	(2235TiMAX, 2235TiMAX-2 and 2235PTiMAX)	2235MAX-A40
1		(2235QTiMAX, 2235QTiMAX-2 and 2235QPTiMAX)	2235QMAX-A40
2		Nameplate/Warning Label	2235MAX-301
3	8194	Screw, Hammer Case (4)	2235-638
4	9328	Power Regulator	2135-D249A
5	8741	O-Ring, Power Regulator	PS3-42
6	8689	Retaining Ring	2131-6
7	8101	Ball Bearing (Cylinder)	2131-97
8	8233	Cylinder	2235-3
9	8242	Rotor	2235-53
10	2063P	Vane Pack Plastic (Each)	2235-42P
10	2063	Vane Pack OE (Each)	2235-42
11	8248	Wear Plate	2235-11X
12	8290	End Plate	2235-11
13	8304	Ball Bearing (End Plate)	2235-97
14	8234	Hammer Case Gasket	2235-36RD
15	8238	Hammer Frame	2235-703
16	9896	Hammer Kit	2235-THK1
16	8250	Hammer (2)	2235-724
17	8264	Hammer Pin	2235-704
18	8277	Anvil Standard (Ring Type Retention)	2235-A626
18	8278	Anvil 2" Extended (Ring Type Retention)	2235-A626-2
18	-	Anvil Assy (Pin Type Retention)	2235P-A726
19	8270	O-Ring Socket Retainer	R1A-159
20	8088	Socket Retainer (1/2" Ring Type)	231-425A
19/20	8279	Socket Retainer Kit (1/2" Ring Type)	2125QTi-K425
19/20	9825	Socket Retainer Kit (1/2" Pin-Type)	2125PTi-K425
21	9569	Bushing, Hammer Case	2135-941
22	8330	Hammer Case Assy	2235TiMAX-D727
23		Grease Fitting	130SR-188
24	8332	Gasket, Motor	2235-283
25/26	8972	Trigger With O-Ring (Black)	2135-D93
25/26	8978	Trigger With O-Ring (Red)	2135-D93
26	9503	O-Ring, Trigger	2135-158
27	8771	Reverse Valve Assy	2131-A329
27A	8771T	O-Ring, Reverse Valve (Top-Black)	2131-168
27B	8771B	O-Ring, Reverse Valve (Bot-tom-Blue)	2131-167
28	9143	Inlet Bushing	2135-D565A
28	8740	Inlet Bushing Screen	5RA-61
29	9144	Inlet Retainer Clip	2131-57
29A	8594	Inlet Clip Removal Tool	2131-322
30	8624	Inlet Parts Kit	2135-K303
30A	8747	Washer	2131-286
30B	8745	O-Ring, Seal	2131-566
30C	8739	Throttle Spring	2131-51
30D	8725	Throttle Valve	2131-302
30E	8734	Valve Seat	2131-303
30F	8744	Seat Support	2131-Valve
30G	8746	Retainer	2131-304
31	9331	Button Kit	2135-K75
32	-	Silencer Wrap (2235QTiMAX, 2235QTiMAX-2 and 2235QPTiMAX)	2235Q-311
*	9895P	Tune-up Kit (Plastic Veins)	2235-TK1
*	9895	Tune-up Kit (Standard Veins)	2235-TK1
*	9896	Hammer Kit includes: 8238,8250(2),8264(2)	2235-THK1

More Info ›

Ingersoll-Rand 2705P1 1/2" Drive Air Impact Wrench Repair Parts

IR 2705P1 1/2" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
*		Motor Housing Assembly	231C-A40
1		Motor Housing	231C-40Y
2		Grease Fitting	130SR-188
2A		Housing Label	WARNING-2-99
3		Reverse Valve Bushing	231-A330
4	8400	Reverse Valve Bushing Seal (2)	PS3-67
5	8313	Throttle Valve Assembly	404-50A
6	8339	Throttle Valve Face	405-159
7	8006A	Throttle Valve Spring	R1A-51
8	8314	Throttle Valve Stem	402-302
9	8089	Air Strainer Assembly	402-565
10	8086	Trigger	705-93
11	8305	Trigger Pin	533-656
11A		Plug	502-95
12	8306	Reverse Valve	231-329A
13	8282	Reverse Valve Detent Ball	AV1-255
14	8308	Reverse Valve Detent Spring	231-664
15	8309	Reverse Valve Knob	231-666
16	8310	Reverse Valve Knob Screw	231-665
22	8263	Rotor	231-53
23	8027	Rear Rotor Bearing	402-22
24	8028	Front Rotor Bearing	4U-97
25	8004	Rear Rotor Bearing Retainer	402-118
26		Cylinder	231XP-3
27	8340	Cylinder Dowel	230-98
29	2142	Rotor Vane (requires 6)	2131-42A-6
	2142P	Plastic Rotor Vane (requires 6)
30	8084	Front End Plate	231-11
31	8085	Rear End Plate	231-12
32	8032B	End Plate Gasket	231-283
33	8311	Motor Clamp Washer (2)	227-207
34		Hammer Frame Assembly	2131-A703
35	8079	Hammer Pin (2)	231-704
36	8087	Hammer Frame Rear Washer	231-706
37	8080	Hammer (2)	2131-724
38		Hammer Case Assembly	131-A727-70
38A	8312	Hammer Case Pilot	405-800
39	8032A	Hammer Case Gasket	230-36
40	8320	Hammer Case Bushing	705-941
41		Hammer Case Cap Screw (3)	131-638
41A		Hammer Case Lockwasher (3)	131-637
43	9217	Anvil Assembly (pin type)	231B-726
44	8795	Socket Retaining Plunger	804-716
45	8835	Plunger Spring	5UHD-718
46		Nameplate	2705P1-301
*		Tube of Grease	405-MG1
*		Lube Injector	230-228
*		Bottle of Oil	405-M01
*	9909	Tune-up Kit (includes 4 (2), 6, 4, 13, 14, 23, 24, 25, 29, 32, 39, 44, 45 & R1-75)	2705-TK3

More Info ›

Ingersoll-Rand 2707A1 & 2707P1 1/2" Drive Air Impact Wrench Repair Parts

IR 2707A1 & 2707P1 1/2" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing Assembly	244A-A40
2	8313	Throttle Valve Assembly	404-50A
3	8339	Throttle Valve Face	405-159
4	8006B	Throttle Valve Spring	R1A-51
5	8679	Throttle Valve Stem	402-302
6	8089	Air Strainer Assembly	402-565
7		Trigger	705-93
8	8305	Trigger Pin	533-656
9		Reverse Valve Bushing	231-A330
10	8400	Reverse Valve Bushing Seal	PS3-67
11	8306	Reverse Valve	231-329A
12	8282	Reverse Valve Detent Ball	AV1-255
13	8308	Reverse Valve Detent Spring	231-664
14	8309	Reverse Valve Knob	231-666
15	8310	Reverse Valve Knob Screw	231-665
16		Grease Fitting	130SR-188
17		Housing Label	WARNING-2-99
18		Nameplate	2707P1-301
19	8167	Rotor	244-53
20	8027	Rear Rotor Bearing	402-22
21	8028	Front Rotor Bearing	4U-97
22	8004	Rear Rotor Bearing Retainer	402-118
23	8426	Cylinder	904-3
24		Cylinder Dowel	230-98
25	2172	Rotor Vane (requires 6)	2906P-42-6
26	8084	Front End Plate	231-11
27	8085	Rear End Plate	231-12
28	8032B	End Plate Gasket	231-283
29	8311	Motor Clamp Washer (2)	227-207
30		Hammer Frame Assembly	2131-A703
31	8079	Hammer Pin (2)	231-704
32	8087	Hammer Frame Rear Washer	231-706
33	8080	Hammer (2)	2131-724
34		Hammer Case Assembly	131-A727-70
35	8032A	Hammer Case Gasket	230-36
36	8312	Hammer Case Pilot	405-800
37	8320	Hammer Case Bushing	705-941
38	9189	Exhaust Deflector	244LG-23
39		Hammer Case Cap Screw (3)	131-638
40		Hammer Case Lockwasher	131-637
41		Anvil Assembly (1/2" square drive with pin type retainer)	231B-726
42	8795	Socket Retaining Plunger	804-716
43	8835	Retaining Plunger Spring (requires 2)	5UHD-718
44		Anvil Assembly (1/2" square drive with ring type retainer)	231B-A626
45	8088	Ring Type Socket Retainer	231-425A
46	8270	Retainer O-Ring	R1A-159
*		Grease Gun	R000A2-228
*		Horizontal Hanger	2706-366
*	9951	Tune-up Kit (includes 3, 4, 10 (2), 12, 13, 20, 21, 22, 25, 28, 35, 42 & 43)	2707-TK2

More Info ›

Ingersoll-Rand 2908P 3/4" Drive Air Impact Wrench Repair Parts

IR 2908P 3/4" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing Assembly	2908-A40
*		Trigger Assembly	7AH-A93
3		Trigger	5RA-93
4		Trigger Pin	7AH-94
5		Exhaust Silencer	2908-311
6		Exhaust Deflector	2908-23
7		Throttle Valve Seat	2908-303
8		Throttle Valve	2908-302A
9		Throttle Valve Spring	2908-51
10		Oiler Body Assembly	2908-A198
11		Oiler Body Seal (2)	AF120-290
12		Oiler Plug	77H-75
12A		Oiler Retaining Ring	2908-304
13		Air Strainer Assembly	804-465
14		Oil Chamber Plug Seal	R3-92A
15		Oil Chamber Plug	D92-227
16		Reverse Valve Bushing Assembly	2908-A330
17		Reverse Valve Bushing Seal (2)	AF120-290
18		Reverse Valve	2908-329
19		Reverse Valve Detent Ball	AV1-255
20		Reverse Valve Detent Spring	231-664
21		Reverse Valve Knob	231-666
22		Reverse Valve Knob Screw	231-665
23		Grease Fitting	130SR-188
24		End Plate Gasket	2908-283
25		Rear Rotor Bearing Retainer	R4800-119
26		Rear Rotor Bearing	R1A-510
27		Rear End Plate	2908-12
28		Rotor	2908-53
29	2173	Rotor Vane (requires 6)	2908-42-6
30		Cylinder	908-3
31		Cylinder Dowel	403-98A
32		Front End Plate Dowel	230-74
33		Front End Plate	2908-11
34		Front Rotor Bearing	R38P-606
35		Motor Clamp Washer (2)	2908-207
36		Hammer Frame Assembly	2908-A703
37		Hammer Pin (2)	2908-704
38		Rear Hammer Frame Washer	2908-706
39		Hammer (2)	2908-724
40		Hammer Case Assembly (for 2908P1 & 2908P2)	2908-A727
40		Hammer Case Assembly (for 2908P1-EU & 2908P2-EU)	2908-EU-727
*		Hammer Case Label (for 2908P1 & 2908P2)	WARNING-2-99
*		Hammer Case Label (for 2908P1-EU & 2908P2-EU)	EU-99
42		Hammer Case Bushing	2908-641
43		Hammer Case Gasket	1709-36
44		Hammer Case Pilot	2908-800
45		Hammer Case Lock Washer (4)	8U-58
46		Hammer Case Cap Screw (4)	R0H-354
46		Anvil Assembly (5/8" square drive)	2908-P726
46		Anvil Assembly (3/4" square drive)	2908-P826
47		Socket Retaining Ring (5/8" square drive)	808-716
47		Socket Retaining Ring (3/4" square drive)	2908-716
48		Socket Retaining Pin Spring	5UHD-718
*		Quick-Change Anvil Assembly (5/8" hex recess)	2908-A926-10
49		Quick Change Anvil	2908-926-10
50		Thrust Ring Lock (2)	908-933-10
51		Retaining Ball (7/32" diameter)	2U-722
52		Retaining Sleeve	908-930-10
53		Retaining Sleeve Spring	908-931-10
54		Thrust Ring	908-932-10
*		Nameplate (for 2908P1 & 2908P2)	2908-301
*		Nameplate (for 2908P1-EU & 2908P2-EU)	2908-EU-301
*		Vertical Hanger	2908-365
*		Grease Gun	R000A2-228
*		Tune-up Kit (includes 5, 7, 9, 14, 17 [2], 19, 20, 24, 25, 26, 27, 29, 34 & 42)	2908P-TK2

More Info ›

Ingersoll-Rand 2920P 3/4" Drive Air Impact Wrench Repair Parts

IR 2920P 3/4" Drive Parts List
Item	Part Number	Part Description	IR Equivalent
1		Motor Housing Assembly	2920P-A40
2	8327	Trigger Assembly	2920P-A93
3	8104	Throttle Valve	2921-302
5	8208	Throttle Valve Seat	DG230-303
6	8062	Throttle Valve Spring	2920P-51
7		Oiler Assembly	2920P-A198
8		Oiler Body Plug	77H-75
9	8283	Oiler Body Seal	85H-167
10		Oiler Plug	D92-227
11	9787	Oiler Plug Seal	R3-92A
12	8737	Oiler Retaining Ring	SML8-24
13	8024	Exhaust Silencer	2920P-311
14		Silencer Screen	2920P-310
15		Exhaust Deflector	2920P-23
16	8324	Inlet Bushing	2920P-465
17		Motor Housing Cover Assembly	2920P-A202
18		Grease Fitting	130SR-188
19		Reverse Valve	2910B-329
20	8207	Reverse Valve Seal (2)	261-283
21	8309	Reverse Valve Knob	231-666
22	8310	Reverse Valve Knob Screw	231-665
23	8282	Reverse Valve Detent Ball	AV1-255
24	8308	Reverse Valve Detent Spring	231-664
25		Housing Cover Cap Screw (4)	5080-638
26		Cap Screw Lock Washer	8U-58
27	8281	Housing Cover Gasket	2920P-739
28	8039	Rear Rotor Bearing Retainer	MVA008-218
29	8038	Rear Rotor Bearing	4E-510
30	8092	Rear End Plate	2920HP-12
31	8429	Rotor	2910B-53
32	2157	Rotor Vane (6 required)	2910-42-6
33	8096	Cylinder	2920-3
34	8326	Cylinder Dowel	910-98
35	8091	Front End Plate	2921HP-11
36	8171	Front End Plate Dowel	2920-74
37	8037	Front Rotor Bearing	834-24
38	8325	Motor Clamp Washer	2920-207
39	8034A	Hammer Case Gasket	910-36
40		Hammer Case Assembly	2920B-A727
41	8119	Hammer Case Bushing	2920-641
42	8412	Hammer Case Cap Screw	34U-103
43	8413	Cap Screw Lock Washer	34U-58
44	8414	Rear Hammer Frame Washer	910-706
45	8415	Hammer Frame Assembly	2910-A703
46	8416	Hammer Pin (2)	2910-704
47	8319	Hammer (2)	2910-724
48	8307	3/4" Square Drive Anvil	2910-726
*	9932	Tune-up Kit (Includes 3, 4, 5, 6, 9 [2], 11, 13, 20 [2], 23, 24, 27, 28, 29, 32 & 39)	2920P-TK2

More Info ›

Ingersoll-Rand 2925 1" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IR Equivalent
		Motor Housing Assembly	2925-A40
1		Motor Housing	2925-B40
2	8208	Throttle Valve Seat	DG230-303
3	8585	Trigger Assembly	2161-A93
4	8104	Throttle Valve	2921-302
5	8803	Throttle Valve Spring	2161-51
6	8628	Air Strainer Screen	834-61
7	8179	Inlet Bushing Assembly	2161-A465A
8	8801	Inlet Bushing O-Ring	AF120-290
9	8804	Muffler Element	202-311
10	8802	Retaining Ring	2161-118
11	8805	Exhaust Deflector	2161-23
12	8196	Backcap Bolt (4)	2925-638
13	8588	Backcap Gasket	2161-739
14	8197	Backcap Assembly	2925-A102
14	8198	Backcap	2925-102
15	8182	Grease Fitting	R1-188
16	8199	Reverse Lever	2925-658
17	8184	Reverse Lever Snap Ring	2161-28
18	8185	Reverse Lever Spring	2161-278
19	8186	Motor Clamp Washer	2161-207
20	8038	Rear Rotor Bearing	4E-510
21	9149	Rear End Plate	2925-12
21A	8171	Locating Pin	2920-74
22	8209	Rotor	2925-53
23	2199	Vane Packet (set of 7 Vanes)	2925-42-7
24	9469	Cylinder Dowel (2)	JC3350-538
25		Cylinder
	9146	for 2925P1 and 2925P3	2925-3
	8293	for 2925RBP1 and 2925RBP3	2925RB-3


26	9148	Front End Plate	2925-11
27	8037	Front Rotor Bearing	834-24
28	8860	Reverse Valve O-Ring	023446
29	8188	Reverse Valve	2161-329
30	9357	Hammer Frame Washer	2161-706
31	8260	Hammer Frame	2925-703
32	8694	Hammer (2)	2925-724
33	8416	Hammer Pin (2)	2910-704
34	8589	Hammer Case Gasket	2161-36
35	8190	Hammer Case Assembly for 2925 and 2925RB	2161-A727

36	9433	Hammer Case Bushing	2161-641
37		Warning Label for 2925 and 2925RB	WARNING-2-99

38		Anvil
	8307	3/4” square drive	2910-726
	9662	1” square drive	2910-826
39		Socket Retainer
		for 3/4” square drive	RR10034S
		for 1” square drive	RR10015S
		Quick-Change Anvil Assembly	2910B-A926-10
40		Quick Change Anvil	2910-926-10
41		Retaining Sleeve	W54-930-10
42		Thrust Ring Lock (2)	W54-933-10
43		Thrust Ring	W54-932-10
44		Retaining Sleeve Spring	W54-931-10
45		Retaining Ball	8U-722
46	9829	No. 4 Spline Drive Anvil	2910-A526
47		Socket Retaining Ball	G601-65
48		Retaining Ball Plunger	910-230
49		Ball Plunger Spring	12SR-262
50		Plunger Retaining Pin	502B-120
51		Hanger Kit	2161-366
52		Piped-Away Exhaust (accepts 1/2”-14 NPT male-fitting)	2161-123
	Grease	1 lb.	170-1LB
		8 lb.	170-8LB
	9992	Tune Up Kit (Includes 2, 4, 5, 6, 9, 10, 13, 17, 18, 20, 23, 27, 28, 34)	2925-TK2

More Info ›

Ingersoll-Rand 2925 3/4" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IR Equivalent
		Motor Housing Assembly	2925-A40
1		Motor Housing	2925-B40
2	8208	Throttle Valve Seat	DG230-303
3	8585	Trigger Assembly	2161-A93
4	8104	Throttle Valve	2921-302
5	8803	Throttle Valve Spring	2161-51
6	8628	Air Strainer Screen	834-61
7	8179	Inlet Bushing Assembly	2161-A465A
8	8801	Inlet Bushing O-Ring	AF120-290
9	8804	Muffler Element	202-311
10	8802	Retaining Ring	2161-118
11	8805	Exhaust Deflector	2161-23
12	8196	Backcap Bolt (4)	2925-638
13	8588	Backcap Gasket	2161-739
		Backcap Assembly	2925-A102
14	8198	Backcap	2925-102
15	8182	Grease Fitting	R1-188
16	8199	Reverse Lever	2925-658
17	8184	Reverse Lever Snap Ring	2161-28
18	8185	Reverse Lever Spring	2161-278
19	8186	Motor Clamp Washer	2161-207
20	8038	Rear Rotor Bearing	4E-510
21	9149	Rear End Plate	2925-12
21A	8171	Locating Pin	2920-74
22	8209	Rotor	2925-53
23	2199	Vane Packet (set of 7 Vanes)	2925-42-7
24	9469	Cylinder Dowel (2)	JC3350-538
25	9146	Cylinder
		for 2925P1 and 2925P3	2925-3
		for 2925RBP1 and 2925RBP3	2925RB-3


26	9148	Front End Plate	2925-11
27	8037	Front Rotor Bearing	834-24
28	8860	Reverse Valve O-Ring	023446
29	8188	Reverse Valve	2161-329
30	9357	Hammer Frame Washer	2161-706
31	8260	Hammer Frame	2925-703
32	8694	Hammer (2)	2925-724
33	8416	Hammer Pin (2)	2910-704
34	8589	Hammer Case Gasket	2161-36
35	8190	Hammer Case Assembly for 2925 and 2925RB	2161-A727

36	9433	Hammer Case Bushing	2161-641
37		Warning Label for 2925 and 2925RB	WARNING-2-99

38		Anvil
	8307	3/4” square drive	2910-726
	9662	1” square drive	2910-826
39		Socket Retainer
		for 3/4” square drive	RR10034S
		for 1” square drive	RR10015S
		Quick-Change Anvil Assembly	2910B-A926-10
40		Quick Change Anvil	2910-926-10
41		Retaining Sleeve	W54-930-10
42		Thrust Ring Lock (2)	W54-933-10
43		Thrust Ring	W54-932-10
44		Retaining Sleeve Spring	W54-931-10
45		Retaining Ball	8U-722
46		No. 4 Spline Drive Anvil	2910-A526
47		Socket Retaining Ball	G601-65
48		Retaining Ball Plunger	910-230
49		Ball Plunger Spring	12SR-262
50		Plunger Retaining Pin	502B-120
51		Hanger Kit	2161-366
52		Piped-Away Exhaust (accepts 1/2”-14 NPT male-fitting)	2161-123
	Grease	1 lb.	170-1LB
		8 lb.	170-8LB
	9992	Tune Up Kit (Includes 2, 4, 5, 6, 9, 10, 13, 17, 18, 20, 23, 27, 28, 34)	2925-TK2

More Info ›

Ingersoll-Rand 2925B 1" Drive Air Impact Wrench Repair Parts

Ingersoll-Rand 2925P 1" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IR Equivalent
1	-	Handle	2925B-92
2	9224	Handle Bolt (4)	2080-638
*		Trigger Assembly	2925B-A93
3	9687	Trigger	2925B-93
4	-	Trigger Pin	F02-15
5	8753	Trigger Pin	280-265
*	9681	Reverse Valve Assembly	2190-A329
6	8860	0-Ring	23446
7	9720	Reverse Lever Spring	2080-278
8	9719	Reverse Lever	2080-658
9	8184	Snap Ring	2161-28
10	8188	Reverse Valve	2161-329
11	8495	Trigger Plunger	2925B-94
12	8554	Throttle Valve Seat	2934-159
13	8598	Throttle Valve	2934-A50
14	8555	Throttle Valve Spring	834-51
15	8628	Inlet Screen	834-61
16	8179	Inlet Bushing Assembly	2161-A465A
16	-	Inlet Bushing	2161-465A
17	8627	Seal	R4-210
18	8182	Grease Fitting	R1 -188
19	8588	Handle Gasket	2161-739
20	8186	Motor Clamp Washer	2161-207
21	8038	Rear Rotor Bearing	4E-510
22	9149	Rear End Plate	2925-12
23	8171	End Plate Dowel	2920-74
24	8209	Rotor	2925-53
25	2199	Vane Packet (set of 7 Vanes)	2925-42-7
*		Cylinder Assembly
	9146	for 2925B2Ti	2925-A3
	8293	for 2925RB2Ti	2925RB-A3
26		Cylinder
	9146	for 2925B2Ti	2925-3
	8293	for 2925RB2H	2925RB-3
27		Cylinder Dowel (2)
	9469	for 2925B2Ti	JC3350-538
	9469	for 2925RB2H	JC3350-538
28	9148	Front End Plate	2925-11
29	8037	Front Rotor Bearing	834-24
30	8570	Motor Housing	2925B-A40
31	-	Warning Label	WARNING-2-99
32	9329	O-Ring	C321-606
33	8658	Exhaust Cover	2080-123
34	8659	Snap Ring	3CS5492-28
35	8660	Muffler	2080-310
36	9357	Hammer Frame Washer	2161-706
37	8260	Hammer Frame	2925-703
38	8416	Hammer Pin (2)	2910-704
39	8694	Hammer (2)	2925-724
40	9662	Anvil	2910-826
41	8589	Hammer Case Gasket	2161-36
*	9693	Hammer Case Assembly	2190Ti-D727
42	9433	Hammer Case Bushing	2161-641
43	9693	Hammer Case	2190Ti-727
*	9695	Auxiliary Handle Assembly	2080-A48
44	-	Auxiliary Handle	2080-48
45	8412	Bolt (2)	34U-103
46	-	Strap	2080-364
*	9893	Tune-up Kit (includes parts 6, 12, 13, 14, 15, 17, 19, 21, 25, 29, 32, 35 & 41)	2925B-TK2

* Not Shown

Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.

More Info ›

Ingersoll-Rand 2934 1" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IR Equivalent
1		Inside Trigger Handle Assembly	2934-A92A
2		Grease Fitting	130SR-188
5	8752	Trigger	834-93A
6		Trigger Pin	534-265
7	8599	Throttle Valve Plunger	2934-302
8	8598	Throttle Valve Assembly	2934-A50
9	8554	Throttle Valve Face	2934-159
10	8555	Throttle Valve Spring	834-51
11	8560	Straight Inlet	845-565
12	8556	Air Strainer Screen	434-61
13	8557	Reverse Valve Seal	R00BR-210
15	8558	Handle Gasket	2934-283
16		Motor Clamp Washer	2934-207
17		Rear End Plate	2934-12
18	8559	Rear Rotor Bearing	508-97
19	9709	Rotor	2934-53
20	2158	Rotor Vane (6)	2934-42-6
21	9707	Cylinder	2934-3
22	8730	Front End Plate	2934-11
23	8560	Front Rotor Bearing	810-97
24		Cylinder Dowel	2934-98
25		Motor Housing Assembly	2934-A40A
26		Reverse Valve Bushing	2934-330S
26A	8579	Air Port Gasket (2)	R44H-210A
27	8350	Air Port Gasket Retainer (2)	2940-200
27A	8652	Exhaust Deflector	2934-23A
27B	8567	Exhaust Silencer	2940P-311
27C		Exhaust Baffle	2934-124
27D	8656	Exhaust Gasket	2934-223
27E		Deflector Screw (2)	R43F-104
27F		Name Plate	2934-301
27G		Name Plate Screw (4)	C32-302
28	8850	Reverse Lever	2934-658A
29	8561	Reverse Lock Plunger	4U-663B
30	8562	Reverse Lock Plunger Spring	4U-664
31		Reverse Valve Assembly	2934-A329
32	8283	Reverse Valve Bushing Seal	85H-167
33		Hammer Case Assembly	2934-A727
34	9338	Hammer Case Bushing	2934-641
34A		Hammer Case Label	WARNING-2-99
		Oversize Hammer Case Bushing
		0.005" Oversize	293-641-5
		0.010" Oversize	2934-641-10
		0.015" Oversize	2934-641-15
35	8563	Hammer Case Gasket	2934-36
36		Hammer Case Cap Screw (4)	834-638
37		Hammer Case Cap Screw Lock Washer (4)	34U-58
38		Handle Cap Screw (4)	510-638
39		Handle Cap Screw Lock Washer (4)	8U-58
40	8851	Hammer Frame Assembly	2934-A703
41		Hammer Pin
	8852A	Hammer Pin (2) with Head	2934-704
	8852B	Hammer Pin (2) with out Head	2934-704
42	8137	Hammer (2)	2934-724
43		Spline Drive Anvil Assembly	2934-A526
44	8143	Socket Retaining Ball	D04-280
45		Retianing Ball Plunger	845-230
46	8141	Retaining Plunger Spring	2940-231
47	8142	Plunger Retainng Pin	845-128
48	8033	1" Square Drive Anvil Standard Length	2934-726
		1" Square Drive Anvil 6" Extended Length	2934-314-6
49		Socket Retainer	RR10015S
50		Outside Trigger Handle Assembly	2934-A1
51		Trigger	844-78
52		Trigger Pin	F02-15
53		Dead Handle	834-48
54	8885	Dead Handle Bracket	2934-364
55		Dead Handle Bracket Spacer (2)	2934-140
		Horizontal Hanger	2934-366
		Horizontal Hanger Spacer (2)	2934-140
		Side Spade Handle	T15-41
		Side Spade Handle Stud	534-448
		Side Spade Handle Stud Nut	107-73A
		Grease Gun	R000A2-228
	9961	Tune Up Kit (includes: 3, 9, 10, 12, 13, 15, 18, 20, 23, 26A [2], 27 [2], 27B, 29, 30, 32, 35)	2934-TK3
		Exhaust Deflector Kit (includes: 27A thru 27E)	2934-K23

More Info ›

Ingersoll-Rand 2934P 1" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IR Equivalent
1		Motor Housing Assembly	2934P-A40A
2		Inlet Bushing	2934P-465
3		Washer	2934P-788
4		Exhaust Deflector	2934P-123
5		Air Strainer Screen	434-61
6		Throttle Valve Spring	834-51
7		Throttle Valve	2934P-50
8		Throttle Valve Face	2934-159
9		Throttle Valve Plunger	2934P-302
10		Exhaust Screen	2934P-310
11		Exhaust Silencer	2934P-311
12		Exhaust Deflector Seal	2934P-789
13		Reverse Valve Bushing	2934P-330S
14		Air Port Gasket (2)	R44H-210A
15		Gasket Retainer (2)	2940-200
16		Trigger	2934P-93
17		Trigger Spring	2934P-51
18		Trigger Retaining Pin	R1AF-524
19		Trigger Bushing	2905-91S
20		Throttle Valve Assembly Retaining Pin	—
21		Throttle Valve Assembly	—
22		Throttle Valve Bushing Assembly	—
23		Throttle Valve Bushing O-Ring (Large)	___
24		Throttle Valve Bushing O-Ring (Small) (2)	__
25		Throttle Valve Face O-Ring	—
26		Throttle Valve O-Ring	—
27		Throttle Valve Stem O-Ring	—
28		Trigger Retaining Pin	—
29		Reverse Valve Assembly	2934P-A329
30		Reverse Valve Seal	85H-167
31		Reverse Valve Stop	—
32		Reverse Lever	2934-658A
33		Reverse Lock Plunger	4U-663B
34		Reverse Lock Spring	4U-664
35		Exhaust Diffuser	—
36		Exhaust Silencer	—
37		Silencer Cover	—
38		Silencer Cover Screws (3)	—
39		Power Regulator Assembly	2934P-A249
40		Power Regulator Seal	R1A-159
41		Power Regulator Retaining Ball	AV1-255
42		Housing Cover Lock Washer (4)	8U-58-10
43		Housing Cover Capscrew (4)	510-638
44		Housing Cover Assembly	2934P-A102A
45		Oiler Adjusting Screw	R2-71
46		Oiler Felt	R2-75
47		Grease Fitting	130SR-188
48		Oil Chamber Plug	R4-227
49		Oil Chamber Plug Gasket	R4-92
50		Housing Cover Gasket	2934-283
51		Motor Clamp Washer	2934-207
52		Cylinder	2934-3
53		Cylinder Dowel	2934-98
54		Rear Motor Bearing	508-97
55		Rear End Plate	2934-12
56		Rotor	2934-53
57		Vane Packet (Set of 6 Vanes)	2934-42-6
58		Front End Plate	2934-11
59		Front Rotor Bearing	810-97
60		Hammer Case Gasket	2934-36
61		Side Spade Handle Bracket	2934-364
62		Side Spade Handle	T15-41
63		Side Spade Handle Stud	534-448
64		Side Spade Handle Nut	107-73A
65		Hammer Frame Assembly for 2934P for 2940P	2934-A703 2940-A703
66		Hammer Pins for 2934P for 2940P	2934-704 2940-704
67		Hammers (2) for 2934P for 2940P	2934-724 2940-724
68		1” Square Drive Anvil for 2934P for 2940P	2934-726 2940-726
69		Hammer Case Assembly for 2934P for 2934P-EU for 2940P for 2940P-EU	2934-A727 2934P-EU-A727 2940-A727 2940P-EU-A727
*		Hammer Case Label for 2934P and 2940P for 2934P-EU and 2940P-EU	WARNING-2-99 EU-99
70		Hammer Case Bushing	2934-641
*		Hammer Case Label	WARNING-2-99
*		Oversize Hammer Case Bushing (for 2940P only) 0.005” oversize 0.010” oversize 0.015” oversize	2934-641-5 2934-641-10 2934-641-15
71		Hammer Case Cap Screw Lock Washer (4)	34U-58
72		Hammer Case Cap Screw (4)	834-638
73		Socket Retainer	RR10015S
79		Spline Drive Anvil Assembly for 2934P for 2940P	2934-A526 2940-A526
80		Socket Retaining Ball	D04-280
81		Retaining Ball Plunger	845-230
82		Retaining Plunger Spring	2940-231
83		Plunger Retaining Pin	845-128
*		Dead Handle (for 2940P only)	834-48
*		Horizontal Hanger	2934-366
*		Horizontal Hanger Spacer (2) (required only when the 2934-366 Hanger is used in conjunction with the No. 2934-364 Side Spade Handle Bracket)	2934-140
*		Nameplate for 2934P for 2934P-EU for 2940P for 2940P-EU	2934P-301 2934P-EU-301 2940P-301 2940P-EU-301
*		Nameplate Screws (3)	C32-302
*		Exhaust Deflector Kit for 2934P only (includes illustrated items 2, 3,4,10, 11, and 12)	2934P-K23
*		Tune-up Kit for 2934P (includes illustrated items 5, 6, 8, 11, 14[2], 17, 30, 33 34 40, 46, 50, 54, 57, 59 and 60)	2934-TK3

More Info ›

Ingersoll-Rand 2940 1" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IR Equivalent
1		Inside Trigger Handle Assembly	2934-A92A
2		Grease Fitting	130SR-188
5	8752	Trigger	834-93A
6		Trigger Pin	534-265
7	8599	Throttle Valve Plunger	2934-302
8	8598	Throttle Valve Assembly	2934-A50
9	8554	Throttle Valve Face	2934-159
10	8555	Throttle Valve Spring	834-51
11	8560	Straight Inlet	845-565
12	8556	Air Strainer Screen	434-61
13	8557	Reverse Valve Seal	R00BR-210
15	8558	Handle Gasket	2934-283
16		Motor Clamp Washer	2934-207
17	8175	Rear End Plate	2934-12
18	8559	Rear Rotor Bearing	508-97
19		Rotor	2940-53
20	2159	Rotor Vane (6)	2940-42-6
21	9044	Cylinder	2940-3
22	8730	Front End Plate	2934-11
23	8560	Front Rotor Bearing	810-97
24		Cylinder Dowel	2940-98
25		Motor Housing Assembly	2940-A40
26		Reverse Valve Bushing	2934-330S
26A	8579	Air Port Gasket (2)	R44H-210A
27	8350	Air Port Gasket Retainer (2)	2940-200
27A	8652	Exhaust Deflector	2934-23A
27B	8567	Exhaust Silencer	2940P-311
27C		Exhaust Baffle	2934-124
27D	8656	Exhaust Gasket	2934-223
27E		Deflector Screw (2)	R43F-104
27F		Name Plate	2940-301
27G		Name Plate Screw (4)	C32-302
28	8850	Reverse Lever	2934-658A
29	8561	Reverse Lock Plunger	4U-663B
30	8562	Reverse Lock Plunger Spring	4U-664
31		Reverse Valve Assembly	2934-A329
32	8283	Reverse Valve Bushing Seal	85H-167
33	9042	Hammer Case Assembly	2940-A727
34	9338	Hammer Case Bushing	2934-641
34A		Hammer Case Label	WARNING-2-99
		Oversize Hammer Case Bushing
		0.005" Oversize	293-641-5
		0.010" Oversize	2934-641-10
		0.015" Oversize	2934-641-15
35	8563	Hammer Case Gasket	2934-36
36		Hammer Case Cap Screw (4)	834-638
37		Hammer Case Cap Screw Lock Washer (4)	34U-58
38		Handle Cap Screw (4)	510-638
39		Handle Cap Screw Lock Washer (4)	8U-58
40	9052	Hammer Frame Assembly	2940-A703
41		Hammer Pin
	8139A	Hammer Pin (2) with Head	2940-704
	8139B	Hammer Pin (2) without Head	2940-704
42	8138	Hammer (2)	2940-724
43		Spline Drive Anvil Assembly	2940-A526
44	8143	Socket Retaining Ball	D04-280
45		Retianing Ball Plunger	845-230
46	8141	Retaining Plunger Spring	2940-231
47	8142	Plunger Retainng Pin	845-128
48	9053	1" Square Drive Anvil Standard Length	2940-726
		1" Square Drive Anvil 6" Extended Length	2940-314-6
49		Socket Retainer	RR10015S
50		Outside Trigger Handle Assembly	2934-A1
51		Trigger	844-78
52		Trigger Pin	F02-15
53		Dead Handle	834-48
54		Dead Handle Bracket	2934-364
55		Dead Handle Bracket Spacer (2)	2934-140
		Horizontal Hanger	2934-366
		Horizontal Hanger Spacer (2)	2934-140
		Side Spade Handle	T15-41
		Side Spade Handle Stud	534-448
		Side Spade Handle Stud Nut	107-73A
		Grease Gun	R000A2-228
	9959	Tune Up Kit (includes: 3, 9, 10, 12, 13, 15, 18, 20, 23, 26A [2], 27 [2], 27B, 29, 30, 32, 35)	2940-TK3
		Exhaust Deflector Kit (includes: 27A thru 27E)	2940-K23

More Info ›

Ingersoll-Rand 2940P 1" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	Part Number
1		Motor Housing Assembly	2940P-A40
2	9359	Inlet Bushing	2940P-A565
3		Washer	---
4	9464	Exhaust Deflector	2940P-23
5		Air Strainer Screen	---
6		Throttle Valve Spring	---
7		Throttle Valve	---
8		Throttle Valve Face	---
9		Throttle Valve Plunger	---
10		Exhaust Screen	---
11		Exhaust Silencer	2940P-311
12		Exhaust Deflector Seal	---
13		Reverse Valve Bushing	2940P-330S
14	8579	Air Port Gasket (2)	R44H-210A
15	8350	Gasket Retainer (2)	2940-200
16		Trigger	5RA-93
17		Trigger Spring	---
18		Trigger Retaining Pin	---
19		Trigger Bushing	---
20		Throttle Valve Assembly Retaining Pin	2940P-757
21		Throttle Valve Assembly	293-A302
22		Throttle Valve Bushing Assembly	293-A503
23	8571	Throttle Valve Bushing O-Ring (Large)	AD100-18
24	8573	Throttle Valve Bushing O-Ring (Small) (2)	AFH120A-358
25	8400	Throttle Valve Face O-Ring	PS3-67
26	8140	Throttle Valve O-Ring	293-134
27	8144	Throttle Valve Stem O-Ring	293-669
28		Trigger Retaining Pin	AF120-322
29		Reverse Valve Assembly	2940P-A329
30		Reverse Valve Seal	85H-167
32		Reverse Lever	2934-658A
33	8561	Reverse Lock Plunger	4U-663B
34	8562	Reverse Lock Spring	4U-664
35		Exhaust Diffuser	2940P-123
36	8567	Exhaust Silencer	2940P-311
37		Silencer Cover	2940P-240
38		Silencer Cover Screws (3)	401-638
39		Power Regulator Assembly	2940P-A249
40		Power Regulator Seal	R1A-159
41		Power Regulator Retaining Ball	AV1-255
42		Housing Cover Lock Washer (4)	AV1-255
43		Housing Cover Capscrew (4)	510-638
44		Housing Cover Assembly	2934P-A102A
45		Oiler Adjusting Screw	R2-71
46	8553	Oiler Felt	R2-75
47		Grease Fitting	130SR-188
48		Oil Chamber Plug	R4-227
49	8566	Oil Chamber Plug Gasket	R4-92
50	8558	Housing Cover Gasket	2934-283
51		Motor Clamp Washer	2934-207
52	9044	Cylinder	2940-3
53		Cylinder Dowel	2940-98
54	8559	Rear Motor Bearing	508-97
55	8175	Rear End Plate	2934-12
56		Rotor	2940-53
57	2159	Vane Packet (Set of 6 Vanes)	2940-42-6
58	8730	Front End Plate	2934-11
59	8560	Front Rotor Bearing	810-97
60	8572	Hgammer Case Gasket	2940P-36
61	8885	Side Spade Handle Bracket	2934-364
62		Side Spade Handle	T15-41
63		Side Spade Handle Stud	534-448
64		Side Spade Handle Nut	107-73A
65		Hammer Frame Assembly
	9052	for 2940P	2940-A703
66		Hammer Pins
	8139A or 8139B	for 2940P	2940-704
67		Hammers (2)
	8138	for 2940P	2940-724
68		1” Square Drive Anvil
	9053	for 2940P	2940-726
69		Hammer Case Assembly
	9042	for 2940P	2940-A727
		for 2940P-EU	2940P-EU-A727
		Hammer Case Label
70	9338	Hammer Case Bushing	2934-641
		Hammer Case Label	WARNING-2-99
		Oversize Hammer Case Bushing (for 2940P only)
		0.005” oversize	2934-641-5
		0.010” oversize	2934-641-10
		0.015” oversize	2934-641-15
71		Hammer Case Cap Screw Lock Washer (4)	34U-58
72		Hammer Case Cap Screw (4)	834-638
73		Socket Retainer	RR10015S
79		Spline Drive Anvil Assembly
		for 2940P	2940-A526
80	8143	Socket Retaining Ball	D04-280
81		Retaining Ball Plunger	845-230
82	8141	Retaining Plunger Spring	2940-231
83	8142	Plunger Retaining Pin	845-128
		Dead Handle (for 2940P only)	834-48
		Horizontal Hanger	2934-366
		Nameplate
		for 2940P	2940P-301
		for 2940P-EU	2940P-EU-301
		Nameplate Screws (3)	C32-302
	9960	Tune-up Kit for 2940P only (includes illustrated items 11, 14[2], 15[2], 23, 24 [2], 25, 28, 30, 33, 34, 36, 40, 46, 49, 50, 54, 57, 59 and 60)	2940-TK3

More Info ›

Ingersoll-Rand 2945 1-1/2" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IE Equivalent
1		Throttle Handel Assembly
		Outside Trigger	2950-A1
		Inside Trigger	2950-A92
2		Grease Fitting	130SR-188
3	8553	Oiler Felt	R2-75
4		Oiler Adjusting Screw	R2-71
5		Throttle Valve Plunger	2950-302
6	8598	Throttle Valve Assembly	2934-A50
7	8554	Throttle Valve Face	2934-159
8	8555	Throttle Valve Spring	834-51
9	8556	Air Strainer Screen	434-61
10	8650	Straight Inlet	845-565
11	8557	Reverse Valve Seal	R00BR-210
12		Oil Chamber Plug (2)	ROH-377
13		Trigger
		Outside-type	844-78
	8752	Inside-type	834-93A
14		Trigger Pin
		for Outside Trigger	F02-15
		for Inside Trigger	534-265
15	8574	Handle Gasket	805-283
16		Handle Cap Screw (5/16"-18 thread x 1-1/4" Socket Head) (4)	834-638
17		Handle Cap Screw Washer (4)	588-140
18		Motor Clamp Washer (2)	MR-207
19	8037	Rear Rotor Bearing	834-24
20		Rear End Plate	2950-12
21		Rotor	2945-53
22	2161	Rotor Vane (6)	2945-42-6
23		Cylinder	2945-3
24		Front End Plate	2950-11
25	8575	Front Rotor Bearing	TA-22A
26		Cylinder Dowel	844-98
27		Motor Housing Assembly	2945-A40
28		Reverse Valve Bushing	2934-3305
29	8579	Air Port Gasket (2)	R44H-210A
30	8350	Gasket Retainer (2)	2940-200
31		Reverse Valve Assembly	2934-A329
32	8283	Reverse Valve Bushing Seal	85H-167
33	8850	Reverse Lever	2934-658A
34	8561	Reverse Lock Plunger	4U-663B
35	8562	Plunger Spring	4U-664
36	8577	Hammer Case Gasket	845-36
37		Hammer Frame Assembly	2945-A703
38		Hammer Pin (2)	2945-704
39		Hammer (2)	2945-724
40		Hammer Case Assembly
		for 2945A7, 2945B7 and 2945B1	2945-A627
		for 2945A7-EU and 2945B7-EU	2945-EU-A627
41		Hammer Case Bushing	2950-541
42		Hammer Case Cap Secrew (3/8"-16 x 1-3/4") Socket Head (Long) (2)	2945-638
42A		Hammer Case Cap Screw (3/8"-16 x 1-1/2") Socket Head (Short) (2)	844-638
43		Locke Washer (4)
44		1-12" Square Drive Anvil	2945-726
45		Socket Retaining Ring (for use with square drive anvil	rr100205
46		Spline Drive Anvil Assembly (no. 5 Spline) for 2945B1	2945-A526A
47	8143	Socket Retaining Ball	D04-280
48		Retaining Ball Plunger	845-230
49	8141	Plunger Spring	2940-231
50	8142	Plunger Retaining Pin	845-128
51		Dead Handle Bracket	845-364
52		Dead Handle Bracket Spacer	845-140
53	8751	Dead Handle (interchanges with Side Spade Handle Assembly	834-48
		Side Spade Handle Assembly (interchanges with Dead Handle)	534-A41
54		Side Spade Handle	T15-41
55		Spade Handle Stud	534-448
56		Stud Nut	107-73A
		Exhaust Deflector Kit	2934-K23
57	8652	Exhaust Deflector	2934-23A
58	8656	Gasket	2934-223
59	8567	Silencer	2940P-311
60		Exhaust Baffle	2934-124
61		Exhaust Deflector Screw (2)	R43F-104
		Name Plate	2945-301
		Name Plate Screw	C32-302
		Wooden Box	2945-96
		Grease Gun	R000A2-228
	9962	Tune Up Kit (Includes: 3, 7, 9, 11, 15, 19, 22, 25, 29 [2], 30 [2], 32, 34, 35, 36, 58, 59)	2945-TK2

More Info ›

Ingersoll-Rand 2950 1-1/2" Drive Air Impact Wrench Repair Parts

Item	Part Number	Part Description	IE Equivalent
1		Throttle Handel Assembly
		Outside Trigger	2950-A1
		Inside Trigger	2950-A92
2		Grease Fitting	130SR-188
3	8553	Oiler Felt	R2-75
4		Oiler Adjusting Screw	R2-71
5		Throttle Valve Plunger	2950-302
6	8598	Throttle Valve Assembly	2934-A50
7	8554	Throttle Valve Face	2934-159
8	8555	Throttle Valve Spring	834-51
9	8556	Air Strainer Screen	434-61
10	8560	Straight Inlet	845-565
11	8557	Reverse Valve Seal	R00BR-210
12		Oil Chamber Plug (2)	ROH-377
13		Trigger
		Outside-type	844-78
	8752	Inside-type	834-93A
14		Trigger Pin
		for Outside Trigger	F02-15
		for Inside Trigger	534-265
15	8574	Handle Gasket	805-283
16		Handle Cap Screw (5/16"-18 thread x 1-1/4" Socket Head) (4)	834-638
17		Handle Cap Screw Washer (4)	588-140
18		Motor Clamp Washer (2)	MR-207
19	8037	Rear Rotor Bearing	834-24
20		Rear End Plate	2950-12
21		Rotor	2950-53
22	2161	Rotor Vane (6)	2950-42-6
23		Cylinder	2950-3
24		Front End Plate	2950-11
25	8575	Front Rotor Bearing	TA-22A
26		Cylinder Dowel	2950-98
27		Motor Housing Assembly	2950-A40
28		Reverse Valve Bushing	2934-3305
29	8579	Air Port Gasket (2)	R44H-210A
30	8350	Gasket Retainer (2)	2940-200
31		Reverse Valve Assembly	2934-A329
32	8283	Reverse Valve Bushing Seal	85H-167
33	8850	Reverse Lever	2934-658A
34	8561	Reverse Lock Plunger	4U-663B
35	8562	Plunger Spring	4U-664
36	8577	Hammer Case Gasket	845-36
37		Hammer Frame Assembly	2950-A703
38		Hammer Pin (2)	2950-704
39		Hammer (2)	2950-724
40		Hammer Case Assembly
		for 2950A7 and 2950B7	2950-A727
		for 2950A7-EU and 2950B7-EU	2950-EU-A727
41		Hammer Case Bushing	2950-541
42		Hammer Case Cap Secrew (3/8"-16 x 1-3/4") Socket Head (Long) (2)	2945-638
42A		Hammer Case Cap Screw (3/8"-16 x 1-1/2") Socket Head (Short) (2)	844-638
43		Locke Washer (4)	845-58
44		1-12" Square Drive Anvil	2950-726
45		Socket Retaining Ring (for use with square drive anvil	RR100205
46		Spline Drive Anvil Assembly (no. 5 Spline) for 2950B1	VW-1030
47	8143	Socket Retaining Ball	D04-280
48		Retaining Ball Plunger	845-230
49	8141	Plunger Spring	2940-231
50	8142	Plunger Retaining Pin	845-128
51		Dead Handle Bracket	845-364
52		Dead Handle Bracket Spacer	845-140
53	8751	Dead Handle (interchanges with Side Spade Handle Assembly	834-48
		Side Spade Handle Assembly (interchanges with Dead Handle)	534-A41
54		Side Spade Handle	T15-41
55		Spade Handle Stud	534-448
56		Stud Nut	107-73A
		Exhaust Deflector Kit	2934-K23
57	8652	Exhaust Deflector	2934-23A
58	8656	Gasket	2934-223
59	8567	Silencer	2940P-311
60		Exhaust Baffle	2934-124
61		Exhaust Deflector Screw (2)	R43F-104
		Name Plate	2950-301
		Name Plate Screw	C32-302
		Wooden Box	2945-96
		Grease Gun	R000A2-228
	9965	Tune Up Kit (Includes: 3, 7, 9, 11, 15, 19, 22, 25, 29 [2], 30 [2], 32, 34, 35, 36)	2950-TK2

More Info ›

Ingersoll-Rand 3940 1" Impact Wrench Repair Parts

-

More Info ›
Ingersoll-Rand 3940P 1" Impact Wrench Repair Parts

-

More Info ›
Ingersoll-Rand 3942 1" Impact Wrench Repair Parts

-

More Info ›

Sort By:

Page of 2

100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools

1 lb. Can tool lube. Standard-duty impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Discontinued See 105-1LB

105-4T Ingersoll-Rand Metallic Housing Grease 4 oz. Tube

105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube. Metallic housing impact wrench grease. For use with GTH-1 grease gun.

Price $14.03

105-4T-6 Ingersoll-Rand Metallic Housing Grease Pack (6 Pack)

Box of 6 4 oz. Tubes of IR Number 105 Grease. Metallic housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack) 1.

Price $79.85

105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing

Ingersoll Rand Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $42.20

1107-TRK1 Ingersoll-Rand Head Kit for IRT1107 Air Ratchet

Price $48.85

115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease

1 lb. Can tool lube. Composite housing impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Unavailable

115-4T Ingersoll-Rand Composite Grease 4 oz. Tube

115-4T Ingersoll Rand Composite Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 or other grease gun.

Price $11.44

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $36.80

2059 327-42 Ingersoll-Rand Rotor Vane Equivalent (Each)

Made In The USA 2059 327-42 Ingersoll-Rand Rotor Vane Equivalent (Each) used on: 327,327LS Made in USA

Price $3.72

2059P 327-42 Ingersoll-Rand Rotor Vane Equivalent Plastic (Each)

Made In The USA Tire Buffer 2059P 327-42 Ingersoll-Rand Rotor Vane Equivalent Plastic (Each) used on: 327, 327LS Tire Buffer Made in USA

Price $3.72

2131-TK2 Ingersoll-Rand Tune-Up Kit For The IRC-2131

Tune-Up Kit For The IRC-2131

Price $75.80

2135-TK2 Ingersoll-Rand Tune-Up Kit For The IRC-2135

2135-TK2 Tune-up Kit. Used On Ingersoll-Rand Models 2135TI, 2135TIMAX, 2350XP. The kit contains: Rotor Vanes, Socket Retainer, Bearings, Retainer O-Ring, Motor Gasket, Inlet Parts Kit, Retainer, O-Rings and Hammer Case Gasket.

Price $63.60

2142 221-42 Ingersoll-Rand Rotor Vane Equivalent Sold Each

Made In The USA 2142 221-42 Ingersoll-Rand Rotor Vane Equivalent Sold Each

Price $1.80

2142P 221-42 Ingersoll-Rand Rotor Vane Equivalent Plastic Sold Each

Made In The USA 2142P 221-42 Ingersoll-Rand Rotor Vane Equivalent Plastic Sold Each

Price $1.80

2143A 221-42 Ingersoll-Rand Rotor Vane Equivalent Sold Each

Made In The USA 2143A 221-42 Ingersoll-Rand Rotor Vane Equivalent Sold Each

Price $1.80

2144 291-42 Rotor Vane Equivalent Sold Each

Made In The USA 2144 291-42 Rotor Vane Equivalent - Sold Each

Price $4.25

2146 401-42A Rotor Vane Equivalent Sold Each

Made In The USA 2146 401-42A Rotor Vane Equivalent - Sold Each

Price $1.80

2157 2910-42 Rotor Vane Equivalent Sold Each

Made In The USA 2157 2910-42 Rotor Vane Equivalent - The original part 2910-42-6 (6 pack) is now gone and these are Sold Each.

Price $2.64

2158 2934-42 Rotor Vane Equivalent Sold Each

Made In The USA 2158 2934-42 Rotor Vane Equivalent - Sold Each

Price $3.34

2158P 2934-42 Rotor Vane Plastic (Sold Each)

Made In The USA 2158P 2934-42 Rotor Vane Plastic (Sold Each). Tougher than phenolic vanes usually resulting in longer life and power.

Price $3.95

2159 2940-42 Rotor Vane Equivalent Sold Each

Made In The USA 2159 2940-42 Rotor Vane Equivalent - Sold Each

Price $3.64

2161 2945-42 Rotor Vane Equivalent Sold Each

Made In The USA 2161 2945-42 Rotor Vane Equivalent - Sold Each

Price $4.64

2161-11 Ingersoll-Rand Front End Plate

2161-11 Front End Plate (Genuine Ingersoll-Rand Part)

Price $89.18

2161-12 Ingersoll-Rand Rear End Plate

2161-12 Rear End Plate (Genuine Ingersoll-Rand Part)

Price $89.18

2162 2950-42 Ingersoll-Rand Rotor Vane Equivalent Sold Each

Made In The USA 2162 2950-42 Rotor Vane Equivalent - Sold Each

Price $4.84

2172 2906P-42 Rotor Vane Equivalent Sold Each

Made In The USA 2172 2906P-42 Rotor Vane Equivalent - Sold Each

Price $1.74

2178 MLK-42 Ingersoll-Rand Rotor Vane Equivalent Sold Each

Made In The USA 2178 MLK-42 Rotor Vane Equivalent - Sold Each

Price $7.10

2181 107-42 Ingersoll-Rand Rotor Vane Equivalent Sold Each

Made In The USA 2181 107-42 Rotor Vane Equivalent - Sold Each

Price $1.84

2189 2131-42 Rotor Phenolic Vane With Notch - Sold Each

Made In The USA 2189 2131-42 Rotor Phenolic Vane With Notch - Sold Each

Price $2.34

2193 MLK-43 Ingersoll-Rand Spring Equivalent

Made In The USA 2193 MLK-43 Spring Equivalent

Price $4.94

2196 2131-42A Rotor Phenolic Vane With Notch - Sold Each

Made In The USA 2196 2131-42A Rotor Phenolic Vane With Notch - Sold Each

Price $2.34

2196P 2131-42A Rotor Plastic Vane With Notch - Sold Each

Made In The USA 2196P 2131-42A Rotor Plastic Vane With Notch - Sold Each

Price $2.34

2199 2925-42 Rotor Vane Equivalent Sold Each

Made In The USA 2199 2925-42 Rotor Vane Equivalent - Sold Each

Price $3.38

231-11 Ingersoll-Rand Front End Plate

231-11 Front End Plate (Genuine Ingersoll-Rand Part)

Price $18.50

231-TK2 Ingersoll-Rand Tune-Up Kit For The IRC-231

Tune-Up Kit For The IRC-231

Price $29.85

231-TK3 Ingersoll-Rand Motor Tune-Up Kit For IRC-231C And IRC-231C-2

Keep things running strong and maximize productivity with Ingersoll-Rand repair kits and replacement parts.

Price $55.95

244-TK2 Ingersoll-Rand Tune-Up Kit For The IRC-244

Ingersoll Rand Tune-Up Kit for the IRC-244

Price $49.00

2453 2141-42 Rotor Vane Equivalent Sold Each

Made In The USA 2453 2141-42 Rotor Vane Equivalent - Sold Each

Price $3.00

2454 2112-42 Rotor Vane Equivalent Sold Each

Made In The USA 2454 2112-42 Rotor Vane Equivalent - Sold Each

Price $1.78

2456 2135-42A Rotor Vane Equivalent w/notch Sold Each

Made In The USA 2456 2135-42A Rotor Vane Equivalent w/notch - Sold Each

Price $2.34

2456P 2135-42A Ingersoll-Rand Vane With Notch Plastic Sold Each

Made In The USA 2456P 2135-42A Ingersoll-Rand Vane With Notch Plastic Sold Each

Price $1.80

2467 285B-42 Rotor Vane Equivalent Sold Each

Made In The USA 2467 285B-42 Rotor Vane Equivalent - Sold Each

Price $4.26

2471 7811R-42 Ingersoll-Rand Rotor Vane Equivalent (Sold Each)

Made In The USA 2471 7811R-42 Ingersoll-Rand Rotor Vane Equivalent (Sold Each)

Price $2.09

2474 318A-42 Ingersoll-Rand Rotor Vane Equivalent Sold Each

Made In The USA 2474 318A-42 Ingersoll-Rand Rotor Vane Equivalent Sold Each

Price $2.09

2493 2115-42A Rotor Vane Equivalent Sold Each

Made In The USA 2493 2115-42A Rotor Vane Equivalent - Sold Each

Price $1.78

251-708 Ingersoll-Rand Oil Seal

251-708 Oil Seal (Genuine Ingersoll-Rand Part)

Price $21.45

251-712 Ingersoll-Rand Hammer Cage

251-712 Hammer Cage (Genuine Ingersoll-Rand Parts)

Price $212.00

285-TK1 Ingersoll-Rand Tune-Up Kit For IR285

285-TK1 Ingersoll Rand Tune-Up Kit For IR285

Discontinued See 9941

2920-3 Ingersoll-Rand Cylinder

2920-3 Cylinder (Genuine Ingersoll-Rand Part)

Price $225.00

2940-724 Ingersoll-Rand Hammer

2940-724 Hammer (Genuine Ingersoll-Rand Part)

Price $515.00

315-39 Ingersoll-Rand Straight Line Sanding Pad

Ingersoll Rand Straight Line Sanding Pad

Price $34.25

325-350 Ingersoll-Rand Cutter For IRC-325 Nibbler

Ingersoll Rand 325-350 Cutter for IRC-325 Nibbler - Keep things running strong and maximize productivity with Ingersoll Rand repair kits and replacement parts.

Price $39.50

7802S-6022L Ingersoll-Rand Left Blade

Ingersoll Rand Left Blade

Price $30.44

7802S-6022R Ingersoll-Rand Right Blade

Ingersoll Rand Right Blade

Price $28.61

8004 402-118 Bearing Retainer Equivalent

Made In The USA 8004 402-118 Bearing Retainer Equivalent

Price $0.83

8006B R1A-51 Throttle Spring Equivalent

Made In The USA 8006B R1A-51 Throttle Spring Equivalent

Price $1.75

8021 231-A626A 1/2" Square Anvil Standard Length

Made In The USA 8021 231-A626A 1/2" Square Anvil Standard Length

Price $37.03

8022 231-A414A-2 1/2" Square Anvil 2"

Made In The USA 8022 231-A414A-2 1/2" Square Anvil 2"

Price $47.85

8023 2950-726 Ingersoll-Rand Anvil Equivalent 1.5 Square Drive

Made In The USA 8023 2950-726 Anvil Equivalent 1.5 Square Drive

Price $701.25

8024 2920P-311 Ingersoll-Rand Silencer

Made In The USA 8024 2920P-311 Ingersoll-Rand Silencer

Price $5.98

8027 402-22 Bearing Equivalent

Made In The USA 8027 402-22 Bearing Equivalent

Price $6.40

8028 4U-97 Bearing Equivalent

Made In The USA 8028 4U-97 Bearing Equivalent

Price $4.88

8032A 230-36 Hammer Case Gasket Equivalent

Made In The USA 8032A 230-36 Hammer Case Gasket Equivalent

Price $0.79

8032B 231-283 End Plate Gasket Equivalent

Made In The USA 8032B 231-283 End Plate Gasket Equivalent

Price $2.00

8033 2934-726 1" Anvil Equivalent

Made In The USA 8033 2934-726 1" Anvil Equivalent

Price $297.00

8034A 910-36 Hammer Case Gasket

Made In The USA 8034A 910-36 Hammer Case Gasket

Price $4.00

8034B 2920B-283 Rear End Plate Gasket

Made In The USA 8034B 2920B-283 Rear End Plate Gasket

Price $3.20

8034C 1720P-231 Housing Plate Gasket

Made In The USA 8034C 1720P-231 Housing Plate Gasket

Price $2.00

8035B 291-36 Ingersoll-Rand Hammer Case Gasket

Made In The USA 8035B 291-36 Hammer Case Gasket

Price $4.00

8035C 281-283 Ingersoll-Rand Handle Gasket

Made In The USA 8035C 281-283 Handle Gasket

Price $4.95

8035D 291-739 Ingersoll-Rand Handle Gasket

Made In The USA 8035D 291-739 Ingersoll-Rand Handle Gasket

Price $4.95

8036 1720P-51 Throttle Valve Spring

Made In The USA 8036 1720P-51 Throttle Valve Spring

Price $4.84

8037 834-24 Bearing Equivalent

Made In The USA 8037 834-24 Bearing Equivalent

Price $12.75

8038 4E-510 Bearing Equivalent

Made In The USA 8038 4E-510 Bearing Equivalent

Price $7.50

8039 MVA008-218 Rear Rotor Retainer Ring

Made In The USA 8039 MVA008-218 Rear Rotor Retainer Ring

Price $1.94

8040 291-50 Ingersoll-Rand Throttle valve (use with tapered spring only)

Made In The USA 8040 291-50 Throttle valve, 1/2" Diameter.

Price $3.50

8041 291-51 Ingersoll-Rand Throttle Valve Spring

Made In The USA 8041 291-51 Throttle Valve Spring

Price $3.00

8042 291-333 Steel Ball

Made In The USA 8042 291-333 Steel Ball

Price $0.72

8043 291-334 Reversing Valve Spring

Made In The USA 8043 291-334 Reversing Valve Spring

Price $1.64

8044 291-24 Bearing Equivalent

Made In The USA 8044 291-24 Bearing Equivalent

Price $5.07

8045 291-25 Ingersoll-Rand Bearing Equivalent

Made In The USA 8045 291-25 Bearing Equivalent

Price $6.37

8046 291-642 Hammer case Seal

Made In The USA 8046 291-642 Hammer case Seal

Price $7.61

8047 291-425 Socket Retainer 1" Equivalent

Made In The USA 8047 291-425 Socket Retainer 1" Equivalent

Price $3.90

8048 R000BR1C-283 O-ring

Made In The USA 8048 R000BR1C-283 O-ring

Price $0.63

8056 410-283 O-Ring Equivalent

Made In The USA 8056 410-283 O-Ring Equivalent

Price $0.78

8070 1702-P726 Pin-Type Anvil 3/8"

Made In The USA 8070 1702-P726 Pin-Type Anvil 3/8"

Price $120.66

8071 3940-36 Gasket Equivalent

Price $5.00

8079 231-704 Hammer Pin Equivalent (each)

Made In The USA 8079 231-704 Hammer Pin Equivalent

Price $3.00

8080 231-724 Hammer Equivalent

Made In The USA 8080 231-724 Hammer Equivalent

Price $13.20

8081 231-A703 Hammer Frame W/O PINS

Made In The USA 8081 231-A703 Hammer Frame W/O PINS

Price $41.25

8082 705-A927 Hammer Case Equivalent

Made In The USA 8082 705-A927 Hammer Case Equivalent

Price $102.53

8083 407-3 Ingersoll-Rand Cylinder Equivalent

Made In The USA 8083 407-3 Cylinder Equivalent

Price $51.56

8084 231-11 Front End Plate Equivalent

Made In The USA 8084 231-11 Front End Plate Equivalent

Price $16.09

8085 231-12 Rear End Plate Equivalent

Made In The USA 8085 231-12 Rear End Plate Equivalent

Price $16.09

8086 705-93 Trigger Equivalent

Made In The USA 8086 705-93 Trigger Equivalent

Price $6.37

8087 231-706 Rear Washer Equivalent

Made In The USA 8087 231-706 Rear Washer Equivalent

Price $3.80

8088 231-425A Socket Retainer 1/2" Equivalent

Made In The USA 8088 231-425A Socket Retainer 1/2" Equivalent

Price $2.40

8089 402-565 Air Strainer Equivalent

Made In The USA 8089 402-565 Air Strainer Equivalent

Price $8.90

8091 2920-11/2921HP-11 Front Plate

Made In The USA 8091 2920-11/2921HP-11 Front Plate

Price $66.00

8092 2920-12/2921HP-12 Rear Plate

Made In The USA 8092 2920-12/2921HP-12 Rear Plate

Price $66.00

8093 908B5-918 Socket Retainer 3/4" Equivalent

Made In The USA 8093 908B5-918 Socket Retainer 3/4" Equivalent

Price $2.35

8094 PF800-283 Ingersoll-Rand End Plate Gasket

Made In The USA 8094 PF800-283 End Plate Gasket

Price $2.00

8096 2920-3 Cylinder Equivalent

Made In The USA 8096 2920-3 Cylinder Equivalent

Price $132.00

8101 2131-97 Bearing Equivalent

Made In The USA 8101 2131-97 Bearing Equivalent

Price $6.00

8104 DG230-302/2921-302 Throttle Valve

Made In The USA 8104 DG230-302/2921-302 Throttle Valve

Price $8.12

8119 2920-641 Hammer Case Bushing

Made In The USA 8119 2920-641 Hammer Case Bushing

Price $64.35

8122 2131-D93 / (-A93) Trigger With O-Ring

Made In The USA 8122 2131-D93 / (-A93) Trigger With O-Ring (SUB 8979). For o-ring only see 8770.

Price $10.00

8125 2112-A626 Ingersoll-Rand 3/8" Anvil Assembly

Made In The USA 8125 2112-A626 Ingersoll-Rand 3/8" Anvil Assembly

Price $35.34

8126 2141-A626 Anvil Assy. Equivalent

Made In The USA 8126 2141-A626 Anvil Assy. Equivalent

Price $130.35

8127 2141-11 Front End Plate (Aluminum)

Made In The USA 8127 2141-11 Front End Plate (Aluminum)

Price $77.25

8128 2131-D565 (-A565) Bushing Assembly

Made In The USA 8128 2131-D565 (-A565) Bushing Assembly. Includes inlet Bushing, 8624 Inlet parts kit, and 9144 Inlet Retainer Clip.

Price $36.30

8129 2112-703 Ingersoll-Rand Hammer Frame Assembly

Made In The USA 8129 2112-703 Ingersoll-Rand Hammer Frame Assembly

Price $68.59

8130 2112-53 Rotor

Made In The USA 8130 2112-53 Rotor

Price $74.96

8131 2112-A726 Ingersoll-Rand 1/2" Anvil Assembly

Made In The USA 8131 2112-A726 Ingersoll-Rand 1/2" Anvil Assembly

Price $84.15

8132 231XP-724 Hammer (Each)

Made In The USA 8132 231XP-724 Hammer (Each)

Price $31.30

8133 231XP-A703 Hammer Frame Assembly

Made In The USA 8133 231XP-A703 Hammer Frame Assembly

Price $63.64

8134 2141-704 Hammer Pin (Each)

Made In The USA 8134 2141-704 Hammer Pin

Price $7.00

8135 2141-A703 Hammer Frame Assembly

Made In The USA 8135 2141-A703 Hammer Frame Assembly

Price $239.25

8136 2112-727 Hammer Case Assembly

Made In The USA 8136 2112-727 Hammer Case Assembly

Discontinued

8137 2934-724 Hammer

Made In The USA 8137 2934-724 Hammer

Price $206.25

8138 2940-724 Hammer

Made In The USA 8138 2940-724 Hammer

Price $212.85

8139A 2940-704 Hammer Pin W/Head

Made In The USA 8139A 2940-704 Hammer Pin W/Head

Price $32.60

8139B 2940-704 Hammer Pin W/Out Head

Made In The USA 8139B 2940-704 Hammer Pin W/Out Head

Price $24.75

8140 293-134 O-Ring

Made In The USA 8140 293-134 O-Ring

Price $1.80

8141 2940-231 Spring

Made In The USA 8141 2940-231 Spring

Price $10.35

8142 845-128 Pin

Made In The USA 8142 845-128 Pin

Price $1.20

8143 D04-280 Socket Retaining Ball

Made In The USA 8143 D04-280 Socket Retaining Ball

Price $1.56

8144 293-669 Throttle valve stem O-ring

Made In The USA 8144 293-669 Throttle valve stem O-ring

Price $2.00

8145 3940-283 Handle Gasket

Made In The USA 8145 3940-283 Handle Gasket

Price $4.85

8147 285B-A565 Bushing Assembly Air Inlet

Made In The USA 8147 285B-A565 Bushing Assembly Air Inlet

Price $32.47

8149 2141-11B Front End Plate (Brass)

Made In The USA 8149 2141-11B Front End Plate (Brass)

Price $198.94

8150 402-303 Ingersoll-Rand Throttle Valve Seat

Made In The USA 8150 402-303 Throttle Valve Seat

Price $4.95

8151 231-638 Screw/Washer Set (3)

Made In The USA 8151 231-638 Screw/Washer Set (3)

Price $2.32

8155 2135-425 Socket Retainer 1/2"

Made In The USA 8155 2135-425 Socket Retainer 1/2"

Price $2.40

8167 244-53 Rotor Equivalent

Made In The USA 8167 244-53 Rotor Equivalent

Price $103.95

8169 285-A727 Hammer Case Assembly

Made In The USA 8169 285-A727 Hammer Case Assembly. Includes 8452 Hammer Case Bushing (291-641) & 8046 Oil Seal (291-642)

Price $214.90

8170 261-A40 Motor Housing Assembly

Made In The USA 8170 261-A40 Motor Housing Assembly

Price $401.66

8171 2920-74 End Plate Dowel

Made In The USA 8171 2920-74 End Plate Dowel

Price $4.95

8172 CE110-210 O-Ring

Made In The USA 8172 CE110-210 O-Ring

Price $1.08

8173 202-290 O-Ring

Made In The USA 8173 202-290 O-Ring

Price $0.72

8175 2934-12 Rear End Plate

Made In The USA 8175 2934-12 Rear End Plate

Price $107.66

8177 2161XP-626 Anvil

Made In The USA 8177 2161XP-626 Anvil

Price $129.80

8179 2161-A465 Inlet Bushing (Course) Equivalent

Made In The USA 8179 2161-A465 Inlet Bushing (Course) Equivalent

Price $21.45

8181 2161-102 Backcap

Made In The USA 8181 2161-102 Backcap

Price $90.75

8182 R1-188 Grease Fitting

Made In The USA 8182 R1-188 Grease Fitting

Price $3.55

8183 2161-658 Reversing Lever

Made In The USA 8183 2161-658 Reversing Lever

Price $21.22

8184 2161-28 Reversing Lever Snap Ring

Made In The USA 8184 2161-28 Reversing Lever Snap Ring

Price $4.00

8185 2161-278 Reversing Lever Spring

Made In The USA 8185 2161-278 Reversing Lever Spring

Price $4.00

8186 2161-207 Motor Clamp Washer

Made In The USA 8186 2161-207 Motor Clamp Washer

Price $4.95

8187 2161XP-53 Ingersoll-Rand Rotor 6-vane Sold Each

Made In The USA 8187 2161XP-53 Rotor 6-vane - Sold Each

Price $110.32

8188 2161-329 Reversing Valve

Made In The USA 8188 2161-329 Reversing Valve

Price $21.22

8189 2115-248 O-ring Power Regulator

Made In The USA 8189 2115-248 O-ring Power Regulator

Price $0.75

8190 2161-A727 Ingersol-Rand Hammer Case Assembly

Made In The USA 8190 2161-A727 Ingersol-Rand Hammer Case Assembly

Price $277.91

8192 2161XP-626-6 6" Extended Anvil

Made In The USA 8192 2161XP-626-6 6" Extended Anvil

Price $237.60

8193 2080-726 1" Anvil

Made In The USA 8193 2080-726 1" Square Drive Anvil

Price $167.59

8196 2925-638 Backcap Bolt

Made In The USA 8196 2925-638 Backcap Bolt

Price $6.00

8197 2925-A102 Backcap Assembly

Made In The USA 8197 2925-A102 Backcap Assembly. Includes items 15, 16, 17, 18

Price $167.50

8198 2925-102 Backcap

Made In The USA 8198 2925-102 Backcap Only

Price $144.85

8199 2925-658 Reversing Lever (Red)

Made In The USA 8199 2925-658 Reversing Lever (Red)

Price $10.73

8207 261-283 Reversing Valve Seal

Made In The USA 8207 261-283 Reversing Valve Seal

Price $1.78

8208 DG230-303/295-303 Throttle Valve Seat

Made In The USA 8208 DG230-303/295-303 Throttle Valve Seat

Price $4.10

8209 2925-53 Rotor Equivalent

Made In The USA 8209 2925-53 Rotor Equivalent

Price $230.55

8210 1702-A626 Anvil 3/8" Equivalent

Made In The USA 8210 1702-A626 Anvil 3/8" Equivalent

Discontinued

8211 1702-704 Hammer Pin Equivalent

Made In The USA 8211 1702-704 Hammer Pin Equivalent

Price $3.92

8212 1702-A703A Hammer Frame

Made In The USA 8212 1702-A703A Hammer Frame

Price $128.70

8213 1702-724A Hammer

Made In The USA 8213 1702-724A Hammer

Price $49.88

8214 1702-A727 Hammer Case Assy Equivalent

Made In The USA 8214 1702-A727 Hammer Case Assy Equivalent

Price $48.51

8216 201-11 Front Plate Equivalent

Made In The USA 8216 201-11 Front Plate Equivalent

Price $32.52

8217 201-12 Rear Plate Equivalent

Made In The USA 8217 201-12 Rear Plate Equivalent

Price $33.94

8218 401-53 Rotor

Made In The USA 8218 401-53 Rotor

Price $74.96

8219 1702P-329 Ingersoll-Rand Reversing Valve

Made In The USA 8219 1702P-329 Ingersoll-Rand Reversing Valve

Price $31.35

8223 1710-A626A 3/4" Drive Anvil

Made In The USA 8223 1710-A626A 3/4" Drive Anvil

Price $126.00

8226 401-3 Cylinder Equivalent

Made In The USA 8226 401-3 Cylinder Equivalent

Price $31.35

8229 107-37 Ingersoll-Rand Yoke Equivalent

Made In The USA 8229 107-37 Yoke Equivalent

Price $12.13

8230 1702P-666 Reversing Valve Knob Equivalent

Made In The USA 8230 1702P-666 Reversing Valve Knob Equivalent

Price $8.20

8254 131-11 Ingersoll-Rand Front End Plate

Made In The USA 8254 131-11 Front End Plate

Price $8.48

8255 131-12 Ingersoll-Rand Rear End Plate

Made In The USA 8255 131-12 Rear End Plate

Price $8.48

8260 2925-703 Ingersoll-Rand Hammer Frame

Made In The USA 8260 2925-703 Hammer Frame

Price $259.88

8261 1702-426 O-Ring 3/8"

Made In The USA 8261 1702-426 O-Ring 3/8"

Price $1.19

8262 HH92-74 Cylinder Dowel Equivalent

Made In The USA 8262 HH92-74 Cylinder Dowel Equivalent

Price $7.16

8263 231-53 Rotor Equivalent

Made In The USA 8263 231-53 Rotor Equivalent

Price $26.40

8270 R1A-159 Retainer O-ring 1/2" Equivalent

Made In The USA 8270 R1A-159 Retainer O-ring 1/2" Equivalent

Price $0.36

8272 R000B-263 Detent Ball Equivalent

Made In The USA 8272 R000B-263 Detent Ball Equivalent

Price $0.48

8273 202-664 Detent Spring Equivalent

Made In The USA 8273 202-664 Detent Spring Equivalent

Price $2.50

8274 MF-18 Bearing Retainer

Made In The USA 8274 MF-18 Bearing Retainer

Price $0.65

8275 107-97 Ingersoll-Rand Bearing Equivalent

Made In The USA 8275 107-97 Bearing Equivalent

Price $3.02

8276 107-24 Ingersoll-Rand Bearing Equivalent

Made In The USA 8276 107-24 Bearing Equivalent

Price $4.04

8282 AV1-255 Reversing Valve Detent Ball

Made In The USA 8282 AV1-255 Reversing Valve Detent Ball

Price $0.65

8283 85H-167 Reversing Valve Bushing Seal

Made In The USA 8283 85H-167 Reversing Valve Bushing Seal

Price $0.33

8284 AF120-289 Socket Retainer O-ring 3/4"

Made In The USA 8284 AF120-289 Socket Retainer O-ring 3/4"

Price $0.88

8285 107-TK1 Ratchet Head Kit 3/8" Equivalent

8285 107-TK1 Ingersoll-Rand Ratchet Head Kit 3/8" Equivalent

Made In The USA 107-TK1 Ratchet Head Kit 3/8". Used On Ingersoll-Rand Model 107. The kit contains: Ratchet Head, Face Plate, Spring Washer, Retainer, Large Detent Ball, Small Detent Balls and Detent Springs.

Price $21.58

8286 202-739 End Plate Gasket Equivalent

Made In The USA 8286 202-739 End Plate Gasket Equivalent

Price $2.00

8287 401-36/2902-36 Hammer Case Gasket Equivalent

Made In The USA 8287 401-36/2902-36 Hammer Case Gasket Equivalent

Price $5.00

8291 2115-36 Hammer Case Gasket Equivalent

Made In The USA 8291 2115-36 Hammer Case Gasket Equivalent

Price $3.30

8293 2925RB-A3 Stainless Steel Cylinder Reverse Bias With Stainless Pins

Made In The USA 8293 2925RB-A3 Stainless Steel Cylinder Reverse Bias With Stainless Pins

Price $198.00

8294 R00H-97 Bearing Equivalent

Made In The USA 8294 R00H-97 Bearing Equivalent

Price $4.98

8295 401-22 Bearing Equivalent

Made In The USA 8295 401-22 Bearing Equivalent

Price $4.78

8296 1702-425 Socket Retainer 3/8" Equivalent

Made In The USA 8296 1702-425 Socket Retainer 3/8" Equivalent

Price $2.50

8305 533-656 Trigger Pin Equivalent

Made In The USA 8305 533-656 Trigger Pin Equivalent

Price $3.50

8306 231-329A Reversing Valve Equivalent

Made In The USA 8306 231-329A Reversing Valve Equivalent

Price $38.89

8307 Ingersoll-Rand 2910-726 3/4in. Square Drive Anvil

Made In The USA 8307 Ingersoll-Rand 2910-726 3/4in. Square Drive Anvil

Price $149.79

8308 231-664 Reversing Valve Detent Spring

Made In The USA 8308 231-664 Reversing Valve Detent Spring

Price $1.20

8309 231-666 Reversing Valve Detent Knob

Made In The USA 8309 231-666 Reversing Valve Detent Knob

Price $6.90

8310 231-665 Reversing Valve Knob Screw

Made In The USA 8310 231-665 Reversing Valve Knob Screw

Price $0.78

8311 227-207 Motor Clamp Washer Equivalent

Made In The USA 8311 227-207 Motor Clamp Washer Equivalent

Price $5.61

8312 405-800 Hammer Case Pilot Equivalent

Made In The USA 8312 405-800 Hammer Case Pilot Equivalent

Price $4.95

8313 404-50A Throttle Valve (BRASS)

Made In The USA 8313 404-50A Throttle Valve (BRASS). Replaces plastic version for longer life.

Price $9.50

8314 402-302 Throttle Valve Stem Equivalent

Made In The USA 8314 402-302 Throttle Valve Stem Equivalent

Price $6.37

8318 WWA100-77 Reversing Valve Screw

Made In The USA 8318 WWA100-77 Reversing Valve Screw

Price $0.48

8320 705-941 Hammer Case Bushing Equivalent

Made In The USA 8320 705-941 Hammer Case Bushing Equivalent

Price $11.32

8324 2920P-465 Inlet Bushing Equivalent

Made In The USA 8324 2920P-465 Inlet Bushing Equivalent

Price $12.69

8325 2920-207 Motor Clamp Washer Equivalent

Made In The USA 8325 2920-207 Motor Clamp Washer Equivalent

Price $6.37

8326 910-98 Cylinder Dowel Equivalent

Made In The USA 8326 910-98 Cylinder Dowel Equivalent

Price $4.20

8327 2920P-A93 Trigger Assembly Equivalent

Made In The USA 8327 2920P-A93 Trigger Assembly Equivalent

Price $12.79

8328 107-465 Ingersoll-Rand Air Inlet Bushing Equivalent

Made In The USA 8328 107-465 Air Inlet Bushing Equivalent

Price $4.20

8329 107-36 Ingersoll-Rand Drive Bushing Equivalent

Made In The USA 8329 107-36 Drive Bushing Equivalent

Price $15.08

8339 405-159 Throttle Valve Face

Made In The USA 8339 405-159 Throttle Valve Face

Price $0.78

8340 230-98 Cylinder Dowel Equivalent

Made In The USA 8340 230-98 Cylinder Dowel Equivalent

Price $7.50

8350 2940-200 Gasket Retainer

Made In The USA 8350 2940-200 Gasket Retainer

Price $3.00

8367 2115-53 Ingersoll-Rand Rotor

Made In The USA 8367 2115-53 Ingersoll-Rand Rotor

Price $65.87

8372 291-11 Front End Plate Equivalent

Made In The USA 8372 291-11 Front End Plate Equivalent

Price $135.00

8373 291-A12 Rear End Plate Equivalent

Made In The USA 8373 291-A12 Rear End Plate Equivalent

Price $65.59

8374 285-A3 Cylinder Assembly Equivalent

Made In The USA 8374 285-A3 Cylinder Assembly Equivalent

Price $217.50

8375 285-724 Hammer

Made In The USA 8375 285-724 Hammer

Price $113.85

8376 285-A726-6 1in. Sq. Drive Anvil

Made In The USA 8376 285-A726-6 1in. Sq. Drive Anvil

Price $245.37

8377 285-51 Spring Equivalent

Made In The USA 8377 285-51 Spring Equivalent

Price $2.06

8378 285-50 Throttle Valve Equivalent

Made In The USA 8378 285-50 Throttle Valve Equivalent

Price $8.70

8381 285-36 Hammer Case Gasket Equivalent

Made In The USA 8381 285-36 Hammer Case Gasket Equivalent

Price $6.00

8400 PS3-67 Reversing Valve Bushing Seal

Made In The USA 8400 PS3-67 Reversing Valve Bushing Seal

Price $0.32

8401 291-566 O-ring

Made In The USA 8401 291-566 O-ring

Price $0.63

8402 291-338 O-Ring

Made In The USA 8402 291-338 O-Ring

Price $0.63

8403 291-426 Socket Retainer O-ring 1"

Made In The USA 8403 291-426 Socket Retainer O-ring 1"

Price $0.78

8410 2920B-800 Motor Retainer

Made In The USA 8410 2920B-800 Motor Retainer

Price $53.08

8411 261B-A727 Hammer Case w/ Bushing Ass

Made In The USA 8411 261B-A727 Hammer Case w/ Bushing Ass

Price $275.00

8412 34U-103 Hammer Case Cap Screw (ea.)

Made In The USA 8412 34U-103 Hammer Case Cap Screw (ea.)

Price $1.05

8413 34U-58 Cap Screw Lock Washer (ea.)

Made In The USA 8413 34U-58 Cap Screw Lock Washer (ea.)

Price $0.51

8414 910-706 Hammer Frame Washer

Made In The USA 8414 910-706 Hammer Frame Washer

Price $16.50

8415 2910-A703 Hammer Frame With Pins

Made In The USA 8415 2910-A703 Hammer Frame With Pins

Price $165.00

8416 2910-704 Hammer Pin (Each)

Made In The USA 8416 2910-704 Hammer Pin (Each)

Price $10.31

8417 260-724 Hammer Equivalent

Made In The USA 8417 260-724 Hammer Equivalent

Price $145.40

8419 1710B-329 Reversing Valve

Made In The USA 8419 1710B-329 Reversing Valve

Discontinued See 8471

8426 904-3 Cylinder Equivalent

Made In The USA 8426 904-3 Cylinder Equivalent

Price $205.54

8427 1702-706 Washer

Made In The USA 8427 1702-706 Washer

Price $16.27

8428 1720P-23 Deflector

Made In The USA 8428 1720P-23 Deflector

Price $16.51

8429 2910B-53 Ingersoll-Rand Rotor

Made In The USA 8429 2910B-53 Ingersoll-Rand Rotor

Price $249.95

8430 291-A3 Ingersoll-Rand Cylinder

Made In The USA 8430 291-A3 Cylinder

Discontinued - see GPI9670

8436 104-TK1 Ingersoll-Rand Ratchet head Kit 1/4" Factory Equivalent

Made In The USA 104-TK1 Ratchet head Kit 1/4". Used On Ingersoll-Rand Model 104. The kit contains: Ratchet Head, Face Plate, Spring Washer, Retainer, Small Detent Balls and Detent Springs.

Price $34.50

8447 285-A92A Trigger Handle Assembly

Made In The USA 8447 285-A92A Trigger Handle Assembly

Discontinued

8448 285-53 Rotor

Made In The USA 8448 285-53 Rotor

Price $245.37

8449 285-40 Motor Housing

Made In The USA 8449 285-40 Motor Housing

Price $190.66

8450 285-703 Hammer frame Equivalent

Made In The USA 8450 285-703 Hammer frame Equivalent

Price $287.81

8451 285-706 Washer/Spacer

Made In The USA 8451 285-706 Washer/Spacer

Price $41.25

8452 291-641 Hammer Case Bushing

Made In The USA 8452 291-641 Hammer Case Bushing

Price $57.75

8458 285-A329 Reversing Valve Assembly

Made In The USA 8458 285-A329 Reversing Valve Assembly

Price $31.12

8460 285-302 Throttle Valve Plunger

Made In The USA 8460 285-302 Throttle Valve Plunger

Price $9.43

8461 281-638 Back Handle Cap Screw

Made In The USA 8461 281-638 Back Handle Cap Screw

Price $2.12

8472 291-303 Ingersol-Rand Plunger Bushing

Made In The USA 8472 291-303 Ingersol-Rand Plunger Bushing

Discontinued

8473 285-330A Rev. Valve Bushing

Made In The USA 8473 285-330A Rev. Valve Bushing

Price $50.47

8474 285-93A Trigger Equivalent

Made In The USA 8474 285-93A Trigger Equivalent

Price $33.00

8475 281-437 Trigger Pin Equivalent

Made In The USA 8475 281-437 Trigger Pin Equivalent

Price $1.26

8476 281-439 Trigger Stop Pin Equivalent

Made In The USA 8476 281-439 Trigger Stop Pin Equivalent

Price $1.19

8477 281-438 Trigger Slot Cover

Made In The USA 8477 281-438 Trigger Slot Cover

Price $4.00

8478 285B-98 Cylinder Dowel Pins

Made In The USA 8478 285B-98 Cylinder Dowel Pins

Price $1.16

8480 291-332 Rev. Valve Stop Pin

Made In The USA 8480 291-332 Rev. Valve Stop Pin

Price $0.78

8481 281-120 Rev. Valve Ret. Pin

Made In The USA 8481 281-120 Rev. Valve Ret. Pin

Price $4.28

8482 285-283 Handle Gasket

Made In The USA 8482 285-283 Handle Gasket

Price $4.95

8483 291-104 Lock Washer

Made In The USA 8483 291-104 Lock Washer

Price $1.19

8484 291-10 End Plate Align. Pin

Made In The USA 8484 291-10 End Plate Align. Pin

Price $2.24

8485 291-98 Cylinder Dowel Pins

Made In The USA 8485 291-98 Cylinder Dowel Pins

Price $1.16

8486 58-96 Bearing Equivalent

Made In The USA 8486 58-96 Bearing Equivalent

Price $10.50

8488 291-105 Hammer Case Screw

Made In The USA 8488 291-105 Hammer Case Screw

Price $2.24

8489 291-49 Dead Handle Screw

Made In The USA 8489 291-49 Dead Handle Screw

Price $0.78

8490 291-504 Lock Washer

Made In The USA 8490 291-504 Lock Washer

Price $1.50

8513 2131-53 Rotor

Made In The USA 8513 2131-53 Rotor

Price $102.53

8514 2112-704 Hammer Pin

Made In The USA 8514 2112-704 Hammer Pin

Price $6.00

8536 2131-K75 Button Kit

Made In The USA 8536 2131-K75 Button Kit

Price $13.00

8553 R2-75 Oiler Felt

Made In The USA 8553 R2-75 Oiler Felt

Price $0.75

8554 2934-159 Throttle Valve Face

Made In The USA 8554 2934-159 Throttle Valve Face

Price $0.63

8555 834-51 Throttle Valve Spring

Made In The USA 8555 834-51 Throttle Valve Spring

Price $2.18

8556 434-61 Air Strainer Screen

Made In The USA 8556 434-61 Air Strainer Screen

Price $5.78

8557 R00BR-210 Reversing Valve Seal

Made In The USA 8557 R00BR-210 Reversing Valve Seal

Price $0.63

8558 2934-283 Handle Gasket

Made In The USA 8558 2934-283 Handle Gasket

Price $5.00

8559 508-97 Bearing Equivalent

Made In The USA 8559 508-97 Bearing Equivalent

Price $6.65

8560 810-97 Bearing Equivalent

Made In The USA 8560 810-97 Bearing Equivalent

Price $17.50

8561 4U-663B Reversing Lock Plunger

Made In The USA 8561 4U-663B Reversing Lock Plunger

Price $4.16

8562 4U-664 Reversing Lock Plunger Spring

Made In The USA 8562 4U-664 Reversing Lock Plunger Spring

Price $2.25

8563 2934-36 Hammer Case Gasket

Made In The USA 8563 2934-36 Hammer Case Gasket

Price $3.50

8564 2934P-51 Trigger Spring

Made In The USA 8564 2934P-51 Trigger Spring

Price $2.66

8565 R1AF-524 Trigger Pin

Made In The USA 8565 R1AF-524 Trigger Pin

Price $0.75

8566 R4-92 Oil Chamber Plug Gasket

Made In The USA 8566 R4-92 Oil Chamber Plug Gasket

Price $2.00

8567 2940P-311 Silencer

Made In The USA 8567 2940P-311 Silencer

Price $3.22

8571 AD100-18 O-Ring Throttle Valve

Made In The USA 8571 AD100-18 O-Ring Throttle Valve

Price $2.52

8572 2940P-36 Hammer Case Gasket

Made In The USA 8572 2940P-36 Hammer Case Gasket

Price $10.75

8573 AFH120A-358 O-Ring Throttle Valve (Each)

Made In The USA 8573 AFH120A-358 O-Ring Throttle Valve (Each)

Price $0.54

8574 850-283 Handle Gasket

Made In The USA 8574 850-283 Handle Gasket

Price $5.99

8575 TA-22A Bearing Equivalent

Made In The USA 8575 TA-22A Bearing Equivalent

Price $11.22

8577 845-36 Hammer Case Gasket

Made In The USA 8577 845-36 Hammer Case Gasket

Price $5.99

8579 R44H-210A Air Port Gasket

Made In The USA 8579 R44H-210A Air Port Gasket

Price $5.00

8584 2112-A40 Housing Assembly

Made In The USA 8584 2112-A40 Housing Assembly

Price $69.95

8585 2161-A93 Trigger

Made In The USA 8585 2161-A93 Trigger

Price $30.11

Ingersoll-Rand Air Tool Repair Parts
