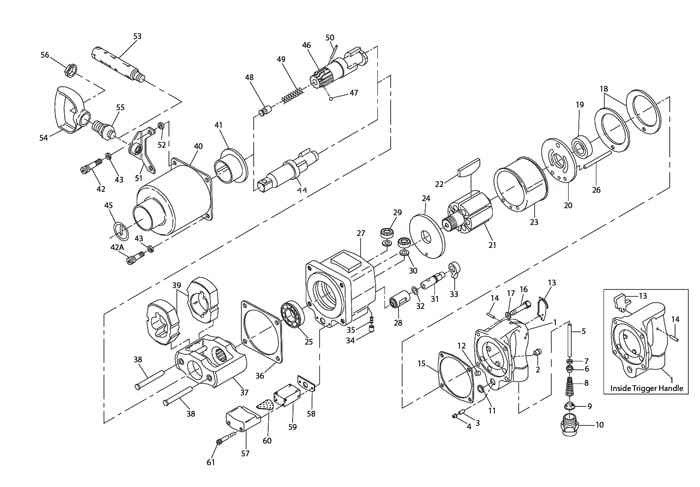

Ingersoll-Rand 2945 1-1/2" Drive Air Impact Wrench Repair Parts

Item Part Number Part Description IE Equivalent
1 Throttle Handel Assembly
Outside Trigger 2950-A1
Inside Trigger 2950-A92
2 Grease Fitting 130SR-188
3 8553 Oiler Felt R2-75
4 Oiler Adjusting Screw R2-71
5 Throttle Valve Plunger 2950-302
6 8598 Throttle Valve Assembly 2934-A50
7 8554 Throttle Valve Face 2934-159
8 8555 Throttle Valve Spring 834-51
9 8556 Air Strainer Screen 434-61
10 8650 Straight Inlet 845-565
11 8557 Reverse Valve Seal R00BR-210
12 Oil Chamber Plug (2) ROH-377
13 Trigger
Outside-type 844-78
8752 Inside-type 834-93A
14 Trigger Pin
for Outside Trigger F02-15
for Inside Trigger 534-265
15 8574 Handle Gasket 805-283
16 Handle Cap Screw (5/16"-18 thread x 1-1/4" Socket Head) (4) 834-638
17 Handle Cap Screw Washer (4) 588-140
18 Motor Clamp Washer (2) MR-207
19 8037 Rear Rotor Bearing 834-24
20 Rear End Plate 2950-12
21 Rotor 2945-53
22 2161 Rotor Vane (6) 2945-42-6
23 Cylinder 2945-3
24 Front End Plate 2950-11
25 8575 Front Rotor Bearing TA-22A
26 Cylinder Dowel 844-98
27 Motor Housing Assembly 2945-A40
28 Reverse Valve Bushing 2934-3305
29 8579 Air Port Gasket (2) R44H-210A
30 8350 Gasket Retainer (2) 2940-200
31 Reverse Valve Assembly 2934-A329
32 8283 Reverse Valve Bushing Seal 85H-167
33 8850 Reverse Lever 2934-658A
34 8561 Reverse Lock Plunger 4U-663B
35 8562 Plunger Spring 4U-664
36 8577 Hammer Case Gasket 845-36
37 Hammer Frame Assembly 2945-A703
38 Hammer Pin (2) 2945-704
39 Hammer (2) 2945-724
40 Hammer Case Assembly
for 2945A7, 2945B7 and 2945B1 2945-A627
for 2945A7-EU and 2945B7-EU 2945-EU-A627
41 Hammer Case Bushing 2950-541
42 Hammer Case Cap Secrew (3/8"-16 x 1-3/4") Socket Head (Long) (2) 2945-638
42A Hammer Case Cap Screw (3/8"-16 x 1-1/2") Socket Head (Short) (2) 844-638
43 Locke Washer (4)
44 1-12" Square Drive Anvil 2945-726
45 Socket Retaining Ring (for use with square drive anvil rr100205
46 Spline Drive Anvil Assembly (no. 5 Spline) for 2945B1 2945-A526A
47 8143 Socket Retaining Ball D04-280
48 Retaining Ball Plunger 845-230
49 8141 Plunger Spring 2940-231
50 8142 Plunger Retaining Pin 845-128
51 Dead Handle Bracket 845-364
52 Dead Handle Bracket Spacer 845-140
53 8751 Dead Handle (interchanges with Side Spade Handle Assembly 834-48
Side Spade Handle Assembly (interchanges with Dead Handle) 534-A41
54 Side Spade Handle T15-41
55 Spade Handle Stud 534-448
56 Stud Nut 107-73A
Exhaust Deflector Kit 2934-K23
57 8652 Exhaust Deflector 2934-23A
58 8656 Gasket 2934-223
59 8567 Silencer 2940P-311
60 Exhaust Baffle 2934-124
61 Exhaust Deflector Screw (2) R43F-104
Name Plate 2945-301
Name Plate Screw C32-302
Wooden Box 2945-96
Grease Gun R000A2-228
9962 Tune Up Kit (Includes: 3, 7, 9, 11, 15, 19, 22, 25, 29 [2], 30 [2], 32, 34, 35, 36, 58, 59) 2945-TK2


Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools 100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools

1 lb. Can tool lube. Standard-duty impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Discontinued See 105-1LB
105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube 105-4T Ingersoll-Rand Metallic Housing Grease 4 oz. Tube

105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube. Metallic housing impact wrench grease. For use with GTH-1 grease gun.

Price $14.03
105-4T-6 Ingersoll Rand Metallic Housing Grease Pack (6 Pack) 105-4T-6 Ingersoll-Rand Metallic Housing Grease Pack (6 Pack)

Box of 6 4 oz. Tubes of IR Number 105 Grease. Metallic housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack) 1.

Price $79.85
105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing 105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing

Ingersoll Rand Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $42.20
115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease 115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease

1 lb. Can tool lube. Composite housing impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Unavailable
115-4T Ingersoll Rand Composite Grease 4 oz. Tube 115-4T Ingersoll-Rand Composite Grease 4 oz. Tube

115-4T Ingersoll Rand Composite Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 or other grease gun.

Price $11.44
115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit 115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $36.80
2161 2945-42 Rotor Vane Equivalent 2161 2945-42 Rotor Vane Equivalent Sold Each

Made In The USA2161  2945-42 Rotor Vane Equivalent - Sold Each

Price $4.64
8037 834-24 Bearing Equivalent 8037 834-24 Bearing Equivalent

Made In The USA8037  834-24 Bearing Equivalent

Price $12.75
8141 2940-231 Spring 8141 2940-231 Spring

Made In The USA8141  2940-231 Spring

Price $10.35
8142 845-128 Pin 8142 845-128 Pin

Made In The USA8142  845-128 Pin

Price $1.20
8143 D04-280 Socket Retaining Ball 8143 D04-280 Socket Retaining Ball

Made In The USA8143 D04-280 Socket Retaining Ball

Price $1.56
8283 85H-167 Reversing Valve Bushing Seal 8283 85H-167 Reversing Valve Bushing Seal

Made In The USA8283  85H-167 Reversing Valve Bushing Seal

Price $0.33
8350 2940-200 Gasket Retainer 8350 2940-200 Gasket Retainer

Made In The USA8350  2940-200 Gasket Retainer

Price $3.00
8553 R2-75 Oiler Felt 8553 R2-75 Oiler Felt

Made In The USA8553  R2-75 Oiler Felt

Price $0.75
8554 2934-159 Throttle Valve Face 8554 2934-159 Throttle Valve Face

Made In The USA8554  2934-159 Throttle Valve Face

Price $0.63
8555 834-51 Throttle Valve Spring 8555 834-51 Throttle Valve Spring

Made In The USA8555  834-51 Throttle Valve Spring

Price $2.18
8556 434-61 Air Strainer Screen 8556 434-61 Air Strainer Screen

Made In The USA8556  434-61 Air Strainer Screen

Price $5.78
8557 R00BR-210 Reversing Valve Seal 8557 R00BR-210 Reversing Valve Seal

Made In The USA8557  R00BR-210 Reversing Valve Seal

Price $0.63
8560 810-97 Bearing Equivalent 8560 810-97 Bearing Equivalent

Made In The USA8560  810-97 Bearing Equivalent

Price $17.50
8561 4U-663B Reversing Lock Plunger 8561 4U-663B Reversing Lock Plunger

Made In The USA8561  4U-663B Reversing Lock Plunger

Price $4.16
8562 4U-664 Reversing Lock Plunger Spring 8562 4U-664 Reversing Lock Plunger Spring

Made In The USA8562  4U-664 Reversing Lock Plunger Spring

Price $2.25
8567 2940P-311 Silencer 8567 2940P-311 Silencer

Made In The USA8567  2940P-311 Silencer

Price $3.22
8574 850-283 Handle Gasket 8574 850-283 Handle Gasket

Made In The USA8574  850-283 Handle Gasket

Price $5.99
8575 TA-22A Bearing Equivalent 8575 TA-22A Bearing Equivalent

Made In The USA8575  TA-22A Bearing Equivalent

Price $11.22

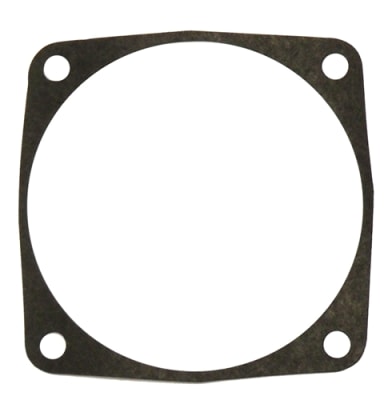

8577 845-36 Hammer Case Gasket 8577 845-36 Hammer Case Gasket

Made In The USA8577  845-36 Hammer Case Gasket

Price $5.99
8579 R44H-210A Air Port Gasket 8579 R44H-210A Air Port Gasket

Made In The USA8579  R44H-210A Air Port Gasket

Price $5.00
8598 2934-A50 Throttle Valve Assembly (Stainless) 8598 2934-A50 Throttle Valve Assembly (Stainless)

Made In The USA8598 2934-A50 Throttle Valve Assembly (Stainless)

Price $23.51
8650 845-565 Straight inlet 8650 845-565 Straight inlet

Made In The USA8650 845-565 Straight inlet. Now Stainless steel.

Price $55.23
8652 2934-23A Exhaust Deflector 8652 2934-23A Exhaust Deflector

Made In The USA8652  2934-23A Exhaust Deflector

Price $49.50
8656 2934-223 Exhaust Gasket 8656 2934-223 Exhaust Gasket

Made In The USA8656  2934-223 Exhaust Gasket

Price $4.00
8751 834-48 Dead Handle 8751 834-48 Dead Handle

Made In The USA8751  834-48 Dead Handle

Price $29.70
8752 834-93A Trigger Equivalent (plastic) 8752 834-93A Trigger Equivalent (plastic)

Made In The USA8752  834-93A Trigger Equivalent (plastic)

Price $17.33
8850 2934-658A Reversing Lever 8850 2934-658A Reversing Lever

Made In The USA8850  2934-658A Reversing Lever

Price $29.99

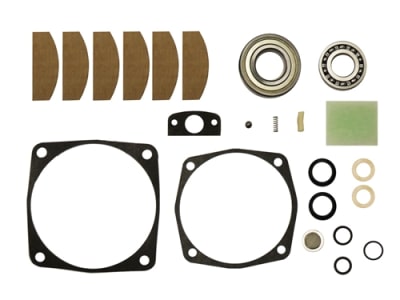

9962 2945-TK2 Tune Up Kit Equivalent 9962 2945-TK2 Tune Up Kit Equivalent

Made In The USA2945-TK2 Tune-up Kit . Used On Ingersoll-Rand Model 2945

Price $79.61
GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease. GTH-1 Ingersoll-Rand Grease Tube Head

GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease.

Price $19.87
R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings

Made In The USAIngersoll Rand R000A2-228 Push-type hand grease gun for flush-type fittings, holds up to 3 oz of grease.

Price $14.50
