Ingersoll-Rand 2940 1" Drive Air Impact Wrench Repair Parts

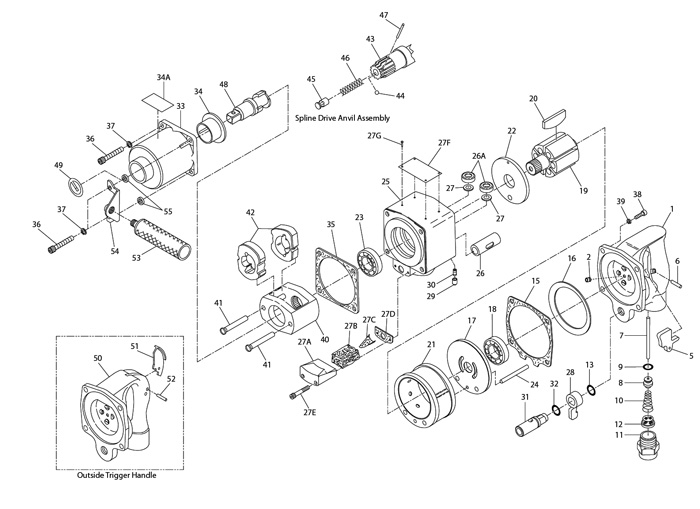

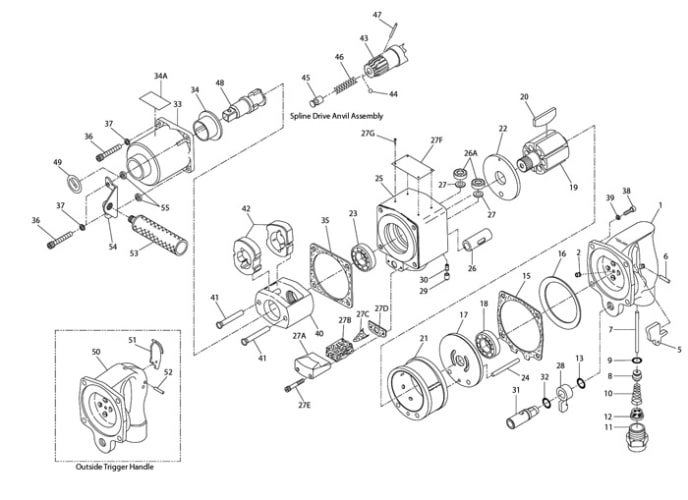

Item Part Number Part Description IR Equivalent
1 Inside Trigger Handle Assembly 2934-A92A
2 Grease Fitting 130SR-188
5 8752 Trigger 834-93A
6 Trigger Pin 534-265
7 8599 Throttle Valve Plunger 2934-302
8 8598 Throttle Valve Assembly 2934-A50
9 8554 Throttle Valve Face 2934-159
10 8555 Throttle Valve Spring 834-51
11 8560 Straight Inlet 845-565
12 8556 Air Strainer Screen 434-61
13 8557 Reverse Valve Seal R00BR-210
15 8558 Handle Gasket 2934-283
16 Motor Clamp Washer 2934-207
17 8175 Rear End Plate 2934-12
18 8559 Rear Rotor Bearing 508-97
19 Rotor 2940-53
20 2159 Rotor Vane (6) 2940-42-6
21 9044 Cylinder 2940-3
22 8730 Front End Plate 2934-11
23 8560 Front Rotor Bearing 810-97
24 Cylinder Dowel 2940-98
25 Motor Housing Assembly 2940-A40
26 Reverse Valve Bushing 2934-330S
26A 8579 Air Port Gasket (2) R44H-210A
27 8350 Air Port Gasket Retainer (2) 2940-200
27A 8652 Exhaust Deflector 2934-23A
27B 8567 Exhaust Silencer 2940P-311
27C Exhaust Baffle 2934-124
27D 8656 Exhaust Gasket 2934-223
27E Deflector Screw (2) R43F-104
27F Name Plate 2940-301
27G Name Plate Screw (4) C32-302
28 8850 Reverse Lever 2934-658A
29 8561 Reverse Lock Plunger 4U-663B
30 8562 Reverse Lock Plunger Spring 4U-664
31 Reverse Valve Assembly 2934-A329
32 8283 Reverse Valve Bushing Seal 85H-167
33 9042 Hammer Case Assembly 2940-A727
34 9338 Hammer Case Bushing 2934-641
34A Hammer Case Label WARNING-2-99
Oversize Hammer Case Bushing
0.005" Oversize 293-641-5
0.010" Oversize 2934-641-10
0.015" Oversize 2934-641-15
35 8563 Hammer Case Gasket 2934-36
36 Hammer Case Cap Screw (4) 834-638
37 Hammer Case Cap Screw Lock Washer (4) 34U-58
38 Handle Cap Screw (4) 510-638
39 Handle Cap Screw Lock Washer (4) 8U-58
40 9052 Hammer Frame Assembly 2940-A703
41 Hammer Pin
8139A Hammer Pin (2) with Head 2940-704
8139B Hammer Pin (2) without Head 2940-704
42 8138 Hammer (2) 2940-724
43 Spline Drive Anvil Assembly 2940-A526
44 8143 Socket Retaining Ball D04-280
45 Retianing Ball Plunger 845-230
46 8141 Retaining Plunger Spring 2940-231
47 8142 Plunger Retainng Pin 845-128
48 9053 1" Square Drive Anvil Standard Length 2940-726
1" Square Drive Anvil 6" Extended Length 2940-314-6
49 Socket Retainer RR10015S
50 Outside Trigger Handle Assembly 2934-A1
51 Trigger 844-78
52 Trigger Pin F02-15
53 Dead Handle 834-48
54 Dead Handle Bracket 2934-364
55 Dead Handle Bracket Spacer (2) 2934-140
Horizontal Hanger 2934-366
Horizontal Hanger Spacer (2) 2934-140
Side Spade Handle T15-41
Side Spade Handle Stud 534-448
Side Spade Handle Stud Nut 107-73A
Grease Gun R000A2-228
9959 Tune Up Kit (includes: 3, 9, 10, 12, 13, 15, 18, 20, 23, 26A [2], 27 [2], 27B, 29, 30, 32, 35) 2940-TK3
Exhaust Deflector Kit (includes: 27A thru 27E) 2940-K23


Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools 100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools

1 lb. Can tool lube. Standard-duty impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Discontinued See 105-1LB
105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube 105-4T Ingersoll-Rand Metallic Housing Grease 4 oz. Tube

105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube. Metallic housing impact wrench grease. For use with GTH-1 grease gun.

Price $14.03
105-4T-6 Ingersoll Rand Metallic Housing Grease Pack (6 Pack) 105-4T-6 Ingersoll-Rand Metallic Housing Grease Pack (6 Pack)

Box of 6 4 oz. Tubes of IR Number 105 Grease. Metallic housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack) 1.

Price $79.85
105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing 105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing

Ingersoll Rand Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $42.20
115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease 115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease

1 lb. Can tool lube. Composite housing impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Unavailable
115-4T Ingersoll Rand Composite Grease 4 oz. Tube 115-4T Ingersoll-Rand Composite Grease 4 oz. Tube

115-4T Ingersoll Rand Composite Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 or other grease gun.

Price $11.44
115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit 115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $36.80
2159  2940-42 Rotor Vane Equivalent 2159 2940-42 Rotor Vane Equivalent Sold Each

Made In The USA2159  2940-42 Rotor Vane Equivalent - Sold Each

Price $3.64
285B Ingersoll Rand 1” Heavy-Duty Air Impact Wrench 285B Ingersoll-Rand 1" Heavy-Duty Air Impact Wrench

The - model combines exceptional power, durability and operator convenience.

Price $825.00
Free Shipping
2940-724 Hammer (Genuine Ingersoll-Rand Part) 2940-724 Ingersoll-Rand Hammer

2940-724 Hammer (Genuine Ingersoll-Rand Part)

Price $515.00
8138  2940-724 Hammer 8138 2940-724 Hammer

Made In The USA8138  2940-724 Hammer

Price $212.85
8139A  2940-704 Hammer Pin W/Head 8139A 2940-704 Hammer Pin W/Head

Made In The USA8139A  2940-704 Hammer Pin W/Head

Price $32.60
8139B  2940-704 Hammer Pin W/Out Head 8139B 2940-704 Hammer Pin W/Out Head

Made In The USA8139B  2940-704 Hammer Pin W/Out Head

Price $24.75
8141  2940-231 Spring 8141 2940-231 Spring

Made In The USA8141  2940-231 Spring

Price $10.35
8142  845-128 Pin 8142 845-128 Pin

Made In The USA8142  845-128 Pin

Price $1.20
8143 D04-280 Socket Retaining Ball 8143 D04-280 Socket Retaining Ball

Made In The USA8143 D04-280 Socket Retaining Ball

Price $1.56
8175  2934-12 Rear End Plate 8175 2934-12 Rear End Plate

Made In The USA8175  2934-12 Rear End Plate

Price $107.66
8283  85H-167 Reversing Valve Bushing Seal 8283 85H-167 Reversing Valve Bushing Seal

Made In The USA8283  85H-167 Reversing Valve Bushing Seal

Price $0.33
8350  2940-200 Gasket Retainer 8350 2940-200 Gasket Retainer

Made In The USA8350  2940-200 Gasket Retainer

Price $3.00
8554  2934-159 Throttle Valve Face 8554 2934-159 Throttle Valve Face

Made In The USA8554  2934-159 Throttle Valve Face

Price $0.63
8555  834-51 Throttle Valve Spring 8555 834-51 Throttle Valve Spring

Made In The USA8555  834-51 Throttle Valve Spring

Price $2.18
8556  434-61 Air Strainer Screen 8556 434-61 Air Strainer Screen

Made In The USA8556  434-61 Air Strainer Screen

Price $5.78
8557  R00BR-210 Reversing Valve Seal 8557 R00BR-210 Reversing Valve Seal

Made In The USA8557  R00BR-210 Reversing Valve Seal

Price $0.63
8558  2934-283 Handle Gasket 8558 2934-283 Handle Gasket

Made In The USA8558  2934-283 Handle Gasket

Price $5.00
8559  508-97 Bearing Equivalent 8559 508-97 Bearing Equivalent

Made In The USA8559  508-97 Bearing Equivalent

Price $6.65
8560  810-97 Bearing Equivalent 8560 810-97 Bearing Equivalent

Made In The USA8560  810-97 Bearing Equivalent

Price $17.50
8561  4U-663B Reversing Lock Plunger 8561 4U-663B Reversing Lock Plunger

Made In The USA8561  4U-663B Reversing Lock Plunger

Price $4.16
8562  4U-664 Reversing Lock Plunger Spring 8562 4U-664 Reversing Lock Plunger Spring

Made In The USA8562  4U-664 Reversing Lock Plunger Spring

Price $2.25
8563  2934-36 Hammer Case Gasket 8563 2934-36 Hammer Case Gasket

Made In The USA8563  2934-36 Hammer Case Gasket

Price $3.50
8567  2940P-311 Silencer 8567 2940P-311 Silencer

Made In The USA8567  2940P-311 Silencer

Price $3.22
8579  R44H-210A Air Port Gasket 8579 R44H-210A Air Port Gasket

Made In The USA8579  R44H-210A Air Port Gasket

Price $5.00
8598 2934-A50 Throttle Valve Assembly (Stainless) 8598 2934-A50 Throttle Valve Assembly (Stainless)

Made In The USA8598 2934-A50 Throttle Valve Assembly (Stainless)

Price $23.51
8599  2934-302 TV Plunger (stainless) 8599 2934-302 TV Plunger (stainless)

Made In The USA8599  2934-302 TV Plunger (stainless)

Price $11.55
8652  2934-23A Exhaust Deflector 8652 2934-23A Exhaust Deflector

Made In The USA8652  2934-23A Exhaust Deflector

Price $49.50
8656  2934-223 Exhaust Gasket 8656 2934-223 Exhaust Gasket

Made In The USA8656  2934-223 Exhaust Gasket

Price $4.00
8730  2934-11 Front End Plate 8730 2934-11 Front End Plate

Made In The USA8730  2934-11 Front End Plate

Price $107.66
8752  834-93A Trigger Equivalent (plastic) 8752 834-93A Trigger Equivalent (plastic)

Made In The USA8752  834-93A Trigger Equivalent (plastic)

Price $17.33
8850  2934-658A Reversing Lever 8850 2934-658A Reversing Lever

Made In The USA8850  2934-658A Reversing Lever

Price $29.99
9042  2940-A727 Hammer Case Assembly 9042 2940-A727 Hammer Case Assembly

Made In The USA9042  2940-A727 Hammer Case Assembly

Price $371.25
9044  2940-3 Cylinder 9044 2940-3 Cylinder

Made In The USA9044  2940-3 Cylinder

Price $371.25
9052 2940-A703 Hammer Frame Assembly 9052 2940-A703 Hammer Frame Assembly

Made In The USA9052 2940-A703 Hammer Frame Assembly

Price $712.14
9053 2940-726 1" Square Anvil Standard Length 9053 2940-726 1" Square Anvil Standard Length

Made In The USA9053 2940-726 1" Square Anvil Standard Length

Price $361.85
9338  2934-641 Bushing 9338 2934-641 Bushing

Made In The USA9338  2934-641 Bushing

Price $44.35

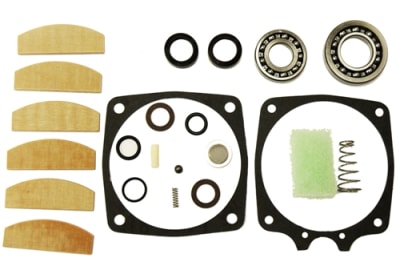

9959  2940-TK3 Tune Up Kit Equivalent 9959 2940-TK3 Tune Up Kit Equivalent

Made In The USA2940-TK3 Tune-up Kit . Used On Ingersoll-Rand Model 2940. Includes Rotor Vane, Reverse Valve Bushing Seal, Gasket Retainer, Throttle Valve Face, Throttle Valve Spring, Air Strainer Screen, Reverse Valve Seal, Handle Gasket, Bearing, Reverse Lock Plunger, Reverse Lock Plunger Spring, Hammer Case Gasket, Silencer, Air Port Gasket.

Price $64.35
GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease. GTH-1 Ingersoll-Rand Grease Tube Head

GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease.

Price $19.87
R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings

Made In The USAIngersoll Rand R000A2-228 Push-type hand grease gun for flush-type fittings, holds up to 3 oz of grease.

Price $14.50
