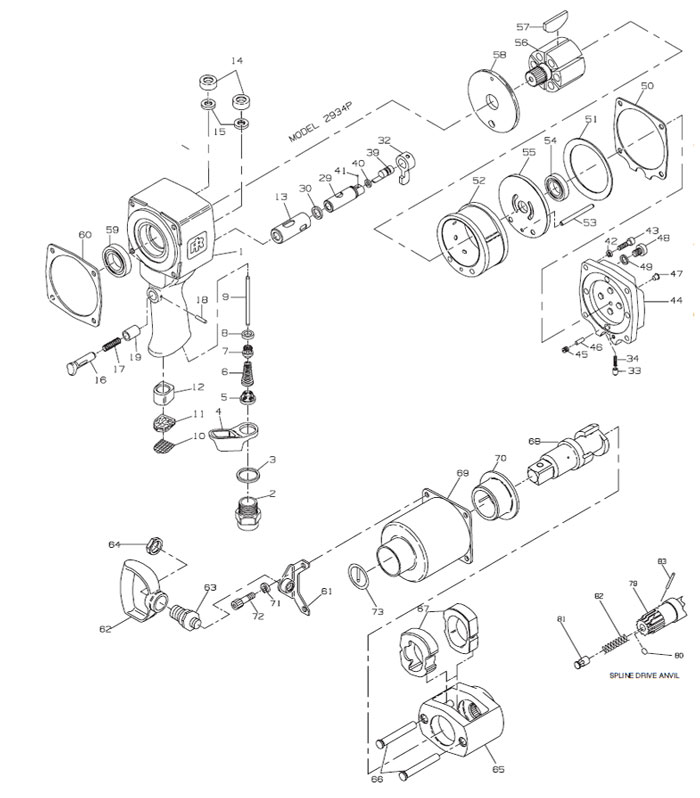

Item
|
Part Number
|
Part
Description
|
IR
Equivalent
|
|
1
|
|
Motor
Housing Assembly
|
2934P-A40A
|
|
2
|
|
Inlet
Bushing
|
2934P-465
|
|
3
|
|
Washer
|
2934P-788
|
|
4
|
|
Exhaust
Deflector
|
2934P-123
|
|
5
|
|
Air
Strainer Screen
|
434-61
|
|
6
|
|
Throttle
Valve Spring
|
834-51
|
|
7
|
|
Throttle
Valve
|
2934P-50
|
|
8
|
|
Throttle
Valve Face
|
2934-159
|
|
9
|
|
Throttle
Valve Plunger
|
2934P-302
|
|
10
|
|
Exhaust
Screen
|
2934P-310
|
|
11
|
|
Exhaust
Silencer
|
2934P-311
|
|
12
|
|
Exhaust
Deflector Seal
|
2934P-789
|
|
13
|
|
Reverse
Valve Bushing
|
2934P-330S
|
|
14
|
|
Air
Port Gasket (2)
|
R44H-210A
|
|
15
|
|
Gasket
Retainer (2)
|
2940-200
|
|
16
|
|
Trigger
|
2934P-93
|
|
17
|
|
Trigger
Spring
|
2934P-51
|
|
18
|
|
Trigger
Retaining Pin
|
R1AF-524
|
|
19
|
|
Trigger
Bushing
|
2905-91S
|
|
20
|
|
Throttle
Valve Assembly Retaining Pin
|
—
|
|
21
|
|
Throttle
Valve Assembly
|
—
|
|
22
|
|
Throttle
Valve Bushing Assembly
|
—
|
|
23
|
|
Throttle
Valve Bushing O-Ring (Large)
|
___
|
|
24
|
|
Throttle
Valve Bushing O-Ring (Small) (2)
|
__
|
|
25
|
|
Throttle
Valve Face O-Ring
|
—
|
|
26
|
|
Throttle
Valve O-Ring
|
—
|
|
27
|
|
Throttle
Valve Stem O-Ring
|
—
|
|
28
|
|
Trigger
Retaining Pin
|
—
|
|
29
|
|
Reverse
Valve Assembly
|
2934P-A329
|
|
30
|
|
Reverse
Valve Seal
|
85H-167
|
|
31
|
|
Reverse
Valve Stop
|
—
|
|
32
|
|
Reverse
Lever
|
2934-658A
|
|
33
|
|
Reverse
Lock Plunger
|
4U-663B
|
|
34
|
|
Reverse
Lock Spring
|
4U-664
|
|
35
|
|
Exhaust
Diffuser
|
—
|
|
36
|
|
Exhaust
Silencer
|
—
|
|
37
|
|
Silencer
Cover
|
—
|
|
38
|
|
Silencer
Cover Screws (3)
|
—
|
|
39
|
|
Power
Regulator Assembly
|
2934P-A249
|
|
40
|
|
Power
Regulator Seal
|
R1A-159
|
|
41
|
|
Power
Regulator Retaining Ball
|
AV1-255
|
|
42
|
|
Housing
Cover Lock Washer (4)
|
8U-58-10
|
|
43
|
|
Housing
Cover Capscrew (4)
|
510-638
|
|
44
|
|
Housing
Cover Assembly
|
2934P-A102A
|
|
45
|
|
Oiler
Adjusting Screw
|
R2-71
|
|
46
|
|
Oiler
Felt
|
R2-75
|
|
47
|
|
Grease
Fitting
|
130SR-188
|
|
48
|
|
Oil
Chamber Plug
|
R4-227
|
|
49
|
|
Oil
Chamber Plug Gasket
|
R4-92
|
|
50
|
|
Housing
Cover Gasket
|
2934-283
|
|
51
|
|
Motor
Clamp Washer
|
2934-207
|
|
52
|
|
Cylinder
|
2934-3
|
|
53
|
|
Cylinder
Dowel
|
2934-98
|
|
54
|
|
Rear
Motor Bearing
|
508-97
|
|
55
|
|
Rear
End Plate
|
2934-12
|
|
56
|
|
Rotor
|
2934-53
|
|
57
|
|
Vane
Packet (Set of 6 Vanes)
|
2934-42-6
|
|
58
|
|
Front
End Plate
|
2934-11
|
|
59
|
|
Front
Rotor Bearing
|
810-97
|
|
60
|
|
Hammer
Case Gasket
|
2934-36
|
|
61
|
|
Side
Spade Handle Bracket
|
2934-364
|
|
62
|
|
Side
Spade Handle
|
T15-41
|
|
63
|
|
Side
Spade Handle Stud
|
534-448
|
|
64
|
|
Side
Spade Handle Nut
|
107-73A
|
|
65
|
|
Hammer
Frame Assembly for 2934P for 2940P
|
2934-A703
2940-A703
|
|
66
|
|
Hammer
Pins for 2934P for 2940P
|
2934-704
2940-704
|
|
67
|
|
Hammers
(2) for 2934P for 2940P
|
2934-724
2940-724
|
|
68
|
|
1”
Square Drive Anvil for 2934P for 2940P
|
2934-726
2940-726
|
|
69
|
|
Hammer
Case Assembly for 2934P for 2934P-EU for 2940P for 2940P-EU
|
2934-A727
2934P-EU-A727 2940-A727 2940P-EU-A727
|
|
*
|
|
Hammer
Case Label for 2934P and 2940P for 2934P-EU and 2940P-EU
|
WARNING-2-99 EU-99
|
|
70
|
|
Hammer
Case Bushing
|
2934-641
|
|
*
|
|
Hammer
Case Label
|
WARNING-2-99
|
|
*
|
|
Oversize
Hammer Case Bushing (for 2940P only) 0.005” oversize 0.010” oversize
0.015” oversize
|
2934-641-5
2934-641-10 2934-641-15
|
|
71
|
|
Hammer
Case Cap Screw Lock Washer (4)
|
34U-58
|
|
72
|
|
Hammer
Case Cap Screw (4)
|
834-638
|
|
73
|
|
Socket
Retainer
|
RR10015S
|
|
79
|
|
Spline
Drive Anvil Assembly for 2934P for 2940P
|
2934-A526
2940-A526
|
|
80
|
|
Socket
Retaining Ball
|
D04-280
|
|
81
|
|
Retaining
Ball Plunger
|
845-230
|
|
82
|
|
Retaining
Plunger Spring
|
2940-231
|
|
83
|
|
Plunger
Retaining Pin
|
845-128
|
|
*
|
|
Dead
Handle (for 2940P only)
|
834-48
|
|
*
|
|
Horizontal
Hanger
|
2934-366
|
|
*
|
|
Horizontal
Hanger Spacer (2) (required only when the 2934-366 Hanger is used in
conjunction with the No. 2934-364 Side Spade Handle Bracket)
|
2934-140
|
|
*
|
|
Nameplate
for 2934P for 2934P-EU for 2940P for 2940P-EU
|
2934P-301
2934P-EU-301 2940P-301 2940P-EU-301
|
|
*
|
|
Nameplate
Screws (3)
|
C32-302
|
|
*
|
|
Exhaust
Deflector Kit for 2934P only (includes illustrated items 2, 3,4,10, 11,
and 12)
|
2934P-K23
|
|
*
|
|
Tune-up
Kit for 2934P (includes illustrated items 5, 6, 8, 11, 14[2],
17, 30, 33 34 40, 46, 50, 54, 57, 59 and 60)
|
2934-TK3
|
