Ingersoll-Rand 280 1" Drive Air Impact Wrench Repair Parts

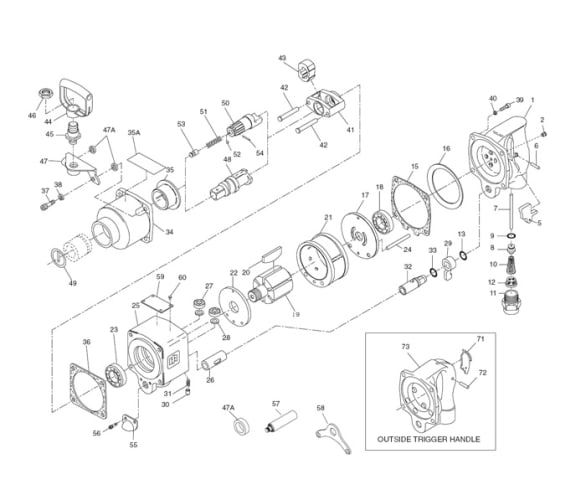

IR 280 Parts List
Item Part Number Part Description IR Equivalent
1
Trigger Handle Assembly


Inside (for 280 and 280-S6) 1712-A92


Outside (for 280-6) 280-A1
2
Grease Fitting 130SR-188
5
Trigger

8752 for 1712-A92 (280 and 280-S6) 834-93A


for 280-A1 (280-6) 844-78
6
Trigger Pin


for 1712-A92 (280 and 280-S6) 534-265


for 280-A1 (280-6) F02-15
7 8599 Throttle Valve Plunger 2934-302
8 8598 Throttle Valve Assembly 2934-A50
9 8554 Throttle Valve Face 2934-159
10 8555 Throttle Valve Spring 834-51
11 8650 Straight Inlet 845-565
12 8556 Air Strainer Screen 434-61
13 8557 Reverse Valve Seal R00BR-210
15 8558 Handle Gasket 2934-283
16
Motor Clamp Washer 2934-207
17 8175 Rear End Plate 2934-12
18 8559 Rear Rotor Bearing 508-97
19 9790 Rotor 2934-53
20 2158 Vane Packet (set of 6 Vanes) 2934-42-6
21 9707 Cylinder 2934-3
22 8730 Front End Plate 2934-11
23 8560 Front Rotor Bearing 810-97
24
Cylinder Dowel 2934-98
25
Motor Housing Asssembly 1712-A40
26
Reverse Valve Bushing 2934-330S
27 8579 Air Port Gasket (2) R44H-210A
28 8350 Air Port Gasket Retainer (2) 2940-200
29 8850 Reverse Lever 2934-658A
30 8561 Reverse Lock Plunger 4U-663B
31 8562 Reverse Lock Plunger Spring 4U-664
32 9048 Reverse Valve Assembly 2934-A329
33 8283 Valve Seal 85H-167
34
Hammer Case Assembly 1712B-A727
35 9338 Hammer Case Bushing 2934-641
35A
Hammer Case Label WARNING-2-99
36 8563 Hammer Case Gasket 2934-36
37
Hammer Case Cap Screw (4) 834-638
38
Hammer Case LockWasher (4) 34U-58
39
Handle Cap Screw (4) 510-638
40
Cap Screw Lock Washer (4) 8U-58
41 8851 Hammer Frame Assembly 2934-A703
42
Hammer Pin (2)

8852A Hammer Pin (2) with Heads 2934-704

8852B Hammer Pin (2) without Heads 2934-704
43
Hammer 1712-724
44
Side Spade Handle T15-41
45
Side Spade Handle Stud 534-448
46
Side Spade Handle Stud Nut 107-73A
47 8885 Side Spade Handle Bracket 2934-364
47A
Side Spade Handle Bracket Spacer (2) 2934-140
48
1" Square Drive Anvil


Standard Length 1712-726


6" Extended Length 280-726-6
49
Retainer Ring (for 1" Square Drive Anvil) RR10015S
50
Spline Drive Anvil


Standard Length 1712-A526


6" Extended Length 280-A514-6
51 8141 Retaining Plunger Spring 2940-231
52 8143 Socket Retaining Ball D04-280
53
Retaining Ball Plunger 845-230
54 8142 Plunger Retaining Pin 845-128
55
Exhaust Deflector 280-167
56
Exhaust Deflector Screw (2) W54-376
57
Dead Handle 834-48
58
Horizontal Hanger 2934-366
59
Nameplate 280-301
60
Nameplate Screw (4) C32-302
61
Piped-Away Exhaust Kit


with Muffler 2940-KM184


without Muffler 2940-K184
62
Exhaust Deflector Kit 2934-K23
63 8652 Exhaust Deflector Assembly 2934-23A
64
Exhaust Baffle 2934-124
65 8656 Gasket 2934-223
66 8567 Silencer 2940P-311
67
Exhaust Deflector Screw (2) R43F-104
*
Bottle of Oil 405-M01
*
Grease 405-MG1
*
Lube Injector 230-228
* 9939 Tune-up Kit (includes illustrated parts 3, 9, 10,12, 13, 15, 18, 20, 23, 27 (2), 28 (2), 31, 33 and 36) 280-TK2


Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools 100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools

1 lb. Can tool lube. Standard-duty impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Discontinued See 105-1LB
105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube 105-4T Ingersoll-Rand Metallic Housing Grease 4 oz. Tube

105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube. Metallic housing impact wrench grease. For use with GTH-1 grease gun.

Price $14.03
105-4T-6 Ingersoll Rand Metallic Housing Grease Pack (6 Pack) 105-4T-6 Ingersoll-Rand Metallic Housing Grease Pack (6 Pack)

Box of 6 4 oz. Tubes of IR Number 105 Grease. Metallic housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack) 1.

Price $79.85
105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing 105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing

Ingersoll Rand Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $42.20
115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease 115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease

1 lb. Can tool lube. Composite housing impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Unavailable
115-4T Ingersoll Rand Composite Grease 4 oz. Tube 115-4T Ingersoll-Rand Composite Grease 4 oz. Tube

115-4T Ingersoll Rand Composite Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 or other grease gun.

Price $11.44
115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit 115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $36.80
2158 2934-42 Rotor Vane Equivalent 2158 2934-42 Rotor Vane Equivalent Sold Each

Made In The USA2158  2934-42 Rotor Vane Equivalent - Sold Each

Price $3.34
2158P 2934-42 Rotor Vane Plastic (Sold Each) 2158P 2934-42 Rotor Vane Plastic (Sold Each)

Made In The USA2158P 2934-42 Rotor Vane Plastic (Sold Each). Tougher than phenolic vanes usually resulting in longer life and power.

Price $3.95
280 Ingersoll Rand 1” Super-Duty Air Impact Wrench 280 Ingersoll-Rand 1” Super-Duty Air Impact Wrench

Provides maximum protection for harsh environment

Price $2,199.00
Free Shipping
8141 2940-231 Spring 8141 2940-231 Spring

Made In The USA8141  2940-231 Spring

Price $10.35
8142 845-128 Pin 8142 845-128 Pin

Made In The USA8142  845-128 Pin

Price $1.20
8143 D04-280 Socket Retaining Ball 8143 D04-280 Socket Retaining Ball

Made In The USA8143 D04-280 Socket Retaining Ball

Price $1.56
8175 2934-12 Rear End Plate 8175 2934-12 Rear End Plate

Made In The USA8175  2934-12 Rear End Plate

Price $107.66
8283 85H-167 Reversing Valve Bushing Seal 8283 85H-167 Reversing Valve Bushing Seal

Made In The USA8283  85H-167 Reversing Valve Bushing Seal

Price $0.33
8350 2940-200 Gasket Retainer 8350 2940-200 Gasket Retainer

Made In The USA8350  2940-200 Gasket Retainer

Price $3.00
8554 2934-159 Throttle Valve Face 8554 2934-159 Throttle Valve Face

Made In The USA8554  2934-159 Throttle Valve Face

Price $0.63
8555 834-51 Throttle Valve Spring 8555 834-51 Throttle Valve Spring

Made In The USA8555  834-51 Throttle Valve Spring

Price $2.18
8556 434-61 Air Strainer Screen 8556 434-61 Air Strainer Screen

Made In The USA8556  434-61 Air Strainer Screen

Price $5.78
8557 R00BR-210 Reversing Valve Seal 8557 R00BR-210 Reversing Valve Seal

Made In The USA8557  R00BR-210 Reversing Valve Seal

Price $0.63
8558 2934-283 Handle Gasket 8558 2934-283 Handle Gasket

Made In The USA8558  2934-283 Handle Gasket

Price $5.00
8559 508-97 Bearing Equivalent 8559 508-97 Bearing Equivalent

Made In The USA8559  508-97 Bearing Equivalent

Price $6.65
8560 810-97 Bearing Equivalent 8560 810-97 Bearing Equivalent

Made In The USA8560  810-97 Bearing Equivalent

Price $17.50
8561 4U-663B Reversing Lock Plunger 8561 4U-663B Reversing Lock Plunger

Made In The USA8561  4U-663B Reversing Lock Plunger

Price $4.16
8562 4U-664 Reversing Lock Plunger Spring 8562 4U-664 Reversing Lock Plunger Spring

Made In The USA8562  4U-664 Reversing Lock Plunger Spring

Price $2.25
8563 2934-36 Hammer Case Gasket 8563 2934-36 Hammer Case Gasket

Made In The USA8563  2934-36 Hammer Case Gasket

Price $3.50
8567 2940P-311 Silencer 8567 2940P-311 Silencer

Made In The USA8567  2940P-311 Silencer

Price $3.22
8579 R44H-210A Air Port Gasket 8579 R44H-210A Air Port Gasket

Made In The USA8579  R44H-210A Air Port Gasket

Price $5.00
8598 2934-A50 Throttle Valve Assembly (Stainless) 8598 2934-A50 Throttle Valve Assembly (Stainless)

Made In The USA8598 2934-A50 Throttle Valve Assembly (Stainless)

Price $23.51
8599 2934-302 TV Plunger (stainless) 8599 2934-302 TV Plunger (stainless)

Made In The USA8599  2934-302 TV Plunger (stainless)

Price $11.55
8650 845-565 Straight inlet 8650 845-565 Straight inlet

Made In The USA8650 845-565 Straight inlet. Now Stainless steel.

Price $55.23
8652 2934-23A Exhaust Deflector 8652 2934-23A Exhaust Deflector

Made In The USA8652  2934-23A Exhaust Deflector

Price $49.50
8656 2934-223 Exhaust Gasket 8656 2934-223 Exhaust Gasket

Made In The USA8656  2934-223 Exhaust Gasket

Price $4.00

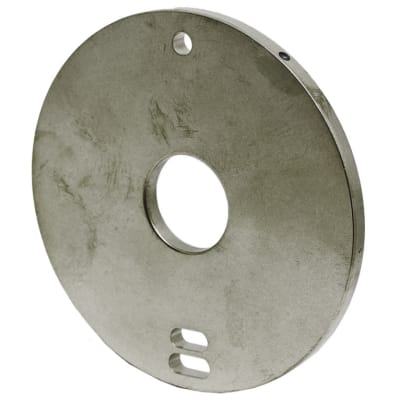

8730 2934-11 Front End Plate 8730 2934-11 Front End Plate

Made In The USA8730  2934-11 Front End Plate

Price $107.66
8752 834-93A Trigger Equivalent (plastic) 8752 834-93A Trigger Equivalent (plastic)

Made In The USA8752  834-93A Trigger Equivalent (plastic)

Price $17.33
8850 2934-658A Reversing Lever 8850 2934-658A Reversing Lever

Made In The USA8850  2934-658A Reversing Lever

Price $29.99

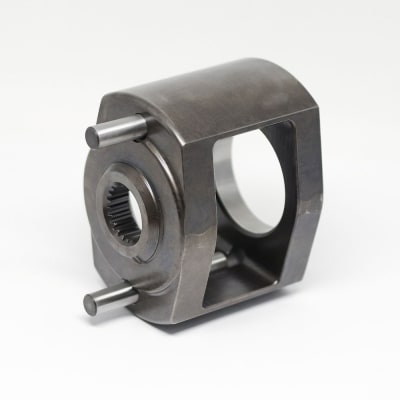

8851 2934-A703 Hammer Frame Assembly 8851 2934-A703 Hammer Frame Assembly

Made In The USA8851  2934-A703 Hammer Frame Assembly

Price $396.00
8852A 2934-704 Hammer Pin W/ Head 8852A 2934-704 Hammer Pin W/ Head

Made In The USA8852A  2934-704 Hammer Pin W/ Head

Price $18.98
8852B 2934-704 Hammer Pin W/Out Head 8852B 2934-704 Hammer Pin W/Out Head

Made In The USA8852B  2934-704 Hammer Pin W/Out Head

Price $18.98
8885 2934-364 Bracket 8885 2934-364 Bracket

Made In The USA8885  2934-364 Bracket

Price $59.10
9048 2934-A329 Reversing Valve Assembly 9048 2934-A329 Reversing Valve Assembly

Made In The USA9048  2934-A329 Reversing Valve Assembly

Price $201.23
9338 2934-641 Bushing 9338 2934-641 Bushing

Made In The USA9338  2934-641 Bushing

Price $44.35
9707 2934-3 Cylinder 9707 2934-3 Cylinder

Made In The USA9707  2934-3 Cylinder

Price $338.25
9709 2934-53 Rotor 9709 2934-53 Rotor

Made In The USA9709  2934-53 Rotor

Price $390.21

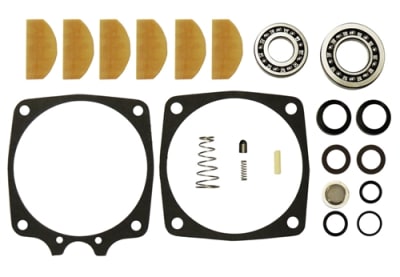

9939 280-TK2 Tune Up Kit Equivalent 9939 280-TK2 Tune Up Kit Equivalent
