232TGSL Air Impact Wrench Repair Parts

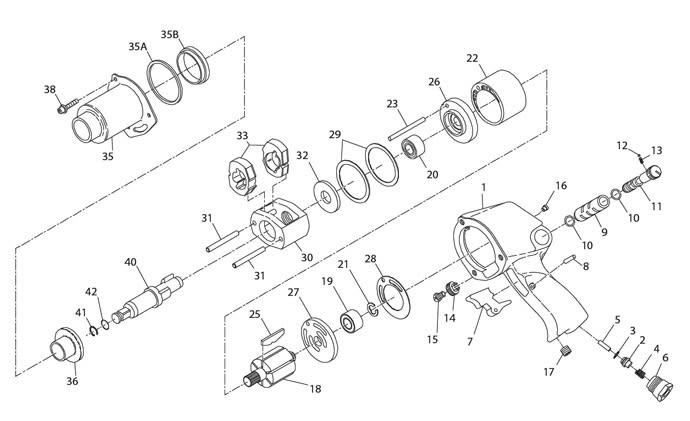

Item Part Number Part Description IR Equivalent
1 N/A Motor Housing Assembly 232TGSL-A40
2 8313 Throttle Valve Assembly 404-50A
3 8339 Throttle Valve Face 405-159
4 8006B Throttle Valve Spring R1A-51
5 8314 Throttle Valve Stem 402-302
6 8089 Air Strainer Assembly 402-565
7 8086 Trigger 705-93
8 8305 Trigger Pin 533-656
9 N/A Reverse Valve Bushing 231-A330
10 8400 Reverse Valve Bushing Seal (2) PS3-67
11 8360 Reverse Valve 231-329A
12 8282 Reverse Valve Detent Ball AV1-255
13 8308 Reverse Valve Detent Spring 231-664
14 8309 Reverse Valve Knob 231-666
15 8310 Reverse Valve Knob Screw 231-665
16 N/A Grease Fitting 130SR-188
17 N/A Oil Chamber Plug
R0H-377
18 8263 Rotor
231-53
19 8027 Rear Rotor Bearing
402-22
20 8028 Front Rotor Bearing
4U-97
21 8004 Front Rotor Bearing Retainer
402-118
22 8651 Cylinder 131-3
23 8340 Cylinder Dowel
230-98
24 N/A - -
25 2196 / 2196P
Vane
2131-42A-6
26 8084
Front End Plate 231-11
27 8085 Rear End Plate 231-12
28 8032B End Plate Gasket 231-283
29 8311 Motor Clamp Washer (2) 227-207
30 9243 Hammer Frame 2131-703
31 8079 Hammer Pin (2) 231-704
32 8087 Hammer Frame Rear Washer 231-706
33 8132 Hammer (2) 231XP-724
34 8079 Hammer Pin
231-704
35 N/A Hammer Case Assembly
232-A727A
35A 8032A Hammer Case Gasket 230-36
35B 8312 Hammer Case Pilot 405-800
36 8320 Hammer Case Bushing 705-941
38 8151 Hammer Case Cap Screw (3) (9120 10 Pack)
231-638
40 8630 Anvil Assembly (1/2" Square Drive)
231B-A626
41 8155 Socket Retainer
2135-425
42 8270 Retainer O-Ring
R1A-159

- Hammer Kit (includes illustrated parts 33 [2], 35A, 38 [3] and 40)
231XP-THK1






Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools 100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools

1 lb. Can tool lube. Standard-duty impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Discontinued See 105-1LB
105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube 105-4T Ingersoll-Rand Metallic Housing Grease 4 oz. Tube

105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube. Metallic housing impact wrench grease. For use with GTH-1 grease gun.

Price $14.03
105-4T-6 Ingersoll Rand Metallic Housing Grease Pack (6 Pack) 105-4T-6 Ingersoll-Rand Metallic Housing Grease Pack (6 Pack)

Box of 6 4 oz. Tubes of IR Number 105 Grease. Metallic housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack) 1.

Price $79.85
105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing 105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing

Ingersoll Rand Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $42.20
115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease 115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease

1 lb. Can tool lube. Composite housing impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Unavailable
115-4T Ingersoll Rand Composite Grease 4 oz. Tube 115-4T Ingersoll-Rand Composite Grease 4 oz. Tube

115-4T Ingersoll Rand Composite Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 or other grease gun.

Price $11.44
115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit 115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $36.80

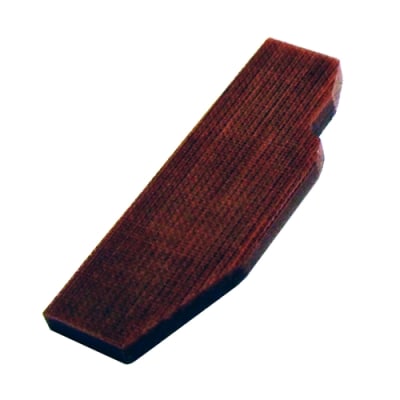

2196 2131-42A Rotor Phenolic Vane With Notch - Sold Each 2196 2131-42A Rotor Phenolic Vane With Notch - Sold Each

Made In The USA2196 2131-42A Rotor Phenolic Vane With Notch - Sold Each

Price $2.34
2196P 2131-42A Rotor Plastic Vane With Notch - Sold Each 2196P 2131-42A Rotor Plastic Vane With Notch - Sold Each

Made In The USA2196P 2131-42A Rotor Plastic Vane With Notch - Sold Each

Price $2.34
8004  402-118 Bearing Retainer Equivalent 8004 402-118 Bearing Retainer Equivalent

Made In The USA8004  402-118 Bearing Retainer Equivalent

Price $0.83
8006B  R1A-51 Throttle Spring Equivalent 8006B R1A-51 Throttle Spring Equivalent

Made In The USA8006B  R1A-51 Throttle Spring Equivalent

Price $1.75
8027  402-22 Bearing Equivalent 8027 402-22 Bearing Equivalent

Made In The USA8027  402-22 Bearing Equivalent

Price $6.40
8028  4U-97 Bearing Equivalent 8028 4U-97 Bearing Equivalent

Made In The USA8028 4U-97 Bearing Equivalent

Price $4.88
8032A  230-36 Hammer Case Gasket Equivalent 8032A 230-36 Hammer Case Gasket Equivalent

Made In The USA8032A 230-36 Hammer Case Gasket Equivalent

Price $0.79
8032B  231-283 End Plate Gasket Equivalent 8032B 231-283 End Plate Gasket Equivalent

Made In The USA8032B 231-283 End Plate Gasket Equivalent

Price $2.00
8079  231-704 Hammer Pin Equivalent 8079 231-704 Hammer Pin Equivalent (each)

Made In The USA8079 231-704 Hammer Pin Equivalent

Price $3.00

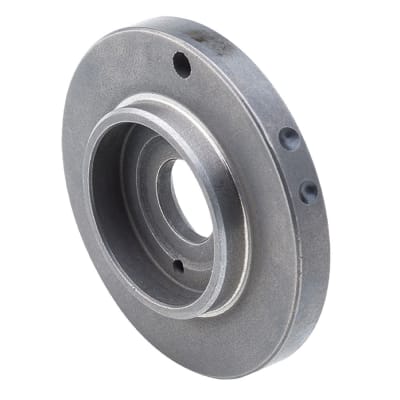

8084  231-11 Front End Plate Equivalent 8084 231-11 Front End Plate Equivalent

Made In The USA8084 231-11 Front End Plate Equivalent

Price $16.09
8085  231-12 Rear End Plate Equivalent 8085 231-12 Rear End Plate Equivalent

Made In The USA8085 231-12 Rear End Plate Equivalent

Price $16.09
8086  705-93 Trigger Equivalent 8086 705-93 Trigger Equivalent

Made In The USA8086 705-93 Trigger Equivalent

Price $6.37
8087  231-706 Rear Washer Equivalent 8087 231-706 Rear Washer Equivalent

Made In The USA8087 231-706 Rear Washer Equivalent

Price $3.80
8088  231-425A Socket Retainer 1/2" Equivalent 8088 231-425A Socket Retainer 1/2" Equivalent

Made In The USA8088 231-425A Socket Retainer 1/2" Equivalent

Price $2.40

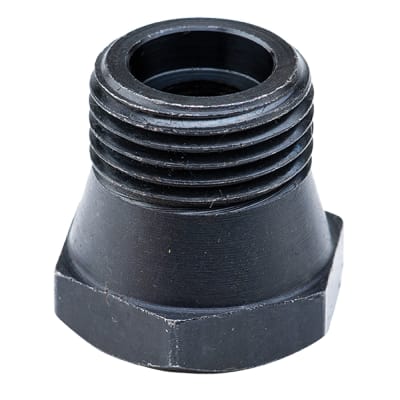

8089  402-565 Air Strainer Equivalent 8089 402-565 Air Strainer Equivalent

Made In The USA8089 402-565 Air Strainer Equivalent

Price $8.90
8132  231XP-724 Hammer 8132 231XP-724 Hammer (Each)

Made In The USA8132 231XP-724 Hammer (Each)

Price $31.30

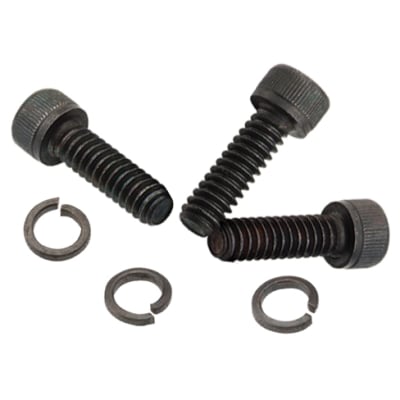

8151  231-638 Screw/Washer Set (3) 8151 231-638 Screw/Washer Set (3)

Made In The USA8151  231-638 Screw/Washer Set (3)

Price $2.32
8155  2135-425 Socket Retainer 1/2" 8155 2135-425 Socket Retainer 1/2"

Made In The USA8155  2135-425 Socket Retainer 1/2"

Price $2.40
8254  131-11 Front End Plate 8254 131-11 Ingersoll-Rand Front End Plate

Made In The USA8254  131-11 Front End Plate

Price $8.48
8263  231-53 Rotor Equivalent 8263 231-53 Rotor Equivalent

Made In The USA8263 231-53 Rotor Equivalent

Price $26.40
8270  R1A-159 Retainer O-ring 1/2" Equivalent 8270 R1A-159 Retainer O-ring 1/2" Equivalent

Made In The USA8270 R1A-159 Retainer O-ring 1/2" Equivalent

Price $0.36
8282  AV1-255 Reversing Valve Detent Ball 8282 AV1-255 Reversing Valve Detent Ball

Made In The USA8282 AV1-255 Reversing Valve Detent Ball

Price $0.65
8305  533-656 Trigger Pin Equivalent 8305 533-656 Trigger Pin Equivalent

Made In The USA8305 533-656 Trigger Pin Equivalent

Price $3.50
8308  231-664 Reversing Valve Detent Spring 8308 231-664 Reversing Valve Detent Spring

Made In The USA8308 231-664 Reversing Valve Detent Spring

Price $1.20
8309  231-666 Reversing Valve Detent Knob 8309 231-666 Reversing Valve Detent Knob

Made In The USA8309 231-666 Reversing Valve Detent Knob

Price $6.90
8310  231-665 Reversing Valve Knob Screw 8310 231-665 Reversing Valve Knob Screw

Made In The USA8310 231-665 Reversing Valve Knob Screw

Price $0.78
8311  227-207 Motor Clamp Washer Equivalent 8311 227-207 Motor Clamp Washer Equivalent

Made In The USA8311 227-207 Motor Clamp Washer Equivalent

Price $5.61
8312  405-800 Hammer Case Pilot Equivalent 8312 405-800 Hammer Case Pilot Equivalent

Made In The USA8312 405-800 Hammer Case Pilot Equivalent

Price $4.95

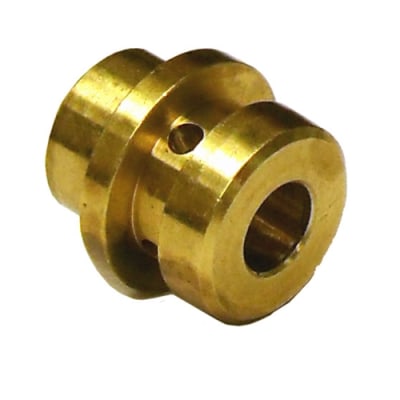

8313  404-50A Throttle Valve (BRASS) 8313 404-50A Throttle Valve (BRASS)

Made In The USA8313  404-50A Throttle Valve (BRASS). Replaces plastic version for longer life.

Price $9.50
8314  402-302 Throttle Valve Stem Equivalent 8314 402-302 Throttle Valve Stem Equivalent

Made In The USA8314 402-302 Throttle Valve Stem Equivalent

Price $6.37
8320  705-941 Hammer Case Bushing Equivalent 8320 705-941 Hammer Case Bushing Equivalent

Made In The USA8320 705-941 Hammer Case Bushing Equivalent

Price $11.32
8339  405-159 Throttle Valve Face 8339 405-159 Throttle Valve Face

Made In The USA8339 405-159 Throttle Valve Face

Price $0.78
8340  230-98 Cylinder Dowel Equivalent 8340 230-98 Cylinder Dowel Equivalent

Made In The USA8340 230-98 Cylinder Dowel Equivalent

Price $7.50
8400  PS3-67 Reversing Valve Bushing Seal 8400 PS3-67 Reversing Valve Bushing Seal

Made In The USA8400 PS3-67 Reversing Valve Bushing Seal

Price $0.32
8630  231B-A626 Anvil 1/2" Equivalent 8630 231B-A626 Anvil 1/2" Equivalent

Made In The USA8630  231B-A626 Anvil 1/2" Equivalent

Price $43.76
8651  131-3 Cylinder 8651 131-3 Ingersoll-Rand Cylinder

Made In The USA8651  131-3 Cylinder

Price $51.56

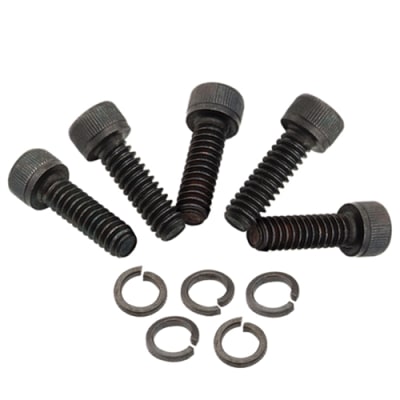

9120 231-638-10 Ingersoll-Rand Screw (10 Pack) 9120 231-638-10 Ingersoll-Rand Screw (10 Pack)

Made In The USA9120 231-638-10 Ingersoll-Rand Screw (10 Pack)

Discontinued
9243  2131-703 Hammer Frame 9243 2131-703 Hammer Frame

Made In The USA9243  2131-703 Hammer Frame

Price $61.66
GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease. GTH-1 Ingersoll-Rand Grease Tube Head

GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease.

Price $19.87
R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings

Made In The USAIngersoll Rand R000A2-228 Push-type hand grease gun for flush-type fittings, holds up to 3 oz of grease.

Price $14.50
