Ingersoll-Rand 231XP, 231XP-2 1/2" Drive Air Impact Wrench Repair Parts

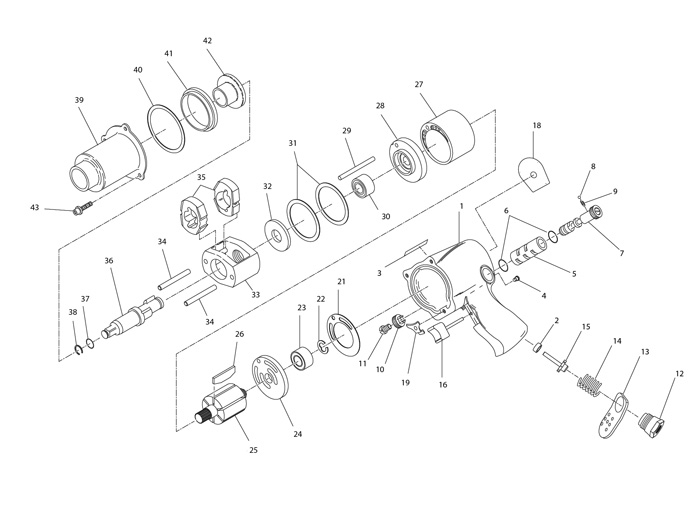

IR 231XP, 231XP-2 Parts List
Item Part Number Part Description IR Equivalent
1 Motor Housing 231XP-B40
2 9599 Throttle Valve Seat 235-303
3 Warning Label WARNING-2-99
4 Grease Fitting 130SR-188
5 Reverse Valve Bushing 231-A330
Bushing
6 8400 Reverse Valve Bushing Seal PS3-67
7 8306 Reverse Valve 231-329A
8 8282 Reverse Valve Detent Ball AV1-255
9 8308 Reverse Valve Detent Spring 231-664
10 8309 Reverse Valve Knob 231-666
11 8310 Reverse Valve Screw 231-665
12 Inlet Bushing 235-565
13 Exhaust Deflector 235-EU-23
14 9598 Throttle Valve Spring 235-51
15 8666 Throttle Valve 235-50
15A Exhaust Silencer for 231XPS & 231XPS-2 ONLY 235-311
16 Trigger 231H-93
17 Throttle Rod 235-302
18 Nameplate 231XP-301
19 Trigger Retainer 231H-656
21 8032B End Plate Gasket 231-283
22 8004 Rear Rotor Bearing Retainer 402-118
23 8027 Rear Rotor Bearing 402-22
24 8085 Rear End Plate 231-12
25 8263 Rotor 231-53
26 2189 Vane, Yellow (set of 6) 2131-42-6
27 Cylinder 231XP-3
28 8084 Front End Plate 231-11
29 8340 Cylinder Dowel 230-98
30 8028 Front Rotor Bearing 4U-97
31 8311 Motor Clamp Washer (2) 227-207
32 8087 Hammer Frame Rear Washer 231-706
33 9243 Hammer Frame 2131-703
34 8079 Hammer Pin (2) 231-704
35 8132 Hammer (2) 231XP-724
36 Anvil Assembly (231XP and 231XPS ONLY) 231B-A626
36 8022 Anvil Assembly (231XP-2 and 231XPS-2 ONLY) (2" Extended) 231B-A414
37 8270 Retainer O-Ring R1A-159
38 8088 Socket Retainer 231-425A
39 8082 Hammer Case Assembly 705-A927
40 8032A Hammer Case Gasket 230-36
41 8312 Hammer Case Pilot 405-800
42 8320 Hammer Case Bushing 705-941
43 8151 Hammer Case Cap Screw (3) 231-638
Grease Applicator 230-228
Oil 405-MO1
Grease 405-MG1

9972 Tune Up Kit (Includes: 2, 6[2], 8, 9, 14, 15, 15A, 21, 22, 23, 26, 30, 37, 38, and 40) 231XP-TK1


Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools 100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools

1 lb. Can tool lube. Standard-duty impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Discontinued See 105-1LB
105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube 105-4T Ingersoll-Rand Metallic Housing Grease 4 oz. Tube

105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube. Metallic housing impact wrench grease. For use with GTH-1 grease gun.

Price $14.03
105-4T-6 Ingersoll Rand Metallic Housing Grease Pack (6 Pack) 105-4T-6 Ingersoll-Rand Metallic Housing Grease Pack (6 Pack)

Box of 6 4 oz. Tubes of IR Number 105 Grease. Metallic housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack) 1.

Price $79.85
105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing 105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing

Ingersoll Rand Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $42.20
115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease 115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease

1 lb. Can tool lube. Composite housing impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Unavailable
115-4T Ingersoll Rand Composite Grease 4 oz. Tube 115-4T Ingersoll-Rand Composite Grease 4 oz. Tube

115-4T Ingersoll Rand Composite Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 or other grease gun.

Price $11.44
115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit 115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $36.80
2189 2131-42 Rotor Phenolic Vane With Notch - Sold Each 2189 2131-42 Rotor Phenolic Vane With Notch - Sold Each

Made In The USA2189 2131-42 Rotor Phenolic Vane With Notch - Sold Each

Price $2.34
231-11 Front End Plate (Genuine Ingersoll-Rand Part) 231-11 Ingersoll-Rand Front End Plate

231-11 Front End Plate (Genuine Ingersoll-Rand Part)

Price $18.50
231-TK2 Ingersoll Rand Tune-Up Kit For The IRC-231 231-TK2 Ingersoll-Rand Tune-Up Kit For The IRC-231

Tune-Up Kit For The IRC-231

Price $29.85
231HA Ingersoll-Rand 1/2” Super-Duty Air Impact Wrench With Handle Exhaust 231HA Ingersoll-Rand 1/2" Super-Duty Air Impact Wrench With Handle Exhaust

The 231HA has set the standard for Impactool™ performance for over three decades. Refined engineering and design have perfected performance and made the 231HA one of the most popular tire service Impactools™ ever. This elite mechanism is the perfect balance between superior power and proven durability.

Price $149.95
8004  402-118 Bearing Retainer Equivalent 8004 402-118 Bearing Retainer Equivalent

Made In The USA8004  402-118 Bearing Retainer Equivalent

Price $0.83
8022 231-A414A-2 1/2" Square Anvil 2" 8022 231-A414A-2 1/2" Square Anvil 2"

Made In The USA8022 231-A414A-2 1/2" Square Anvil 2"

Price $47.85
8027  402-22 Bearing Equivalent 8027 402-22 Bearing Equivalent

Made In The USA8027  402-22 Bearing Equivalent

Price $6.40
8028  4U-97 Bearing Equivalent 8028 4U-97 Bearing Equivalent

Made In The USA8028 4U-97 Bearing Equivalent

Price $4.88
8032A  230-36 Hammer Case Gasket Equivalent 8032A 230-36 Hammer Case Gasket Equivalent

Made In The USA8032A 230-36 Hammer Case Gasket Equivalent

Price $0.79
8032B  231-283 End Plate Gasket Equivalent 8032B 231-283 End Plate Gasket Equivalent

Made In The USA8032B 231-283 End Plate Gasket Equivalent

Price $2.00
8079  231-704 Hammer Pin Equivalent 8079 231-704 Hammer Pin Equivalent (each)

Made In The USA8079 231-704 Hammer Pin Equivalent

Price $3.00
8082  705-A927 Hammer Case Equivalent 8082 705-A927 Hammer Case Equivalent

Made In The USA8082  705-A927 Hammer Case Equivalent

Price $102.53
8084  231-11 Front End Plate Equivalent 8084 231-11 Front End Plate Equivalent

Made In The USA8084 231-11 Front End Plate Equivalent

Price $16.09
8085  231-12 Rear End Plate Equivalent 8085 231-12 Rear End Plate Equivalent

Made In The USA8085 231-12 Rear End Plate Equivalent

Price $16.09
8087  231-706 Rear Washer Equivalent 8087 231-706 Rear Washer Equivalent

Made In The USA8087 231-706 Rear Washer Equivalent

Price $3.80
8088  231-425A Socket Retainer 1/2" Equivalent 8088 231-425A Socket Retainer 1/2" Equivalent

Made In The USA8088 231-425A Socket Retainer 1/2" Equivalent

Price $2.40
8132  231XP-724 Hammer 8132 231XP-724 Hammer (Each)

Made In The USA8132 231XP-724 Hammer (Each)

Price $31.30
8151  231-638 Screw/Washer Set (3) 8151 231-638 Screw/Washer Set (3)

Made In The USA8151  231-638 Screw/Washer Set (3)

Price $2.32
8254  131-11 Front End Plate 8254 131-11 Ingersoll-Rand Front End Plate

Made In The USA8254  131-11 Front End Plate

Price $8.48
8263  231-53 Rotor Equivalent 8263 231-53 Rotor Equivalent

Made In The USA8263 231-53 Rotor Equivalent

Price $26.40
8270  R1A-159 Retainer O-ring 1/2" Equivalent 8270 R1A-159 Retainer O-ring 1/2" Equivalent

Made In The USA8270 R1A-159 Retainer O-ring 1/2" Equivalent

Price $0.36
8282  AV1-255 Reversing Valve Detent Ball 8282 AV1-255 Reversing Valve Detent Ball

Made In The USA8282 AV1-255 Reversing Valve Detent Ball

Price $0.65
8306  231-329A Reversing Valve Equivalent 8306 231-329A Reversing Valve Equivalent

Made In The USA8306 231-329A Reversing Valve Equivalent

Price $38.89
8308  231-664 Reversing Valve Detent Spring 8308 231-664 Reversing Valve Detent Spring

Made In The USA8308 231-664 Reversing Valve Detent Spring

Price $1.20
8309  231-666 Reversing Valve Detent Knob 8309 231-666 Reversing Valve Detent Knob

Made In The USA8309 231-666 Reversing Valve Detent Knob

Price $6.90
8310  231-665 Reversing Valve Knob Screw 8310 231-665 Reversing Valve Knob Screw

Made In The USA8310 231-665 Reversing Valve Knob Screw

Price $0.78
8311  227-207 Motor Clamp Washer Equivalent 8311 227-207 Motor Clamp Washer Equivalent

Made In The USA8311 227-207 Motor Clamp Washer Equivalent

Price $5.61
8312  405-800 Hammer Case Pilot Equivalent 8312 405-800 Hammer Case Pilot Equivalent

Made In The USA8312 405-800 Hammer Case Pilot Equivalent

Price $4.95
8320  705-941 Hammer Case Bushing Equivalent 8320 705-941 Hammer Case Bushing Equivalent

Made In The USA8320 705-941 Hammer Case Bushing Equivalent

Price $11.32
8340  230-98 Cylinder Dowel Equivalent 8340 230-98 Cylinder Dowel Equivalent

Made In The USA8340 230-98 Cylinder Dowel Equivalent

Price $7.50
8400  PS3-67 Reversing Valve Bushing Seal 8400 PS3-67 Reversing Valve Bushing Seal

Made In The USA8400 PS3-67 Reversing Valve Bushing Seal

Price $0.32
8666  131-50 / 235-50 Throttle Valve 8666 131-50 / 235-50 Throttle Valve

Made In The USA8666 131-50 / 235-50 Throttle Valve

Discontinued See 8666P
8666P 131-50 / 235-50 Throttle Valve (Plastic) 8666P 131-50 / 235-50 Throttle Valve (Plastic)

Made In The USA8666P 131-50 / 235-50 Throttle Valve (Plastic)

Price $9.90
9120 231-638-10 Ingersoll-Rand Screw (10 Pack) 9120 231-638-10 Ingersoll-Rand Screw (10 Pack)

Made In The USA9120 231-638-10 Ingersoll-Rand Screw (10 Pack)

Discontinued
9243  2131-703 Hammer Frame 9243 2131-703 Hammer Frame

Made In The USA9243  2131-703 Hammer Frame

Price $61.66
9598 131-51 / 235-51 Throttle Valve Spring 9598 131-51 / 235-51 Throttle Valve Spring

Made In The USA9598 131-51 / 235-51 Throttle Valve Spring

Price $4.28
9599  131-303 / 235-303 Throttle Valve Seat 9599 131-303 / 235-303 Throttle Valve Seat

Made In The USA9599  131-303 / 235-303 Throttle Valve Seat

Price $5.82
9907 231-TK2 Ingersoll-Rand Tune-up Kit Equivalent (No Bearings) 9907 231-TK2 Ingersoll-Rand Tune-up Kit Equivalent (No Bearings)

Made In The USA9907 231-TK2 Ingersoll-Rand Tune-up Kit Equivalent (No Bearings). Used On Ingersoll-Rand Models 231, 231C, 231HA, 231HA-2, 231XP. This kit is made in the USA.

Price $18.65
9942P 231-TK3 Ingersoll-Rand Tune-Up Kit Equivalent (Plastic Veins) 9942P 231-TK3 Ingersoll-Rand Tune-Up Kit Equivalent (Plastic Veins)

Made In The USA9942P 231-TK3 Ingersoll-Rand Tune-Up Kit Equivalent (Plastic Veins). Used On Ingersoll-Rand Models 231, 231C, 231HA, 231HA-2, 231XP. The kit contains:  Rotor Vanes (Plastic), Bearing Retainer, Throttle Spring, Bearings, Hammer Case Gasket, End Plate Gasket, Socket Retainer, Retainer O-Ring, Reverse Valve Detent Ball, Reverse Valve Detent Spring, Throttle Valve Face and Reverse Valve Bushing Seal. This kit is made in the USA.

Price $26.58
9943 231-THK1 Ingersoll-Rand Hammer Kit Old style Standard Anvil 9943 231-THK1 Ingersoll-Rand Hammer Kit Old style Standard Anvil

Made In The USA9943 231-THK1 Ingersoll-Rand Hammer Kit Old style Standard Anvil. Used On Ingersoll-Rand Models 231, 231H, 231C, 231XP

Price $55.89
9944 231-THK2 Ingersoll-Rand Hammer Kit Old style Extended Anvil 9944 231-THK2 Ingersoll-Rand Hammer Kit Old style Extended Anvil

Made In The USA9944 231-THK2 Ingersoll-Rand Hammer Kit Old style Extended Anvil. Used On Ingersoll-Rand Models 231-2, 231, 231H, 231C, 231XP

Price $69.22
9972  231XP-TK1 Tune Up Kit Equivalent 9972 231XP-TK1 Ingersoll-Rand Tune Up Kit Equivalent

Made In The USA231XP-TK1 Tune-up Kit . Used On Ingersoll-Rand Models 231, 231H, 231C, 231XP. The kit contains: Rotor Vanes, Bearing Retainer, Bearings, Hammer Case Gasket, End Plate Gasket, Socket Retainer, Retainer O-Ring, Reverse Valve Detent Ball, Reverse Valve Detent Spring, Reverse Valve Bushing Seal, Throttle Valve, Throttle Valve Spring and Throttle Valve Seat.

Price $38.87
9981 231B-THK2 Ingersoll-Rand Hammer Kit Equivalent 9981 231B-THK2 Ingersoll-Rand Hammer Kit Equivalent

Made In The USA9981 231B-THK2 Ingersoll-Rand Hammer Kit Equivalent - For use in repairing Ingersoll-Rand models 231C, 231H, 231XP, 231XP-2, 244 & 244A impact wrenches.

Price $95.21
9985 231HP-TK1 Ingersoll-Rand Tune Up Kit Equivalent 9985 231HP-TK1 Ingersoll-Rand Tune Up Kit Equivalent

Made In The USA9985 231HP-TK1 Ingersoll-Rand Tune Up Kit Equivalent. Used On Ingersoll-Rand Models 231HA,  231HA-2,  231G, 231, 231H, 231C, 231XP

Price $27.98
9987 231B-THK1 Ingersoll-Rand Hammer Kit Equivalent 9987 231B-THK1 Ingersoll-Rand Hammer Kit Equivalent

Made In The USA9987 231B-THK1 Ingersoll-Rand Hammer Kit Equivalent. Used On Ingersoll-Rand Models 244A, 231HA, 231, 231H, 231C, 231XP

Price $74.42
GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease. GTH-1 Ingersoll-Rand Grease Tube Head

GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease.

Price $19.87
R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings

Made In The USAIngersoll Rand R000A2-228 Push-type hand grease gun for flush-type fittings, holds up to 3 oz of grease.

Price $14.50
