Ingersoll-Rand 2135TiMAX 1/2" Drive Air Impact Wrench Repair Parts

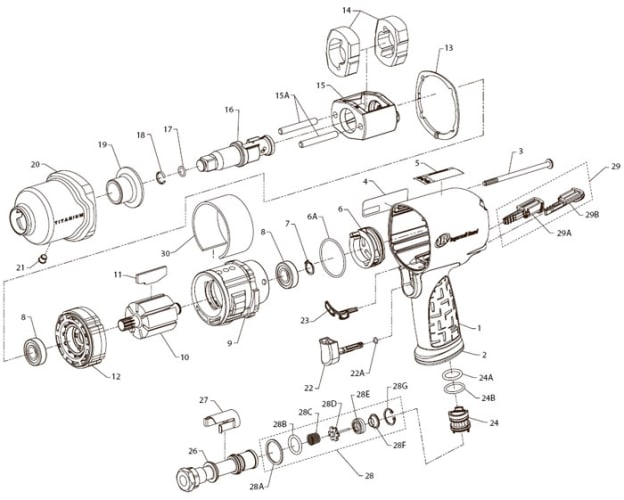

2135TiMAX Series Parts List
Item Part Number Part Description IR Equivalent
Housing Assembly
for model 2135TiMAX 2135TiMAX-A40
for model 2135Ti-2MAX 2135Ti-2MAX-A40
for model 2135QTiMAX 2135QTiMAX-A40
for model 2135QTi-2MAX 2135QTi-2MAX-A40
for model 2135PTiMAX 2135PTiMAX-A40
for model 2135QPTiMAX 2135QPTiMAX-A40
1 9208 Housing Older 2135 Only (Plain Handle) ---
1 9301 Housing New Handle (Stamped "Max")
---
2 Exhaust Deflector ---
4 Information Label ---
5 Warning Label ---
23 Gasket, Motor ---

Reverse Valve Assembly ---
29 Button Kit ---
3 9384 Screw, Hammer Case (4 required) 2135-638
4 Information Label
for model 2135TiMAX 2135TiMAX-300
for model 2135Ti-2MAX 2135Ti-2MAX-300
for model 2135QTiMAX 2135QTiMAX-300
for model 2135QTi-2MAX 2135QTi-2MAX-300
for model 2135PTiMAX 2135PTiMAX-300
for model 2135QPTiMAX 2135QPTiMAX-300
5 Warning Label WARNING-2-99
9328 Power Regulator Assembly 2135-D249A
6 Power Regulator ---
6A 8741 O-Ring, Power Regulator ---
7 8689 Retaining Ring 2131-6
8 8101 Ball Bearing (2 required) 2131-97
9 9601/8838 Cylinder 2135-3
10 9106 Rotor 2135-53
11 2456 Vane Pack (set of 7) 2135-42A-7
12 8683 End Plate 2131-11
13 9505 Hammer Case Gasket 2135-36

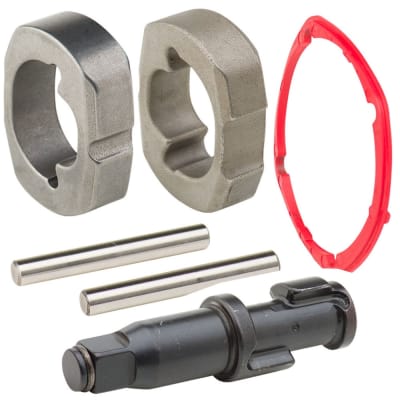

Hammer Kit
for models 2135TiMAX and 2135QTiMAX 2135-THK1
for models 2135Ti-2MAX and 2135QTi-2MAX 2135-2-THK1

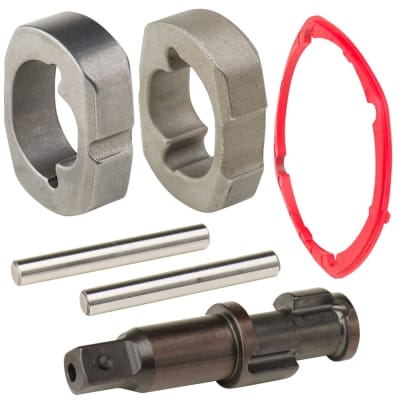

for models 2135PTiMAX and 2135QPTiMAX 2135PTi-THK1
13 Hammer Case Gasket ---
14 8132 Hammer (2) ---
15A 8779 Hammer Pin (2) 2131-704
Anvil Assembly ---

Kit Grease ---

9532 Hammer Frame Kit 2135-K703
15 Hammer Frame ---
15A Hammer Pin (2) ---
Kit Grease ---
16 Anvil Assembly
8630 for models 2135TiMAX and 2135QTiMAX 231B-A626
8596 for models 2135Ti-2MAX and 2135QTi-2MAX 231B-A414
9217 for models 2135PTiMAX and 2135QPTiMAX 231B-A726
16 Anvil ---

Socket Retainer Kit ---

Socket Retainer Kit
for models 2135TiMAX, 2135QTiMAX,2135Ti-2MAX, and 2135QTi-2MAX(1/2” Ring-type) 2125QTi-K425
for models 2135PTiMAX and2135QPTiMAX (1/2” Pin-type) 2125PTi-K425
17 8270 O-Ring or Socket Retainer Spring ---
18 8088/8155 Socket Retainer ---
19 9569 Bushing, Hammer Case 2135-941
9574 Hammer Case Assembly 2135-D727A
19 Bushing, Hammer Case ---
20 Hammer Case ---
21 Grease Fitting ---
21 Grease Fitting 130SR-188
Trigger Assembly 2135-D93B
22 8972/8978 Trigger ---
22A 9503 O-Ring, Trigger ---
23 8591 Gasket, Motor 2131-283
Reverse Valve Assembly 2131-A329
24 8771 Reverse Valve ---
24A 9504/8771T O-Ring, Reverse Valve (Top-Black) ---
24B 8771B O-Ring, Reverse Valve (Bottom-Blue) ---
Inlet Bushing Assembly 2135-D565A
26 9143 Inlet Bushing ---
27 9144 Inlet Clip 2131-57
28 8624 Inlet Parts Kit 2135-K303
28A 8747 Washer ---
28B 8745 O-Ring, Seal ---
28C 8739 Throttle Spring ---
28D 8725 Throttle Valve ---
28E 8734 Valve Seat ---
28F 8744 Seat Support ---
28G 8746 Retainer ---
29 9331 Button Kit 2135-K75
29A Forward Button ---
29B Reverse Button ---
30 Silencer (for models 2135QTiMAX, 2135QTi-2MAX,and 2135QPTiMAX) 2131QT-311
9978

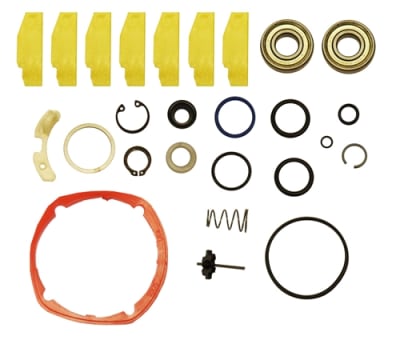

9978P
Tune-Up Kit
(9978P has plastic rotor vanes)
2135-TK2
6A 8741 O-Ring, Power Regulator ---
7 8689 Retaining Ring ---
8 8101 Ball Bearing (2) ---
11 2456 Vane Pack (set of 7) ---
13 9505 Hammer Case Gasket ---
17 8270 O-Ring ---
18 8088/8155 Socket Retainer ---
22A 9503 O-Ring, Trigger ---
23 8591 Gasket, Motor ---
24A 9504/8771T O-Ring, Reverse Valve (Top-Black) ---
24B 8771B O-Ring, Reverse Valve (Bottom-Blue) ---
28 8624 / 8592 Inlet Parts Kit ---
Inlet Clip Removal Tool 2131-322
Air Care Kit (grease gun, grease, oil) 115-LBK1
Grease (replacement tube for -LBK1) 115-4T
Air Tool Oil (4 oz. bottle) 10Z4
Grease (1 lb can) 105-1LB
Grease (8 lb can) 105-8LB
Grease Gun R000A2-228


Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools 100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools

1 lb. Can tool lube. Standard-duty impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Discontinued See 105-1LB
105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube 105-4T Ingersoll-Rand Metallic Housing Grease 4 oz. Tube

105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube. Metallic housing impact wrench grease. For use with GTH-1 grease gun.

Price $14.03
105-4T-6 Ingersoll Rand Metallic Housing Grease Pack (6 Pack) 105-4T-6 Ingersoll-Rand Metallic Housing Grease Pack (6 Pack)

Box of 6 4 oz. Tubes of IR Number 105 Grease. Metallic housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack) 1.

Price $79.85
105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing 105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing

Ingersoll Rand Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $42.20
115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease 115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease

1 lb. Can tool lube. Composite housing impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Unavailable
115-4T Ingersoll Rand Composite Grease 4 oz. Tube 115-4T Ingersoll-Rand Composite Grease 4 oz. Tube

115-4T Ingersoll Rand Composite Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 or other grease gun.

Price $15.00
115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit 115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $36.80

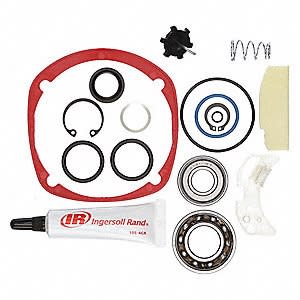

2135-TK2 Ingersoll Rand Tune-Up Kit For The IRC-2135 2135-TK2 Ingersoll-Rand Tune-Up Kit For The IRC-2135

2135-TK2 Tune-up Kit. Used On Ingersoll-Rand Models 2135TI, 2135TIMAX, 2350XP. The kit contains: Rotor Vanes, Socket Retainer, Bearings, Retainer O-Ring, Motor Gasket, Inlet Parts Kit, Retainer, O-Rings and Hammer Case Gasket.

Price $63.60
2135QXPA Ingersoll-Rand 1/2" Air Impact Wrench 2135QXPA Ingersoll-Rand 1/2" Air Impact Wrench

The Ingersoll Rand 2135QXPA Series Impactool™ was built on the hardworking and respected foundation laid by the 2135TiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet. The 2135QXPA is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs. Punish the toughest bolts with 780 ft-lbs. of max reverse torque and 1,100 ft-lbs. of nut-busting torque. All powered by Ingersoll Rand’s finely tuned motor and twin-hammer impact mechanism. Backed by a one-year warranty.

Price $179.95
2235QTIMAX Ingersoll-Rand 1/2" Quiet Air Impact Wrench 2235QTIMAX Ingersoll-Rand 1/2" Quiet Air Impact Wrench

Introducing the Ingersoll Rand 2235 Series Impactool™. A powerful, durable and reliable workhorse whose reputation is built on helping you build yours, because you don’t do a job halfway, and neither do our tools. Ingersoll Rand’s Quiet Technology reduces the sound of the tool. Sparing your ears without sacrificing the power to get REAL WORK done. Punish the toughest bolts with 1,300 ft-lbs of nut-busting torque and 900 ft-lbs. of max reverse torque powered by Ingersoll Rand’s finely tuned twin-hammer impact mechanism. From the garage to the most demanding industrial sites, there is no job that will stand in its way. At only 4.7 pounds less is weighing you down, so you can work harder and faster for longer stretches of time.

Price $334.95

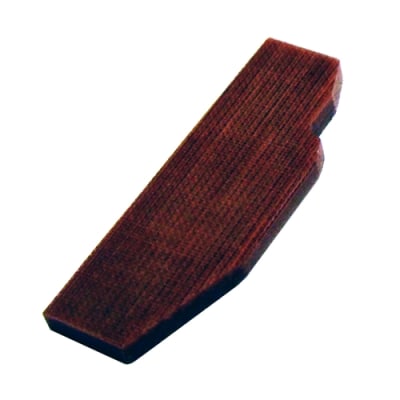

2456  2135-42A Rotor Vane Equivalent w/notch 2456 2135-42A Rotor Vane Equivalent w/notch Sold Each

Made In The USA2456  2135-42A Rotor Vane Equivalent w/notch - Sold Each

Price $2.34
8088  231-425A Socket Retainer 1/2" Equivalent 8088 231-425A Socket Retainer 1/2" Equivalent

Made In The USA8088 231-425A Socket Retainer 1/2" Equivalent

Price $2.40
8101  2131-97 Bearing Equivalent 8101 2131-97 Bearing Equivalent

Made In The USA8101  2131-97 Bearing Equivalent

Price $6.00

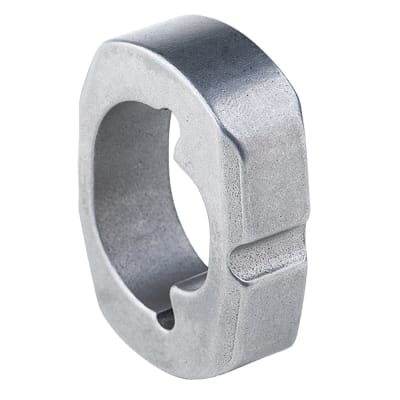

8132  231XP-724 Hammer 8132 231XP-724 Hammer (Each)

Made In The USA8132 231XP-724 Hammer (Each)

Price $31.30
8155  2135-425 Socket Retainer 1/2" 8155 2135-425 Socket Retainer 1/2"

Made In The USA8155  2135-425 Socket Retainer 1/2"

Price $2.40

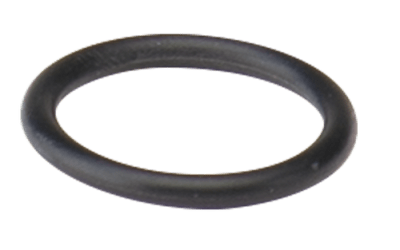

8270  R1A-159 Retainer O-ring 1/2" Equivalent 8270 R1A-159 Retainer O-ring 1/2" Equivalent

Made In The USA8270 R1A-159 Retainer O-ring 1/2" Equivalent

Price $0.36
8591  2131-283 Motor Gasket 8591 2131-283 Motor Gasket

Made In The USA8591  2131-283 Motor Gasket

Price $4.28
8592  2131-K303 Inlet Parts Kit Equivalent 8592 2131-K303 Inlet Parts Kit Equivalent

Made In The USA8592 2131-K303 Inlet Parts Kit Includes, 8725 Throttle Valve, 8734 Throttle Valve Seat, 8739 Throttle Valve Spring, 8744 Valve Seat Support, 8745 O-Ring (Black), 8746 Valve Seat Retainer, 8747 Inlet Washer.

Price $12.25
8594  2131-322 Inlet Remover 8594 2131-322 Inlet Remover

Made In The USA8594  2131-322 Inlet Remover

Price $30.00
8596  231B-A414 Extended 2" Anvil Equivalent 8596 231B-A414 Extended 2" Anvil Equivalent

Made In The USA8596  231B-A414 Extended 2" Anvil Equivalent

Price $48.80
8624  2135-K303 Inlet Parts Kit Equivalent 8624 2135-K303 Inlet Parts Kit Equivalent

Made In The USA8624 Inlet parts kit Includes 8747 Washer, 8745 O-Ring Seal, 8739 Throttle Spring, 8725 Throttle Valve, 8734 Valve Seat, 8744 Seat Support, 8746 Retainer.

Price $12.25

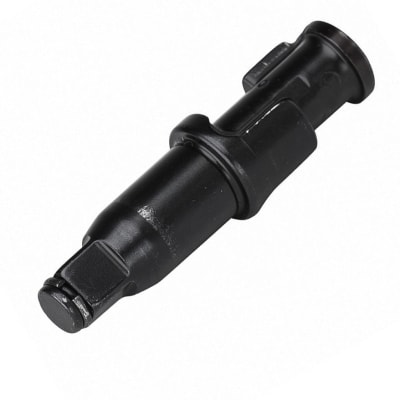

8630  231B-A626 Anvil 1/2" Equivalent 8630 231B-A626 Anvil 1/2" Equivalent

Made In The USA8630  231B-A626 Anvil 1/2" Equivalent

Price $43.76
8683  2131-11 Front plate 8683 2131-11 Front plate

Made In The USA8683  2131-11 Front plate

Price $54.78
8689  2131-6 Retainer 8689 2131-6 Retainer

Made In The USA8689  2131-6 Retainer

Price $0.95
8725  2131-302 Valve Equivalent 8725 2131-302 Valve Equivalent

Made In The USA8725  2131-302 Valve Equivalent

Price $4.34
8734  2131-303 Valve Seat Equivalent 8734 2131-303 Valve Seat Equivalent

Made In The USA8734  2131-303 Valve Seat Equivalent

Price $3.16
8739  2131-51 Throttle valve spring 8739 2131-51 Throttle valve spring

Made In The USA8739  2131-51 Throttle valve spring

Price $1.45
8741  PS3-42 Power mgmt. Dial seal 8741 PS3-42 Power mgmt. Dial seal

Made In The USA8741  PS3-42 Power mgmt. Dial seal

Price $0.88
8744  2131-Valve seat support 8744 2131-Valve seat support

Made In The USA8744  2131-Valve seat support

Price $2.74
8745  2131-566 O-ring (Black) 8745 2131-566 O-ring (Black)

Made In The USA8745  2131-566 O-ring (Black)

Price $0.63
8746  2131-340 valve seat retainer 8746 2131-340 valve seat retainer

Made In The USA8746  2131-340 valve seat retainer

Price $0.61
8747  2131-286 Inlet Washer 8747 2131-286 Inlet Washer

Made In The USA8747  2131-286 Inlet Washer

Price $1.80
8771  2131-A329 Reversing Valve Assembly 8771 2131-A329 Reversing Valve Assembly

Made In The USA8771  2131-A329 Reversing Valve Assembly. For O-rings only, See 8771T Top O-ring (Black) or 8771B Bottom O-ring (Blue).

Price $28.84
8779  2131-704 Hammer Pin 8779 2131-704 Hammer Pin

Made In The USA8779  2131-704 Hammer Pin

Price $5.20
8838  2131-3A Cylinder 8838 2131-3A Cylinder

Made In The USA8838  2131-3A Cylinder

Price $36.07
8972  2135-D93B Trigger (Black) 8972 2135-D93B Trigger (Black)

Made In The USA8972  2135-D93B Trigger (Black)

Price $9.90
8978  2135-D93 Trigger (Red) 8978 2135-D93 Trigger (Red)

Made In The USA8978  2135-D93 Trigger (Red)

Price $9.00
9106  2135-53 Rotor 9106 2135-53 Rotor

Made In The USA9106  2135-53 Rotor

Price $132.50
9143 2135-D565A Bushing Assembly 9143 2135-D565A Bushing Assembly

Made In The USA9143  2135-D565A Bushing Assembly. Includes inlet Bushing, 8624 Inlet parts kit, and 9144 Inlet Retainer Clip.

Price $40.00
9144 2131-57 Inlet Retainer Clip 9144 2131-57 Inlet Retainer Clip

Made In The USA9144 2131-57 Inlet Retainer Clip

Price $6.77
9208  2135-A40 Housing Assembly (SUB 9301) 9208 2135-A40 Housing Assembly (SUB 9301)

Made In The USA9208  2135-A40 Housing Assembly (SUB 9301)

Price $97.58
9217 231B-A726 Anvil (Pin Style Retention) 9217 231B-A726 Anvil (Pin Style Retention)

Made In The USA9217 231B-A726 Anvil (Pin Style Retention). Does not have pin or spring. 8795 804-716 Ingersoll-Rand Socket Retaining Plunger Pin. 8795 804-716 Socket Retaining Plunger Pin

Price $58.06
9301  2135TIMAX-A40 Housing Assembly 9301 2135TIMAX-A40 Housing Assembly

Made In The USA9301  2135TIMAX-A40 Housing Assembly

Price $94.05
9328  2135-D249A Power Regulator Assy Red 9328 2135-D249A Power Regulator Assy Red

Made In The USA9328  2135-D249A Power Regulator Assy Red

Price $6.37
9331 2135-K75 Ingersoll-Rand Reversing Valve Button Kit 9331 2135-K75 Ingersoll-Rand Reversing Valve Button Kit

Made In The USA9331  2135-K75 Ingersoll-Rand Reversing Valve Button Kit

Price $15.68
9384  2135-638 Screw 9384 2135-638 Screw

Made In The USA9384  2135-638 Screw

Price $7.00
9503  2135-158 O-ring 9503 2135-158 O-ring

Made In The USA9503  2135-158 O-ring

Price $0.78
9504  R18LF-21 O-ring 9504 R18LF-21 O-ring

Made In The USA9504  R18LF-21 O-ring

Price $0.78

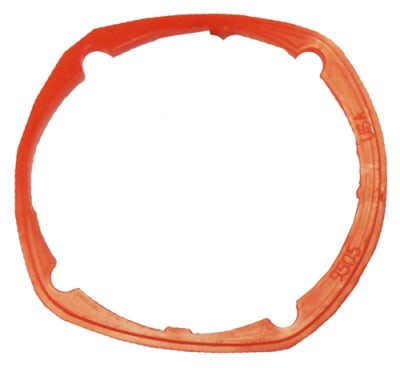

9505  2135-36 Hammer Case Gasket 9505 2135-36 Hammer Case Gasket

Made In The USA9505  2135-36 Hammer Case Gasket

Price $3.30

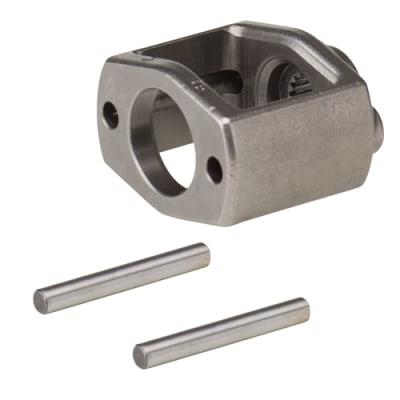

9532  2135-K703 Hammer Frame Kit 9532 2135-K703 Hammer Frame Kit

Made In The USA9532  2135-K703 Hammer Frame Kit

Price $98.36
9569  2135-941 Hammer Case Bushing 9569 2135-941 Hammer Case Bushing

Made In The USA9569  2135-941 Hammer Case Bushing

Price $25.80
9574  2135-D727A Hammer Case Assembly 9574 2135-D727A Hammer Case Assembly

Made In The USA9574  2135-D727A Hammer Case Assembly

Price $302.66
9601  2135-3 Cylinder 9601 2135-3 Cylinder

Made In The USA9601  2135-3 Cylinder

Price $36.07

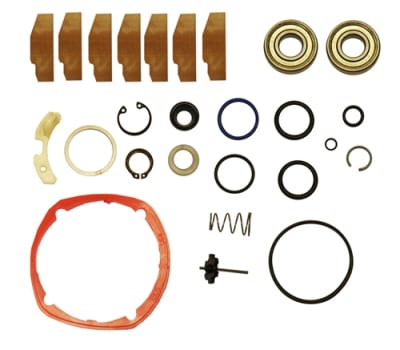

9978  2135-TK2 Tune Up Kit Equivalent 9978 2135-TK2 Ingersoll-Rand Tune Up Kit Equivalent

Made In The USA2135-TK2 Tune-up Kit. Used On Ingersoll-Rand Models 2135TI, 2135TIMAX, 2350XP. The kit contains: Rotor Vanes, Socket Retainer, Bearings, Retainer O-Ring, Motor Gasket, Inlet Parts Kit, Retainer, Power Management Dial Seal, O-Rings and Hammer Case Gasket. This kit is made in the USA.

Price $28.88
9978P  2135-TK2 Tune-Up Kit Plastic 9978P 2135-TK2 Ingersoll-Rand Tune-Up Kit Plastic

Made In The USA2135-TK2 Tune-Up Kit Plastic . Used On Ingersoll-Rand Models 2135TI, 2135TIMAX, 2350XP. The kit contains: Rotor Vanes (Plastic), Socket Retainer, Bearings, Retainer O-Ring, Motor Gasket, Inlet Parts Kit, Retainer, Power Management Dial Seal, O-Rings and Hammer Case Gasket. This kit is made in the USA.

Price $35.40
9979  2135-THK1 Hammer Kit Equivalent 9979 2135-THK1 Ingersoll-Rand Hammer Kit Equivalent

Made In The USA9979 2135-THK1 Hammer Kit Equivalent. includes:8132 (2), 8630, 8779 (2), 9505 Made in USA. Used On Ingersoll-Rand Models 2135Ti,  2135QTi, 2135TiMAX

Price $93.23

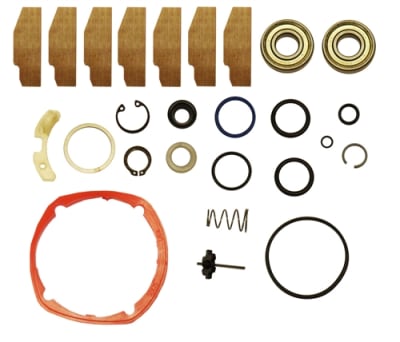

9983  2135PTI-TK1 Tune Up Kit Equivalent 9983 2135PTI-TK1 Ingersoll-Rand Tune Up Kit Equivalent

Made In The USA2135PTI-TK1 Tune-up Kit. Used On Ingersoll-Rand Models 2135PTi,  2135QPTi, 2135PTiMAX,  2135QPTiMAX. The kit contains: Rotor Vanes, Bearings, Motor Gasket, Inlet Pars Kit, Retainer, Power Management Dial Seal, O-Rings, Socket Retaining Plunger Pin, Retaining Plunger Spring and Hammer Case Gasket .

Price $39.90
9986  2135-2THK1 Hammer Kit Equivalent 9986 2135-2THK1 Ingersoll-Rand Hammer Kit Equivalent

Made In The USA2135-2THK1 Hammer Kit. Used On Ingersoll-Rand Models 2135Ti-2,  2135QTi-2,  2135Ti-2MAX,  2135QTi-2MAX. The kit contains: Hammers, 2" Extended Anvil, Hammer Pins and Hammer Case Gasket.

Price $101.89
9999 2135PTI-THK1 Ingersoll-Rand Hammer Kit Equivalent (Pin Type) 9999 2135PTI-THK1 Ingersoll-Rand Hammer Kit Equivalent (Pin Type)

Made In The USA9999 2135PTI-THK1 Ingersoll-Rand Hammer Kit Equivalent (Pin Type). Used On Ingersoll-Rand Models 2135PTi,  2135QPTi, 2135PTiMAX, 2135QPTiMAX. The kit contains: Anvil (Pin Type), Hammer Case Gasket, Hammer and Hammer Pins.

Price $104.85
GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease. GTH-1 Ingersoll-Rand Grease Tube Head

GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease.

Price $22.25
R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings

Made In The USAIngersoll Rand R000A2-228 Push-type hand grease gun for flush-type fittings, holds up to 3 oz of grease.

Price $14.50
