Ingersoll-Rand 1720B 3/4" Drive Air Impact Wrench Repair Parts

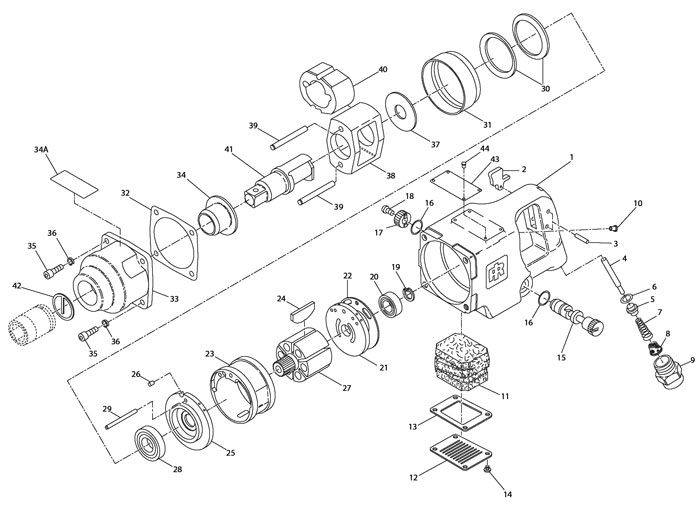

IR 1720B 3/4" Drive Parts List
Item Part Number Part Description IR Equivalent
1

Motor Housing Assembly
1720B-A40
2
8752
Trigger
834-93A
3

Trigger Pin
534-265
4
8410
Throttle Valve Plunger
2920B-302
5

Throttle Valve Assembly
834-50
6

Throttle Valve Face
435-159
7
8555
Throttle Valve Spring
834-51
8
8556
Air Strainer Screen
434-61
9

Air Inlet Bushing
834-565
10

Grease Fitting
130SR-188
11

Exhaust Silencer
1720B-311
12

Exhaust Deflector
2910B-23
13

Exhaust Deflector Gasket
2910B-223
14

Exhaust Deflector Screw (4)
H54U-667
15
8419
Reverse Valve
1710B-329
16
8207
Reverse Valve Seal (2)
261-283
17
8309
Reverse Valve Knob
231-666
18
8310
Reverse Valve Knob Screw
231-665
19
8039
Rear Rotor Bearing Retainer
MVA008-218
20
8038
Rear Rotor Bearing 4E-510
21

Rear End Plate
2921HP-12
22
8034B
Rear End Plate Gasket
2920B-283
23
8096
Cylinder
2920-3
24
2157P (ea) Rotor Vane (6 required)
2910-42-6
25
8091 Front End Plate
2921HP-11
26
8171
End Plate Dowel
2920-74
27
8429

Rotor
2910B-53
28
8037
Front Rotor Bearing
834-24
29
8326
Cylinder Dowel
910-98
30
8325 (ea) Motor Clamp Washer (2)
2920-207
31
8410
Motor Retainer
2920B-800
32
8034A
Hammer Case Gasket
910-36
33

Hammer Case Assembly
1720B-A727
34
8119
Hammer Case Bushing
2920-641
34A

Warning Label
WARINING-2-99
35
8412 (ea) Hammer Case Cap Screw (4)
34U-103
36
8413 (ea)
Cap Screw Lock Washer (4)
34U-58
37
8414
Rear Hammer Frame Washer
910-706
38
8415
Hammer Frame Assembly
2910-A703
39
8416
Hammer Pin (2)
2910-704
40
8417
Hammer
260-724
41

Anvil
260-762
42

Socket Retainer
RR10034S
43

Nameplate
1720B-301
44

Nameplate Screw (4)
C32-302
*

Dead Handle Bracket
2910B-364
*
8751
Dead Handle
834-48
*

Horizontal Hanger
910-366
*

Tune-up Kit (Includes 6, 7, 8, 11,
13, 16 [2], 19, 20, 22, 24, 28 & 32)
 1720B-TK2


Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
2157 2910-42 Rotor Vane Equivalent 2157 2910-42 Rotor Vane Equivalent Sold Each

Made In The USA2157 2910-42 Rotor Vane Equivalent - The original part 2910-42-6 (6 pack) is now gone and these are Sold Each.

Price $2.64
2920-3 Cylinder (Genuine Ingersoll-Rand Part) 2920-3 Ingersoll-Rand Cylinder

2920-3 Cylinder (Genuine Ingersoll-Rand Part)

Price $225.00
8034A 910-36 Hammer Case Gasket 8034A 910-36 Hammer Case Gasket

Made In The USA8034A  910-36 Hammer Case Gasket

Price $4.00
8034B 2920B-283 Rear End Plate Gasket 8034B 2920B-283 Rear End Plate Gasket

Made In The USA8034B  2920B-283 Rear End Plate Gasket

Price $3.20
8037 834-24 Bearing Equivalent 8037 834-24 Bearing Equivalent

Made In The USA8037  834-24 Bearing Equivalent

Price $12.75
8038 4E-510 Bearing Equivalent 8038 4E-510 Bearing Equivalent

Made In The USA8038  4E-510 Bearing Equivalent

Price $7.50
8039 MVA008-218 Rear Rotor Retainer Ring 8039 MVA008-218 Rear Rotor Retainer Ring

Made In The USA8039 MVA008-218 Rear Rotor Retainer Ring

Price $1.94
8091 2920-11/2921HP-11 Front Plate 8091 2920-11/2921HP-11 Front Plate

Made In The USA8091  2920-11/2921HP-11 Front Plate

Price $66.00
8096 2920-3 Cylinder Equivalent 8096 2920-3 Cylinder Equivalent

Made In The USA8096  2920-3 Cylinder Equivalent

Price $132.00
8119 2920-641 Hammer Case Bushing 8119 2920-641 Hammer Case Bushing

Made In The USA8119  2920-641 Hammer Case Bushing

Price $64.35
8171 2920-74 End Plate Dowel 8171 2920-74 End Plate Dowel

Made In The USA8171  2920-74 End Plate Dowel

Price $4.95
8207 261-283 Reversing Valve Seal 8207 261-283 Reversing Valve Seal

Made In The USA8207  261-283 Reversing Valve Seal

Price $1.78
8309 231-666 Reversing Valve Detent Knob 8309 231-666 Reversing Valve Detent Knob

Made In The USA8309 231-666 Reversing Valve Detent Knob

Price $6.90
8310 231-665 Reversing Valve Knob Screw 8310 231-665 Reversing Valve Knob Screw

Made In The USA8310 231-665 Reversing Valve Knob Screw

Price $0.78
8325 2920-207 Motor Clamp Washer Equivalent 8325 2920-207 Motor Clamp Washer Equivalent

Made In The USA8325  2920-207 Motor Clamp Washer Equivalent

Price $6.37
8326 910-98 Cylinder Dowel Equivalent 8326 910-98 Cylinder Dowel Equivalent

Made In The USA8326  910-98 Cylinder Dowel Equivalent

Price $4.20
8410 2920B-800 Motor Retainer 8410 2920B-800 Motor Retainer

Made In The USA8410  2920B-800 Motor Retainer

Price $53.08
8412 34U-103 Hammer Case Cap Screw (ea.) 8412 34U-103 Hammer Case Cap Screw (ea.)

Made In The USA8412  34U-103 Hammer Case Cap Screw (ea.)

Price $1.05
8413 34U-58 Cap Screw Lock Washer (ea.) 8413 34U-58 Cap Screw Lock Washer (ea.)

Made In The USA8413  34U-58 Cap Screw Lock Washer (ea.)

Price $0.51
8414 910-706 Hammer Frame Washer 8414 910-706 Hammer Frame Washer

Made In The USA8414  910-706 Hammer Frame Washer

Price $16.50
8415 2910-A703 Hammer Frame With Pins 8415 2910-A703 Hammer Frame With Pins

Made In The USA8415 2910-A703 Hammer Frame With Pins

Price $165.00
8416 2910-704 Hammer Pin (Each) 8416 2910-704 Hammer Pin (Each)

Made In The USA8416 2910-704 Hammer Pin (Each)

Price $10.31
8417 260-724 Hammer Equivalent 8417 260-724 Hammer Equivalent

Made In The USA8417  260-724 Hammer Equivalent

Price $145.40
8419 1710B-329 Reversing Valve 8419 1710B-329 Reversing Valve

Made In The USA8419  1710B-329 Reversing Valve

Discontinued See 8471
8429 2910B-53 Ingersoll-Rand Rotor 8429 2910B-53 Ingersoll-Rand Rotor

Made In The USA8429 2910B-53 Ingersoll-Rand Rotor

Price $249.95
8555 834-51 Throttle Valve Spring 8555 834-51 Throttle Valve Spring

Made In The USA8555  834-51 Throttle Valve Spring

Price $2.18
8556 434-61 Air Strainer Screen 8556 434-61 Air Strainer Screen

Made In The USA8556  434-61 Air Strainer Screen

Price $5.78
8751 834-48 Dead Handle 8751 834-48 Dead Handle

Made In The USA8751  834-48 Dead Handle

Price $29.70
8752 834-93A Trigger Equivalent (plastic) 8752 834-93A Trigger Equivalent (plastic)

Made In The USA8752  834-93A Trigger Equivalent (plastic)

Price $17.33
