IR 1712 Series Parts List
|
|
Item
|
Part
Number
|
Part
Description
|
IR Part
Number
|
|
1
|
|
Inside Trigger Handle Assembly
|
1712-A92
|
2
|
|
Grease Fitting
|
130SR-188
|
5
|
|
Inside Trigger
|
834-93A
|
6
|
|
Inside Trigger Pin
|
534-265
|
7
|
8599
|
Throttle Valve Plunger
|
2934-302
|
8
|
8598
|
Throttle Valve Assembly
|
2934-A50
|
9
|
8554
|
Throttle Valve Face
|
2934-159
|
10
|
8555
|
Throttle Valve Spring
|
834-51
|
11
|
8650
|
Straight Inlet
|
845-565
|
12
|
8556
|
Air Strainer Screen
|
434-61
|
13
|
|
Reverse Valve Seal
|
R00BR-210
|
15
|
8558
|
Handle Gasket
|
2934-283
|
16
|
|
Motor Clamp Washer
|
2934-207
|
17
|
8175
|
Rear End Plate
|
2934-12
|
18
|
8559
|
Rear Rotor Bearing
|
508-97
|
19
|
9709
|
Rotor
|
2934-53
|
20
|
2158
|
Rotor Vanes (requires 6)
|
2934-42-6
|
21
|
9707
|
Cylinder
|
2934-3
|
22
|
8730
|
Front End Plate
|
2934-11
|
23
|
8560
|
Front Rotor Bearing
|
810-97
|
24
|
|
Cylinder Dowel
|
2934-98
|
25
|
|
Motor Housing Assembly
|
1712-A40
|
26
|
|
Reverse Valve Bushing
|
2934-330S
|
27
|
8579
|
Air Port Gasket (2)
|
R44H-210A
|
27A
|
|
Air Port Gasket Retainer (2)
|
2940-200
|
28
|
8850
|
Reverse Lever
|
2934-658A
|
29
|
8561
|
Reverse Lock Plunger
|
4U-663B
|
30
|
8562
|
Reverse Lock Plunger Spring
|
4U-664
|
31
|
|
Reverse Valve Assembly
|
2934-A329
|
32
|
8283
|
Valve Seal
|
85H-167
|
33
|
|
Hammer Case Assembly
|
1712B-A727
|
34
|
|
Hammer Case Bushing
|
2934-641
|
34A
|
|
Warning Label
|
WARNING-2-99
|
35
|
8563
|
Hammer Case Gasket
|
2934-36
|
36
|
|
Hammer Case Cap Screw (4)
|
834-638
|
37
|
8413
|
Hammer Case Cap Screw Lockwasher (4)
|
34U-58
|
38
|
|
Handle Cap Screw (4)
|
510-638
|
39
|
|
Handle Cap Lockwasher (4)
|
8U-S8
|
40
|
8851
|
Hammer Frame Assembly
|
2934-A703
|
41
|
8852A
|
Hammer Pin (2)
|
2934-704
|
42
|
|
Hammer
|
1712-724
|
*
|
8751
|
Dead Handle
|
834-48
|
43
|
|
Side Spade Handle
|
T15-41
|
44
|
|
Side Spade Handle Stud
|
534-148
|
45
|
|
Side Spade Handle Stud Nut
|
107-73A
|
45A
|
8885
|
Side Spade Handle Bracket
|
2934-364
|
45B
|
|
Side Spade Handle Bracket Spacer (2)
|
2934-140
|
46
|
|
1" Square Drive Anvil (standard)
|
1712-726
|
46
|
|
1" Square Drive Anvil (6" extended)
|
280-726-6
|
47
|
|
Retainer Ring (for 1" square drive)
|
RR100155
|
49
|
|
Spline Drive Anvil (standard)
|
1712-A526
|
49
|
|
Spline Drive Anvil (6" extended)
|
280-A514-6
|
50
|
8141
|
Retaining Plunger Spring
|
2940-231
|
51
|
8143
|
Socket Retaining Ball
|
D04-280
|
52
|
|
Retining Ball Plunger
|
845-230
|
53
|
8142
|
Plunger Retaining Pin
|
845-128
|
54
|
|
Exhaust Deflector
|
280-167
|
55
|
|
Exhaust Deflector Screw (2)
|
W54-376
|
56
|
|
Nameplate
|
1712-301
|
57
|
|
Nameplate Screw (4)
|
C32-302
|
*
|
|
Exhaust Deflector Kit
|
2934-K23
|
*
|
|
Exhaust Baffle
|
2934-124
|
*
|
|
Gasket
|
2934-223
|
*
|
|
Silencer
|
2940P-311
|
*
|
|
Screw (2)
|
R43F-104
|
*
|
|
Piped-Away Exhaust Kit without Muffler
|
2940-K184
|
*
|
|
Exhaust Adapter
|
294-167
|
*
|
|
Exhaust Adapter Gasket
|
2940-30
|
*
|
|
Adapter Cap Screw
|
AL-638
|
*
|
|
Exhaust Hose
|
R21-230
|
*
|
|
Hose Clamp
|
R21-31
|
*
|
|
Horizontal Hanger
|
2934-366
|
*
|

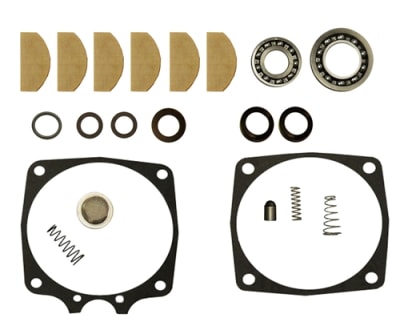

9994
|
Tune-up Kit
(includes illistrated parts 3, 9, 10, 12, 13, 15, 18, 20, 23, 27
(2), 27A (2), 29, 30, 32 & 35)
|
1712B/1712P-TK3
|
