Ingersoll-Rand 170G 3/8" Drive Air Ratchet Repair Parts

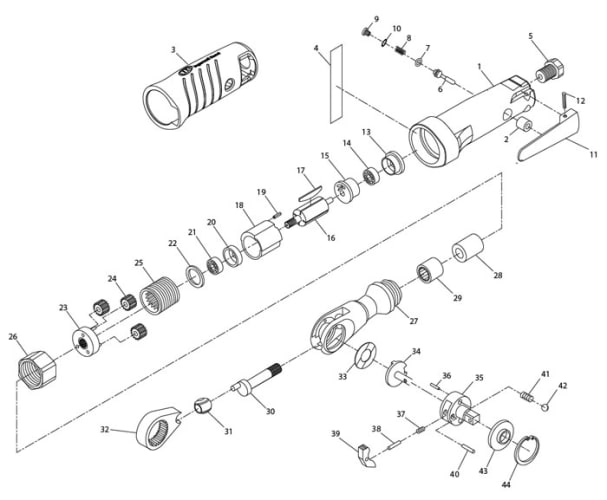

IR 170G Air Ratchet Parts List
Item
Part Number
Part Description
IR Equivalent
-
Housing Assembly
170G-A40
1
Housing
-
2
Valve Bushing
-
3
Grip
170G-747
4
Label
170G-301A
5
Inlet Bushing Assembly
170-565
-
Throttle Kit
170-TK
6
Throttle Valve
-
7
Throttle Valve O-Ring
-
8
Throttle Valve Spring
-
9
Valve Plug
-
10
Valve Plug O-Ring
-
-
Trigger Lever Kit
170-LK
11
Trigger Lever
-
12
Trigger Lever Pin
-
-
Motor Assembly
170-MK
13
End Cap
-
14
Rear Rotor Bearing
-
15
Rear End Plate
-
16
Rotor
-
17
Rotor Vanes (4 required)
-
18
Cylinder
-
19
Motor Alignment Pin
-
20
Front End Plate
-
21
Front Rotor Bearing
-
22
Spacer
-
-
Gearing Kit
170-GK
23
Spindle Assembly
-
24
Planet Gear (3)
-
25
Internal Gear
-
26
Coupling Nut
170-27
-
Ratchet Housing Assembly
170-A322
27
Ratchet Housing
-
28
Crankshaft Bushing
-
29
Crankshaft Needle Bearing
-
30
Crankshaft
170-35
31
Drive Bushing
170-36
32
Yoke
170-37
-
Ratchet Head Kit
170-TRK1
33
Wear Washer
-
34
Reverse Button
-
35
Anvil Assembly
170-A44
36
Reverse Button Stop Pin
-
37
Lock Spring
-
38
Lock Pin
-
39
Pawl
-
40
Pawl Retaining Pin
-
41
Friction Spring (2)
-
42
Friction Ball (2)
-
43
Thrust Washer
-
44
Retaining Ring
-
*
Tune-up Kit
-
