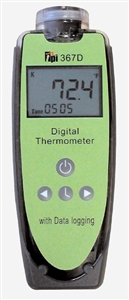

367D TPI IP67 Waterproof Single Input Lumberg Connector K T-Type Or Thermister

367D TPI IP67 Waterproof Single Input Lumberg Connector K T-Type Or Thermister

Price $164.90


Product Code: TPI367D
Qty:

Description Prop65


TPI 367D Data Logging Thermometer (K and T-Type Thermocouple and Thermistor) (-328°F to 1112°F / -200°C to 600°C) - TPI contact temperature testers are accurate, reliable, and built to last. Models 341K, 343 and 367D can be auto field calibrated to system accuracy (tester plus probe) of +/- 1°F in less than 10 seconds in ice water.

AUTO FIELD CALIBRATION Perform ice bath calibration to achieve ±1°F system accuracy within the 30°F to 120°F temperature range. Calibration is an easy two-step process performed with instrument keypad, no additional tools needed.

NO PROBES are included with this unit.

Product Features
  • AUTO FIELD CALIBRATION:
    • Perform ice bath calibration to achieve ±1°F system accuracy within the 30°F to 120°F temperature range
    • Calibration is easy two-step process performed with key pad, no additional tools needed
  • Data logging capability: 16,000 readings with sampling interval from 1 second up to 24 hours
  • Store 16 readings
  • Real time and logged data transfer to PC via optional USB docking station (A367)
  • Multi use belt clip (A366): can used as a belt clip or wall mount
  • Large two line LCD display with:
    • Clock Display
    • Alarm Clock
    • Alarm Timer
    • Over Temperature Alarm
  • Fast reading mode - Increases sample rate
  • Min/Max Record and Data Hold
  • Selectable Resolution (0.1° / 1°)
  • °C/°F Selectable
  • Up to 14,000 hour battery life (7,000hrs data logging) (AA alkaline batteries x 2)
  • Auto Off
  • Overmolded case

SPECIFICATIONS

  • Measurement Range (Thermistor): -58°F to 302°F (-50°C to 150°C)
  • Measurement Range (K-Type): -328°F to 1112°F (-200°C to 600°C)
  • Measurement Range (T-Type): -328°F to 752°F (-200°C to 400°C)
  • Basic Accuracy: ±(0.1% of reading)
  • Resolution: 0.1° / 1°
  • Connector Type: Lumberg
  • IP Rating: 67 (Water Proof)

Unit Dimensions

  • Size: 6.4” x 2.3” x 1.3” (163mm x 58mm x 33mm)
  • Weight: 0.6lbs (272g)
