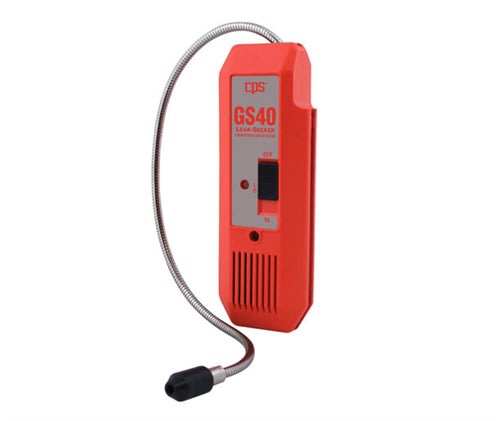

GS40 CPS Handheld Electronic Combustible Gas Detector

GS40 CPS Handheld Electronic Combustible Gas Detector

Price $244.49


Product Code: CPSGS40
Qty:

Description Prop65

The GS-40 is a completely self contained combustible gas leak detector designed to pinpoint gas leaks in the most demanding applications. An efficient and sensitive gas sensor is combined with solid state circuitry which provides an audible alarm that increases in pitch as the concentration of the gas increases. A visual indication is also provided as well as provisions for an earphone for use in noisy environments.
Product Features

  • Sensitivity: 25 TO 1000 PPM, depending on the type of impurity
  • Sensor Warm Up Time: Approximately 30 seconds
  • Response Time: Less than 20 seconds
  • Operating Temperature: 15 ˚F to 104 ˚F (-10 ˚C to 40 ˚C)
  • Power Requirements: 4 AA alkaline or NiMH batteries
  • Battery Life: Approximately 20 hours with AA alkaline batteries and 10 hours with NiMH.
  • Weight: 13.5 Oz. (380 g.)
  • Dimensions: 8 in. x 2.7 in. x 1.5 in. (20.3 cm. x 6.9 cm. x 3.8 cm.)
  • Probe Length: 18 in. (46 cm.)

SPECIFICATIONS
Sensitivity 25 TO 1000 PPM, depending on the type of impurity
Sensor Warm Up Time Approximately 30 seconds
Response Time Less than 20 seconds
Operating Temperature 15 °F to 104 °F (-10 °C to 40 °C)
Power Requirements 4 AA alkaline or NiMH batteries
Battery Life Approximately 20 hours with AA alkaline batteries and 10 hours with NiMH.
Weight 13.5 Oz. (380 g.)
Dimensions 8 x 2.7" x 1.5" (20.3 cm. x 6.9 cm. x 3.8 cm.)"
Probe Length 18 (46 cm.)"

PARTIAL LIST OF DETECTABLE GASES
Acetylene (50 ppm) Hydrogen Sulfide (10 ppm)
Ammonia (30 ppm) Isopropanol (100 ppm)
Benzene (150 ppm) Methane (Natural Gas) (30 ppm)
Butane (25 ppm) Methanol (50 ppm)
Carbon Monoxide(1000 ppm) Methyl Ethyl Ketone (50 ppm)
Ethanol (25 ppm) Propane (25 ppm)
Hydrogen (25 ppm) (ppm) = Minimum Detectable Concentration
