HS36 Fieldpiece Stick Meter-TrueRMS, BL

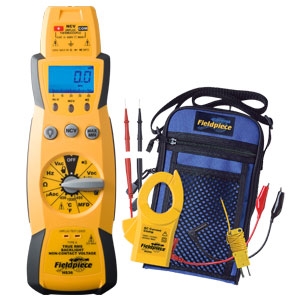

HS36 Fieldpiece True RMS Multimeter with Backlight

Price $304.18


Product Code: FPIHS36
Qty:

Description Prop65


HS36 Fieldpiece True RMS Multimeter with Backlight - Expandable True RMS Multimeter with Backlight. Packed with Features HVACR Pros Need. Expandable True RMS Stick Multimeter with Backlight - Designed for HVACR Field Service - HS36. Our top of the line Stick Meter, the HS36 includes the ranges you use everyday for HVACR field service plus includes a bright blue backlight and True RMS. Like the rest of the HS30 series, the HS36 comes equipped with a magnetic hanger, along with detachable silicone test leads and alligator clip probe tips for remote and easy one-handed testing, as well as the full set of built-in safety features. This auto-ranging stick meter also includes a bar graph on the LCD for an analog feel. Technicians who prefer our expandable stick meters tell us this is the best digital multimeter for HVACR field service.

The HS meter series is unlike any other found in HVACR. We incorporate a number of safety features, both those you can and can’t see, into our meters. In addition, the HS series accepts modular test instrument accessory heads, so you have more testing capabilities without buying a lot of expensive instruments.

Product Features
  • Works with all accessory heads
  • Non-contact voltage
  • MIicroamps DC for flame diodes
  • 400 AAC with included amp
  • Temperature up to 1000 degrees F
  • Lead storage
  • Non-contact Voltage
  • High Voltage and Continuity Indicators
  • Microamps
  • Capacitance
  • MIN/MAX
  • Temperature
  • Silicone Leads with Detachable Probe Tips
  • Rugged ABS case with rubberized bumpers
  • Built-in magnetic hanger allows you to test with one hand or no-hands
  • Built-in lead storage
  • Ergonomic shape fits naturally in your hand
  • Auto power-off (APO) to conserve battery life

Included Items:

  • Expandable True RMS Stick Multimeter with Backlight - HS36
  • 400A Amp Clamp Accessory - ACH4
  • Deluxe Silicone Test Leads - ADLS2
  • Short Alligator Lead Extensions - ASA2
  • Deluxe Meter Case - ANC1
  • 9-Volt Battery (installed)
  • Operator’s Manual
HS35 / HS36 Specifications
Function
Ranges
Best Accuracy /
Best Resolution
VAC (auto) 0.4 ~ 400
1.2% / 0.0001m
VAC (True RMS HS36)
600
2.0% / 1
VDC (auto)
0.4 ~ 600
0.5% / 0.0001
µADC (auto) 400 ~ 4000
1.0% / 0.1
°F
32 ~ 120
1°F / 0.1
-4 ~ 750
1% ± 1.5°F* / 0.1
-30 ~ -4
2% ± 4°F* / 0.1
750 ~ 1000
2% ± 4°F* / 1
Hz (auto)
4k ~ 40M
0.1% / 1
Ohms (auto)
400 ~ 400k
1.0% / 0.1
4M
1.5% / 0.001
40M
3.0% / 0.01
MFD
400
3.0% / 0.1
HI-V
>30
LED & Beep
NCV
>24
LED & Beep
Continuity
-
LED & Beep

* System accuracy (meter + k-type thermocouple after field calibration)
CE certified, Cat III 600V
