EEBC300 Snap-On Battery Charger Parts


Rectifier Assembly ......................................................................BC4200-2000R
Transformer Assembly ................................................................EAT0004K00AR
Fan Blade ...................................................................................2-1268
Fan Motor ...................................................................................2-10166-1
DC Leads with Clamps ................................................................EAX0023K00AR
Clamps ........................................................................................BC4200-100RB
DC Circuit Breaker ......................................................................2-15366
AC Circuit Breaker ......................................................................2-10266
Ammeter .....................................................................................4-280
Volt meter .....................................................................................4-380
Power Cord .................................................................................6-2821
Rotary Voltage Range Switch ......................................................2-13659
Standard/Fleet Voltage Range Switch ........................................... 2-9958
Charge Timer ..............................................................................2-14866
Knob, Charge Timer or Voltage Range .......................................8-8230
Handle with Hardware .................................................................EAK0073K20A
Includes handle, crossbar and 6 screws
Foot with 4 screws .................................................................... EAK0073K21A
Wheel Kit .......................................... .........................................EAK0073K22A
Includes 2 wheels, 2 push nuts & Axle
RATINGS:
Continuous Duty Cycle Ratings:
Input 120 VAC 13.9 A Max; 60HZ 1 PH
Output 80/70/45/35 ADC @ 6/12/18/24 VDC
Cranking Assist:
Input 120 VAC 35.5A Max; 60HZ 1PH
Output 225 ADC @ 12HI VDC
Cranking Duty Cycle:
5 0 Seconds On
ON-OFF Ratio 1/24
Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
2-10166-1 Snap-On 115 Volt Fan Motor 2-10166-1 Snap-On 115 Volt Fan Motor

2-10166-1 Snap-On 115 Volt Fan Motor

Discontinued See ASO610190
2-10266 Snap-On A/C Circuit Breaker 115 Volt 2-10266 Snap-On A/C Circuit Breaker 115 Volt

2-10266 Snap-On A/C Circuit Breaker 115 Volt

Discontinued See ASO603597
2-1268 Snap-On Fan Blade 2-1268 Snap-On Fan Blade

2-1268 Snap-On Fan Blade

Discontinued See 316-009-000

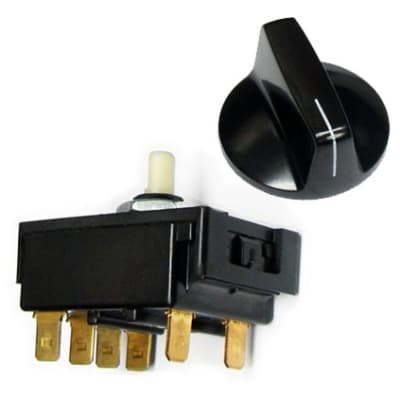

2-13659 Snap-On 4 Position Rotary Selector Switch With Knob 2-13659 Snap-On 4 Position Rotary Selector Switch With Knob

2-13659 Snap-On 4 Position Rotary Selector Switch With Knob
Discontinued See ASO610560
2-14866 Snap-On Mechanical Timer 2 Hour 2-14866 Snap-On Mechanical Timer 2 Hour

120 Minute mechanical timer with knob. 120 minute total time, hold feature. Two 1/4 spade terminal connections, no finish bell. Single Pole Switch for universal applications. Termination is designed to accept 1/4" spade terminals.

Discontinued see 0099000094

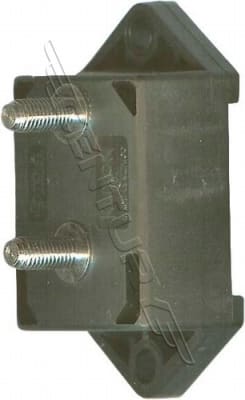

2-15366 Snap-On Circuit Breaker 2-15366 Snap-On Circuit Breaker

2-15366 Snap-On Circuit Breaker

Discontinued See 246-211-666
247-129-000 Christie Automotive Voltmeter Horizontal 0-25 Volt DC Range (536221-205) 247-129-000 Christie Automotive Voltmeter Horizontal 0-25 Volt DC Range (536221-205)

247-129-000 Christie Automotive Voltmeter Horizontal 0-25 Volt DC Range (536221-205). Snap-In installation, no tools required. 0-25 Volt Range, 1/4" Spade Terminal Connections.

Price $18.90
247-132-000 Ammeter Horizontal 0-60 Amp Range 247-132-000 Ammeter Horizontal 0-60 Amp Range

Ammeter Horizontal 0-60 AMP features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and wire through induction pick-up for greater accuracy. Replaces old style bolt through meters.

Discontinued See 247-147-000
247-147-000 Ammeter Horizontal 0-60 Amp 247-147-000 Ammeter Horizontal 0-60 Amp

247-147-000 Ammeter Horizontal 0-60 Amp features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and wire through induction pick-up for greater accuracy. Replaces old style bolt through meters.

Discontinued

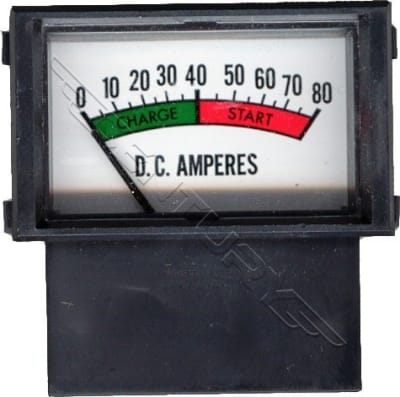

4-280 Snap-On Ammeter Horizontal 0-80 Amp Range with Charge & Start 4-280 Snap-On Ammeter Horizontal 0-80 Amp Range with Charge & Start

4-280 Snap-On Ammeter Horizontal 0-80 Amp Range with Charge & Start. Features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and wire through induction pick-up for greater accuracy. Replaces old style bolt through meters.

Discontinued
4-380 Snap-On Voltmeter Horizontal 0-40 Volt Range 4-380 Snap-On Voltmeter Horizontal 0-40 Volt Range

4-380 Snap-On Voltmeter Horizontal 0-40 Volt Range

Discontinued See 51-265
6-2821 Snap-On A/C Power Cord 115 Volt 6-2821 Snap-On A/C Power Cord 115 Volt

6-2821 Snap-On A/C Power Cord 115 Volt. Power Cord 14/3 AWG SJTOW 96" No Termination. General Cable Type SJTOW cable is designed for use in such applications as battery chargers, portable tools, motors, floor maintenance equipment, washing machines and portable lights and other industrial equipment.

Discontinued See 248-234-000
8-8230 Snap-On Selector Knob 8-8230 Snap-On Selector Knob

8-8230 Snap-On Selector Knob. Fits both timers and selector switches. Universal Selector Knob with set screw for controls with 1/4" Stem. Replaces all knobs with 1/4" diameter shaft. Fits 1/2 shaft and 3/4 style shaft stems.

Discontinued See 246-041-666
BC4200-100R Snap-On Cable Clamp Set BC4200-100R Snap-On Cable Clamp Set

BC4200-100R Snap-On Cable Clamp Set. 6.5' ft 6 AWG wire, 400 amp Professional quality heavy-duty solid copper jaws with vinyl Insulated clamps.

Discontinued See ASO610820

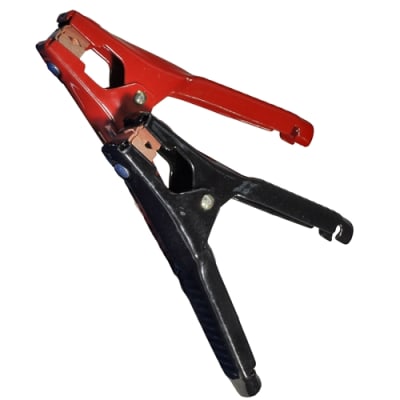

BC4200-100RB Snap-On Battery Charger Clamp Kit (Pair) BC4200-100RB Snap-On Battery Charger Clamp Kit (Pair)

BC4200-100RB Snap-On Battery Charger Clamp Kit (Pair). Professional quality heavy-duty 400 Amp clamps for all booster cables.

Discontinued See ASO6199

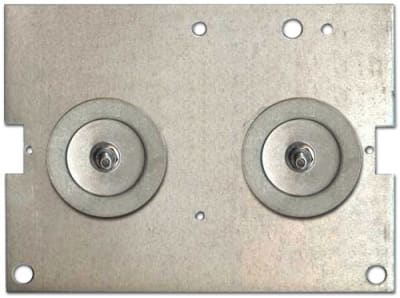

BC4200-2000R Snap-On Rectifier BC4200-2000R Snap-On Rectifier

BC4200-2000R Snap-On Rectifier

Discontinued See ASO610100
BC5500-200RB 500 Amp Heavy Duty Coated Clamp Kit BC5500-200RB 500 Amp Heavy Duty Coated Clamp Kit

Made In U.S.A.500 Amp Battery Charger Clamp Heavy Duty Coated. Professional quality heavy duty 500 amp replacement clamps for all booster cables. Clamps incorporate a innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.

Discontinued See ASO6202
TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer

TJ1-120MB Universal Mechanical 2 Hour Timer With Finish Bell. Mechanically controls charging in timed Mode, has "Hold" for manual un-timed charging. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" Quick Disconnect terminals. Includes mounting screws. Replaces many older mechanical timers.

Discontinued see 0099000094
