Product Features
Use This Adapter With: Most TPI brand and any competitor DMM, clamp-on or oscilloscope having the capability of measuring up to 2000mV AC/DC (2V AC/DC), 10M Ohm input impedance, and equipped with industry standard spaced input jacks 19mm on center.

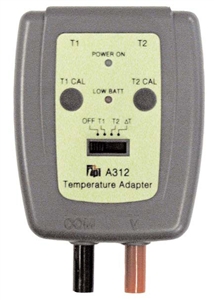

A312 Specifications:
- Measurement Range: -50°F to 1,800°F (-50°C to 1,000°C)
- Accuracy: ±(0.5% or reading, + 3.6°F); ±(0.5% of reading, + 2.0°C)
- Adapter Output: 1mVDC per 1°F; 1mVDC per 1°C
General Specifications:
- Input: Dual with Sub-Mini Connector
- Thermocouple: K-Type
- Output Connection Type: Dual Banana Plug
- Additional: Displays difference between T1 and T2
|
