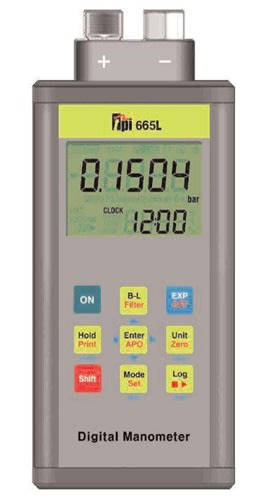

TPI 665L Digital Manometer - Dual Input Differential Manometer with ±100 psi range and 0.01 psi resolution. Can be used in non-corrosive liquid applications. Data logging with optional A665 software and docking station. Seven units of pressure: inH2O, mbar, KPa, PSI, mH2O, mmHg, inHg, Auto power off, Record/Min/Max, Backlight display, Zero function, Trim mode to stabilize readings. ¼” NPT fittings. The slim design 665L is a hand-held, differential input manometer with data logging capability. Digital filter, min/max, one touch zero, and backlight display are just a few of the features of the 665.
 Warning: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Product Features
- Differential input with + 29 PSI range
- Seven units of measure (mbar, kPa, PSI, mmHg, inHg, mH2O, inH2O)
- Data Logging: Record test data with time stamp and display with optional software
- PC Communication: IR to USB Interface and PC Application software (optional p/n A665)
- Display: 4 digit dual line with backlight
- Printing: Print test results directly to the optional A740 IR printer
- Data Hold: Freezes reading on display
- Min / Max: Records Min/Max readings
- Auto Off: Conserve battery power
Standard Accessories (Included):
- Two 1.5 Volt Alkaline Battery (A002)
- Protective Boot w/ magnets (A614)
|
Model 665L Specifications
|
|
Measurement Range:
|
±101.5 psi (±7bar)
|
|
Display:
|
5 Digit Dual line LCD with backlight
|
|
Input Type:
|
Differential (1/4” NPT)
|
|
Resolution (max):
|
0.01 psi (0.001 bar) (0.1 inH2O)
|
|
Accuracy:
|
0.2% Full scale
|
|
Repeatability:
|
0.1% Full scale
|
|
Mean Temperature Coefficient:
|
0.1% of reading per ºC
|
|
Functions:
|
One Touch Zero, Data Hold, Back-light, Unit Selection,
Smoothing, Auto power Off, Min / Max Record,
Resolution Selection
|
|
Units of Measure:
|
7Units (bar, kPa, PSI, mmHg, inHg, mmH2O, inH2O)
|
|
Data logging:
|
5000 Data, 1sec ~ 24 hour
|
|
Data Storage:
|
16 data points
|
|
Communication:
|
IR to USB Interface and PC Application software
(optional p/n A665)
|
|
Battery Type:
|
AA(1.5V)*2 alkaline (MN1500, LR6)
|
|
Battery Life:
|
600 hours (Typical)
|
|
Auto Power Off:
|
20 minutes (can be disabled)
|
|
|
|
|
|
|
|
