  Home > Schumacher Electric Battery Chargers >

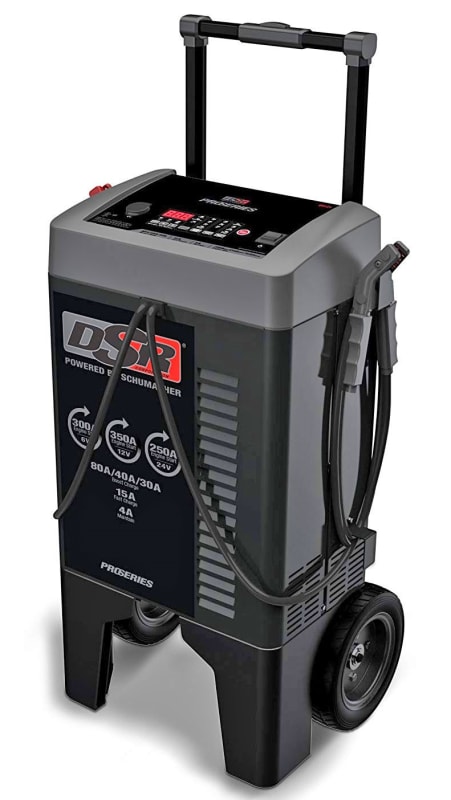

DSR124 Schumacher 4/15/80/330 Amp ProSeries Battery Charger Engine Starter 6/12/24 Volt

DSR124 Schumacher 15/30/70/330A ProSeries Battery Charger Engine Starter 6/12/24 Volt

Price $594.85


Product Code: SHUDSR124
Qty:

Description Prop65

DSR124 Schumacher 4/15/80/330A ProSeries Battery Charger Engine Starter 6/12/24 Volt with flash reprogramming and memory saver modes. Delivers 300A (6V), 330A (12V), 250A (24V) Engine Start, powerful enough for SUVs, trucks and large engines. 30<>80A Boost mode quickly brings deeply discharged battery back to life and a 70A Flash Reprogram mode. The Memory Saver mode is for saving vehicle settings while changing the battery. Features include a digital display, LED indicators and push-button controls display volts amps and charge percent. Reverse hook-up protection. Charges Standard, AGM and Gel and deep-cycle batteries. Desulfation circuitry will extend the life of your batteries and bring back lost power. Start/Stop interface. Microprocessor-controlled – automatically adjusts amperage rate, to charge and maintain. Multi-stage charging for added precision, safety and battery life. Float mode monitoring – maintains optimum battery charge. Extra-long output cables 17 ft. total reach. Retractable handle for storage. Safe for outdoor use. Schu Eco Energy meets the highest industry standards DOE compliant.
Product Features
  • Charges standard, AGM and Gel and deep-cycle batteries.
  • 300A (6V) 330A (12V) 250A (24V) Jump Start Range
  • Engine Start powerful enough for SUVs, trucks and large engines
  • 30 & 80A Charge Rates quickly brings deeply discharged battery back to life
  • 70A Flash Reprogram mode
  • Memory Saver mode for saving vehicle settings while changing the battery
  • Microprocessor-controlled & automatically adjusts amperage rate, to charge and maintain
  • Multi-stage charging for added precision, safety and battery life
  • Float mode monitoring & maintains optimum battery charge
  • Reverse hook-up protection. Digital display, LED indicators and push-button controls
  • Extra-long output cables 17 ft. total reach
  • Safe for outdoor use
Specifications
Battery Type: Standard AGM Gel Deep-Cycle
Input Voltage: 120V AC
Input Current: 12.5A cont., 66.5A int.
Output Voltage: 6/12/24V
Output Amperage 6/12V DC, 4/15A cont.
80A int. (120 sec. max. ON, 120 sec. min. OFF)
330A int. (5 sec. max. ON, 180 sec. min. OFF)
24V DC: 30A cont.; 250A int. (5 sec. max. ON, 180 sec. min. OFF)
Dimensions: 16.25 × 20.5 × 33.63 in
Weight: 70 lb
Safety Certifications: UL ULC
Warranty Period: 2 years

Contents: (1) DSR124 battery charger (1) Memory saver cable (4) Cable clamp cleats (4) Screws (1) Manual
