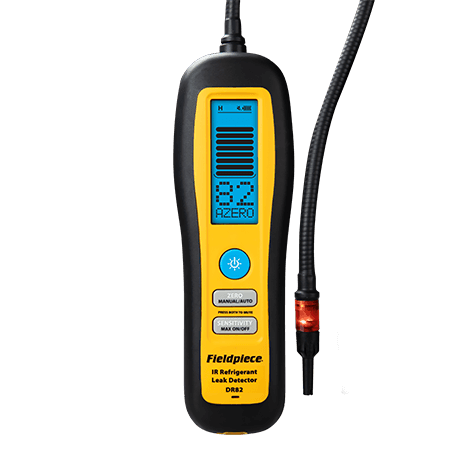

DR82 Fieldpiece Infrared Refrigerant Leak Detector

DR82 Fieldpiece Infrared Refrigerant Leak Detector

Price $488.21


Product Code: FPIDR82
Qty:

Description Prop65


SRL2K7 Fieldpiece Infrared Refrigerant Leak Detector - The highest possible sensitivity. If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <0.03 oz/yr. That’s 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends.

  • State-of-the-art infrared sensor
  • Massive backlit LCD screen provides clear, easy-to- see information
  • Sensitivity better than 0.03 oz/yr (1g/a)
  • Detects all HFC, CFC, HCFC, HFO and blends
  • Flashing lighted tip, loud beeper and leak rate indicator
  • Doesn’t trigger on soap bubbles and oil
  • A2L compatible
Product Features
Specifications
  • Sensor Type: Infrared (IR)
  • Sensor Life: 10 years typical
  • Sensitivity Levels: High, medium, low, turbo (selectable)
  • Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
  • Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
  • Refrigerants: HFC, HCFC, CFC, HFOs, and blends
  • Response Time: <1 seconds typical
  • Recovery Time: <5 seconds typical
  • Battery Type: 3.7 VDC (nominal) 2550mAh, non-replaceable
  • Charge Time: 6 hours typical with included charger.
  • Battery Life: 10 hours typical, backlight off
  • Auto Power Off: 10 minutes without detection or button press
  • Operating Environment: 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C); < 80% RH
  • Weight: 14 oz (400g)
  • Water Resistance: Designed to IP54
  • US Patent: www.fieldpiece.com/patents

What’s Included:
(1) Advanced Infrared Refrigerant Leak Detector – DR82
(5) Replacement Filtered Tips – RFT6
(1) Blow-Molded Case
