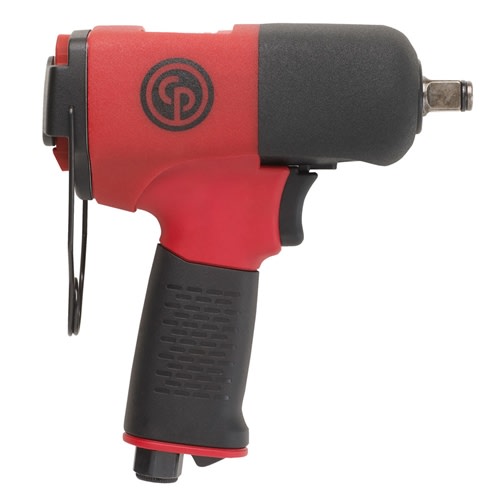

CP8242-R Chicago Pneumatic Compact 1/2" Square Drive Impact Wrench with Ring-type Retainer

CP8242-R Chicago Pneumatic Compact 1/2" Square Drive Impact Wrench with Ring-type Retainer

Price $316.00
Part #: 6151590240


Product Code: CPTCP8242-R
Qty:

Description Prop65

CP8242-R Chicago Pneumatic Compact 1/2" Square Drive Impact Wrench with Ring-type Retainer - Very low noise, very limited vibration and lightweight for operator comfort. Powerful but easy to control for assembly/disassembly operations. Compact for easy access on tight spots. Durable and reliable impact for Industrial Maintenance and Production applications.
Product Features

Features:

  • 1/2" compact impact with ring retainer
  • Powerful & durable twin hammer clutch
  • Composite body and aluminum clutch housing
  • 3 power settings in forward & full power in reverse
  • Protective cover & suspension bail
  • Progressive trigger & Rubber grip

Benefits:

  • Very low noise, very limited vibration and lightweight for operator comfort
  • Powerful but easy to control for assembly/disassembly operations
  • Compact for easy access on tight spots
  • Durable and reliable impact for Industrial Maintenance and Production applications

CP Specifications:

Part Number
6151590240
Model
CP8242-R
Handle Type
Pistol
Square Drive
1/2"
Working Torque Range (forward)
59 - 295 ft-lb (80 - 400 Nm)
Maximum Torque (reverse)
406 ft-lb (550 Nm)
Free Speed
11500 rpm
Blows Per Minute
1250
Net Weight
2.6 lb (1.2 kg)
Power / Weight Ratio
156.2 ft-lb/lb (458.3 Nm/kg)
Length
7" (177 mm)
Side to Center
1.18" (30 mm)
Actual Air Consumption
21.2 cfm (10 l/s)
Air Inlet Thread Size
0.25"
Minimum Hose Size
3/8" (10 mm)
Noise Level
89 db(A)
Sound Power
100 db(A)
Vibration (ISO-8662-7)
3.9 m/sē
Vibration a (ISO-28927-2)
6.6 m/sē
Vibration K (ISO28927-2)
3.2 m/sē
Socket Retainer
Friction Ring
Clutch Type
Twin Hammer
