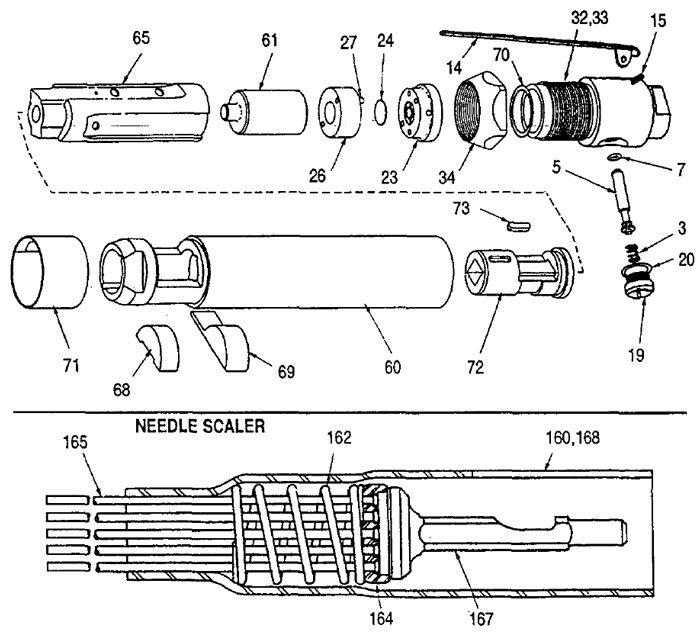

Chicago Pneumatic CP9356 Weld Flux Chipper Repair Parts



Index
No. 		Part No. Description No.
Req'd
3
 C121535
 Spring - valve
 1
5
 WP123824
 Valve - throttle
 1
7
 P083076
 O-Ring (-077)
 1
14
 475373
 Lever - throttle
 1
15
 CA059034
 Pin - roll (1/8" dia x 11/16")
 1
19
 WP123826
 Plug - spring
 1
20
 WP124755
 Gasket
 1
23
 WP123822 Lid - valve case
 1
24
 WP123823 Valve - disc
 1
26
 WP123832 Case - valve (incl 27)
 1
27
 P122967
 Pin - dowel
 2
33
 WP123829 Head - cylinder
 1
34
 WP123828 Nut - cylinder lock
 1
60
 WP123830 Cylinder
 1
-
 CA144007
 Decal - safety warning
 1
61
 WP123821 Piston
 1
65
 WP123831 Sleeve cylinder
 1
68
 WP123818 Buffer
 1
69
 WP123819 Retainer - tool
 1
70
 P084037
 Shim (0.005) As Req'd
-
 P084038
 Shim (0.010) As Req'd
71
 WP123820 Lock - retainer
72
 WP123834 Sleeve - tool 1/2" square 1
73
 S025326
 Key - sleeve 1
160
 P136738
 Housing - needle
 1
162
 P136744
 Spring - needle housing
 1
164
 P136737
 Holder Needle
 1
165
 P100146
 Needle set (7")
(19 Steel needles)		 1
-
 P106454
 Needle set (7")
(19 Stainless steel needles)		 -
-
 P106455
 Needle set (7")
(19 Brylium copper needles)
 -
167
 P136736
 Anvil
 1
168
 P136983
 Attachment - Needle Scaler
(Incl 160, 162, 164, P100146)
 1
-
 WP123997 Flat chisel, 5/8" (16 mm) face -
-
 WP123996 Flat chisel, 5/8" (16 mm) face -
-
 WP123998 Flat chisel, 1-3/8" (35 mm) face
 -
Sort By:
475373 Chicago Pneumatic Lever Assembly 475373 Chicago Pneumatic Lever Assembly

475373 Chicago Pneumatic Lever Assembly

Price $115.95
CA059034 Chicago Pneumatic Pin-Roll CA059034 Chicago Pneumatic Pin-Roll

CA059034 Chicago Pneumatic Pin-Roll

Price $3.00
CP9356 Chicago Pneumatic Weld Flux Chipper with 1/2" Square Shank CP9356WF Chicago Pneumatic Weld Flux Chipper with 1/2" Square Shank

CP9356WF Chicago Pneumatic Weld Flux Chipper with 1/2" Square Shank - Sturdy and simple design for heavy and wide applications. Convertible to needle scaler. Ideal tool for weld-flux removal or de-burring.

Discontinued
P083076 Chicago Pneumatic O-Ring P083076 Chicago Pneumatic O-Ring

P083076 Chicago Pneumatic O-Ring

Price $8.22
P084037 Chicago Pneumatic Shim Upper Valve 0.005" P084037 Chicago Pneumatic Shim Upper Valve 0.005"

P084037 Chicago Pneumatic Shim Upper Valve 0.005"

Price $4.86
P084038 Chicago Pneumatic Shim Upper Valve 0.010" P084038 Chicago Pneumatic Shim Upper Valve 0.010"

P084038 Chicago Pneumatic Shim Upper Valve 0.010"

Price $4.66
P100146 Chicago Pneumatic Needle Flat 3mm X 178 Steel (Set 19) P100146 Chicago Pneumatic Needle Flat 3mm X 178 Steel (Set 19)

P100146 Chicago Pneumatic Needle Flat 3mm X 178 Steel (Set 19)

Price $24.09
P106454 Chicago Pneumatic Stainless Steel Needle Set 19 Pc. (3mm x 178mm) P106454 Chicago Pneumatic Stainless Steel Needle Set 19 Pc. (3mm x 178mm)

P106454 Chicago Pneumatic Stainless Steel Needle Set(3mm x 178mm)

Price $143.20
P136736 Chicago Pneumatic Anvil P136736 Chicago Pneumatic Anvil

P136736 Chicago Pneumatic Anvil

Price $187.23
P136737 Chicago Pneumatic Holder Needles P136737 Chicago Pneumatic Holder Needles

P136737 Chicago Pneumatic Holder Needles

Price $116.01
P136738 Chicago Pneumatic Housing Needles P136738 Chicago Pneumatic Housing Needles

P136738 Chicago Pneumatic Housing Needles

Price $186.11
P136744 Chicago Pneumatic Spring Needles P136744 Chicago Pneumatic Spring Needles

P136744 Chicago Pneumatic Spring Needles

Price $22.92
P136983 Chicago Pneumatic Attachment-Needle Sc P136983 Chicago Pneumatic Attachment-Needle Sc

P136983 Chicago Pneumatic Attachment-Needle Sc

Price $309.28
WP123818 Chicago Pneumatic Buffer WP123818 Chicago Pneumatic Buffer

WP123818 Chicago Pneumatic Buffer

Price $10.16
WP123819 Chicago Pneumatic Retainer Tool WP123819 Chicago Pneumatic Retainer Tool

WP123819 Chicago Pneumatic Retainer   Tool

Price $33.87
WP123821 Chicago Pneumatic Piston WP123821 Chicago Pneumatic Piston

WP123821 Chicago Pneumatic Piston

Price $35.79
WP123822 Chicago Pneumatic Lid Valve Case WP123822 Chicago Pneumatic Lid Valve Case

WP123822 Chicago Pneumatic Lid Valve Case

Price $78.72
WP123823 Chicago Pneumatic Disc Valve WP123823 Chicago Pneumatic Disc Valve

WP123823 Chicago Pneumatic Disc Valve

Price $12.20
WP123824 Chicago Pneumatic Valve Throttle WP123824 Chicago Pneumatic Valve Throttle

WP123824 Chicago Pneumatic Valve Throttle

Price $60.11
WP123826 Chicago Pneumatic Cap Valve WP123826 Chicago Pneumatic Cap Valve

WP123826 Chicago Pneumatic Cap Valve

Price $45.82
WP123828 Chicago Pneumatic Locknut Cylinder WP123828 Chicago Pneumatic Locknut Cylinder

WP123828 Chicago Pneumatic Locknut  Cylinder

Price $38.34
WP123829 Chicago Pneumatic Head Cylinder WP123829 Chicago Pneumatic Head Cylinder

WP123829 Chicago Pneumatic Head  Cylinder

Price $171.74
WP123830 Chicago Pneumatic Cylinder WP123830 Chicago Pneumatic Cylinder

WP123830 Chicago Pneumatic Cylinder

Price $279.13
WP123831 Chicago Pneumatic Sleeve Cylinder WP123831 Chicago Pneumatic Sleeve Cylinder

WP123831 Chicago Pneumatic Sleeve  Cylinder

Price $219.03
WP123832 Chicago Pneumatic Case Valve WP123832 Chicago Pneumatic Case Valve

WP123832 Chicago Pneumatic Case  Valve

Price $87.31
WP123834 Chicago Pneumatic Sleeve 1/2 Square WP123834 Chicago Pneumatic Sleeve 1/2 Square

WP123834 Chicago Pneumatic Sleeve  1/2 Square

Price $124.54
WP123996 Chicago Pneumatic Chisel-Narrow 7.50Lg WP123996 Chicago Pneumatic Chisel-Narrow 7.50Lg

WP123996 Chicago Pneumatic Chisel-Narrow 7.50Lg

Price $37.80
WP123997 Chicago Pneumatic Chisel-Narrow 4Lg WP123997 Chicago Pneumatic Chisel-Narrow 4Lg

WP123997 Chicago Pneumatic Chisel-Narrow 4Lg

Price $46.58
WP123998 Chicago Pneumatic Chisel-Wide Scaling WP123998 Chicago Pneumatic Chisel-Wide Scaling

WP123998 Chicago Pneumatic Chisel-Wide Scaling

Price $41.20
WP124755 Chicago Pneumatic Washer Valve WP124755 Chicago Pneumatic Washer Valve

WP124755 Chicago Pneumatic Washer Valve

Price $5.55
