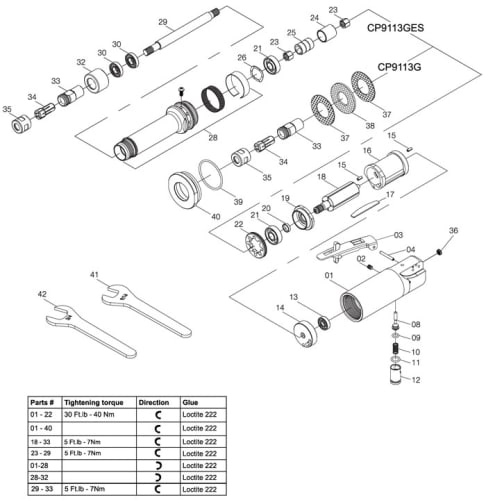

Chicago Pneumatic CP9113G Die Grinder Repair Parts

Index No.	Part No.	Description	No. Req'd
A	2050562653	Throttle Kit (Version D)	-
3	-	Throttle lever	1
4	-	Pin	1
B	2050545123	Valve Kit	-
2+7	-	Screw set	2
8	-	Valve throttle screw set	1
9	-	O-Ring	1
10	-	Spring	1
11	-	O-Ring	1
12	-	Cap regulator	1
C	2050545133	Rear Plate Kit	-
13	2050544013	Bearing - ball	1
14	-	Plate rear end	1
D	2050545143	Front Plate Kit	-
19	-	Plate - front end	1
20	-	Spacer	1
21	2050544093	Bearing - ball	1
E	2050545153	Motor Kit	-
C	2050545133	Rear plate kit	1
D	2050545143	Front plate kit	1
15	-	Spring pin	2
16	2050544043	Cylinder	1
17	2050544053	Blade (set of 4)	1
18	2050544063	Rotor	1
22	2050544103	Nut clamp	1
F	2050545253	Extension Kit (CP9113GES	-
21	-	Bearing - ball	1
26	-	Washer	1
29	2050544463	Spindle	1
28	2050544453	Housing Assembly (incl deflector & grid)	1
G	2050545263	Coupling Kit (CP9113GES)	-
23	-	Nut	2
24	-	Spacer	1
25	-	Coupling	1
H	2050545273	Collet Holder Kit	-
33	-	Collet holder	1
35	-	Collet nut	1
I	2050545243	Small Parts Kit (CP9113 & CP3040 Series)	-
2	-	Screw	1
7	-	Screw	1
4	-	Pin (set of 2)	1
5	-	Spring	1
6	-	Pin	1
15	-	Spring pin	2
26	-	Washer (for CP9113GES)	1
-	-	Grid + screw (CP9113GES & CP3040 Series)	1
-	-	Key (for CP3040)	1
-
21	2050544093	Bearing - ball	*
30	2050544143	Bearing - ball	2
31	2050544253	Nut CP9113GES	1
34	2050544493	1/4" (6.35 mm) Collet - 200 Series	1
37	2050544533	Muffler CP9113G (incl 38)	1
40	2050544553	Nut CP9113G	1
41	2050544513	Spanner wrench	1
42	2050544523	Spanner wrench	1
-	2050545233	Tune-up Kit	-
9	-	O-Ring	1
11	-	O-Ring	1
17	2050544053	Blade (set of 4)	1
39	-	O-Ring (for CP9113GES)	1

Sort By:

2050544013 Chicago Pneumatic Ball Bearing

Price $14.22

2050544043 Chicago Pneumatic Cylinder

Price $79.58

2050544063 Chicago Pneumatic Rotor

Price $66.37

2050544093 Chicago Pneumatic Ball Bearing

Price $20.66

2050544103 Chicago Pneumatic Nut Clamp

Price $38.31

2050544143 Chicago Pneumatic Ball Bearing

Price $27.21

2050544453 Chicago Pneumatic Housing Kit

Price $168.07

2050544513 Chicago Pneumatic Spanner Wrench

Price $5.42

2050544523 Chicago Pneumatic Spanner Wrench

Price $5.42

2050544533 Chicago Pneumatic Muffler Cp9113G

Price $16.18

2050545123 Chicago Pneumatic Valve Kit

Price $17.69

2050545153 Chicago Pneumatic Motor Kit

Price $318.41

2050545233 Chicago Pneumatic Tune-Up Kit CP9113 Series

Price $11.90

2050545243 Chicago Pneumatic Small Part Kit

Price $22.10

2050545253 Chicago Pneumatic Extension Kit Cp9113Ges

Price $237.35

2050545263 Chicago Pneumatic Coupling Kit Cp9113

Price $26.55

2050545273 Chicago Pneumatic Collet Holder Kit

Price $60.90

CP9113G Chicago Pneumatic Short Steel Body 1/4" (6.35mm) Collet 1Hp Industrial Die Grinder

CP9113G Chicago Pneumatic Short Steel Body 1/4" (6.35mm) Collet 1Hp Industrial Die Grinder - Industrial die grinder. High body durability. Withstands rough usage. Withstands extreme temperatures.

Price $358.29
