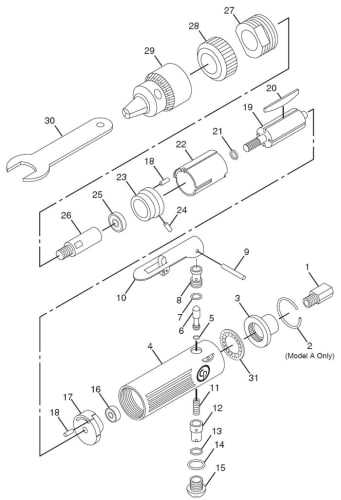

Chicago Pneumatic CP871 High Speed Tire Buffer Repair Parts


Index
No.
 Part No.
Description
 No.
Req'd
1
 CA144870
 Bushing - Air Inlet (Model A)

-
 CA157739
 Bushing - Air Inlet (Model B)
2
 CA144871 Ring- Retaining (Model A Only)

3
 CA144872 Deflector - Exhaust (Model A)

-
 CA157734
 Deflector - Exhaust (Model B)
4
 CA144873 Housing - Motor (Model A)

-
 CA157736
 Housing - Motor (Model B)
5
 CA144874 O-Ring
6
 CA144875 Valve - Throttle

7
 CA144876 O-Ring
8
 CA144877 Bushing - Throttle Valve

9
 CA144878 Pin - Roll
10
 CA144879 Lever - Throttle

11
 CA144880 Spring - Throttle Valve
12
 CA144881 Regulator - Air
13
 CA144882 O-Ring
14
 CA144883 O-Ring
15
 CA144884 Plug - Throttle Valve
16
 CA144885 Bearing - Ball
17
 CA144886 Plate - Rear End
(Incl Index No: 18)
18
 CA144887 Pin - Roll
19
 CA144888 Rotor
20
 CA144889 Blade Set - Rotor (4)

21
 CA144890 Collar - Rotor
22
 CA144891 Liner
23
 CA144892 Plate - Front End
(Incl Index Nos: 18 & 24)
24
 CA144893 Pin - Roll
25
 CA144894 Bearing - Ball
26
 CA144895 Spindle
27
 CA144896 Nut - Clamp
28
 CA144897 Cap - Housing
29
 CA144898 Chuck - Drill 3/8"

30
 CA144899 Wrench - Spindle

31
 CA157735
 Silencer (Model B)

-
 CA144813 Decal - Safety Warning (Not Shown)

-
 CA145216
 Motor Assembly
(Incl Index Nos: 16, 17, 19, 20, 21, 22, 23, 24, 25 & 26)
-
 CA121582
 Key - Chuck (Not Shown)

Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5° F to 350° F.

Price $5.15
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
CA144870 Chicago Pneumatic Bushing-Air Inlet CA144870 Chicago Pneumatic Bushing-Air Inlet

CA144870 Chicago Pneumatic Bushing-Air Inlet

Price $5.39
CA144871 Chicago Pneumatic Ring-Retaining CA144871 Chicago Pneumatic Ring-Retaining

CA144871 Chicago Pneumatic Ring-Retaining

Price $3.89
CA144872 Chicago Pneumatic Deflector-Exhaust CA144872 Chicago Pneumatic Deflector-Exhaust

CA144872 Chicago Pneumatic Deflector-Exhaust

Discontinued
CA144873 Chicago Pneumatic Housing-Motor CA144873 Chicago Pneumatic Housing-Motor

CA144873 Chicago Pneumatic Housing-Motor

Discontinued
CA144874 Chicago Pneumatic O-Ring CA144874 Chicago Pneumatic O-Ring

CA144874 Chicago Pneumatic O-Ring

Price $3.89
CA144875 Chicago Pneumatic Valve-Throttle CA144875 Chicago Pneumatic Valve-Throttle

CA144875 Chicago Pneumatic Valve-Throttle

Price $3.89
CA144876 Chicago Pneumatic O-Ring CA144876 Chicago Pneumatic O-Ring

CA144876 Chicago Pneumatic O-Ring

Price $3.89
CA144877 Chicago Pneumatic Bushing-Throttle Val CA144877 Chicago Pneumatic Bushing-Throttle Val

CA144877 Chicago Pneumatic Bushing-Throttle Val

Price $3.87
CA144878 Chicago Pneumatic Pin-Roll CA144878 Chicago Pneumatic Pin-Roll

CA144878 Chicago Pneumatic Pin-Roll

Price $3.89
CA144879 Chicago Pneumatic Lever-Throttle CA144879 Chicago Pneumatic Lever-Throttle

CA144879 Chicago Pneumatic Lever-Throttle

Price $8.66
CA144880 Chicago Pneumatic Spring-Throttle Valv CA144880 Chicago Pneumatic Spring-Throttle Valv

CA144880 Chicago Pneumatic Spring-Throttle Valv

Price $3.89
CA144881 Chicago Pneumatic Regulator-Air CA144881 Chicago Pneumatic Regulator-Air

CA144881 Chicago Pneumatic Regulator-Air

Price $3.88
CA144882 Chicago Pneumatic O-Ring CA144882 Chicago Pneumatic O-Ring

CA144882 Chicago Pneumatic O-Ring

Price $3.89
CA144883 Chicago Pneumatic O-Ring CA144883 Chicago Pneumatic O-Ring

CA144883 Chicago Pneumatic O-Ring

Price $3.89
CA144884 Chicago Pneumatic Plug-Throttle Valve CA144884 Chicago Pneumatic Plug-Throttle Valve

CA144884 Chicago Pneumatic Plug-Throttle Valve

Price $3.88
CA144885 Chicago Pneumatic Bearing-Ball CA144885 Chicago Pneumatic Bearing-Ball

CA144885 Chicago Pneumatic Bearing-Ball

Price $10.11
CA144886 Chicago Pneumatic Assembly-Rear Endpla CA144886 Chicago Pneumatic Assembly-Rear Endpla

CA144886 Chicago Pneumatic Assembly-Rear Endpla

Price $7.19
CA144887 Chicago Pneumatic Pin-Roll CA144887 Chicago Pneumatic Pin-Roll

CA144887 Chicago Pneumatic Pin-Roll

Price $3.89
CA144888 Chicago Pneumatic Rotor CA144888 Chicago Pneumatic Rotor

CA144888 Chicago Pneumatic Rotor

Price $19.18
CA144889 Chicago Pneumatic Blade-Set-Rotor CA144889 Chicago Pneumatic Blade-Set-Rotor

CA144889 Chicago Pneumatic Blade-Set-Rotor

Price $12.61
CA144890 Chicago Pneumatic Collar-Rotor CA144890 Chicago Pneumatic Collar-Rotor

CA144890 Chicago Pneumatic Collar-Rotor

Price $3.89
CA144891 Chicago Pneumatic Liner CA144891 Chicago Pneumatic Liner

CA144891 Chicago Pneumatic Liner

Price $23.60
CA144892 Chicago Pneumatic Plate-Front End CA144892 Chicago Pneumatic Plate-Front End

CA144892 Chicago Pneumatic Plate-Front End

Price $10.13
CA144893 Chicago Pneumatic Pin-Roll CA144893 Chicago Pneumatic Pin-Roll

CA144893 Chicago Pneumatic Pin-Roll

Price $3.89
CA144894 Chicago Pneumatic Bearing-Ball CA144894 Chicago Pneumatic Bearing-Ball

CA144894 Chicago Pneumatic Bearing-Ball

Discontinued See C120326
CA144895 Chicago Pneumatic Spindle CA144895 Chicago Pneumatic Spindle

CA144895 Chicago Pneumatic Spindle

Price $11.77
CA144896 Chicago Pneumatic Nut-Clamp CA144896 Chicago Pneumatic Nut-Clamp

CA144896 Chicago Pneumatic Nut-Clamp

Price $8.66
CA144897 Chicago Pneumatic Cap-Housing CA144897 Chicago Pneumatic Cap-Housing

CA144897 Chicago Pneumatic Cap-Housing

Price $3.87
CA144899 Chicago Pneumatic Wrench-Spindle CA144899 Chicago Pneumatic Wrench-Spindle

CA144899 Chicago Pneumatic Wrench-Spindle

Price $7.03
CA145216 Chicago Pneumatic Motor Assembly Cp871 CA145216 Chicago Pneumatic Motor Assembly Cp871

CA145216 Chicago Pneumatic Motor Assembly Cp871

Price $69.29
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CA157734 Chicago Pneumatic Deflector-Exhaust CA157734 Chicago Pneumatic Deflector-Exhaust

Deflector-Exhaust

Price $3.89
CA157735 Chicago Pneumatic Silencer CA157735 Chicago Pneumatic Silencer

Silencer

Price $3.88
CA157736 Chicago Pneumatic Housing-Motor CA157736 Chicago Pneumatic Housing-Motor

Housing-Motor

Price $28.03
CA157739 Chicago Pneumatic Inlet Bushing CA157739 Chicago Pneumatic Inlet Bushing

Inlet Bushing

Price $5.37

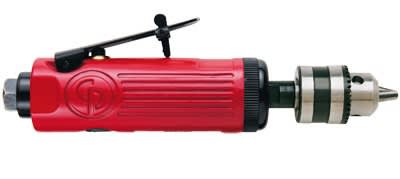

CP871 Chicago Pneumatic Tire Buffer CP871 Chicago Pneumatic Tire Buffer

CP871 Tire Buffer - This high speed tire bugger has an adjustable speed control, lock-off lever for added safety, rear exhaust and an industrial quality Jacobs 3/8" chuck. This tool is ideal for patchwork, roughing, recapping and cleaning applications.

Price $102.46
