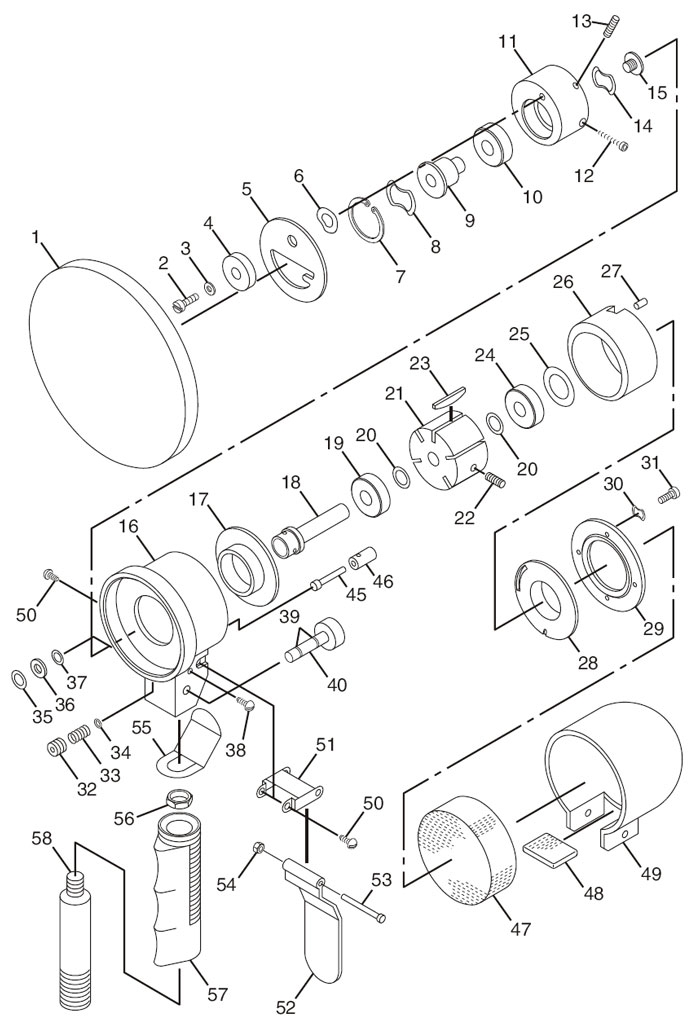

Chicago Pneumatic CP870 Dual Action Sander Repair Parts


Index
No.
Part No.
Description
No.
Req'd
1
CA145098
Pad - Sanding 6"
1
2
CA145099 Screw - Cap
1
3
CA145100 Washer
1
4
CA145101 Counterweight
1
5
CA145102 Plate - Drive
1
6
CA145103 Washer - Spring
1
7
CA145104 Ring - Retaining
1
8
CA145105 Washer - Spring
1
9
CA145106 Spindle Assembly
(Incl Index Nos: 8, 10, 14 & 15)
1
10
CA145107 Bearing - Ball
1
11
CA145108 Hub - Orbital (Incl Index No: 13)
1
12
CA145109 Screw - Socket Head Cap
1
13
CA145110 Screw - Set
1
14
CA145111 Washer - Spring
1
15
CA145112 Screw - Spindle
1
16
CA145113 Housing - Motor (Incl Index No: 46)
1
17
CA145114 Plate - Front End
1
18
CA145115 Shaft - Rotor
1
19
CA145116 Bearing - Ball 1
20
CA145117 Shim - Rotor
4
21
CA145118 Rotor (Incl Index No: 22)
1
22
CA145119 Screw - Set
1
23
CA145120 Blade Set - Rotor
1
24
CA145121 Bearing - Ball 1
25
CA145122 Seal - Bearing
1
26
CA145123 Liner
1
27
CA145124 Dowel - Liner
1
28
CA145125 Plate - Rear End
1
29
CA145126 Plate - Exhaust Diffuser
1
30
CA145127 Washer - Spring
4
31
CA145128 Screw - Diffuser Plate Mounting
4
32
CA145129 Plug - Throttle Valve
1
33
CA145130 Spring - Throttle
1
34
CA145131 O-Ring
1
35
CA145132 Ring - Retaining
1
36
CA145133 Washer - Flat
1
37
CA145134 Washer - Rubber
1
38
CA145135 Screw
2
39
CA145136 O-Ring
2
40
CA145137 Valve - Regulator
1
45
CA145142 Stem - Throttle Valve
1
46
CA145143 Bushing - Throttle Valve 1
47
CA145144 Foam - Muffler (Incl Indes No: 48)
1
48
CA145145 Foam - Muffler
1
49
CA145146 Cover - Motor Housing
1
50
CA145147 Screw
2
51
CA145148 Bracket - Throttle Lever
1
52
CA145149 Lever - Throttle
1
53
CA145150 Pin - Throttle Lever 1
54
CA145151 Nut 1
55
CA145152 Spring - Lever Return 1
56
CA145153 Nut - Locking 1
57
CA145154 Grip - Handle
1
58
CA145155 Handle
1
Tune-Up Kit
CA144954 Incl Index Nos: 19, 20, 23, 24, 25, 33, 34, 39, 41 & 47
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5° F to 350° F.

Price $5.15
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
CA144954 Chicago Pneumatic Kit-Tune Up Cp0870 CA144954 Chicago Pneumatic Kit-Tune Up Cp0870

CA144954 Chicago Pneumatic Kit-Tune Up Cp0870

Price $35.36
CA145099 Chicago Pneumatic Screw-Cap CA145099 Chicago Pneumatic Screw-Cap

CA145099 Chicago Pneumatic Screw-Cap

Price $3.93
CA145100 Chicago Pneumatic Washer CA145100 Chicago Pneumatic Washer

CA145100 Chicago Pneumatic Washer

Price $3.57
CA145101 Chicago Pneumatic Counterweight CA145101 Chicago Pneumatic Counterweight

CA145101 Chicago Pneumatic Counterweight

Price $4.22
CA145102 Chicago Pneumatic Plate-Drive CA145102 Chicago Pneumatic Plate-Drive

CA145102 Chicago Pneumatic Plate-Drive

Price $5.39
CA145103 Chicago Pneumatic Washer-Spring CA145103 Chicago Pneumatic Washer-Spring

CA145103 Chicago Pneumatic Washer-Spring

Price $3.01
CA145104 Chicago Pneumatic Ring-Retaining CA145104 Chicago Pneumatic Ring-Retaining

CA145104 Chicago Pneumatic Ring-Retaining

Price $3.01
CA145105 Chicago Pneumatic Washer-Spring CA145105 Chicago Pneumatic Washer-Spring

CA145105 Chicago Pneumatic Washer-Spring

Price $3.89
CA145106 Chicago Pneumatic Spindle Assy CA145106 Chicago Pneumatic Spindle Assy

CA145106 Chicago Pneumatic Spindle Assy

Price $35.37
CA145107 Chicago Pneumatic Bearing-Ball CA145107 Chicago Pneumatic Bearing-Ball

CA145107 Chicago Pneumatic Bearing-Ball

Price $16.00
CA145108 Chicago Pneumatic Hub-Orbital CA145108 Chicago Pneumatic Hub-Orbital

CA145108 Chicago Pneumatic Hub-Orbital

Discontinued
CA145109 Chicago Pneumatic Screw-Socket Head Ca CA145109 Chicago Pneumatic Screw-Socket Head Ca

CA145109 Chicago Pneumatic Screw-Socket Head Ca

Price $3.88
CA145110 Chicago Pneumatic Screw-Set CA145110 Chicago Pneumatic Screw-Set

CA145110 Chicago Pneumatic Screw-Set

Price $3.90
CA145111 Chicago Pneumatic Washer-Spring CA145111 Chicago Pneumatic Washer-Spring

CA145111 Chicago Pneumatic Washer-Spring

Price $2.80
CA145112 Chicago Pneumatic Screw-Spindle CA145112 Chicago Pneumatic Screw-Spindle

CA145112 Chicago Pneumatic Screw-Spindle

Price $3.90
CA145113 Chicago Pneumatic Housing-Motor CA145113 Chicago Pneumatic Housing-Motor

CA145113 Chicago Pneumatic Housing-Motor

Price $23.56
CA145114 Chicago Pneumatic Plate-Front End CA145114 Chicago Pneumatic Plate-Front End

CA145114 Chicago Pneumatic Plate-Front End

Price $10.13
CA145115 Chicago Pneumatic Shaft-Rotor CA145115 Chicago Pneumatic Shaft-Rotor

CA145115 Chicago Pneumatic Shaft-Rotor

Price $10.11
CA145116 Chicago Pneumatic Bearing-Ball CA145116 Chicago Pneumatic Bearing-Ball

CA145116 Chicago Pneumatic Bearing-Ball

Price $12.62
CA145117 Chicago Pneumatic Shim-Rotor CA145117 Chicago Pneumatic Shim-Rotor

CA145117 Chicago Pneumatic Shim-Rotor

Price $3.89
CA145118 Chicago Pneumatic Rotor CA145118 Chicago Pneumatic Rotor

CA145118 Chicago Pneumatic Rotor

Price $22.12
CA145120 Chicago Pneumatic Blade Set CA145120 Chicago Pneumatic Blade Set

CA145120 Chicago Pneumatic Blade Set

Price $12.61
CA145121 Chicago Pneumatic Bearing-Ball CA145121 Chicago Pneumatic Bearing-Ball

CA145121 Chicago Pneumatic Bearing-Ball

Price $12.62
CA145122 Chicago Pneumatic Seal-Bearing CA145122 Chicago Pneumatic Seal-Bearing

CA145122 Chicago Pneumatic Seal-Bearing

Price $3.89
CA145123 Chicago Pneumatic Liner CA145123 Chicago Pneumatic Liner

CA145123 Chicago Pneumatic Liner

Price $16.20
CA145124 Chicago Pneumatic Dowel-Liner CA145124 Chicago Pneumatic Dowel-Liner

CA145124 Chicago Pneumatic Dowel-Liner

Price $3.89
CA145125 Chicago Pneumatic Plate-Rear End CA145125 Chicago Pneumatic Plate-Rear End

CA145125 Chicago Pneumatic Plate-Rear End

Discontinued
CA145129 Chicago Pneumatic Plug-Throttle Valve CA145129 Chicago Pneumatic Plug-Throttle Valve

CA145129 Chicago Pneumatic Plug-Throttle Valve

Price $2.34
CA145130 Chicago Pneumatic Spring-Throttle CA145130 Chicago Pneumatic Spring-Throttle

CA145130 Chicago Pneumatic Spring-Throttle

Price $3.91
CA145131 Chicago Pneumatic O-Ring CA145131 Chicago Pneumatic O-Ring

CA145131 Chicago Pneumatic O-Ring

Price $3.89
CA145134 Chicago Pneumatic Washer-Rubber CA145134 Chicago Pneumatic Washer-Rubber

CA145134 Chicago Pneumatic Washer-Rubber

Discontinued
CA145135 Chicago Pneumatic Screw CA145135 Chicago Pneumatic Screw

CA145135 Chicago Pneumatic Screw

Price $3.93
CA145136 Chicago Pneumatic O-Ring CA145136 Chicago Pneumatic O-Ring

CA145136 Chicago Pneumatic O-Ring

Price $3.93
CA145137 Chicago Pneumatic Valve-Regulator CA145137 Chicago Pneumatic Valve-Regulator

CA145137 Chicago Pneumatic Valve-Regulator

Price $20.59
CA145142 Chicago Pneumatic Stem-Throttle Valve CA145142 Chicago Pneumatic Stem-Throttle Valve

CA145142 Chicago Pneumatic Stem-Throttle Valve

Price $3.90
CA145143 Chicago Pneumatic Bushing-Throttle Val CA145143 Chicago Pneumatic Bushing-Throttle Val

CA145143 Chicago Pneumatic Bushing-Throttle Val

Price $3.92
CA145144 Chicago Pneumatic Foam-Muffler CA145144 Chicago Pneumatic Foam-Muffler

CA145144 Chicago Pneumatic Foam-Muffler

Price $3.87
CA145145 Chicago Pneumatic Foam-Muffler CA145145 Chicago Pneumatic Foam-Muffler

CA145145 Chicago Pneumatic Foam-Muffler

Price $3.93
CA145146 Chicago Pneumatic Cover-Motor Housing CA145146 Chicago Pneumatic Cover-Motor Housing

CA145146 Chicago Pneumatic Cover-Motor Housing

Price $10.00
CA145147 Chicago Pneumatic Screw CA145147 Chicago Pneumatic Screw

CA145147 Chicago Pneumatic Screw

Price $3.89
CA145148 Chicago Pneumatic Bracket-Throttle Lev CA145148 Chicago Pneumatic Bracket-Throttle Lev

CA145148 Chicago Pneumatic Bracket-Throttle Lev

Price $7.12
CA145149 Chicago Pneumatic Lever-Throttle CA145149 Chicago Pneumatic Lever-Throttle

CA145149 Chicago Pneumatic Lever-Throttle

Price $10.14
CA145150 Chicago Pneumatic Pin-Throttle Lever ( CA145150 Chicago Pneumatic Pin-Throttle Lever (

CA145150 Chicago Pneumatic Pin-Throttle Lever (

Price $3.89
CA145151 Chicago Pneumatic Nut CA145151 Chicago Pneumatic Nut

CA145151 Chicago Pneumatic Nut

Price $3.89
CA145152 Chicago Pneumatic Spring-Lever Return CA145152 Chicago Pneumatic Spring-Lever Return

CA145152 Chicago Pneumatic Spring-Lever Return

Price $5.37
CA145154 Chicago Pneumatic Grip-Handle CA145154 Chicago Pneumatic Grip-Handle

CA145154 Chicago Pneumatic Grip-Handle

Discontinued
CA145155 Chicago Pneumatic Handle CA145155 Chicago Pneumatic Handle

CA145155 Chicago Pneumatic Handle

Price $11.05
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CP870 Dual Action Sander CP870 Dual Action Sander

The CP870 Chicago Pneumatic Dual Action Sander is ideal for blending and smoothing filler, feather edging and pre-paint preparation. Powered by a 0.5 HP motor, it produces 5,000 RPM of free speed. This dual action sander provides both rotary and orbital motion for rapid removal, and a fine finishing speed regulator to match speed to the job. A lock off throttle prevents accidental start ups and an insulated grip provides comfort to the operator. The air inlet measures 1/4 inches in diameter with a 3/8-inch diameter hose. Uses 6" PSA Self Adhesive Sanding Discs. Insulated grip and lock off throttle to prevent accidental start ups. Power regulator for precise control. Greater Operator comfort. Excellent for blending and smoothing filler, feather edging and pre-paint preparation.
