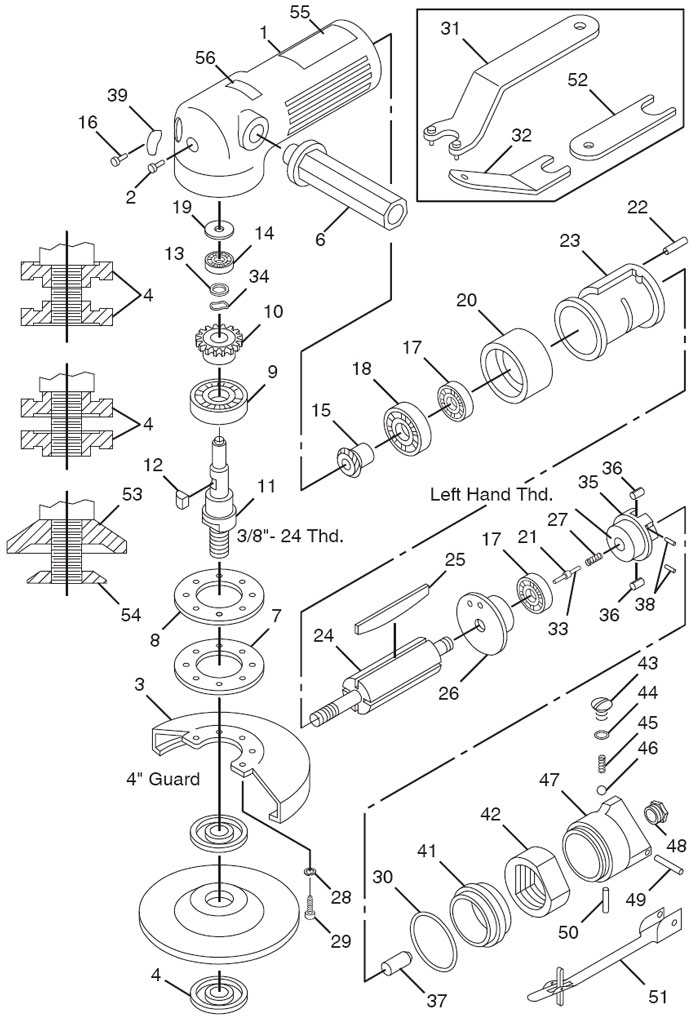

Chicago Pneumatic CP854 Angle Grinder Repair Parts


Index
No.
Part No. Description No.
Req'd
1 C136896 Housing - Motor 1
2 C136897 Screw - Motor Housing 1
3 C136898 Guard - 4" (100mm) Wheel 1
- KF141860 Guard - 5" (125mm) (854 E) 1
4 C138512 Nut - Wheel Retaining 2
- C136899 Nut - Wheel Retaining (16mm) 2
6 C136901 Handle - Dead 1
7 C136902 Retainer 1
8 C136903 Gasket 1
9 S021071 Bearing - Ball 1
10 C136905 Gear - Bevel 1
11 C141028 Shaft - Gear (3/8" - 24 Tooth) 1
- C136906 Shaft - Gear (854 E) 1
12 KF125161 Key 1
13 C136908 Ring - Reatining 1
14 S025101 Bearing - Ball 1
15 C136910 Pinion 1
16 C136911 Screw - Deflector 1
17 S013107 Bearing - Ball 2
18 G072185 Bearing - Ball 1
19 C136914 Spacer 1
20 C136915 Plate - Front End 1
21 C136916 Nut - Governor Adjusting 1
22 KF124281 Dowel 1
23 KF125248 Liner 1
24 C136919 Rotor 1
25 KF138242 Blade Set - Rotor 4
26 KF125250 Plate - Upper End 1
27 C136922 Spring - Governor 1
28 CA127043 Lockwasher 4
29 KF125206 Nut - Governor Adjusting 4
30 C136924 O-Ring - Cylinder 1
31 C136926 Wrench - Wheel Spanner 1
32 C136927 Wrench - Stop Spanner 1
33 C136928 Screw - Governor Adjusting 1
34 C136929 Washer - Wavy 1
35 C136930 Body - Governor 1
36 C136931 Weight Governor 6
37 C136932 Plunger - Governor 1
38 C136933 Pin - Governor Weight 2
39 C136934 Deflector - Exhaust 1
41 C136936 Ring - Lock 1
42 C136937 Nut - Coupling 1
43 C136938 Nut - Valve 1
44 C136939 O-Ring - Valve Nut 1
45 C136940 Spring - Valve 1
46 C136941 Ball - Valve 1
47 C136942 Housing - Valve 1
48 P002525 Reducing Bushing - Inlet 1
49 C136944 Pin - Valve Housing 1
50 C136945 Pin - Stop Valve 1
51 C136946 Lever - Throttle 1
52 C139702 Wench 5/8" Open End 1
53 C128495 Adaptor - Wheel 1
- KF142108 Adaptor - Wheel M10THD 1
54 C050588 Nut - Wheel Retaining 1
- CA144007 Warning Decal (Not Shown) 1
- KF141861 Collar - Wheel (0.87 ID) (Not Shown) 1
- KF141865 Wrench - Spanner 28mm (Not Shown) 1
56 CA157797 Decal - Guard Warning 1
Tune-Up Kit C138089 Incl Index Nos: 8, 9, 10, 14, 15, 17, 18 & 25
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5° F to 350° F.

Price $5.15
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
A082777 Chicago Pneumatic O-Ring In-012 A082777 Chicago Pneumatic O-Ring In-012

A082777 Chicago Pneumatic O-Ring In-012

Price $7.10
C050588 Chicago Pneumatic Wheel Ret Nut C050588 Chicago Pneumatic Wheel Ret Nut

C050588 Chicago Pneumatic Wheel Ret Nut

Price $44.21
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
C128495 Chicago Pneumatic Adapter-Wheel C128495 Chicago Pneumatic Adapter-Wheel

C128495 Chicago Pneumatic Adapter-Wheel

Price $50.12
C136896 Chicago Pneumatic Body C136896 Chicago Pneumatic Body

C136896 Chicago Pneumatic Body

Price $157.76
C136897 Chicago Pneumatic Screw-Body C136897 Chicago Pneumatic Screw-Body

C136897 Chicago Pneumatic Screw-Body

Price $5.41
C136898 Chicago Pneumatic Guard-4" Wheel C136898 Chicago Pneumatic Guard-4" Wheel

C136898 Chicago Pneumatic Guard-4" Wheel

Price $17.40
C136899 Chicago Pneumatic Nut-Wheel C136899 Chicago Pneumatic Nut-Wheel

C136899 Chicago Pneumatic Nut-Wheel

Price $16.20
C136901 Chicago Pneumatic Handle-Dead C136901 Chicago Pneumatic Handle-Dead

C136901 Chicago Pneumatic Handle-Dead

Price $21.20
C136902 Chicago Pneumatic Retainer C136902 Chicago Pneumatic Retainer

C136902 Chicago Pneumatic Retainer

Price $8.68
C136903 Chicago Pneumatic Gasket C136903 Chicago Pneumatic Gasket

C136903 Chicago Pneumatic Gasket

Price $10.13
C136905 Chicago Pneumatic Gear-Bevel C136905 Chicago Pneumatic Gear-Bevel

C136905 Chicago Pneumatic Gear-Bevel

Price $60.47
C136906 Chicago Pneumatic Shaft-Gear C136906 Chicago Pneumatic Shaft-Gear

C136906 Chicago Pneumatic Shaft-Gear

Price $30.97
C136908 Chicago Pneumatic Ring-Retaining C136908 Chicago Pneumatic Ring-Retaining

C136908 Chicago Pneumatic Ring-Retaining

Price $5.39
C136910 Chicago Pneumatic Pinion C136910 Chicago Pneumatic Pinion

C136910 Chicago Pneumatic Pinion

Price $53.05
C136911 Chicago Pneumatic Screw-Deflector C136911 Chicago Pneumatic Screw-Deflector

C136911 Chicago Pneumatic Screw-Deflector

Price $5.41
C136914 Chicago Pneumatic Spacer C136914 Chicago Pneumatic Spacer

C136914 Chicago Pneumatic Spacer

Price $5.41
C136915 Chicago Pneumatic Plate-Front C136915 Chicago Pneumatic Plate-Front

C136915 Chicago Pneumatic Plate-Front

Discontinued
C136919 Chicago Pneumatic Rotor C136919 Chicago Pneumatic Rotor

C136919 Chicago Pneumatic Rotor

Price $81.10
C136926 Chicago Pneumatic Wrench-Wheel Spanner C136926 Chicago Pneumatic Wrench-Wheel Spanner

C136926 Chicago Pneumatic Wrench-Wheel Spanner

Price $17.87
C136927 Chicago Pneumatic Wrench-Stop Spanner C136927 Chicago Pneumatic Wrench-Stop Spanner

C136927 Chicago Pneumatic Wrench-Stop Spanner

Price $11.18
C136929 Chicago Pneumatic Washer Wavy C136929 Chicago Pneumatic Washer Wavy

C136929 Chicago Pneumatic Washer Wavy

Price $5.41
C136931 Chicago Pneumatic Weight-Governor C136931 Chicago Pneumatic Weight-Governor

C136931 Chicago Pneumatic Weight-Governor

Price $5.41
C136934 Chicago Pneumatic Deflector-Exhaust C136934 Chicago Pneumatic Deflector-Exhaust

C136934 Chicago Pneumatic Deflector-Exhaust

Price $5.39
C136936 Chicago Pneumatic Ring Lock C136936 Chicago Pneumatic Ring Lock

C136936 Chicago Pneumatic Ring Lock

Price $41.30
C136937 Chicago Pneumatic Nut-Coupling C136937 Chicago Pneumatic Nut-Coupling

C136937 Chicago Pneumatic Nut-Coupling

Price $35.39
C136938 Chicago Pneumatic Nut-Valve C136938 Chicago Pneumatic Nut-Valve

C136938 Chicago Pneumatic Nut-Valve

Price $5.35
C136939 Chicago Pneumatic O-Ring-Valve Nut C136939 Chicago Pneumatic O-Ring-Valve Nut

C136939 Chicago Pneumatic O-Ring-Valve Nut

C136940 Chicago Pneumatic Spring-Valve C136940 Chicago Pneumatic Spring-Valve

C136940 Chicago Pneumatic Spring-Valve

Price $5.41
C136941 Chicago Pneumatic Ball-Valve C136941 Chicago Pneumatic Ball-Valve

C136941 Chicago Pneumatic Ball-Valve

Price $5.41
C136942 Chicago Pneumatic Housing-Valve C136942 Chicago Pneumatic Housing-Valve

C136942 Chicago Pneumatic Housing-Valve

Price $101.70
C136944 Chicago Pneumatic Pin-Valve Housing C136944 Chicago Pneumatic Pin-Valve Housing

C136944 Chicago Pneumatic Pin-Valve Housing

Price $5.39
C136945 Chicago Pneumatic Pin-Valve C136945 Chicago Pneumatic Pin-Valve

C136945 Chicago Pneumatic Pin-Valve

Price $5.39
C136946 Chicago Pneumatic Lever-Throttle C136946 Chicago Pneumatic Lever-Throttle

C136946 Chicago Pneumatic Lever-Throttle

Price $29.40
C138089 Chicago Pneumatic Tune Up Kit Cp0854/8 C138089 Chicago Pneumatic Tune Up Kit Cp0854/8

C138089 Chicago Pneumatic Tune Up Kit Cp0854/8

Price $219.69
C138512 Chicago Pneumatic Collar-Wheel C138512 Chicago Pneumatic Collar-Wheel

C138512 Chicago Pneumatic Collar-Wheel

Price $22.13
C139702 Chicago Pneumatic Wrench-Open End C139702 Chicago Pneumatic Wrench-Open End

C139702 Chicago Pneumatic Wrench-Open End

Price $12.73
C141028 Chicago Pneumatic Shaft-Gear .38-24 C141028 Chicago Pneumatic Shaft-Gear .38-24

C141028 Chicago Pneumatic Shaft-Gear .38-24

Price $42.76
CA127043 Chicago Pneumatic Lockwasher-M5 CA127043 Chicago Pneumatic Lockwasher-M5

CA127043 Chicago Pneumatic Lockwasher-M5

Discontinued See S091250
CA144007 Chicago Pneumatic Decal-Safety Warning CA144007 Chicago Pneumatic Decal-Safety Warning

CA144007 Chicago Pneumatic Decal-Safety Warning

Price $3.44
CA144800 Chicago Pneumatic Bearing-Ball CA144800 Chicago Pneumatic Bearing-Ball

CA144800 Chicago Pneumatic Bearing-Ball

Price $26.42
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CP854 Chicago Pneumatic 4" Angle Grinder CP854 Chicago Pneumatic 4" Angle Grinder

CP854 4" Angle Grinder - This angle grinder has an aluminum alloy housing, a helical bevel gear design, the ability to have up to a 4" wheel, produces 0.6 hose power, not to mention that is it rugged and lightweight.

Price $405.46
G072185 Chicago Pneumatic Bearing-Ball G072185 Chicago Pneumatic Bearing-Ball

G072185 Chicago Pneumatic Bearing-Ball

Price $27.60
KF124281 Chicago Pneumatic Dowel-Liner KF124281 Chicago Pneumatic Dowel-Liner

KF124281 Chicago Pneumatic Dowel-Liner

Price $3.86
KF125161 Chicago Pneumatic Key KF125161 Chicago Pneumatic Key

KF125161 Chicago Pneumatic Key

Price $7.17
KF125206 Chicago Pneumatic Screw KF125206 Chicago Pneumatic Screw

KF125206 Chicago Pneumatic Screw

Price $5.41
KF125248 Chicago Pneumatic Liner KF125248 Chicago Pneumatic Liner

KF125248 Chicago Pneumatic Liner

Price $101.74
KF125250 Chicago Pneumatic Plate-Upper End KF125250 Chicago Pneumatic Plate-Upper End

KF125250 Chicago Pneumatic Plate-Upper End

Price $32.41
KF138242 Chicago Pneumatic Blade Set-Rotor 865 KF138242 Chicago Pneumatic Blade Set-Rotor 865

KF138242 Chicago Pneumatic Blade Set-Rotor 865

Price $18.70
KF141860 Chicago Pneumatic Guard-125mm 5" KF141860 Chicago Pneumatic Guard-125mm 5"

KF141860 Chicago Pneumatic Guard-125mm 5"

Price $23.70
KF141861 Chicago Pneumatic Collar-Wheel .87id KF141861 Chicago Pneumatic Collar-Wheel .87id

KF141861 Chicago Pneumatic Collar-Wheel .87id

Price $26.54
KF141865 Chicago Pneumatic Wrench-Spanner 28mm KF141865 Chicago Pneumatic Wrench-Spanner 28mm

KF141865 Chicago Pneumatic Wrench-Spanner 28mm

Price $17.87
KF142108 Chicago Pneumatic Adaptor-Wheel M10thd KF142108 Chicago Pneumatic Adaptor-Wheel M10thd

KF142108 Chicago Pneumatic Adaptor-Wheel M10thd

Price $30.95
P002525 Chicago Pneumatic Reducing Bshg P002525 Chicago Pneumatic Reducing Bshg

P002525 Chicago Pneumatic Reducing Bshg

Price $7.15
S013107 Chicago Pneumatic Bearing-Ball S013107 Chicago Pneumatic Bearing-Ball

S013107 Chicago Pneumatic Bearing-Ball

Discontinued See CA144800
S021071 Chicago Pneumatic Bearing-Ball S021071 Chicago Pneumatic Bearing-Ball

S021071 Chicago Pneumatic Bearing-Ball

Price $52.98
S025101 Chicago Pneumatic Bearing-Ball S025101 Chicago Pneumatic Bearing-Ball

S025101 Chicago Pneumatic Bearing-Ball

Price $23.56
S091250 Chicago Pneumatic Lockwasher (Each) S091250 Chicago Pneumatic Lockwasher (Each)

S091250 Chicago Pneumatic Lockwasher #10

Price $3.92
