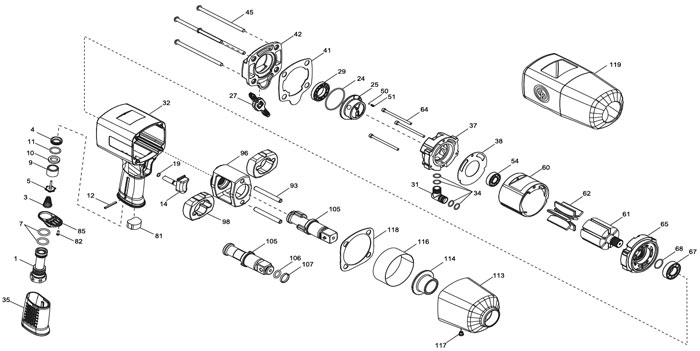

Chicago Pneumatic CP8272-P Impact Wrench Repair Parts



Index
No. 		Part No. Description No.
Req'd
A
 2050557173
 Air Inlet Kit
 -
1
 -
 Inlet bushing
 1
7
 -
 O-Ring 2
12
 -
 Pin
 1
81
 -
 Muffler
 1
82
 -
 Tap bolt
 1
85
 -
 Exhaust - deflector
 1
B
 2050557183
 Throttle Valve Kit
 -
3
 -
 Spring - throttle valve
 1
4
 -
 Insert bushing
 1
5
 -
 Valve - throttle
 1
9
 -
 Bushing
 1
10
 2050524593
 Seal
 1
11
 -
 O-Ring 1
C
 2050557193
 Trigger Kit
 -
14
 -
 Lever - throttle
 1
19
 -
 O-Ring 1
D
 2050557203
 Reverse / Regulator Valve Kit
 -
24
 -
 O-Ring 1
25
 -
 Reverse valve
 1
27
 -
 Lever - reverse valve
 1
29
 -
 Rear gasket
 1
50
 -
 Steel ball
 1
51
 -
 Spring
 1
E
 2050557213
 Regulator Base Kit
 -
31
 -
 Inlet
 1
34
 -
 O-Ring 4
37
 -
 Regulator base
 1
38
 -
 Gasket - regulator base
 1
50
 -
 Steel ball
 1
51
 -
 Spring
 1
64
 -
 Screw
 3
F
 2050557223
 Motor Housing Assembly
 -
32
 -
 Housing - motor
 1
35
 -
 Rubber grip
 1
G
 2050557233
 Rear Cover Kit
 -
41
 -
 Gasket - rear cover
 1
42
 -
 Rear cover
 1
45
 -
 Screw
 4
H
 2050557243
 Motor Rear End Assembly
 -
54
 -
 Bearing
 1
60
 -
 Liner
 1
I
 2050557253
 Motor Front End Assembly
 -
65
 -
 Plate - front end
 1
67
 -
 Bearing
1
68
 -
 O-Ring
 1
J1
 8940168682
 3/4"(D) Anvil Assembly (CP8272-D)
 -
105
 -
 Anvil
 1
106
 -
 O-Ring
 1
107
 -
 Friction ring
 1
J1.1
 8940168715
 Socket Retaining Kit - 3/4" (CP8272-D)
 -
106
 -
 O-Ring
 5
107
 -
 Friction ring
 5
J2
 2050557283 3/4"(P) Anvil Assembly (CP8272-P)
 -
105
 -
 Anvil
 1
K
 2050559233 Clutch Housing Assembly
 -
113
 -
 Clutch housing (AI)
 1
114
 -
 Bushing - clutch housing
 1
116
 -
 Steel ring
 1
117
 -
 Grease fitting
 1
118
 -
 Gasket - clutch housing
 1
L
 2050557293
 Gasket Kit
 -
38
 -
 Gasket - regulator base
 1
41
 -
 Gasket - rear cover
 1
118
 -
 Gasket - clutch housing
 1
M
 2050557303
 Small Parts Kit
 -
12
 -
 Pin
 1
29
 -
 Rear gasket
 1
45
 -
 Screw
 4
50
 -
 Steel ball
 1
51
 -
 Spring
 1
64
 -
 Screw
 3
82
 -
 Tap bolt
 1
N
 8940169896
 Ball Bearing Kit
 -
54
 -
 Bearing 1
67
 -
 Bearing
 1
-
 2050557343
 Tune-up Kit
(incl 7, 10, 11, 19, 24, 34, 37, 41, 62, 118)
-
61
 2050524473
 Rotor
 1
62
 2050524483
 Blade (set of 6)
 1
93
 2050524343
 Pin (set of 2)
 1
96
 2050524363
 Cage
 1
98
 8940168685
 Dog (set of 2)
 1
119
 2050559193
 Protective cover
 1
-
 2050557593
 Nameplate / warning label (CP8272-D) 1
-
 2050557603
 Nameplate / warning label (CP8272-P)
 1
Sort By:
2050524343 Chicago Pneumatic Pin (Set Of 2) 2050524343 Chicago Pneumatic Pin (Set Of 2)

2050524343 Chicago Pneumatic Pin (Set Of 2)

Price $7.18
2050524363 Chicago Pneumatic Cage 2050524363 Chicago Pneumatic Cage

2050524363 Chicago Pneumatic Cage

Price $188.72
2050524473 Chicago Pneumatic Rotor 2050524473 Chicago Pneumatic Rotor

2050524473 Chicago Pneumatic Rotor

Price $156.25
2050524483 Chicago Pneumatic Blade Set (6) 2050524483 Chicago Pneumatic Blade Set (6)

2050524483 Chicago Pneumatic Blade Set (6)

Price $50.14
2050557173 Chicago Pneumatic Air Inlet Kit 2050557173 Chicago Pneumatic Air Inlet Kit

2050557173 Chicago Pneumatic Air Inlet Kit

Price $24.67
2050557183 Chicago Pneumatic Throttle Valve Kit 2050557183 Chicago Pneumatic Throttle Valve Kit

2050557183 Chicago Pneumatic Throttle Valve Kit

Price $7.76
2050557193 Chicago Pneumatic Trigger Kit 2050557193 Chicago Pneumatic Trigger Kit

2050557193 Chicago Pneumatic Trigger Kit

Price $8.42
2050557203 Chicago Pneumatic Reverse / Regulator Valve Kit 2050557203 Chicago Pneumatic Reverse / Regulator Valve Kit

2050557203 Chicago Pneumatic Reverse / Regulator Valve Kit

Price $18.02
2050557213 Chicago Pneumatic Regulator Base Kit 2050557213 Chicago Pneumatic Regulator Base Kit

2050557213 Chicago Pneumatic Regulator Base Kit

Price $49.42
2050557223 Chicago Pneumatic Motor Housing Assembly 2050557223 Chicago Pneumatic Motor Housing Assembly

2050557223 Chicago Pneumatic Motor Housing Assembly

Price $39.49
2050557233 Chicago Pneumatic Rear Cover Kit 2050557233 Chicago Pneumatic Rear Cover Kit

2050557233 Chicago Pneumatic Rear Cover Kit

Price $55.93
2050557243 Chicago Pneumatic Motor Rear End Assembly 2050557243 Chicago Pneumatic Motor Rear End Assembly

2050557243 Chicago Pneumatic Motor Rear End Assembly

Price $107.00
2050557253 Chicago Pneumatic Motor Front End Assembly 2050557253 Chicago Pneumatic Motor Front End Assembly

2050557253 Chicago Pneumatic Motor Front End Assembly

Price $57.60
2050557293 Chicago Pneumatic Gasket Kit 2050557293 Chicago Pneumatic Gasket Kit

2050557293 Chicago Pneumatic Gasket Kit

Price $14.11
2050557303 Chicago Pneumatic Small Parts Kit 2050557303 Chicago Pneumatic Small Parts Kit

2050557303 Chicago Pneumatic Small Parts Kit

Price $26.36
2050557343 Chicago Pneumatic Tune Up Kit Cp8272 2050557343 Chicago Pneumatic Tune Up Kit Cp8272

2050557343 Chicago Pneumatic Tune Up Kit Cp8272

Price $44.20
2050559193 Chicago Pneumatic Protective Cover CP8272 2050559193 Chicago Pneumatic Protective Cover CP8272

2050559193 Chicago Pneumatic Protective Cover CP8272

Price $21.73
8940168682 Chicago Pneumatic Anvil Unit 8940168682 Chicago Pneumatic Anvil Unit

8940168682 Chicago Pneumatic Anvil Unit

Price $107.60
8940168685 Chicago Pneumatic Hammer (Set Of 2) 8940168685 Chicago Pneumatic Hammer (Set Of 2)

8940168685 Chicago Pneumatic Hammer (Set Of 2)

Price $201.99
8940168715 Chicago Pneumatic Socket Retaining Kit 8940168715 Chicago Pneumatic Socket Retaining Kit

8940168715 Chicago Pneumatic Socket Retaining Kit

Price $3.89
8940169896 Chicago Pneumatic Bearing Kit 8940169896 Chicago Pneumatic Bearing Kit

8940169896 Chicago Pneumatic Bearing Kit

Price $38.52
CP8272-P Chicago Pneumatic 3/4" Square Drive Impact Wrench with Ring-type Retainer CP8272-P Chicago Pneumatic 3/4" Square Drive Impact Wrench with Ring-type Retainer

CP8272-P Chicago Pneumatic 3/4" Square Drive Impact Wrench with Ring-type Retainer - Durable and reliable impact for Industrial Maintenance and Production applications. Low noise level and vibration combined with lightweight for operator comfort. Powerful and easy to control for precise assembly jobs. Multi-purpose tool for versatile applications.

Price $693.55
