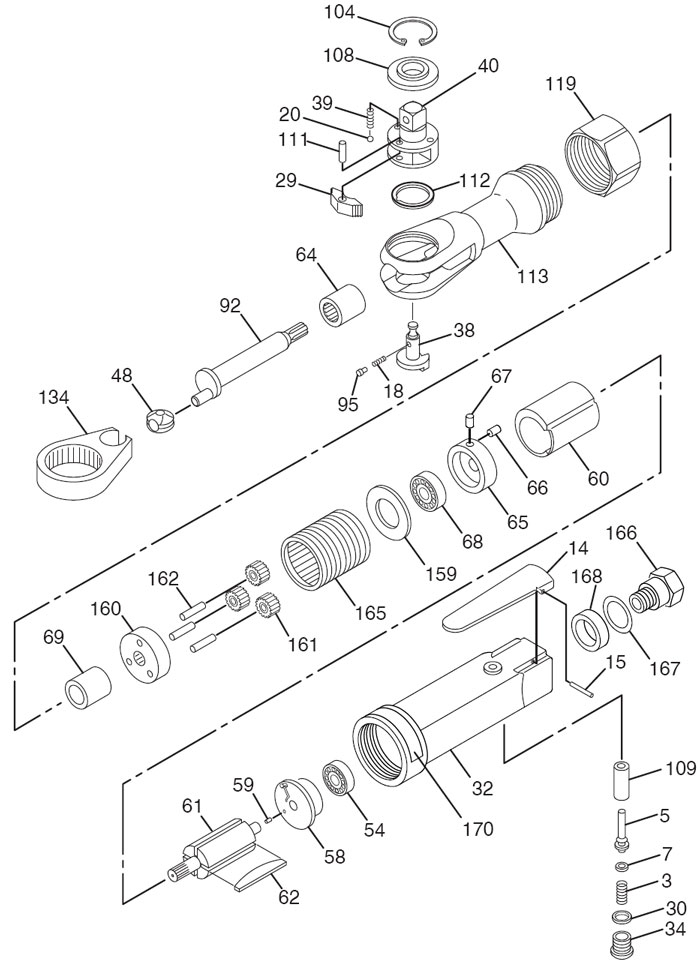

Chicago Pneumatic CP824 Air Ratchet Repair Parts
Index
No.
|
Part No.
|
Description
|
No.
Req'd
|
|
3
|
CA146388
|
Spring
- Throttle
|
1
|
|
5
|
CA157831
|
Valve
- Throttle
|
1
|
|
7
|
C087316
|
O-Ring
(-006)
|
1
|
|
14
|
CA157832
|
Lever
- Throttle
|
1
|
|
15
|
P143294
|
Pin
- Roll (3.0 x 22mm)
|
1
|
|
18
|
CA157833
|
Spring
- Ratchet
|
1
|
|
20
|
S000821
|
Ball
- Steel (0.125)
|
2
|
|
29
|
CA157834
|
Pawl
- Ratchet
|
1
|
|
30
|
CA146397
|
O-Ring
|
1
|
|
32
|
CA157835
|
Handle
- Throttle
(Incl Index No: 109)
|
1
|
|
34
|
CA157836
|
Plug
- Throttle Valve
|
1
|
|
38
|
CA157837
|
Button
- Reverse (CP824)
|
1
|
|
-
|
CA157838
|
Button
- Reverse (CP824T)
|
1
|
|
39
|
CA157839
|
Spring
- Friction
|
2
|
|
40
|
CA157840
|
Shank
- Ratchet 1/4" (CP824)
(Incl Index No: 110)
|
1
|
|
-
|
CA157841
|
Shank
- Ratchet 3/8" (CP824T)
(Incl Index No: 110)
|
1
|
|
48
|
CA157842
|
Bushing
- Drive
|
1
|
|
54
|
CA157867
|
Bearing
- Ball
|
1
|
|
58
|
CA157843
|
Plate
- Rear End
(Incl Index No: 59)
|
1
|
|
60
|
CA157844
|
Liner
|
1
|
|
61
|
CA157845
|
Rotor
|
1
|
|
62
|
CA157869
|
Blade
- Rotor Set (4)
|
1
|
|
64
|
KF138213
|
Bearing
Needle
|
1
|
|
65
|
CA157847
|
Plate
- Front End
(Incl Index Nos: 66 & 67)
|
1
|
|
68
|
CA146415
|
Bearing
- Ball
|
1
|
|
69
|
CA157848
|
Bearing
- Plain
|
1
|
|
92
|
CA157849
|
Shaft
- Crank
|
1
|
|
95
|
CA157864
|
Pin
- Lock
|
1
|
|
104
|
CA157868
|
Ring
- Retaining
|
1
|
|
108
|
CA157850
|
Washer
- Thrust (CP824)
|
1
|
|
-
|
CA157851
|
Washer
- Thrust (CP824T)
|
1
|
|
109
|
CA157852
|
Bushing
- Throttle
|
1
|
|
111
|
CA157853
|
Pin
- Dowel
|
1
|
|
112
|
CA157854
|
Washer
|
1
|
|
113
|
CA157855
|
Housing
- Ratchet
(Incl Index Nos: 64 & 69)
|
1
|
|
119
|
CA157856
|
Clamp
- Housing
|
1
|
|
134
|
CA157857
|
Yoke
- Ratchet
|
1
|
|
159
|
CA157858
|
Washer
|
1
|
|
160
|
CA157859
|
Spindle
- Idler
|
1
|
|
161
|
CA157860
|
Gear
- Idler
|
3
|
|
162
|
CA157861
|
Roller
- Needle
|
3
|
|
165
|
CA157862
|
Gear
- Internal
|
1
|
|
166
|
CA157863
|
Bushing
- Air Inlet
|
1
|
|
167
|
CA157865
|
Deflector
- Exhaust
|
1
|
|
168
|
CA157866
|
Muffler
|
1
|
|
170
|
CA155262
|
Warning
Decal
|
1
|
|
-
|
CA157928
|
Cover
- Protective (Optional)
|
1
|
|
Tune-Up Kit
|
CA157871
|
Incl Indes Nos:
3, 7, 18, 20, 30, 39, 62, 95 & 104
|
|
Head Kit
|
CA157872
|
CP824
Incl Indes Nos: 18, 20, 29, 38, 39, 40, 95, 104, 108, 111 & 112
|
|
Head Kit
|
CA157873
|
CP824T
Incl Indes Nos: 18, 20, 29, 38, 39, 40, 95, 104, 108, 111 & 112
|
|
|
