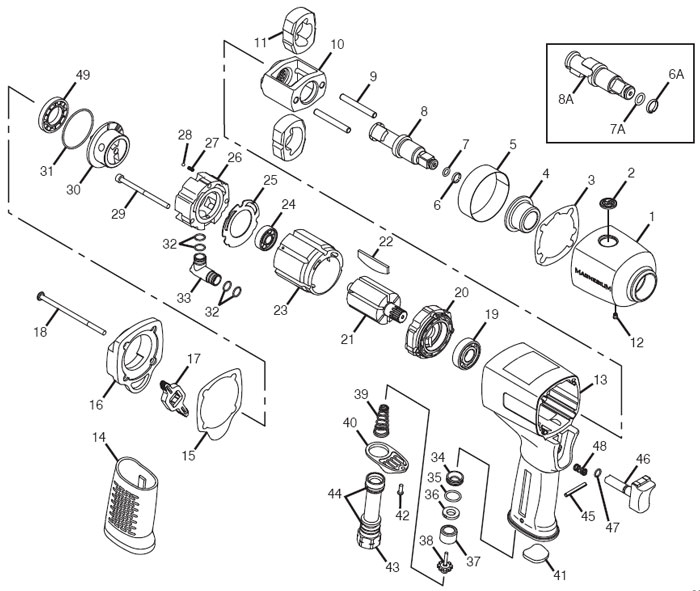

Chicago Pneumatic CP8232-QC Impact Wrench Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 2050520543
 Clutch housing (Mg)
 1
2
 2050520553
 CP logo coin
 1
3
 2050520563
 Gasket - clutch housing
 1
4
 2050520573
 Bushing - clutch housing
 1
5
 2050520583
 Steel ring
 1
6
 2050521013
 Ring - friction (CP8222) 1
6A
 2050521063
 Ring - friction (CP8242) 1
7
 2050523803
 O-Ring (CP8222) 1
7A
 2050520593
 O-Ring (CP8242) 1
8
 2050521023
 Anvil (CP8222) 1
8A
 2050521043
 Anvil (CP8242)
 1
9
 2050520603
 Pin
 2
10
 2050520613
 Cage
 1
11
 2050520623
 Dog
 2
12
 2050520633
 Grease fitting
 1
13
 2050520643
 Housing - motor
 1
14
 2050520823
 Rubber grip
 1
15
 2050520653
 Gasket - rear cover
 1
16
 2050520663
 Rear cover (Mg)
 1
17
 2050520673
 Lever - reverse valve
 1
18
 2050520683
 Screw
 4
19
 2050520693
 Bearing
 1
20
 2050520703
 Plate - front end
 1
21
 2050520713
 Rotor
 1
22
 2050520723
 Blade (set of 6)
 1
23
 2050520733
 Liner
 1
24
 2050520743
 Bearing
 1
25
 2050520753
 Gasket - regulator base
 1
26
 2050520763
 Regulator base
 1
27
 2050520833
 Spring
 1
28
 2050520843
 Steel ball
 1
29
 2050520853
 Screw
 3
30
 2050520863
 Reverse valve
 1
31
 2050520873
 O-Ring
 1
32
 2050520773
 O-Ring
 4
33
 2050520783
 Inlet
 1
34
 2050520883
 Insert bushing
 1
35
 2050520893
 O-Ring
 1
36
 2050520903
 Seal
 1
37
 2050520913
 Bushing
1
38
 2050520923
 Valve - throttle
 1
39
 2050520923
 Spring - throttle vlave
 1
40
 2050520943
 Exhaust - deflector
 1
41
 2050520953
 Mufflet
 1
42
 2050520963
 Tap bolt
 1
43
 2050520793
 Inlet bushing
 1
44
 2050520973
 O-Ring
 2
45
 2050520983
 Pin
 1
46
 2050520803
 Lever - throttle
 1
47
 2050520993
 O-Ring
 1
48
 2050521003
 Spring
 1
49
 2050521773
 Rear gasket
 1
-
 2050520813
 Clutch Housing Assembly
(incl 1, 2, 4, 12)
 1
-
 2050521033
 Anvil (CP8222)
(incl 6, 7, 8)
 1
-
 2050521053
 Anvil (CP8242)
(incl 6A, 7A, 8A)
 1
Sort By:
2050520543 Chicago Pneumatic Clutch Housing (Mg) 2050520543 Chicago Pneumatic Clutch Housing (Mg)

2050520543 Chicago Pneumatic Clutch Housing (Mg)

Price $42.75
2050520553 Chicago Pneumatic Coin - Cp Logo 2050520553 Chicago Pneumatic Coin - Cp Logo

2050520553 Chicago Pneumatic Coin - Cp Logo

Discontinued
2050520563 Chicago Pneumatic Gasket-Clutch Housing 2050520563 Chicago Pneumatic Gasket-Clutch Housing

2050520563 Chicago Pneumatic Gasket-Clutch Housing

Price $7.16
2050520573 Chicago Pneumatic Bushing-Clutch Housing 2050520573 Chicago Pneumatic Bushing-Clutch Housing

2050520573 Chicago Pneumatic Bushing-Clutch Housing

Discontinued
2050520583 Chicago Pneumatic Steel Ring 2050520583 Chicago Pneumatic Steel Ring

2050520583 Chicago Pneumatic Steel Ring

Price $3.90
2050520603 Chicago Pneumatic Pin 2050520603 Chicago Pneumatic Pin

2050520603 Chicago Pneumatic Pin

Discontinued
2050520613 Chicago Pneumatic Cage 2050520613 Chicago Pneumatic Cage

2050520613 Chicago Pneumatic Cage

Price $88.45
2050520623 Chicago Pneumatic Dog 2050520623 Chicago Pneumatic Dog

2050520623 Chicago Pneumatic Dog

Price $58.99
2050520643 Chicago Pneumatic Housing-Motor 2050520643 Chicago Pneumatic Housing-Motor

2050520643 Chicago Pneumatic Housing-Motor

Discontinued
2050520653 Chicago Pneumatic Gasket - Rear Cover 2050520653 Chicago Pneumatic Gasket - Rear Cover

2050520653 Chicago Pneumatic Gasket - Rear Cover

Price $7.14
2050520663 Chicago Pneumatic Rear Cover (Mag.) 2050520663 Chicago Pneumatic Rear Cover (Mag.)

2050520663 Chicago Pneumatic Rear Cover (Mag.)

Discontinued
2050520673 Chicago Pneumatic Lever-Reverse Valve 2050520673 Chicago Pneumatic Lever-Reverse Valve

2050520673 Chicago Pneumatic Lever-Reverse Valve

Price $5.34
2050520683 Chicago Pneumatic Screw 2050520683 Chicago Pneumatic Screw

2050520683 Chicago Pneumatic Screw

Price $3.89
2050520693 Chicago Pneumatic Bearing 2050520693 Chicago Pneumatic Bearing

2050520693 Chicago Pneumatic Bearing

Discontinued
2050520703 Chicago Pneumatic Plate-Front End 2050520703 Chicago Pneumatic Plate-Front End

2050520703 Chicago Pneumatic Plate-Front End

Price $38.35
2050520713 Chicago Pneumatic Rotor 2050520713 Chicago Pneumatic Rotor

2050520713 Chicago Pneumatic Rotor

Price $61.93
2050520723 Chicago Pneumatic Blades Set (6) 2050520723 Chicago Pneumatic Blades Set (6)

2050520723 Chicago Pneumatic Blades Set (6)

Price $19.18
2050520733 Chicago Pneumatic Liner 2050520733 Chicago Pneumatic Liner

2050520733 Chicago Pneumatic Liner

Price $58.95
2050520743 Chicago Pneumatic Bearing 2050520743 Chicago Pneumatic Bearing

2050520743 Chicago Pneumatic Bearing

Price $16.20
2050520753 Chicago Pneumatic Gasket-Regulator Base 2050520753 Chicago Pneumatic Gasket-Regulator Base

2050520753 Chicago Pneumatic Gasket-Regulator Base

Discontinued
2050520763 Chicago Pneumatic Regulator Base 2050520763 Chicago Pneumatic Regulator Base

2050520763 Chicago Pneumatic Regulator Base

Discontinued
2050520773 Chicago Pneumatic O-Ring 2050520773 Chicago Pneumatic O-Ring

2050520773 Chicago Pneumatic O-Ring

Price $3.90
2050520783 Chicago Pneumatic Inlet 2050520783 Chicago Pneumatic Inlet

2050520783 Chicago Pneumatic Inlet

Discontinued
2050520793 Chicago Pneumatic Inlet Bushing 2050520793 Chicago Pneumatic Inlet Bushing

2050520793 Chicago Pneumatic Inlet Bushing

Price $7.14
2050520813 Chicago Pneumatic Clutch Housing Assy 2050520813 Chicago Pneumatic Clutch Housing Assy

2050520813 Chicago Pneumatic Clutch Housing Assy

Discontinued
2050520823 Chicago Pneumatic Rubber Grip 2050520823 Chicago Pneumatic Rubber Grip

2050520823 Chicago Pneumatic Rubber Grip

Discontinued
2050520833 Chicago Pneumatic Spring 2050520833 Chicago Pneumatic Spring

2050520833 Chicago Pneumatic Spring

Price $3.90
2050520843 Chicago Pneumatic Steel Ball 2050520843 Chicago Pneumatic Steel Ball

2050520843 Chicago Pneumatic Steel Ball

Price $3.90
2050520863 Chicago Pneumatic Reverse Valve 2050520863 Chicago Pneumatic Reverse Valve

2050520863 Chicago Pneumatic Reverse Valve

Discontinued
2050520873 Chicago Pneumatic O-Ring 2050520873 Chicago Pneumatic O-Ring

2050520873 Chicago Pneumatic O-Ring

Price $3.90
2050520883 Chicago Pneumatic Insert Bushing 2050520883 Chicago Pneumatic Insert Bushing

2050520883 Chicago Pneumatic Insert Bushing

Price $3.89
2050520893 Chicago Pneumatic O-Ring 2050520893 Chicago Pneumatic O-Ring

2050520893 Chicago Pneumatic O-Ring

Discontinued
2050520903 Chicago Pneumatic Seal 2050520903 Chicago Pneumatic Seal

2050520903 Chicago Pneumatic Seal

Price $7.15
2050520913 Chicago Pneumatic Bushing 2050520913 Chicago Pneumatic Bushing

2050520913 Chicago Pneumatic Bushing

Price $3.90
2050520923 Chicago Pneumatic Valve-Throttle 2050520923 Chicago Pneumatic Throttle Valve

2050520923 Chicago Pneumatic Throttle Valve

Discontinued
2050520943 Chicago Pneumatic Exhaust-Deflector 2050520943 Chicago Pneumatic Exhaust-Deflector

2050520943 Chicago Pneumatic Exhaust-Deflector

Discontinued
2050520953 Chicago Pneumatic Muffler 2050520953 Chicago Pneumatic Muffler

2050520953 Chicago Pneumatic Muffler

Price $3.90
2050520963 Chicago Pneumatic Tap Bolt 2050520963 Chicago Pneumatic Tap Bolt

2050520963 Chicago Pneumatic Tap Bolt

Discontinued
2050520973 Chicago Pneumatic O-Ring 2050520973 Chicago Pneumatic O-Ring

2050520973 Chicago Pneumatic O-Ring

Price $3.90
2050520983 Chicago Pneumatic Pin 2050520983 Chicago Pneumatic Pin

2050520983 Chicago Pneumatic Pin

Price $3.90
2050520993 Chicago Pneumatic O-Ring 2050520993 Chicago Pneumatic O-Ring

2050520993 Chicago Pneumatic O-Ring

Price $3.90
2050521003 Chicago Pneumatic Spring 2050521003 Chicago Pneumatic Spring

2050521003 Chicago Pneumatic Spring

Price $3.89
2050521013 Chicago Pneumatic Ring-Friction (Rp8222) 2050521013 Chicago Pneumatic Ring-Friction (Rp8222)

2050521013 Chicago Pneumatic Ring-Friction (Rp8222)

Price $2.30
2050521023 Chicago Pneumatic Anvil (Rp8222) 2050521023 Chicago Pneumatic Anvil (Rp8222)

2050521023 Chicago Pneumatic Anvil (Rp8222)

Discontinued
2050521033 Chicago Pneumatic Anvil Assembly 2050521033 Chicago Pneumatic Anvil Assembly

2050521033 Chicago Pneumatic Anvil Assembly

Price $85.49
2050521043 Chicago Pneumatic Anvil (Rp8242) 2050521043 Chicago Pneumatic Anvil (Rp8242)

2050521043 Chicago Pneumatic Anvil (Rp8242)

Discontinued
2050521053 Chicago Pneumatic Anvil Assembly (Rp8242) 2050521053 Chicago Pneumatic Anvil Assembly (Rp8242)

2050521053 Chicago Pneumatic Anvil Assembly (Rp8242)

Price $92.89
2050521773 Chicago Pneumatic Rear Gasket 2050521773 Chicago Pneumatic Rear Gasket

2050521773 Chicago Pneumatic Rear Gasket

Price $3.90
2050523803 Chicago Pneumatic O-Ring (Rp8222) 2050523803 Chicago Pneumatic O-Ring (Rp8222)

2050523803 Chicago Pneumatic O-Ring (Rp8222)

Price $3.90
CP8232-QC Chicago Pneumatic 7/16" Hex Drive Quick Change Impact Wrench CP8232-QC Chicago Pneumatic 7/16" Hex Drive Quick Change Impact Wrench

CP8232-QC Chicago Pneumatic 7/16" Hex Drive Quick Change Impact Wrench - Very low noise, very limited vibration and lightweight for operator comfort. Powerful but easy to control for assembly/disassembly operations. Compact for easy access on tight spots. Durable and reliable impact for Industrial Maintenance and Production applications.

Price $322.84
