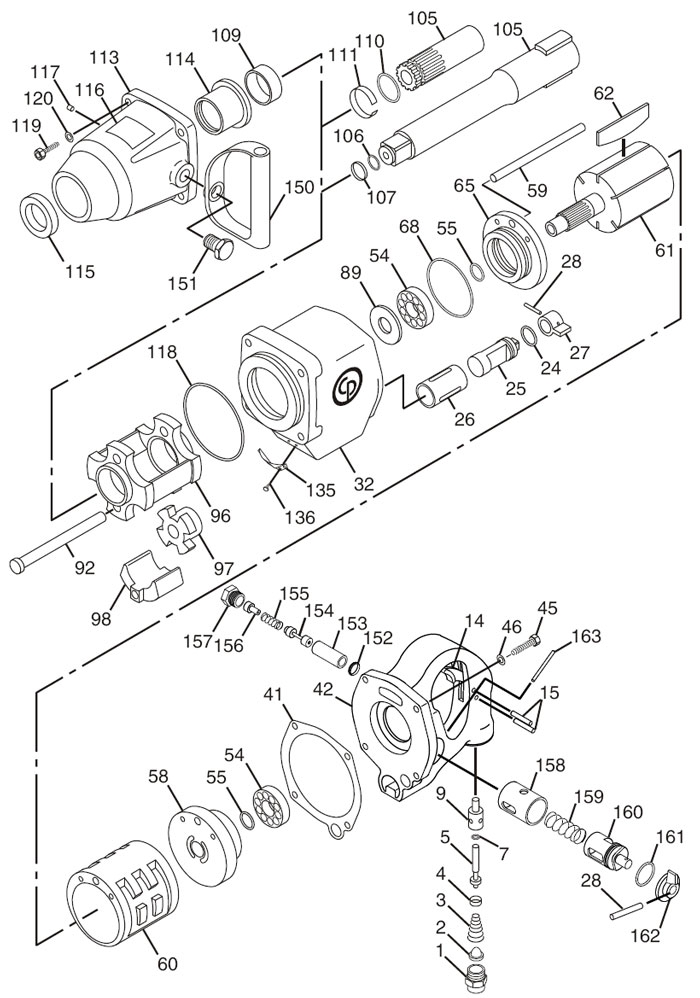

Chicago Pneumatic CP797TL Impact Wrench Repair Parts


Index
No.
Part No. Description No.
Req'd
1 C092292 Inlet Bushing 1
2 C036909 Air Strainer 1
3 C077054 Throttle Spring 1
4 C106818 Retainer - O-Ring 1
5 KF125405 Valve 1
7 A043001 O-Ring (-013) 1
9 KF125442 Bushing - Throttle Valve 1
10 CA131376 Decal - Oil Daily (Not Shown) 1
14 8940162074 Trigger 1
15 P001632 Pin - Roll 2
24 C083177 O-Ring (-210) 1
25 KF129398 Valve 1
26 CA116546 Bushing - Release Valve 1
27 8940162075 Reverse Valve Lever 1
28 G071613 Pin - Roll (0.125 x 0.75) 2
32 KF130009 Housing - Motor (Incl Index No: 26) 1
41 C063754 Handle - Gasket 1
42 KF137761 Handle - Pistol Grip
(Incl Index No: 9, 152, 153 & 158)
1
45 P070425 Cap Screw (1/4"-20 x 1") 1
46 S000271 Lockwasher (1/4") 4
54 C063836 Bearing - Ball 4
55 C089991 Grease Seal 2
58 CA116243 Plate - Upper Ed 2
59 KF125390 Pin - Liner Dowel 1
60 KF125401 Liner 1
61 CA116249 Rotor (12 Teeth) 1
62 KF138224 Blade - Set 6
65 CA116245 Plate - Lower End 1
68 P083094 O-Ring (-230) 1
89 KF125419 Spacer - Bearing 1
92 CA048066 Pin - Clutch Dog 2
96 KF125418 Cage 1
97 KF125417 Cam -Dog 1
98 CA116247 Dog 2
105 KF127222 Anvil (1" Sq. Dr.)
(Incl Index Nos: 106 & 107)
1
- CA116251 Anvil (1" Sq. Dr.) (6" Extension)
(Incl Index Nos: 106 & 107)
1
- KF130164 Anvil (#5 Spline Drive)
(Incl Index Nos: 110 & 111)
1
- KF130165 Anvil (#5 Spline Drive) (6" Extension)
(Incl Index Nos: 110 & 111)
1
106 H082651 O-Ring (1" Sq. Dr.) 1
107 CA094791 Ring - Friction (1" Sq. Dr.) 1
109 CA116241 Bushing 1
110 C084172 O-Ring (#5 Spline Drive) 1
111 CA050617 Ring - Friction (#5 Spline Drive) 1
113 CA117390 Housing - Clutch
(Incl Index Nos: 114, 115 & 116)
1
114 CA122265 Bushing - Clutch Housing 1
115 CA088508 Grease Seal 1
116 CA155779 Decal Safety Warning 1
117 C054897 Pipe Plug 1
118 CA116253 O-Ring (242) 1
119 S062777 Screw (5/16"-18 x 1-1/4") 4
120 C011070 Lockwasher (5/16") 4
135 KF129684 Plate 1
136 KF129065 Screw - Self Tapping 4
150 KF125403 Handle - Dead 1
151 KF125404 Bolt (3/4"-16 x 1-3/8") 1
152 KF137749 Plug - Regulator Valve 1
153 KF137750 Bushing - Regulator Valve 1
154 KF137751 Valve - Regulator 1
155 KF137752 Spring - Regulator 1
156 KF139507 Stop - Regulator Valve 1
157 KF137754 Cap - Breather 1
158 KF137758 Bushing - Selector Valve 1
159 KF137760 Spring - Selector 1
160 KF137759 Valve - Selector 1
161 KF137756 O-Ring (-120) 1
162 KF137755 Knob - Selector Valve 1
163 KF137757 Pin - Roll (1/8" x 1-3/4") 1
Tune-Up Kit CA131501 Incl Index Nos: 7, 24, 41, 55, 62, 68, 106, 107, 110, 111, 115 & 118
Clutch Housing Kit CA144478 Incl Index Nos: 92, 113 & 118
