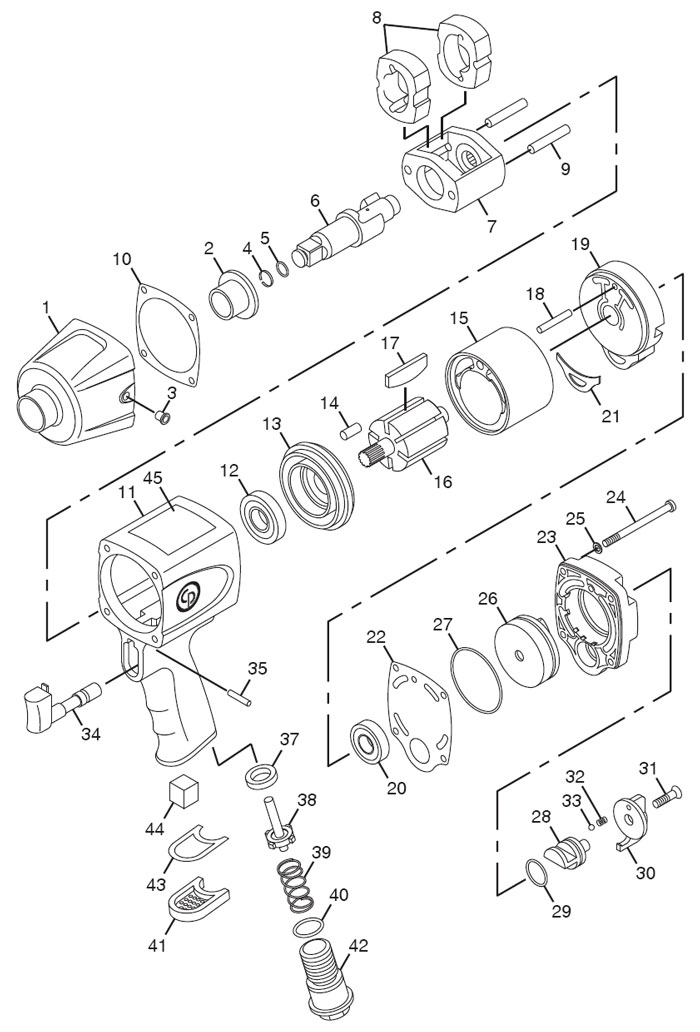

Chicago Pneumatic CP741 Impact Wrench Repair Parts
Index
No.
|
Part No.
|
Description
|
No.
Req'd
|
|
1
|
CA157999
|
Clutch
Housing
|
1
|
|
2
|
CA158000
|
Clutch
Housing Bushing
|
1
|
|
3
|
CA158034
|
Grease
Fitting
|
1
|
|
4
|
CA088097
|
Socket
Retaining Ring
|
1
|
|
5
|
CA158035
|
O-Ring
(P7)
|
1
|
|
6
|
CA158032
|
1/2"
Anvil Assembly (Incl Index Nos: 4& 5)
|
1
|
|
-
|
CA158031
|
1/2"
External Anvil Assembly (Incl Index Nos: 4 & 5)
|
1
|
|
7
|
CA158002
|
Hammer
Frame
|
1
|
|
8
|
CA155055
|
Hammer
|
2
|
|
9
|
CA158036
|
Hammer
Pin
|
2
|
|
10
|
CA158003
|
Hammer
Case Gasket
|
1
|
|
11
|
CA158004
|
Motor
Housing with Overmold
|
1
|
|
12
|
CA147409
|
Ball
Bearing 6002 ZZ
|
1
|
|
13
|
CA158005
|
Front
End Plate
|
1
|
|
14
|
CA158037
|
Spring
Pin
|
1
|
|
15
|
CA158006
|
Cylinder
with Sleeve
|
1
|
|
16
|
CA158007
|
Rotor
|
1
|
|
17
|
CA158046
|
Rotor
Blade Set
|
1
|
|
18
|
CA158038
|
Spring
Pin
|
1
|
|
19
|
CA158009
|
Rear
End Plate with Bushing
|
1
|
|
20
|
CA147507
|
Ball
Bearing 6001 ZZ
|
1
|
|
21
|
CA158010
|
Rear
End Plate Gasket
|
1
|
|
22
|
CA158011
|
Housing
Cap Gasket
|
1
|
|
23
|
CA158012
|
Housing
Cap
|
1
|
|
24
|
CA158039
|
Torx
Screw
|
4
|
|
25
|
CA127043
|
Lockwasher
(-M5)
|
4
|
|
26
|
CA158013
|
Regulator
Dial (Incl Index No: 27)
|
1
|
|
27
|
CA158040
|
O-Ring
(S-34)
|
1
|
|
28
|
CA158014
|
Reverse
Valve
|
1
|
|
29
|
CA158041
|
O-Ring
(S-10)
|
1
|
|
30
|
CA158015
|
Reverse
Lever
|
1
|
|
31
|
CA158042
|
Screw
|
1
|
|
32
|
CA158043
|
Spring
|
1
|
|
33
|
C140459
|
Steel
Ball
|
1
|
|
34
|
CA158016
|
Trigger
|
1
|
|
35
|
CA157206
|
Spring
Pin
|
1
|
|
37
|
CA158017
|
Valve
Seat
|
1
|
|
38
|
CA158018
|
Valve
|
1
|
|
39
|
CA158045
|
Valve
Spring
|
1
|
|
40
|
CA147134
|
O-Ring
(P-14)
|
1
|
|
41
|
CA158019
|
Deflector
|
1
|
|
42
|
CA158020
|
Swivel
Inlet
|
1
|
|
43
|
CA158021
|
Deflector
Gasket
|
1
|
|
44
|
CA158022
|
Muffler
Foam
|
1
|
|
45
|
CA158023
|
Warning
Label / Nameplate CP0741
|
1
|
|
-
|
CA158049
|
Warning
Label / Nameplate CP0741-2
|
1
|
|
Tune-Up Kit
|
CA158028
|
Incl
Index Nos: 4, 5, 10, 17, 21, 22, 27, 29, 32, 37, 40 & 43
|
|
Repair Kit
|
CA158029
|
(CP741
Model A) Incl Index Nos: 6, 8, 9, 10, 17, 21, 22, 27,
29, 32, 33, 37, 39, 40 & 43
|
|
Repair Kit
|
CA158033
|
(CP741-2
Model A) Incl Index Nos: 6, 8, 9, 10, 17, 21, 22,
27, 29, 32, 33, 37, 39, 40 & 43
|
|
|
