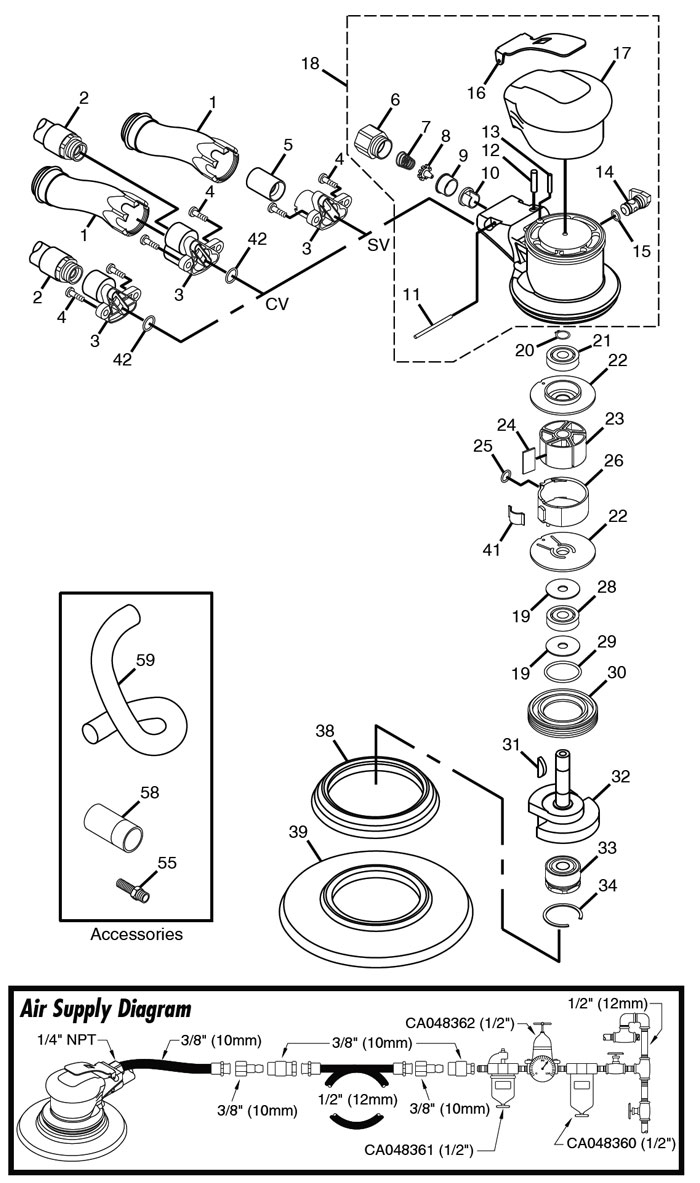

Chicago Pneumatic CP7250E Sander Repair Parts
Index
No. |
Part No. |
Description |
No.
Req'd |
1
|
6153071510
|
Collector tube
|
1
|
2
|
6153962560
|
Silencer
|
1
|
3
|
6153071480
|
Collector silencer (CV)
|
1
|
3
|
6153071490
|
Collector silencer (SV)
|
1
|
3
|
6153071500
|
Collector silencer
|
1
|
4
|
6156140780
|
Tapping screw
|
2
|
5
|
6153211910
|
Venturi
|
1
|
6
|
6157460720
|
Complete adapter
|
1
|
7
|
6156810890
|
Valve spring
|
1
|
8
|
6151550100
|
Valve
|
1
|
9
|
6154300220
|
Inlet tube
|
1
|
10
|
6153211680
|
Valve seat
|
1
|
11
|
6156371580
|
Roll pin
|
1
|
12
|
6157900340
|
Valve pin
|
1
|
13
|
6157900260
|
Pin
|
1
|
14
|
6153211930
|
Plug valve
|
1
|
15
|
6156570050
|
O-Ring |
1
|
16
|
6153212070
|
Lever
|
1
|
17
|
6153031110
|
Medium - size handle
|
1
|
18
|
8940158339
|
Motor housing assembly
|
1
|
19
|
6156540360
|
Dust felt
|
2
|
20
|
6156880130
|
Circlip
|
1
|
21
|
6157580520
|
Ball bearing
|
1
|
22
|
6154201370
|
End plate
|
2
|
23
|
6154261060
|
Rotor
|
1
|
24
|
8940158347
|
Blade (set of 5)
|
1
|
25
|
6156570040
|
O-Ring |
1
|
26
|
6154001360
|
Cylinder
|
1
|
28
|
6157580520
|
Ball bearing
|
1
|
29
|
6156570180
|
O-Ring |
1
|
30
|
6156731170
|
Motor plug
|
1
|
31
|
6156300240
|
Woodruff Key
|
1
|
32
|
6155801370
|
Rotor shaft (CP7220) |
1
|
32
|
6155801340
|
Rotor shaft (CP7250)
|
1
|
33
|
6153962550
|
Crankpin assembly
|
1
|
34
|
6156890530
|
Retainer ring
|
1
|
35
|
8940158351
|
PSA pad 6"
|
1
|
35
|
8940158621
|
PSA pad 6" with holes
|
1
|
35
|
8940158689
|
Velcro sanding pad
|
1
|
35
|
8940158690
|
Velcro sanding pad - vacuum
|
1
|
37
|
8940158352
|
Flat wrench (not shown)
|
1
|
38
|
6153501020
|
Suction cap, ID 6" Small |
1
|
39
|
6153501180
|
Suction cap, ID 6" Large (CV)
|
1
|
40
|
6158726920
|
Nameplate (not shown)
|
1
|
41
|
6155740510
|
Silencer (SV)
|
1
|
42
|
6156580860
|
O-Ring
|
1
|
44
|
6158726870
|
Warning label
|
1
|
55
|
6157050090
|
Nipple
|
1
|
58
|
6153501170
|
Vacuum hose adapter
|
1
|
59
|
6153962630
|
Hose assembly
|
1
|
-
|
8940158345
|
Tune-Up Kit
(incl 19, 20, 24, 25, 28, 29, 31, 34, 42)
|
-
|
8940158346
|
Maintenance
Kit
|
-
|
8940158430
|
Dust
Extraction Kit
|
|
|
