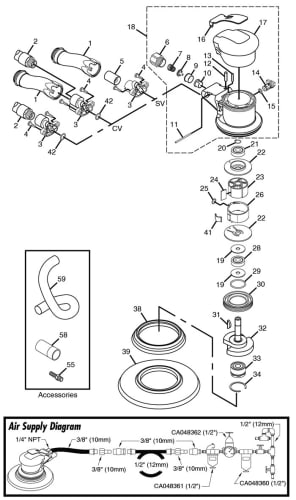

Chicago Pneumatic CP7220SVE Sander Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 6153071510
 Collector tube
 1
2
 6153962560
 Silencer
 1
3
 6153071480
 Collector silencer (CV)
 1
3
 6153071490
 Collector silencer (SV)
 1
3
 6153071500
 Collector silencer
 1
4
 6156140780
 Tapping screw
 2
5
 6153211910
 Venturi
 1
6
 6157460720
 Complete adapter
 1
7
 6156810890
 Valve spring
 1
8
 6151550100
 Valve
 1
9
 6154300220
 Inlet tube
 1
10
 6153211680
 Valve seat
 1
11
 6156371580
 Roll pin
 1
12
 6157900340
 Valve pin
 1
13
 6157900260
 Pin
 1
14
 6153211930
 Plug valve
 1
15
 6156570050
 O-Ring 1
16
 6153212070
 Lever
 1
17
 6153031110
 Medium - size handle
 1
18
 8940158339
 Motor housing assembly
 1
19
 6156540360
 Dust felt
 2
20
 6156880130
 Circlip
 1
21
 6157580520
 Ball bearing
 1
22
 6154201370
 End plate
 2
23
 6154261060
 Rotor
 1
24
 8940158347
 Blade (set of 5)
 1
25
 6156570040
 O-Ring 1
26
 6154001360
 Cylinder
 1
28
 6157580520
 Ball bearing
 1
29
 6156570180
 O-Ring 1
30
 6156731170
 Motor plug
 1
31
 6156300240
 Woodruff Key
 1
32
 6155801370
 Rotor shaft (CP7220) 1
32
 6155801340
 Rotor shaft (CP7250)
 1
33
 6153962550
 Crankpin assembly
 1
34
 6156890530
 Retainer ring
 1
35
 8940158351
 PSA pad 6"
 1
35
 8940158621
 PSA pad 6" with holes
 1
35
 8940158689
 Velcro sanding pad
 1
35
 8940158690
 Velcro sanding pad - vacuum
 1
37
 8940158352
 Flat wrench (not shown)
 1
38
 6153501020
 Suction cap, ID 6" Small 1
39
 6153501180
 Suction cap, ID 6" Large (CV)
 1
40
 6158726920
 Nameplate (not shown)
 1
41
 6155740510
 Silencer (SV)
 1
42
 6156580860
 O-Ring
 1
44
 6158726870
 Warning label
 1
55
 6157050090
 Nipple
 1
58
 6153501170
 Vacuum hose adapter
 1
59
 6153962630
 Hose assembly
 1
-
 8940158345
 Tune-Up Kit
(incl 19, 20, 24, 25, 28, 29, 31, 34, 42)
-
 8940158346
 Maintenance Kit
-
 8940158430
 Dust Extraction Kit
