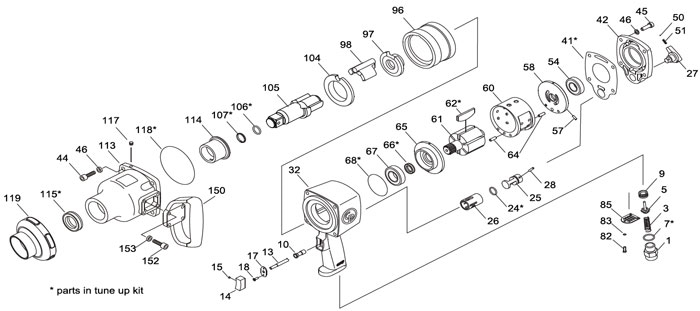

Chicago Pneumatic CP6910-P24 Impact Wrench Repair Parts



Index
No.
Part No. Description No.
Req'd
A
2050553993
Handle Assembly (incl kits A1, A2, A3, A4)
-
1
8940162678
Inlet bushing
1
32
2050559703
Housing Assembly (incl 9, 10, 26)
1
9
-
Bushing - Throttle valve
1
10
-
Bushing - Trigger
1
26
-
Bushing - reverse valve
1
41
8940162680
Gasket - end cover
1
44
-
Screw
4
45
-
Screw
4
48
-
Lock washer
3
118
-
O-Ring
1
A1
2050554003
Throttle Valve Kit
-
3
-
Spring - throttle valve
1
5
-
Valve - throttle
1
7
-
O-Ring
1
9
-
Bushing - throttle valve
1
A2
2050554013
Trigger Kit
-
13
-
Plunger - throttle valve
1
14
-
Trigger
1
15
-
Screw - trigger retaining
1
17
-
Trigger holder
1
18
-
Screw - trigger holder
2
A3
2050554023
Reverse Valve Kit
-
24
-
O-Ring
1
25
-
Valve - reverse
1
27
-
Lever - reverse
1
28
-
Pin
1
50
-
Ball
1
51
-
Spring
1
A4
2050554033
Exhaust Kit
-
82
-
Scfew
3
83
-
Washer
3
85
-
Deflector
1
B
2050554043
Rear Cover Kit
-
41
8940162680
Gasket - end cover
1
42
-
End cover
1
45
-
Screw
4
46
-
Lock washer
4
C
2050554053
Rear Endplate Kit
-
54
8940162177
Bearing
1
57
-
Pin
1
58
-
Plate - rear end
1
64
-
Pin
1
D
2050554063
Front Endplate Kit
-
64
-
Pin
1
65
-
Plate - front end
1
66
-
Oil seal
1
67
8940162185
Bearing
1
68
-
O-Ring
1
E
2050554073
Clutch Kit
-
96
-
Cage
1
97
8940162187
Cam
1
98
8940162188
Dog
1
104
2050553193
Bushing - cage
1
F
2050554083
Anvil Assembly (incl F1)
-
105
-
Anvil
1
F1
2050554093
Socket Retainer Kit
-
106
-
O-Ring
1
107
-
Ring - friction
1
G
2050554103
Clutch Housing Kit
-
44
-
Screw
4
46
-
Lock washer
4
113
-
Clutch housing assembly (incl 114 & 115)
1
114
-
Bushing - clutch housing
1
115
-
Oil seal
1
117
-
Screw
1
118
-
O-Ring
1
H
2050554113
Support Handle Kit
-
150
-
Handle - support black painted
1
152
-
Screw
4
153
-
Lock washer
4
I
2050554123
Screws Kit
-
44
-
Screw
4
45
-
Screw
4
46
-
Lock washer
8
152
-
Screw
4
153
-
Lock washer
4
J
2050554133
Small Parts Kit
-
15
-
Screw - trigger retainer
1
18
-
Screw - trigger housing
2
28
-
Pin
1
50
-
Ball
1
51
-
Spring
1
57
-
Pin
1
64
-
Pin
2
82
-
Screw
3
83
-
Washer
3
-
60
8940162182
Liner
1
61
2050553153
Rotor
1
62
8940162181
Blades (set of 6)
1
119
2050554943
Protective cover
1
-
8940166788
Suspension yoke
1
-
CA155779
Warning label
1
-
2050560693
Tune-up Kit
(incl 7, 24, 41, 62, 66, 68, 106, 107, 115, 118)
Sort By:
2050553153 Chicago Pneumatic Rotor 2050553153 Chicago Pneumatic Rotor

2050553153 Chicago Pneumatic Rotor

Price $277.80
2050553993 Chicago Pneumatic Housing Assy (Incl:Kit No.A1, 2050553993 Chicago Pneumatic Housing Assy (Incl:Kit No.A1,

2050553993 Chicago Pneumatic Housing Assy (Incl:Kit No.A1,

Price $642.83
2050554003 Chicago Pneumatic Throttle Valve Kit 2050554003 Chicago Pneumatic Throttle Valve Kit

2050554003 Chicago Pneumatic Throttle Valve Kit

Price $49.42
2050554013 Chicago Pneumatic Trigger Kit 2050554013 Chicago Pneumatic Trigger Kit

2050554013 Chicago Pneumatic Trigger Kit

Price $32.92
2050554023 Chicago Pneumatic Reverse Valve Kit 2050554023 Chicago Pneumatic Reverse Valve Kit

2050554023 Chicago Pneumatic Reverse Valve Kit

Price $65.85
2050554033 Chicago Pneumatic Exhaust Kit 2050554033 Chicago Pneumatic Exhaust Kit

2050554033 Chicago Pneumatic Exhaust Kit

Price $12.35
2050554043 Chicago Pneumatic Rear Cover Kit 2050554043 Chicago Pneumatic Rear Cover Kit

2050554043 Chicago Pneumatic Rear Cover Kit

Price $106.97
2050554053 Chicago Pneumatic Rear Endplate Kit 2050554053 Chicago Pneumatic Rear Endplate Kit

2050554053 Chicago Pneumatic Rear Endplate Kit

Price $102.06
2050554063 Chicago Pneumatic Front Endplate Kit 2050554063 Chicago Pneumatic Front Endplate Kit

2050554063 Chicago Pneumatic Front Endplate Kit

Price $156.37
2050554073 Chicago Pneumatic Clutch Kit 2050554073 Chicago Pneumatic Clutch Kit

2050554073 Chicago Pneumatic Clutch Kit

Discontinued
2050554083 Chicago Pneumatic Anvi Ass'Y(Incl:Kit No.F1) 2050554083 Chicago Pneumatic Anvi Ass'Y(Incl:Kit No.F1)

2050554083 Chicago Pneumatic Anvi Ass'Y(Incl:Kit No.F1)

Price $277.80
2050554093 Chicago Pneumatic Socket Retainer Kit 2050554093 Chicago Pneumatic Socket Retainer Kit

2050554093 Chicago Pneumatic Socket Retainer Kit

Price $7.79
2050554103 Chicago Pneumatic Clutch Housing Kit 2050554103 Chicago Pneumatic Clutch Housing Kit

2050554103 Chicago Pneumatic Clutch Housing Kit

Price $544.70
2050554113 Chicago Pneumatic Support Handle Kit 2050554113 Chicago Pneumatic Support Handle Kit

2050554113 Chicago Pneumatic Support Handle Kit

Price $115.25
2050554123 Chicago Pneumatic Screws Kit 2050554123 Chicago Pneumatic Screws Kit

2050554123 Chicago Pneumatic Screws Kit

Price $32.92
2050554133 Chicago Pneumatic Small Parts Kit 2050554133 Chicago Pneumatic Small Parts Kit

2050554133 Chicago Pneumatic Small Parts Kit

Price $16.48
2050559703 Chicago Pneumatic Housing-Motor 2050559703 Chicago Pneumatic Housing-Motor

2050559703 Chicago Pneumatic Housing-Motor

Price $412.70
2050560693 Chicago Pneumatic Tune Up Kit Cp6910-P24 2050560693 Chicago Pneumatic Tune Up Kit Cp6910-P24

2050560693 Chicago Pneumatic Tune Up Kit Cp6910-P24

Price $148.13
8940162177 Chicago Pneumatic Bearing 8940162177 Chicago Pneumatic Bearing

8940162177 Chicago Pneumatic Bearing

Price $23.56
8940162181 Chicago Pneumatic Blade-Set (6 Vanes) 8940162181 Chicago Pneumatic Blade-Set (6 Vanes)

8940162181 Chicago Pneumatic Blade-Set (6 Vanes)

Price $115.00
8940162182 Chicago Pneumatic Liner 8940162182 Chicago Pneumatic Liner

8940162182 Chicago Pneumatic Liner

Price $225.57
8940162185 Chicago Pneumatic Bearing 8940162185 Chicago Pneumatic Bearing

8940162185 Chicago Pneumatic Bearing

Price $22.91
8940162187 Chicago Pneumatic Cam 8940162187 Chicago Pneumatic Cam

8940162187 Chicago Pneumatic Cam

Price $156.31
8940162188 Chicago Pneumatic Dog 8940162188 Chicago Pneumatic Dog

8940162188 Chicago Pneumatic Dog

Price $153.36
8940162678 Chicago Pneumatic Bushing-Inlet 8940162678 Chicago Pneumatic Bushing-Inlet

8940162678 Chicago Pneumatic Bushing-Inlet

Price $30.95
8940162680 Chicago Pneumatic Gasket-End Cover 8940162680 Chicago Pneumatic Gasket-End Cover

8940162680 Chicago Pneumatic Gasket-End Cover

Price $16.20
8940166788 Chicago Pneumatic Suspension Ring Cp7775/74/78 8940166788 Chicago Pneumatic Suspension Ring Cp7775/74/78

8940166788 Chicago Pneumatic Suspension Ring Cp7775/74/78

Price $29.75
CP6910-P24 Chicago Pneumatic 1" Square Drive Pistol Style Impact Wrench CP6910-P24 Chicago Pneumatic 1" Square Drive Pistol Style Impact Wrench

CP6910-P24 Chicago Pneumatic 1" Square Drive Pistol Style Impact Wrench - Ideal for a variety of heavy Industrial Maintenance applications. Reliable & powerful oil bath Pinless Rocking Dog clutch. Operator comfort with many ergonomic features. 3-part construction reducing downtime maintenance.

Price $1,559.46
