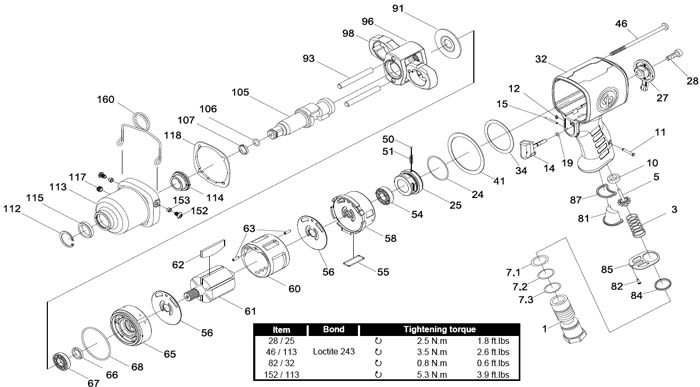

Chicago Pneumatic CP6748EX Impact Wrench Repair Parts
Index
No. |
Part No. |
Description |
No.
Req'd |
A
|
2050562463
|
Air Inlet Kit
|
-
|
1
|
-
|
Inlet
|
1
|
7.1
|
-
|
O-Ring |
1
|
7.2
|
-
|
O-Ring |
1
|
7.3
|
-
|
O-Ring
|
1
|
11
|
-
|
Pin - retaining
|
1
|
12
|
-
|
E-Ring
|
1
|
84
|
-
|
Spacer
|
1
|
B
|
2050562473 |
Throttle Valve Kit
|
-
|
3
|
-
|
Spring - throttle valve
|
1
|
5
|
-
|
Valve - throttle
|
1
|
10
|
2050562233 |
Seal
|
1
|
11
|
-
|
Pin - retaining
|
1
|
12
|
-
|
E-Ring
|
1
|
C
|
2050562483 |
Exhaust Kit
|
-
|
81
|
-
|
Muffler
|
1
|
82
|
-
|
Screw
|
1
|
84
|
-
|
Spacer
|
1
|
85
|
-
|
Deflector - exhaust
|
1
|
87
|
-
|
Gasket - exhaust
|
1
|
D
|
2050562493 |
Trigger Kit
|
-
|
14
|
-
|
Trigger
|
1
|
15
|
-
|
Pin - retaining
|
1
|
19
|
-
|
O-Ring
|
1
|
E
|
2050562503 |
Reverse / Regulator Kit
|
-
|
24
|
-
|
O-Ring
|
1
|
25
|
-
|
Valve - reverse / regulator
|
1
|
27
|
-
|
Lever - reverse / regulator
|
1
|
28
|
-
|
Screw
|
1
|
34
|
-
|
Washer
|
1
|
41
|
-
|
Gasket - rear
|
1
|
50
|
-
|
Ball
|
1
|
51
|
-
|
Spring
|
1
|
F
|
2050562513 |
Motor Housing Assembly
|
-
|
32
|
-
|
Housing - motor
|
1
|
10
|
2050562233 |
Seal
|
1
|
11
|
-
|
Pin - retaining
|
1
|
12
|
-
|
E-Ring
|
1
|
G
|
2050562523 |
Rub Plates Kit
|
-
|
56
|
-
|
Plate - rub
|
2
|
63
|
-
|
Pin
|
2
|
H
|
2050562533 |
Rear Endplate Assembly
|
-
|
54
|
2050486833
|
Bearing - ball
|
1
|
55
|
-
|
Seal - square
|
1
|
58
|
-
|
Plate - rear end
|
1
|
63
|
-
|
Pin
|
1
|
I
|
2050562543 |
Front Endplate Assembly
|
-
|
63
|
-
|
Pin
|
1
|
65
|
-
|
Plate - front end
|
1
|
66
|
-
|
Seal - oil
|
1
|
67
|
2050561943 |
Bearing - ball
|
1
|
68
|
-
|
O-Ring
|
1
|
J
|
2050562553 |
Socket Retainers Kit
|
-
|
106
|
-
|
O-Ring
|
-
|
107
|
-
|
Ring - Friction
|
-
|
K
|
2050562563 |
Clutch Housing Assembly
|
-
|
46
|
-
|
Screw
|
4
|
112
|
-
|
C-Ring
|
1
|
113
|
-
|
Housing - clutch
|
1
|
114
|
-
|
Bushing
|
1
|
115
|
-
|
Seal - oil
|
1
|
117
|
-
|
Plug - oil
|
1
|
118
|
-
|
Gasket - front |
1
|
L
|
2050562573 |
Suspension Kit
|
-
|
152
|
-
|
Screw |
2
|
153
|
-
|
Washer
|
2
|
160
|
-
|
Bail
|
1
|
M
|
2050562583 |
Screws Kit
|
-
|
28
|
-
|
Screw |
1
|
46
|
-
|
Screw |
4
|
82
|
-
|
Screw |
1
|
152
|
-
|
Screw
|
2
|
153
|
-
|
Washer
|
2
|
N
|
2050562593 |
Gasket Kit
|
-
|
41
|
-
|
Gasket - rear
|
1
|
55
|
-
|
Seal - square
|
1
|
118
|
-
|
Gasket - front
|
1
|
O
|
2050562603 |
Small Parts Kit
|
-
|
11
|
-
|
Pin - retaining |
1
|
12
|
-
|
E-Ring
|
1
|
15
|
-
|
Pin - retaining
|
1
|
34
|
-
|
Washer
|
1
|
50
|
-
|
Ball
|
1
|
51
|
-
|
Spring
|
1
|
63
|
-
|
Pin
|
2
|
84
|
-
|
Spacer
|
1
|
91
|
-
|
Washer
|
1
|
112
|
-
|
C-Ring
|
1
|
117
|
-
|
Plug - oil
|
1
|
-
|
60
|
2050562013 |
Liner (incl 63[x2])
|
1
|
61
|
2050561993 |
Rotor
|
1
|
62
|
2050562003 |
Vanes (set of 6)
|
1
|
93
|
2050561903 |
Pins (set of 2)
|
1
|
96
|
2050561923 |
Cage
|
1
|
98
|
2050561913 |
Dogs (set of 2)
|
1
|
105
|
2050561893 |
Anvil (incl 106, 107)
|
1
|
-
|
CA155779
|
Warning label
|
1
|
-
|
2050562663 |
Tune-up Kit
(incl 7.1. 7.2. 7.3, 19, 24, 41,
55, 62, 66, 68, 81, 87, 115, 118)
|
|
|
