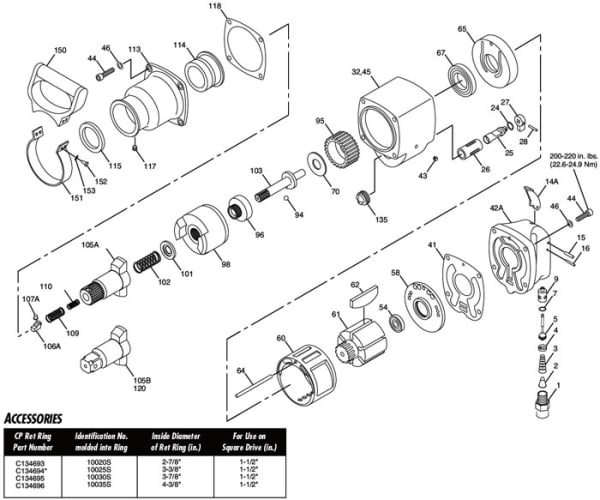

Chicago Pneumatic CP6120PASEL Impact Wrench Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 C094354
 Bushing - air inlet
 1
2
 C087505
 Screen - throttle
 1
3
 C088079
 Spring - throttle
 1
4
 C106818
 Retainer O-Ring
 1
5
 C106825
 Valve - assembly
 1
7
 A043001
 O-Ring (-013)
 1
9
 C106817
 Bushing - valve
 1
14A
 C062112
 Lever - throttle
 1
14B
 C063747
 Trigger - inside
 1
15
 C113758
 Pin - trigger
 1
16
 P072359
 Pin - trigger stop
 1
24
 S082809
 O-Ring (-114)
 1
25
 C117065
 Valve - reverse
 1
26
 C117057
 Bushing - reverse valve 1
27
 C117058
 Lever - reverse valve
 1
28
 CA091533
 Pin (1/8" x 3/16")
 1
32
 C117072
 Housing - motor (incl 26, 45)
 1
41
 C117050
 Gasket - motor housing
 1
42A
 C117071
 Handle - outside trigger (incl 19)
 1
42B
 C117866
 Handle - inside trigger (incl 19)
 1
43
 C059641
 Plug - pipe (1/4" hex)
 4
44
 S062777
 Screw - cap (socket head)
(5/16"-18 x 1-1/4")
 4
45
 C095035
 Insert - heli coil
 8
46
 S000456
 Lockwasher (5/16")
 8
54
 C075812
 Bearing - ball
 1
58
 C120682
 Plate - rear end
 1
60
 C117064
 Liner
 1
61
 C117066
 Rotor (18T)
 1
62
 C117056
 Blade - rotor
 6
64
 C117048
 Pin - dowel
 1
65
 C120683
 Plate - front end
 1
67
 C117047
 Bearing - ball
 1
70
 C117055
 Washer - thrust
 1
94
 P004254
 Ball - 1/2" diameter
 1
95
 C117061
 Coupling - drive
 1
96
 C117060
 Cam - dog
 1
98
 C117068
 Dog
 1
101
 C117051
 Seat - spring
 1
102
 C117054
 Spring - dog
 1
103
 C117067
 Shaft - timing
 1
105A
 C117069
 Anvil - spline (#5)
(incl 106A, 107A, 109A, 110A)
 1
105B
 C117620
 Anvil - 1-1/2" square drive
 1
106A
 C112191
 Plunger
 1
107A
 C047620
 Button
 1
109
 C112185
 Spring - compression (long) 1
110
 C112202
 Spring - compression (short)
 1
113
 C117610
 Housing - clutch (incl 114, 115, 117)
 1
114
 C117053
 Bushing - clutch housing
 1
115
 C117576
 Seal - grease
 1
117
 C054897
 Plug - pipe (1/8")
 1
118
 C117049
 Gasket - clutch housing
 1
120
 C134694
 Retaining ring (not shown)
 1
135
 C119253
 Deflector - exhaust
 1
150
 CA048548
 Handle - dead
 1
151
 C119061
 Band - dead handle
 1
152
 P073025
 Screw - allen cap (1/4"-20 x 5/8")
 4
153
 S000271
 Lockwasher (1/4")
 4
-
 CA144007
 Decal - safety warning (not shown)
 1
Sort By:
9611 C112185 Spring Equivalent 9611 C112185 Spring Equivalent

9611 C112185 Spring Equivalent

Price $5.99
9612 C112202 Spring Equivalent 9612 C112202 Spring Equivalent

9612 C112202 Spring Equivalent

Price $5.99
A043001 Chicago Pneumatic O-Ring In-013 A043001 Chicago Pneumatic O-Ring In-013

A043001 Chicago Pneumatic O-Ring In-013

Price $3.44
C047620 Chicago Pneumatic Lock Button C047620 Chicago Pneumatic Lock Button

C047620 Chicago Pneumatic Lock Button

Price $27.40
C054897 Chicago Pneumatic Pipe Plug C054897 Chicago Pneumatic Pipe Plug

C054897 Chicago Pneumatic Pipe Plug

Price $3.70
C059641 Chicago Pneumatic Pipe Plug C059641 Chicago Pneumatic Pipe Plug

C059641 Chicago Pneumatic Pipe Plug

Discontinued
C062112 Chicago Pneumatic Trigger C062112 Chicago Pneumatic Trigger

C062112 Chicago Pneumatic Trigger

Price $58.98
C063747 Chicago Pneumatic Trigger C063747 Chicago Pneumatic Trigger

C063747 Chicago Pneumatic Trigger

Price $48.66
C075812 Chicago Pneumatic Bearing-Ball C075812 Chicago Pneumatic Bearing-Ball

C075812 Chicago Pneumatic Bearing-Ball

Price $39.79
C087505 Chicago Pneumatic Screen C087505 Chicago Pneumatic Screen

C087505 Chicago Pneumatic Screen

Price $24.04
C088079 Chicago Pneumatic Throttle Spring C088079 Chicago Pneumatic Throttle Spring

C088079 Chicago Pneumatic Throttle Spring

Price $10.13
C094354 Chicago Pneumatic Throttle Cap C094354 Chicago Pneumatic Throttle Cap

C094354 Chicago Pneumatic Throttle Cap

Price $34.40
C095035 Chicago Pneumatic Helicoil Insert C095035 Chicago Pneumatic Helicoil Insert

C095035 Chicago Pneumatic Helicoil Insert

Price $11.05
C106817 Chicago Pneumatic Valve Bushing C106817 Chicago Pneumatic Valve Bushing

C106817 Chicago Pneumatic Valve Bushing

Discontinued
C106818 Chicago Pneumatic Retainer-O Ring C106818 Chicago Pneumatic Retainer-O Ring

C106818 Chicago Pneumatic Retainer-O Ring

Price $9.80
C106825 Chicago Pneumatic Thr Valve C106825 Chicago Pneumatic Thr Valve

C106825 Chicago Pneumatic Thr Valve

Price $95.84
C112185 Chicago Pneumatic Spring C112185 Chicago Pneumatic Spring

C112185 Chicago Pneumatic Spring

Discontinued see GPI9611
C112191 Chicago Pneumatic Plunger C112191 Chicago Pneumatic Plunger

C112191 Chicago Pneumatic Plunger

Price $29.82
C112202 Chicago Pneumatic Spring C112202 Chicago Pneumatic Spring

C112202 Chicago Pneumatic Spring

Discontinued see GPI9612
C113758 Chicago Pneumatic Pin C113758 Chicago Pneumatic Pin

C113758 Chicago Pneumatic Pin

Price $27.98
C117047 Chicago Pneumatic Bearing-Ball C117047 Chicago Pneumatic Bearing-Ball

C117047 Chicago Pneumatic Bearing-Ball

Price $216.71
C117048 Chicago Pneumatic Pin-Dowel C117048 Chicago Pneumatic Pin-Dowel

C117048 Chicago Pneumatic Pin-Dowel

Discontinued
C117049 Chicago Pneumatic Gasket C117049 Chicago Pneumatic Gasket

C117049 Chicago Pneumatic Gasket

Price $9.81
C117050 Chicago Pneumatic Gasket C117050 Chicago Pneumatic Gasket

C117050 Chicago Pneumatic Gasket

Price $15.92
C117051 Chicago Pneumatic Seat-Spring C117051 Chicago Pneumatic Seat-Spring

C117051 Chicago Pneumatic Seat-Spring

Discontinued
C117053 Chicago Pneumatic Bushing C117053 Chicago Pneumatic Bushing

C117053 Chicago Pneumatic Bushing

Discontinued
C117054 Chicago Pneumatic Spring-Dog C117054 Chicago Pneumatic Spring-Dog

C117054 Chicago Pneumatic Spring-Dog

Discontinued
C117055 Chicago Pneumatic Washer-Thrust C117055 Chicago Pneumatic Washer-Thrust

C117055 Chicago Pneumatic Washer-Thrust

Discontinued
C117056 Chicago Pneumatic Blade-Rotor C117056 Chicago Pneumatic Blade-Rotor

C117056 Chicago Pneumatic Blade-Rotor

Price $17.19
C117057 Chicago Pneumatic Bush-Rev Val C117057 Chicago Pneumatic Bush-Rev Val

C117057 Chicago Pneumatic Bush-Rev Val

Discontinued
C117058 Chicago Pneumatic Lever-Rev Valve C117058 Chicago Pneumatic Lever-Rev Valve

C117058 Chicago Pneumatic Lever-Rev Valve

Discontinued
C117060 Chicago Pneumatic Cam-Dog C117060 Chicago Pneumatic Cam-Dog

C117060 Chicago Pneumatic Cam-Dog

Price $449.95
C117061 Chicago Pneumatic Coupling-Dr C117061 Chicago Pneumatic Coupling-Dr

C117061 Chicago Pneumatic Coupling-Dr

Price $383.82
C117064 Chicago Pneumatic Liner C117064 Chicago Pneumatic Liner

C117064 Chicago Pneumatic Liner

Price $668.15
C117065 Chicago Pneumatic Valve-Reverse C117065 Chicago Pneumatic Valve-Reverse

C117065 Chicago Pneumatic Valve-Reverse

Discontinued
C117066 Chicago Pneumatic Rotor C117066 Chicago Pneumatic Rotor

C117066 Chicago Pneumatic Rotor

Price $927.81
C117067 Chicago Pneumatic Shaft-Timing C117067 Chicago Pneumatic Shaft-Timing

C117067 Chicago Pneumatic Shaft-Timing

Discontinued
C117068 Chicago Pneumatic Dog C117068 Chicago Pneumatic Dog

C117068 Chicago Pneumatic Dog

Price $808.89
C117069 Chicago Pneumatic Anvil #5 Spl C117069 Chicago Pneumatic Anvil #5 Spl

C117069 Chicago Pneumatic Anvil #5 Spl

Price $931.65
C117071 Chicago Pneumatic Hdle-Live Air C117071 Chicago Pneumatic Hdle-Live Air

C117071 Chicago Pneumatic Hdle-Live Air

Discontinued
C117072 Chicago Pneumatic Housing-Motor C117072 Chicago Pneumatic Housing-Motor

C117072 Chicago Pneumatic Housing-Motor

Price $1,307.83
C117576 Chicago Pneumatic Seal-Oil C117576 Chicago Pneumatic Seal-Oil

C117576 Chicago Pneumatic Seal-Oil

Price $21.96
C117610 Chicago Pneumatic Housing Assembly C117610 Chicago Pneumatic Housing Assembly

C117610 Chicago Pneumatic Housing Assembly

Discontinued
C117620 Chicago Pneumatic Anvil-Drive C117620 Chicago Pneumatic Anvil-Drive

C117620 Chicago Pneumatic Anvil-Drive

Price $964.30
C117866 Chicago Pneumatic Handle-Live Air C117866 Chicago Pneumatic Handle-Live Air

C117866 Chicago Pneumatic Handle-Live Air

Discontinued
C119061 Chicago Pneumatic Band Dead Handle C119061 Chicago Pneumatic Band Dead Handle

C119061 Chicago Pneumatic Band Dead Handle

Discontinued
C119253 Chicago Pneumatic Deflector-Exhaust C119253 Chicago Pneumatic Deflector-Exhaust

C119253 Chicago Pneumatic Deflector-Exhaust

Price $54.56
C120682 Chicago Pneumatic Plate-Upper End C120682 Chicago Pneumatic Plate-Upper End

C120682 Chicago Pneumatic Plate-Upper End

Discontinued
C120683 Chicago Pneumatic Plate-Lower End C120683 Chicago Pneumatic Plate-Lower End

C120683 Chicago Pneumatic Plate-Lower End

Discontinued
C134694 Chicago Pneumatic Ring-Retaining C134694 Chicago Pneumatic Ring-Retaining

C134694 Chicago Pneumatic Ring-Retaining

Price $11.31
CA048548 Chicago Pneumatic Handle-Support CA048548 Chicago Pneumatic Handle-Support

CA048548 Chicago Pneumatic Handle-Support

Price $62.28
CA091533 Chicago Pneumatic Pin-Spirol .12x.81 CA091533 Chicago Pneumatic Pin-Spirol .12x.81

CA091533 Chicago Pneumatic Pin-Spirol .12x.81

Discontinued
CP6120PASEL Chicago Pneumatic #5 Spline Drive Industrial Impact Wrench with Internal Trigger CP6120PASEL Chicago Pneumatic #5 Spline Drive Industrial Impact Wrench with Internal Trigger

CP6120PASEL Chicago Pneumatic #5 Spline Drive Industrial Impact Wrench with Internal Trigger - Best gun to loosen very big bolts quickly and smoothly in Spline #5. Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil. Operator comfort and control with adjustable side handle even at high torque levels. Reliable impact mechanism & durable housing. Compact 3-part construction for easy maintenance. Designed for Industrial Maintenance & Production

Discontinued
P004254 Chicago Pneumatic Ball-Steel .5"Dia P004254 Chicago Pneumatic Ball-Steel .5"Dia

P004254 Chicago Pneumatic Ball-Steel .5"Dia

Discontinued
P072359 Chicago Pneumatic Pin-Throttle P072359 Chicago Pneumatic Pin-Throttle

P072359 Chicago Pneumatic Pin-Throttle

Price $3.89
P073025 Chicago Pneumatic Allen Hd Screw P073025 Chicago Pneumatic Allen Hd Screw

P073025 Chicago Pneumatic Allen Hd Screw

Price $3.90
S000271 Chicago Pneumatic Lock Washer 1/4 S000271 Chicago Pneumatic Lock Washer 1/4

S000271 Chicago Pneumatic Lock Washer 1/4

Price $3.44
S000456 Chicago Pneumatic Lock Washer S000456 Chicago Pneumatic Lock Washer

S000456 Chicago Pneumatic Lock Washer

Discontinued
S062777 Chicago Pneumatic Screw 5/16-18x1 1/4 S062777 Chicago Pneumatic Screw 5/16-18x1 1/4

S062777 Chicago Pneumatic Screw 5/16-18x1 1/4

Price $4.14
S082809 Chicago Pneumatic O-Ring-114 S082809 Chicago Pneumatic O-Ring-114

S082809 Chicago Pneumatic O-Ring-114

Discontinued
