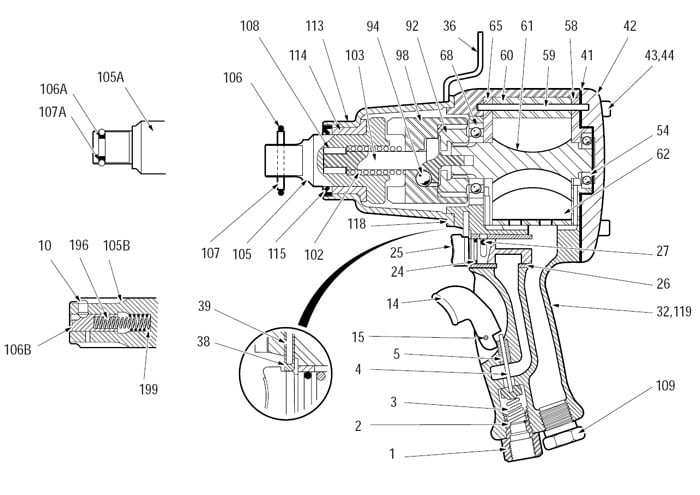

Chicago Pneumatic CP6060-P15R Impact Wrench Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 CA129654
 Bushing - air inlet (incl 2)
 1
2
 C036000
 Strainer - air
 1
3
 CA129677
 Spring - throttle valve 1
4
 KF129106
 Valve - throttle
 1
5
 C144629
 Stem - throttle valve 1
9
 C145930
 Bushing - throttle valve
 1
14
 C087934
 Trigger - throttle
 1
15
 P043882
 Pin - trigger
 1
24
 P092537
 O-Ring reverse valve
 1
25
 C130913
 Valve - reverse
 1
26
 C130908
 Bushing - reverse valve
 1
27
 C132130
 Pin - valve retainer
 1
32
 C130907
 Housing - motor (Aluminium) (incl 9, 26) 1
32
 C138254
 Housing - motor (Zinc) (incl 9, 26)
 1
36
 C130920
 Ball - horizontal
 1
38
 C134460
 Pin - reverse valve stop
 1
39
 CA099902
 Spring - valve stop  pin
 1
41
 C130911
 Gasket - housing cover
 1
42
 C130979
 Cover - housing (Aluminium) 1
42
 C138255
 Cover - housing (Zinc)
 1
43
 C127944
 Screw - metric cap (M6 x 20 mm)
 8
44
 CA129679
 Lockwasher (M6)
 8
54
 C068659
 Bearing - ball
 1
58
 CA129651
 Plate - upper end
 1
59
 C105683
 Pin - dowel
 1
60
 CA129649
 Liner
 1
61
 CA129648
 Rotor (15T)
 1
62
 CA129653
 Blade - rotor
 6
65
 C130906
 Plate - lower end
 1
68
 C063836
 Bearing - ball
 1
92
 CA129647
 Coupling
 1
94
 C011086
 Ball - steel (3/8" dia)
 1
98
 CA129645
 Dog - clutch
 1
102
 CA129644
 Spring - clutch
 1
103
 CA144724
 Shaft - timing
 1
105
 C144729
 Anvil - (3/4" square drive) 1
105
 CA144726
 Anvil - (1" square drive)
 1
105A
 CA144725
 Anvil - (3/4" sq. drive friction retainer)
(incl 106A, 107A)		 1
105B
 C145296
 Anvil - (#4 spline) (incl 106B, 107B, 196, 199) 1
106
 C089759
 O-Ring pin retainer (3/4" square drive) 1
106
 C089760
 O-Ring pin retainer (1" square drive)
 1
106A
 CA083354
 O-Ring (-011)
 1
106B
 C054199
 Plunger
 1
107
 C069046
 Pin - socket retainer (3/4" square drive) 1
107
 C066201
 Pin - socket retainer (1" square drive)
 1
107A
 CA087404
 Ring - snap
 1
107B
 C054198
 Button - spline lock
 1
108
 P001915
 Pin - timing shaft
 1
109
 C130921
 Diffuser - exhaust (1/2" NPT)
 1
113
 C130973
 Housing - clutch (incl 114, 115)
 1
114
 CA129643
 Bushing - clutch
 1
115
 CA129676
 Seal - oil
 1
118
 C130933
 Gasket - clutch housing
 1
119
 CA144007
 Decal - safety warning
 1
196
 C054201
 Spring - inner
 1
199
 C054200
 Spring - outer
 1
Sort By:
C011086 Chicago Pneumatic Ball-Steel .375"Dia C011086 Chicago Pneumatic Ball-Steel .375"Dia

C011086 Chicago Pneumatic Ball-Steel .375"Dia

Discontinued
C036000 Chicago Pneumatic Screen C036000 Chicago Pneumatic Screen

C036000 Chicago Pneumatic Screen

Price $3.90
C054198 Chicago Pneumatic Button-Spline Lock C054198 Chicago Pneumatic Button-Spline Lock

C054198 Chicago Pneumatic Button-Spline Lock

Discontinued
C054199 Chicago Pneumatic Lock Plunger C054199 Chicago Pneumatic Lock Plunger

C054199 Chicago Pneumatic Lock Plunger

Discontinued
C054200 Chicago Pneumatic Lock Spring C054200 Chicago Pneumatic Lock Spring

C054200 Chicago Pneumatic Lock Spring

Price $11.04
C054201 Chicago Pneumatic Lock Spring C054201 Chicago Pneumatic Lock Spring

C054201 Chicago Pneumatic Lock Spring

Price $11.04
C063836 Chicago Pneumatic Bearing-Ball C063836 Chicago Pneumatic Bearing-Ball

C063836 Chicago Pneumatic Bearing-Ball

Price $16.30
C066201 Chicago Pneumatic Pin-Retainer C066201 Chicago Pneumatic Pin-Retainer

C066201 Chicago Pneumatic Pin-Retainer

Discontinued
C068659 Chicago Pneumatic Bearing-Ball C068659 Chicago Pneumatic Bearing-Ball

C068659 Chicago Pneumatic Bearing-Ball

Price $20.00
C069046 Chicago Pneumatic Pin-Socket Ret C069046 Chicago Pneumatic Pin-Socket Ret

C069046 Chicago Pneumatic Pin-Socket Ret

Price $7.16
C087934 Chicago Pneumatic Trigger C087934 Chicago Pneumatic Trigger

C087934 Chicago Pneumatic Trigger

Price $26.83
C089759 Chicago Pneumatic O-Ring For Pin Retainer (3/4" Sq. Dr.) C089759 Chicago Pneumatic O-Ring For Pin Retainer (3/4" Sq. Dr.)

C089759 Chicago Pneumatic O-Ring For Pin Retainer (3/4" Sq. Dr.)

Price $1.85
C089760 Chicago Pneumatic O-Ring-327 C089760 Chicago Pneumatic O-Ring-327

C089760 Chicago Pneumatic O-Ring-327

Price $5.53
C105683 Chicago Pneumatic Dowel Pin C105683 Chicago Pneumatic Dowel Pin

C105683 Chicago Pneumatic Dowel Pin

Discontinued
C127944 Chicago Pneumatic Screw-Soc Hd Cap C127944 Chicago Pneumatic Screw-Soc Hd Cap

C127944 Chicago Pneumatic Screw-Soc Hd Cap

Discontinued
C130906 Chicago Pneumatic Plate-Lower End C130906 Chicago Pneumatic Plate-Lower End

C130906 Chicago Pneumatic Plate-Lower End

Discontinued
C130907 Chicago Pneumatic Housing-Motor C130907 Chicago Pneumatic Housing-Motor

C130907 Chicago Pneumatic Housing-Motor

Price $514.64
C130908 Chicago Pneumatic Bushing-Valve C130908 Chicago Pneumatic Bushing-Valve

C130908 Chicago Pneumatic Bushing-Valve

Discontinued
C130911 Chicago Pneumatic Gasket-Housing C130911 Chicago Pneumatic Gasket-Housing

C130911 Chicago Pneumatic Gasket-Housing

Price $11.78
C130913 Chicago Pneumatic Valve-Reverse C130913 Chicago Pneumatic Valve-Reverse

C130913 Chicago Pneumatic Valve-Reverse

Price $91.40
C130921 Chicago Pneumatic Diffuser-Exhaust C130921 Chicago Pneumatic Diffuser-Exhaust

C130921 Chicago Pneumatic Diffuser-Exhaust

Price $45.74
C130933 Chicago Pneumatic Gasket-Clutch Hsg C130933 Chicago Pneumatic Gasket-Clutch Hsg

C130933 Chicago Pneumatic Gasket-Clutch Hsg

Price $6.80
C130973 Chicago Pneumatic Housing-Clutch C130973 Chicago Pneumatic Housing-Clutch

C130973 Chicago Pneumatic Housing-Clutch

Discontinued
C130979 Chicago Pneumatic Cover-Housing C130979 Chicago Pneumatic Cover-Housing

C130979 Chicago Pneumatic Cover-Housing

Price $222.64
C132130 Chicago Pneumatic Pin-Dowel C132130 Chicago Pneumatic Pin-Dowel

C132130 Chicago Pneumatic Pin-Dowel

Price $10.13
C134460 Chicago Pneumatic Pin-Stop Rev Valve C134460 Chicago Pneumatic Pin-Stop Rev Valve

C134460 Chicago Pneumatic Pin-Stop Rev Valve

Price $11.07
C138254 Chicago Pneumatic Ufzn Housing Motor C138254 Chicago Pneumatic Ufzn Housing Motor

C138254 Chicago Pneumatic Ufzn Housing Motor

Discontinued
C138255 Chicago Pneumatic Ufzn Cover-Housing C138255 Chicago Pneumatic Ufzn Cover-Housing

C138255 Chicago Pneumatic Ufzn Cover-Housing

Discontinued
C144629 Chicago Pneumatic Stem-Throttle Valve C144629 Chicago Pneumatic Stem-Throttle Valve

C144629 Chicago Pneumatic Stem-Throttle Valve

Discontinued
C144729 Chicago Pneumatic Anvil-.75 Sq Dr C144729 Chicago Pneumatic Anvil-.75 Sq Dr

C144729 Chicago Pneumatic Anvil-.75 Sq Dr

Price $297.95
C145930 Chicago Pneumatic Sleeve-Throttle C145930 Chicago Pneumatic Sleeve-Throttle

C145930 Chicago Pneumatic Sleeve-Throttle

Discontinued
CA083354 Chicago Pneumatic O-Ring In-111 CA083354 Chicago Pneumatic O-Ring In-111

CA083354 Chicago Pneumatic O-Ring In-111

Price $2.50
CA087404 Chicago Pneumatic Socket Retainer 3/4" CA087404 Chicago Pneumatic Socket Retainer 3/4"

CA087404 Chicago Pneumatic Socket Retainer 3/4"

Price $7.30
CA099902 Chicago Pneumatic Spring CA099902 Chicago Pneumatic Spring

CA099902 Chicago Pneumatic Spring

Discontinued See KF129072
CA129643 Chicago Pneumatic Bushing-Clutch CA129643 Chicago Pneumatic Bushing-Clutch

CA129643 Chicago Pneumatic Bushing-Clutch

Discontinued
CA129644 Chicago Pneumatic Spring-Compression CA129644 Chicago Pneumatic Spring-Compression

CA129644 Chicago Pneumatic Spring-Compression

Price $8.85
CA129645 Chicago Pneumatic Dog CA129645 Chicago Pneumatic Dog

CA129645 Chicago Pneumatic Dog

Price $335.41
CA129647 Chicago Pneumatic Coupling CA129647 Chicago Pneumatic Coupling

CA129647 Chicago Pneumatic Coupling

Price $149.24
CA129648 Chicago Pneumatic Rotor CA129648 Chicago Pneumatic Rotor

CA129648 Chicago Pneumatic Rotor

Price $331.25
CA129649 Chicago Pneumatic Liner-Auto CA129649 Chicago Pneumatic Liner-Auto

CA129649 Chicago Pneumatic Liner-Auto

Price $356.11
CA129651 Chicago Pneumatic Plate-Upper End CA129651 Chicago Pneumatic Plate-Upper End

CA129651 Chicago Pneumatic Plate-Upper End

Discontinued
CA129654 Chicago Pneumatic Bushing Assy CA129654 Chicago Pneumatic Bushing Assy

CA129654 Chicago Pneumatic Bushing Assy

Price $60.12
CA129676 Chicago Pneumatic Seal-Oil CA129676 Chicago Pneumatic Seal-Oil

CA129676 Chicago Pneumatic Seal-Oil

Price $8.65
CA129677 Chicago Pneumatic Spring-Compression CA129677 Chicago Pneumatic Spring-Compression

CA129677 Chicago Pneumatic Spring-Compression

Discontinued
CA129679 Chicago Pneumatic Lockwasher-6mm CA129679 Chicago Pneumatic Lockwasher-6mm

CA129679 Chicago Pneumatic Lockwasher-6mm

Price $3.45
CA144007 Chicago Pneumatic Decal-Safety Warning CA144007 Chicago Pneumatic Decal-Safety Warning

CA144007 Chicago Pneumatic Decal-Safety Warning

Price $3.44
CA144724 Chicago Pneumatic Shaft-Timing CA144724 Chicago Pneumatic Shaft-Timing

CA144724 Chicago Pneumatic Shaft-Timing

Discontinued
CA144725 Chicago Pneumatic Anvil-.75 Sq Dr CA144725 Chicago Pneumatic Anvil-.75 Sq Dr

CA144725 Chicago Pneumatic Anvil-.75 Sq Dr

Price $286.90
CA144726 Chicago Pneumatic Anvil-1.00 Sq Dr CA144726 Chicago Pneumatic Anvil-1.00 Sq Dr

CA144726 Chicago Pneumatic Anvil-1.00 Sq Dr

Price $352.54
CP6060-P15R Chicago Pneumatic 3/4" Square Drive Super Industrial Impact Wrench with Ring-type Retainer CP6060-P15R Chicago Pneumatic 3/4" Square Drive Super Industrial Impact Wrench with Ring-type Retainer

CP6060-P15R Chicago Pneumatic 3/4" Square Drive Super Industrial Impact Wrench with Ring-type Retainer

Price $1,809.35
KF129072 Chicago Pneumatic Spring KF129072 Chicago Pneumatic Spring

KF129072 Chicago Pneumatic Spring

Discontinued
KF129106 Chicago Pneumatic Pad Valve-Throttle KF129106 Chicago Pneumatic Pad Valve-Throttle

KF129106 Chicago Pneumatic Valve-Throttle

Price $16.10
P001915 Chicago Pneumatic Pin P001915 Chicago Pneumatic Pin

P001915 Chicago Pneumatic Pin

Discontinued
P043882 Chicago Pneumatic Dowel Pin P043882 Chicago Pneumatic Dowel Pin

P043882 Chicago Pneumatic Dowel Pin

Discontinued


Chicago Pneumatic CP6060-P15R Impact Wrench Repair Parts
